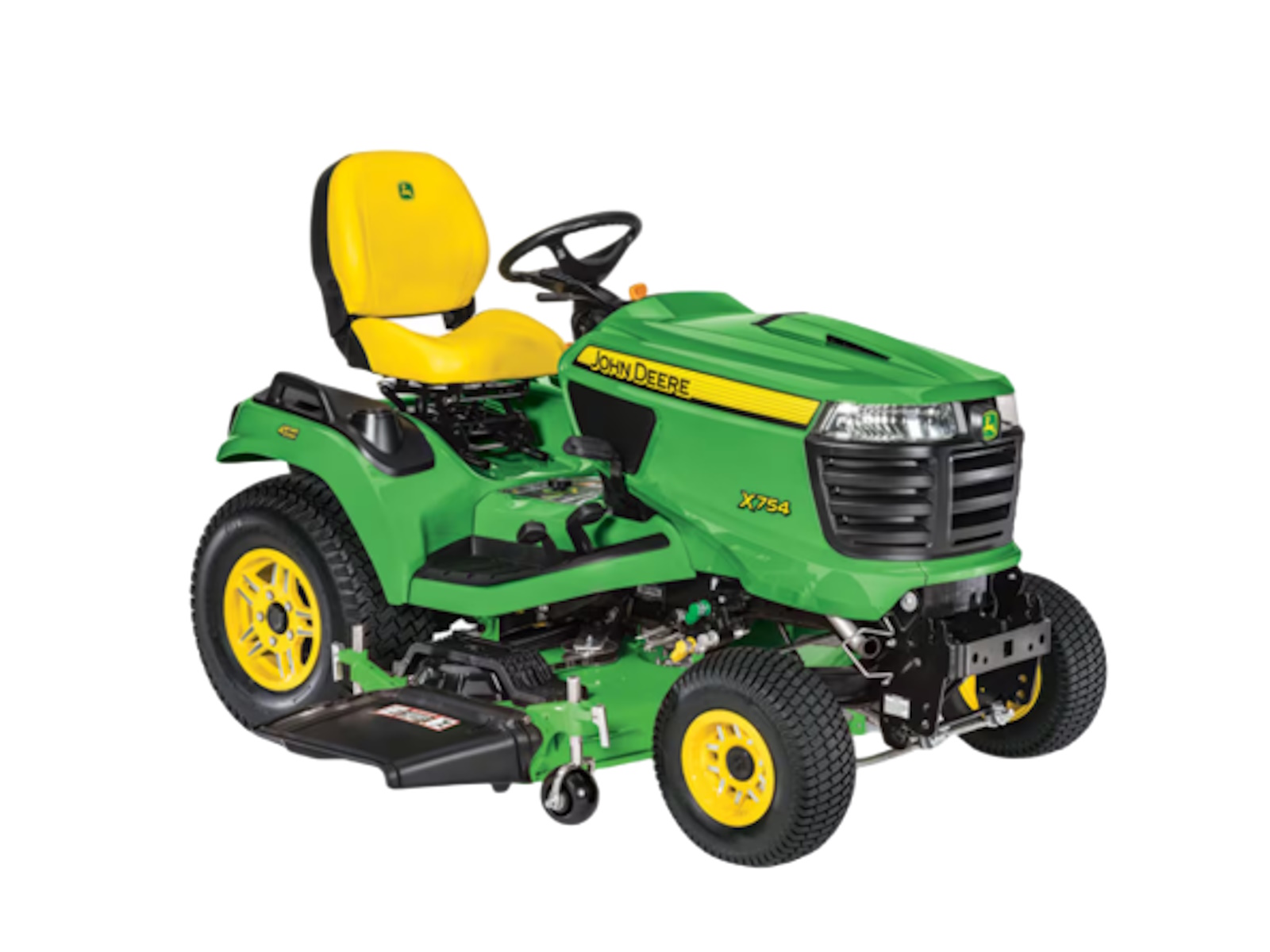

2025 John Deere - Lawn X754 48 in

• 24-hp (17.9 kW) 3-cylinder diesel engine
• Power four-wheel steer, power lift system, Twin-Touch™ forward and reverse foot pedals
• 4-year/700-hour bumper-to-bumper warranty
• Available in 48-, 54-, and 60-inch mower deck sizes

Features May Include:

• Engine is 3-cylinder diesel for fuel economy and durability

A liquid-cooled, 3-cylinder diesel engine provides exceptional power, performance, fuel economy, and durability to handle commercial-use applications:

• Large displacement provides exceptional torque
• Cast-iron block improves noise absorption
• Quality features include cast-iron cylinder liners, overhead valves, full-pressure lubrication, and replaceable oil filter
• Solenoid-shift starter ensures easy starts, even in cold weather
• High-energy glow plugs ensure quick starts in cold weather; an automatic sensing system tells the operator when the engine is ready to start
• Mechanical fuel bleed eliminates the need for tools and fuel leaking onto the ground when bleeding the fuel system:
  • Simply pump the fuel pump that is located on the side of the engine
• Electric fuel shutoff eliminates the need for a separate kill switch
• Indirect injection with pre-combustion chambers provide smooth, quiet operation
• Engine-mounted 40-amp alternator supplies regulated charge to the battery for fast recharge:
  •  Also provides plenty of power for 12-volt-powered attachments and accessories
• Low exhaust emissions are certified to meet U.S. Environmental Protection Agency (EPA) and state of California standards for cleaner air:
  • Overhead valve design for efficient airflow
  • Swirl chamber combustion design for efficient combustion
  • Liquid cooled for more consistent operating temperatures
  • Closed crankcase ventilation recirculates and burns crankcase hydrocarbons

Engine intake air is drawn in through screened panels at the base of the pedestal and on the right and left sides of the tractor:

• Cleanest and coolest area of the tractor
• Pre-cleans the air to keep large chaff and debris from entering the radiator or air cleaner
• Easy to clean and service so engine operates at optimum temperature

The diesel engine uses a heavy-duty cyclonic canister-type replaceable air filter:

• Completely sealed for effective cleaning
• Cyclone action that is designed to eject 90 percent to 95 percent of the dirt before it reaches the paper element
• Secondary safety element that provides additional filtering
• Total effective filter area of 512 sq in. (3303 sq cm)

The diesel engine uses a heavy-duty cyclonic canister-type replaceable air filter:

• Completely sealed for effective cleaning
• Cyclone action that is designed to eject 90 percent to 95 percent of the dirt before it reaches the paper element
• Secondary safety element that provides additional filtering
• Total effective filter area of 512 sq in. (3303 sq cm)

A large, 5.2-U.S. gal. (19.7-L) capacity fuel tank holds enough fuel for extended operation between refills:

• Fuel-fill location is on the left fender for easy access, increased safety, fewer spills, and convenience during filling.
• A fuel filter/separator with replaceable element includes a shutoff valve and is conveniently located on the front of the engine.

A high-capacity, regulated alternator charging system provides plenty of power to quickly recharge the battery and run electrical equipment, such as lights or a sprayer:

• 40-amp alternator is provided as standard equipment on diesel engines.

A large-capacity, 500 cold-cranking amp battery provides plenty of cranking power for quick, sure starts in cold weather:

• Mounted at the front of the tractor frame for easy accessibility

• 54-in. (137-cm) and 60-in. (152-cm) High-Capacity (HC) Mower Decks are heavy duty

A deep-deck design of 5.5 in. (14 cm) delivers excellent airflow so material can be processed quickly and efficiently. The deck is forged from 9-gauge, 0.15-in. (3.8-mm) steel and has welded-on reinforcement at the bottom edge for extra strength and durability.

High-capacity mower decks are formed in a hydraulic press to minimize the number of welds and provide a smooth underside for reduced material buildup:

• Wider and higher discharge opening provides an even clipping dispersal for an excellent finished appearance in all conditions.
• Durable plastic deflector spreads grass clippings evenly across the lawn, is hinged, and can be raised to minimize the storage space required.
• 1-in. (2.5-cm) cold-forged spindles are heat-treated for strength and supported by ball bearings.
• Front edge is raised above the blade plane to allow even cutting of tall grass.
• Blade overlap is greater than many conventional decks for a clean cut.
• Mower can side-discharge, mulch (optional), or use a Power Flow™ collection system (optional).

Ramps are provided to permit driving over the mower deck for installing and removing it from the tractor:

• Constructed of 30 percent glass-filled polypropylene for strength to carry the weight of the tractor
• Polypropylene material will not rust or corrode for lasting good appearance
• Shark tooth shaped grips designed into the ramp inclines for added wheel traction when driving onto the mower deck
• Tire grab at the rear of the ramp gives extra wheel traction
• Ramps removed and replaced without tools to permit convenient servicing of the mower spindles

A wash port is provided to make cleaning the underside of the mower deck easy:

• Hose connector is included with the mower deck.

The high-performance mulching attachment provides excellent mulching performance:

• This is a high-performance mulching attachment that includes formed steel baffles to control the material and special mulching blades for superior performance.
  • The special mulching blades that are included can also be used for side discharging and collecting, though overall performance may be slightly less than with the standard blades.
• Order: BM23977, 54 HC mulching attachment  or BM23978 60 HC mulching attachment

The MulchControl attachment makes mulching more practical for many mowing situations because it not only does an excellent job of mulching but it also allows the mower to be easily converted for times when it is more desirable to side discharge or collect the lawn material. Advantages of mulching grass clippings include:

• A beautiful looking lawn
• Grass clippings not blown onto the operator, driveways, or flower beds
• Less fertilizer use
• Elimination of the effort needed to dispose of clippings

MulchControl is an innovative, simple design that is easy to use and maintain:

• The MulchControl attachment includes baffles to control the flow of material under the deck.
• The left mower blade area is completely enclosed and optimized for mulching, thus will mulch even when the mower is in the side-discharge mode.
• Baffles around the center and right blades are optimized for mulching when the discharge baffle is closed.

The optional MulchControl attachment comes with a handle on top of the mower deck that is used to open and close the discharge baffle:

• The operator is required to get off of the machine in order to engage or disengage mulch mode.

An optional hydraulic MulchControl actuator attachment is available to replace the standard control lever and allow the operator to control MulchControl from the seat using the tractor’s hydraulic control lever.

• Four-year or 700-hour bumper-to-bumper warranty is standard

An exclusive 4-year or 700-hour (whichever comes first), single-source, bumper-to-bumper warranty* is standard for all John Deere X700 Series Tractors.

• The warranty is hassle free, with both the mower and the engine covered by a single warranty.
• If the mower is sold, the remaining warranty term is transferable to a new owner.
• Premium features of X700 Series Tractors allow for this longer warranty period, with more coverage than comparable tractors.

• Four-wheel power steering for superior maneuverability and trimming

Power steering is standard equipment on all X700 Series Tractors. It provides effortless, automotive-like control:

• Reduced operator fatigue
• Better maneuverability
• Increased productivity

Four-wheel power steering on the X734, X739, and X754 Tractors provides very significant maneuverability and trimming advantages over two-wheel-steering equipped tractors:

   1. The uncut circle diameter is greatly reduced, eliminating or greatly reducing the need to back up when trimming around trees, shrubs, etc.

• Cutting inside turns created by landscaping, flower beds, etc. can also be done much more efficiently with a four-wheel-steer equipped tractor.

   2. Interference from the mower and tractor wheels is eliminated because they are several inches away from the object being trimmed around.

• When cutting rectangle-shaped areas, square corners can be cut more effectively and efficiently.

   3. The outside turning circle is reduced, decreasing the time spent turning and increasing mowing efficiency.

• Operator station is comfortable and convenient

The tilt steering wheel can be adjusted for optimum operator comfort:

• Six positions can be selected with the push of a lever for the most comfortable setting.
• The full-up position makes getting on and off the tractor easy.
• The steering wheel is designed for comfortable, no-slip operation.

Two-piece, 21-in. (53-cm) high-back seat, with John Deere branded embroidery, has a thick seat cushion for lasting comfort, even after a full day of use. The back can be angled to maximize operator comfort by using a convenient lever on the side of the seat.

A four-bar adjustable seat suspension and 7-in. (18-cm) slide-rail fore-aft adjustment are provided to optimize operator comfort.

Optional armrests increase operator support and comfort, thus reducing fatigue and improving productivity, especially when mowing for extended periods of time. Armrests are adjustable to suit the operator. The embroidered logo on the seat back makes this upscale seat look as good as it feels.

The optional air-ride seat minimizes vibration the operator feels while using the tractor and provides a very smooth ride. This seat has a full pneumatic suspension that is easy for operators to adjust to suit their individual needs. Wide, shaped ergonomic cushions are comfortable and reduce back strain.

Features include:

• Simple switch on the front of the seat makes adjustment easy
• Back-angle adjustment
• Three-position lumbar adjustment
• Armrest height adjustment
• 7-in. (18-cm) fore-aft adjustment

Key benefits of the seat:

• Provides maximum ride comfort and quality, thus minimizing operator fatigue
• Dampens lower frequency vibration better than mechanical suspensions

Foot pads help isolate the operator's feet from vibration:

• Provide a non-slip surface for safer mounting or dismounting the tractor
• Attractive styling

The fender handles provide a convenient handhold to use when getting on and off the tractor and when operating on slopes:

• Plastic material is durable and will not rust.
• The cup holder is designed to hold a variety of drink container sizes.
• Toolbox provides a safe and convenient location to store tools and supplies.
• Exact Adjust mower leveling tool and gauge storage features are provided in the tool box.

12-V outlet located for the convenience of connecting a variety of electrical and electronic equipment:

• Outlet switch is located on the dash for starting and stopping an electric spreader or sprayer.
