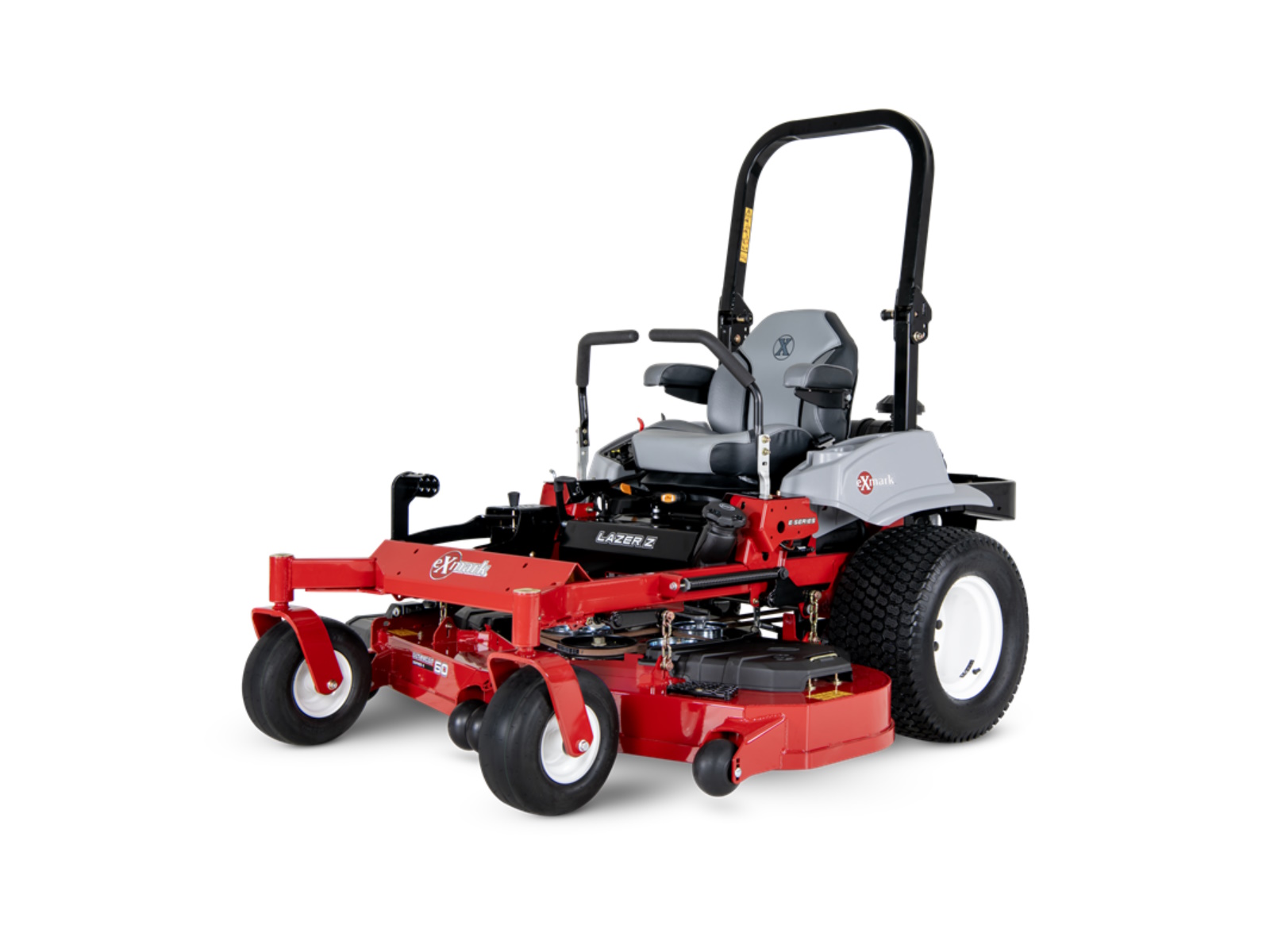

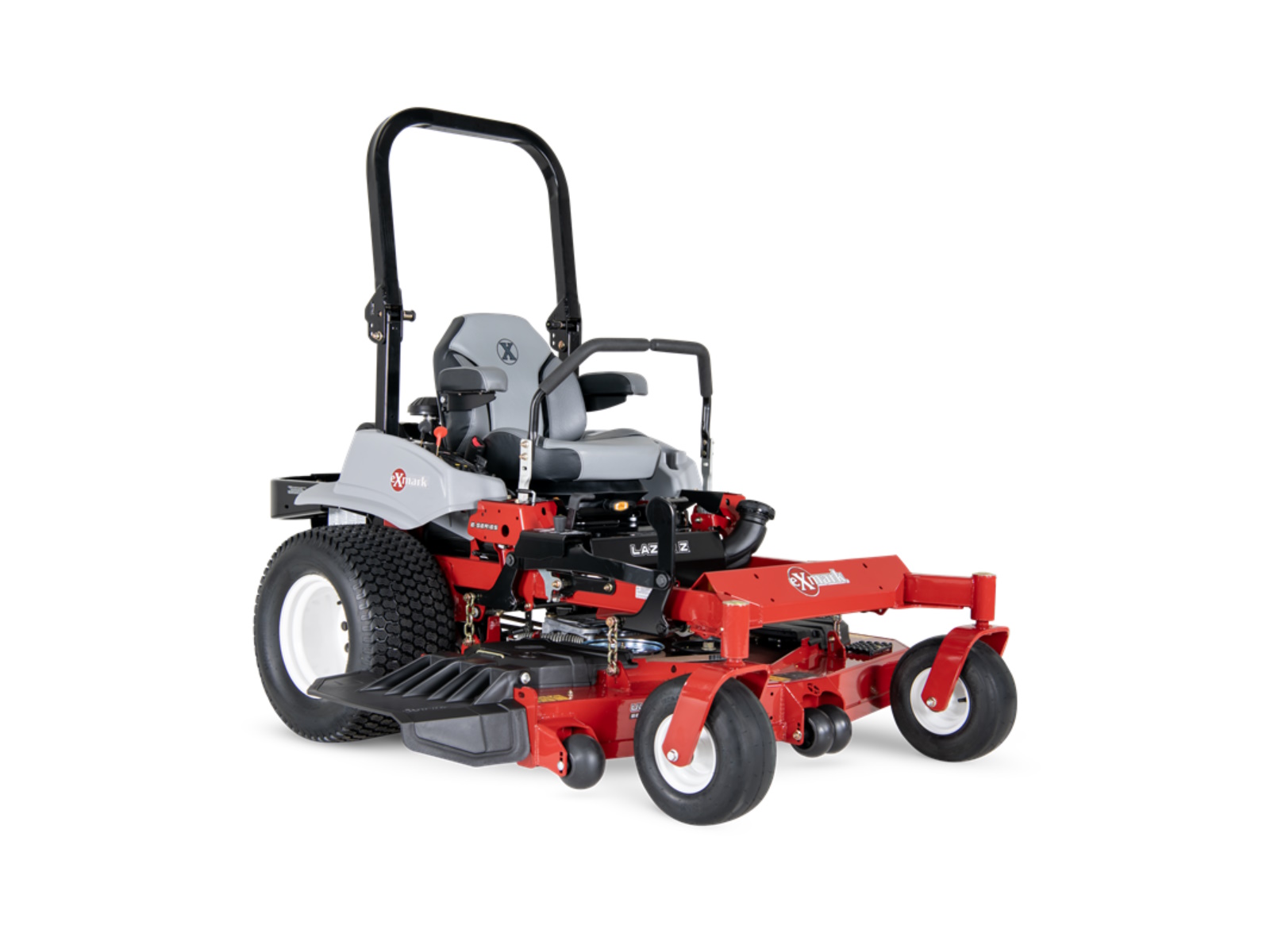

2027 Exmark Lazer Z E LRE801GKA604A3
Lazer Z E-Series with 25.5 HP* Kawasaki FX801V Engine and 60“ UltraCut Series 4 Deck

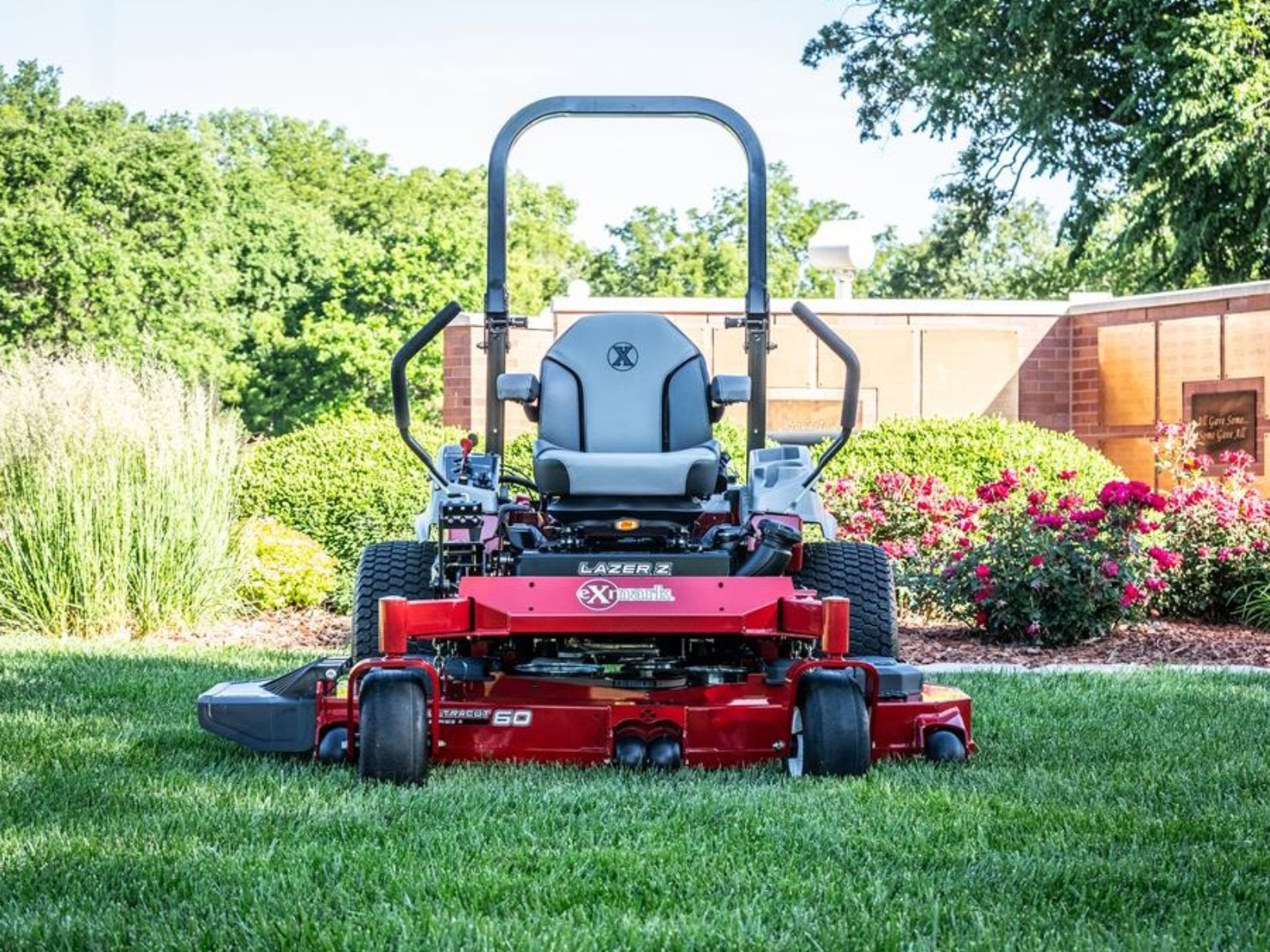

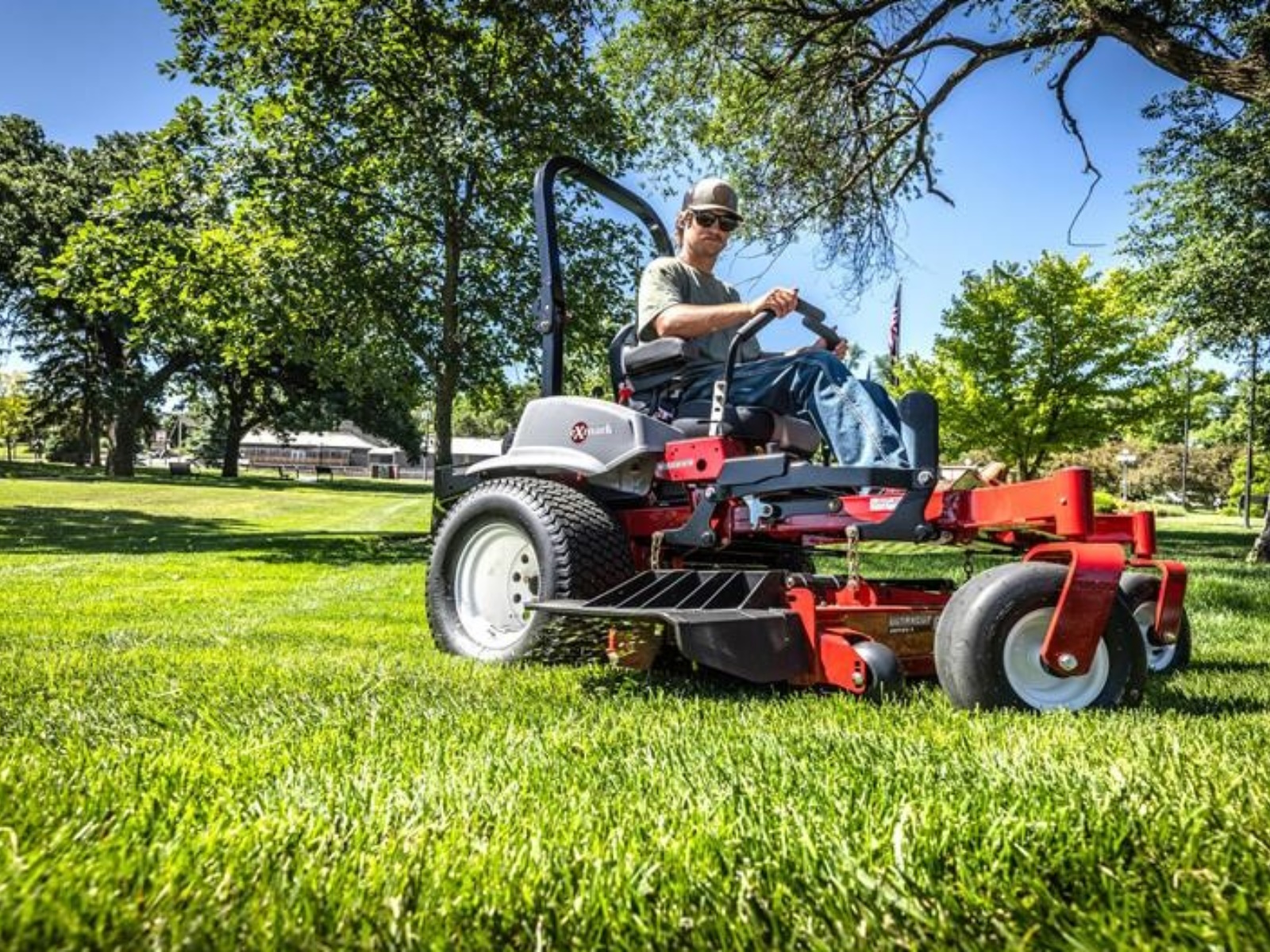

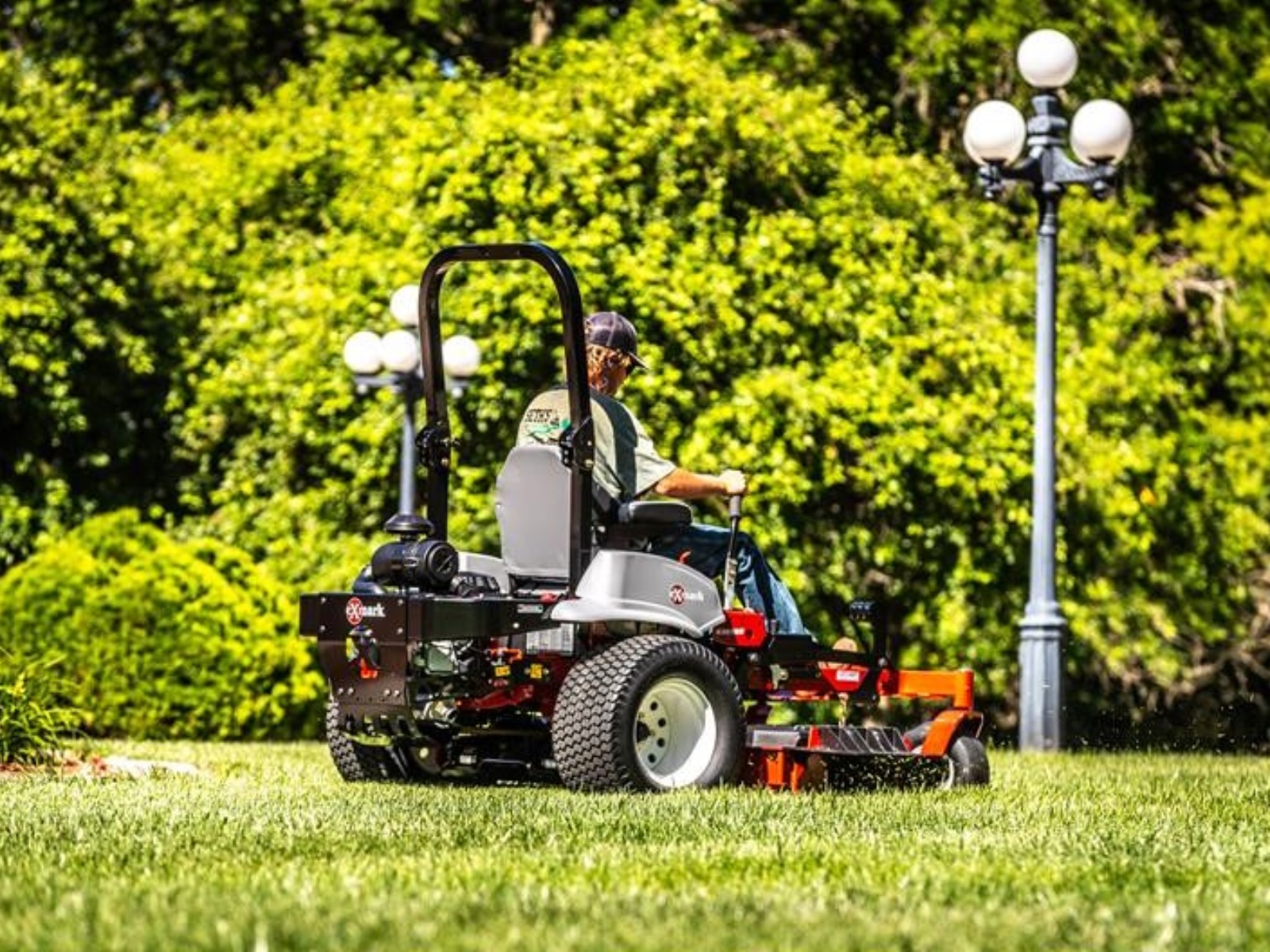

Discover the Exmark Lazer Z E-Series Mower
As the most affordable model in the Lazer Z line, the all-new 2025 Lazer Z E-Series delivers an unbeatable combination of cut quality, productivity, durability and value. Select from 48-, 52-, or 60-inch UltraCut Series 4 cutting decks, all equipped with a newly redesigned discharge chute that distributes clippings over a wider area. A choice of twin-cylinder Kawasaki, Kohler, or Vanguard twin-cylinder commercial engines are available, all equipped with heavy-duty external air filters. Power is delivered through unitized Hydro Gear pump and motor units for up to 11 mph forward ground speeds. A new full-suspension operator seat increases operator comfort during long work days.
Like our entire lineup of zero-turn mowers, the Lazer Z E-Series delivers unmatched durability and long-term value. Be sure to check out the rest of the Lazer Z family, including the Lazer Z S-Series zero-turn mower.
Features may include:

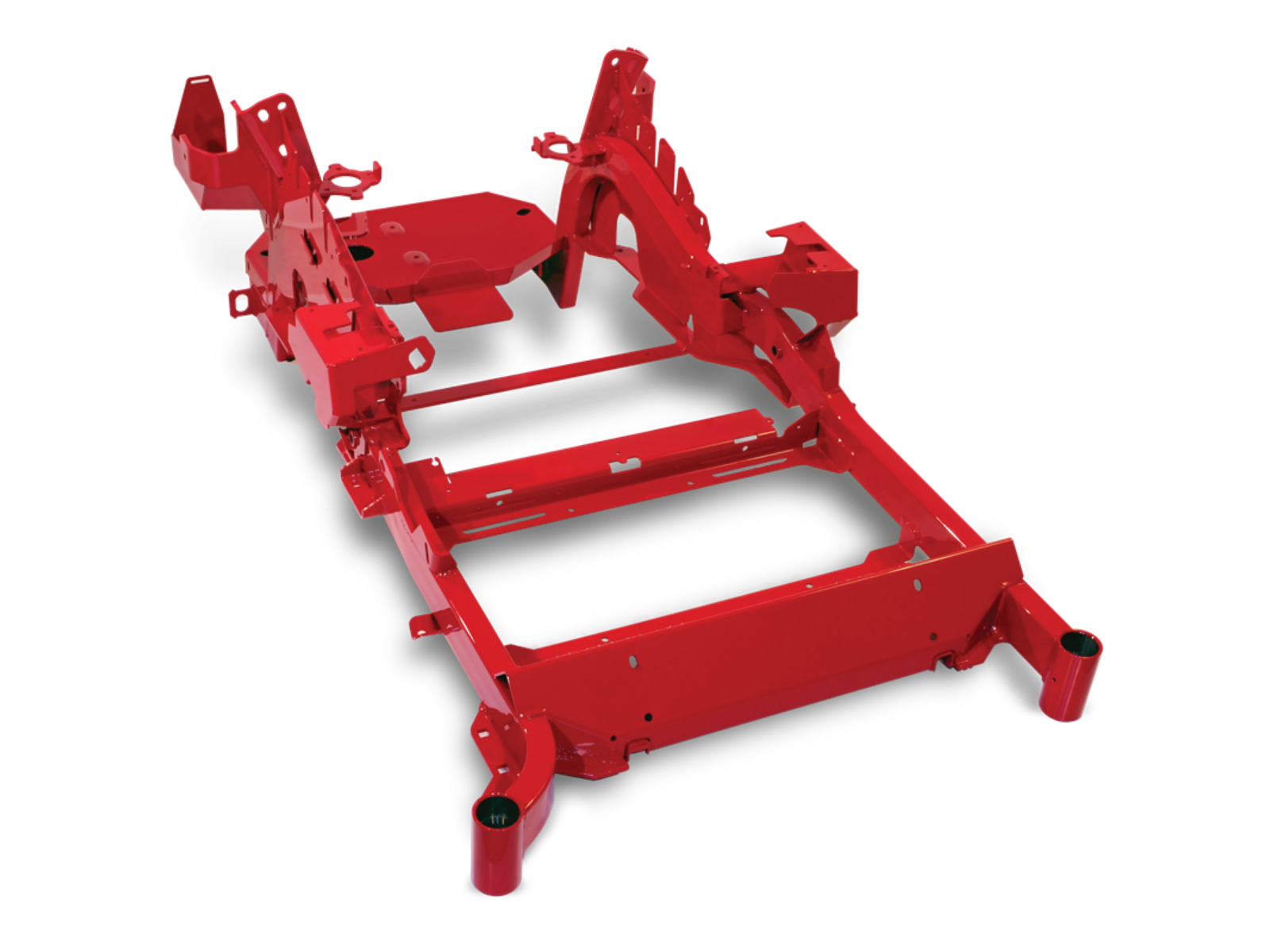

Unibody Frame
The Lazer Z E-Series utilize a one-piece unibody frame that delivers increased durability with fewer parts –– a classic case of “less is more”.

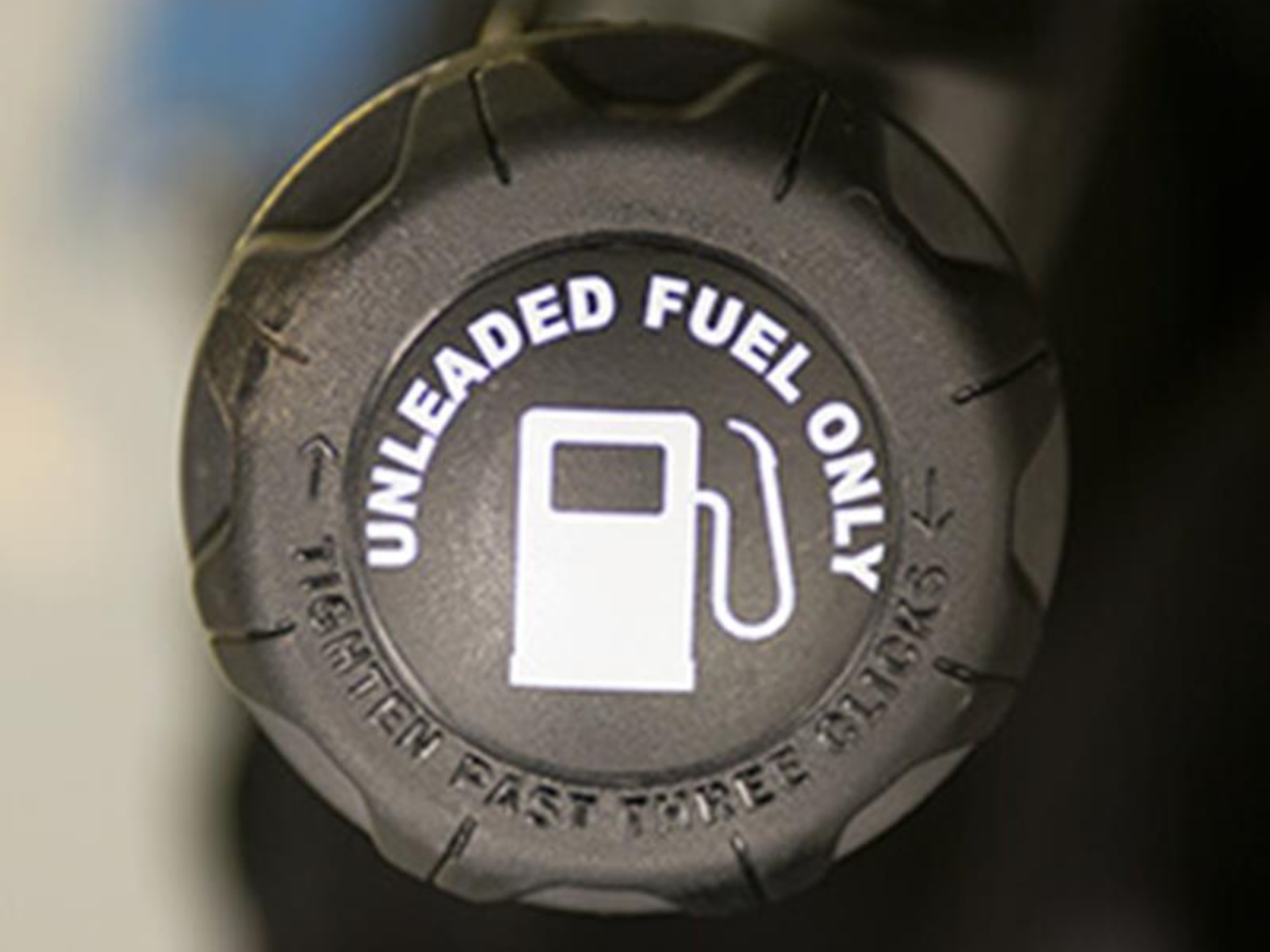

Less Time At The Pump
Lazer Z E-Series models feature a single 9.5-gallon fuel tank with a single fill location.

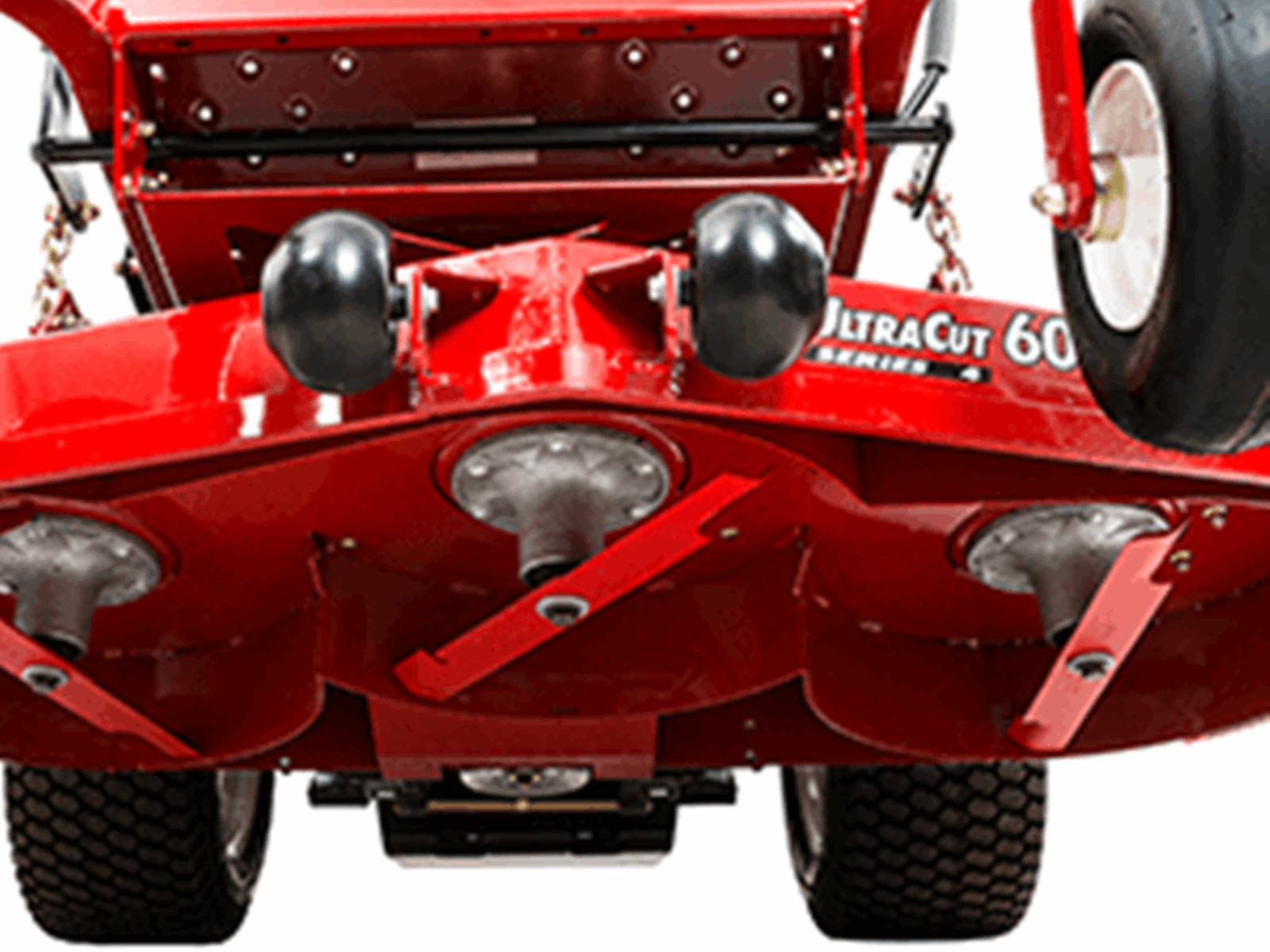

Ultracut Series 4 Deck
Built from formed and welded high-strength steel, UltraCut Series 4 full-floating decks feature maintenance free spindles with splined blade drivers to stop bolt tightening on impacts. The idler arm pivot bearings are also maintenance free.

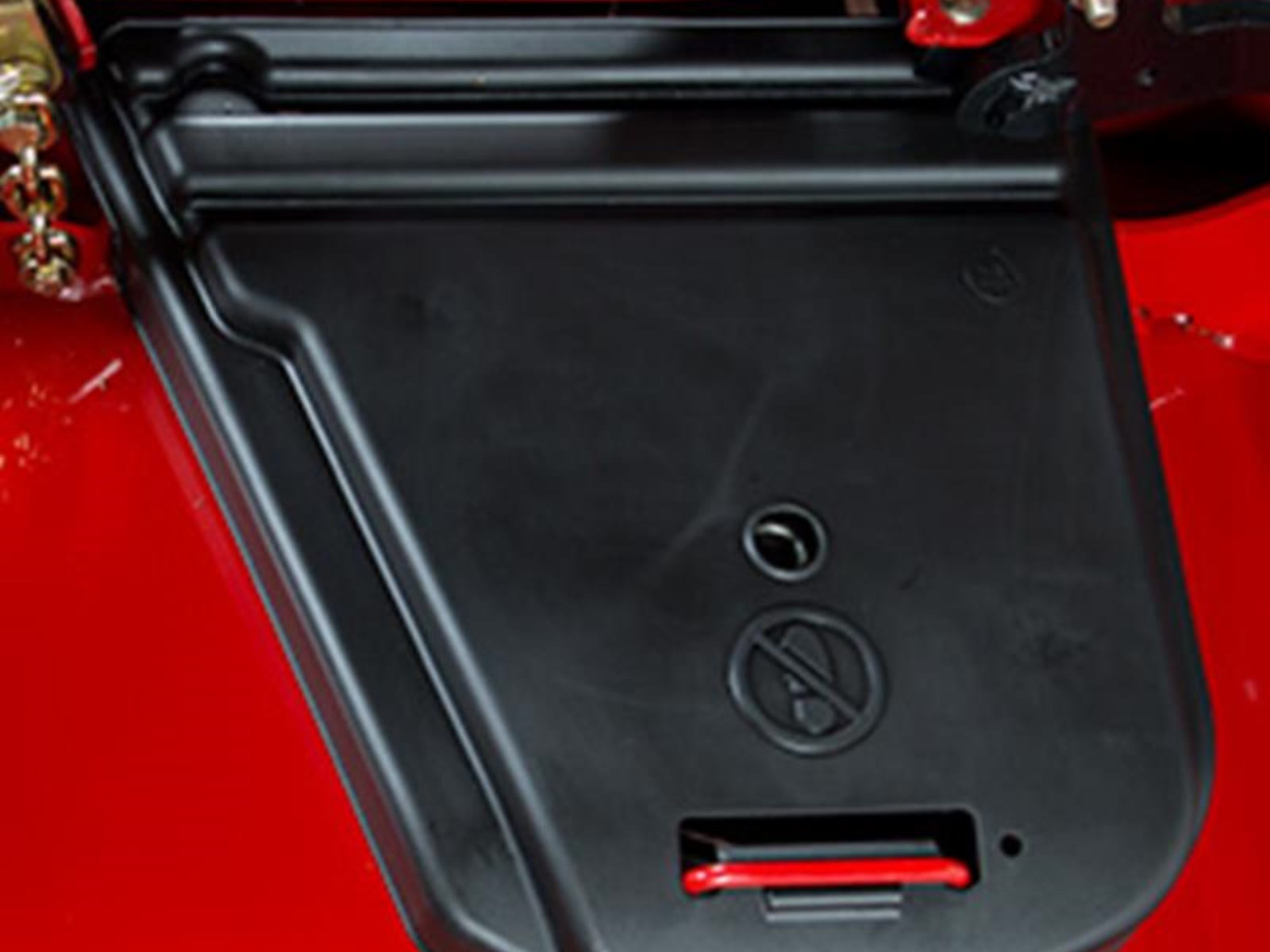

Tool-less Belt Removal
The deck and hydro belts can be installed and removed without tools.
Reduced Maintenance
With just two annual grease points and maintenance-free sealed bearing spindles, the Lazer Z E-Series delivers maximum performance with minimum maintenance.
Info
Industry
Power Equipment / Lawn
Make
Exmark
Model
Lazer Z E LRE801GKA604A3
Trim
Base
Year
2027
MSRP
N/A
Category
Zero Turn Mowers
Subcategory
Commercial
Specs
Family
Lazer Z E-Series
Power
25.5 hp
Cutting Width
Cutting Width: 60 in
Height
70.1 in | Cutting Heights: 1.5 in to 5.5 in in 0.25 in increments
Width
72.7 in
Length
84.6 in
Weight
Curb Weight: 1080 lbs
Deck Size
Deck Lift: Standard; foot-controlled deck lift changes cutting height and lifts the deck to maneuver around obstacles, or place in transport position. | Deck Style: Floating Deck | Deck Style Description: Full-floating UltraCut Series 4. Side discharge standard, with molded discharge chute and option to bag or mulch. | Deck Construction: 10-gauge high strength alloy top that is formed and continuously seam welded, with 7-gauge side skirt, and 7-gauge reinforcement plate welded to spindle mounting locations for improved strength.
Blades
Blade Spindles: No maintenance, sealed and non-greasable spindles; 7.75"-diameter cutter housing with 25mm (.98 in) diameter spindle shaft and splined blade driver. | Blade Tip Speed: Approximately 18,500 fpm | Blades: 3 blades at 20.50 in Length
Engine
Engine Spec: FX801-AS31-R | Engine Brand: Kawasaki | Engine Model: FX801V | Engine Series: V-Twin
Transmission
Transmission: Hydrostatic | Transmission Brand: Hydro-Gear | Transmission Speeds: Infinitely Variable
Engine Displacement
852 cc
Fuel Type
Fuel System: Carbureted | Fuel Type: Gas Carbureted
RPM
Engine Speed: 3750 RPM
Fuel Capacity
9.5-gallon single fuel tank with single fill location
Tires
Front Caster Tires: 13 x 6.5-6, smooth tread, pneumatic. Sealed ball bearings. | Drive Tires: 24 x 12-12, 4 ply Super Turf TL
