2024 Titan Implement Economy Series Pallet Fork Frame Attachment, Fits John Deere Tractors 36"

PRODUCT OVERVIEW

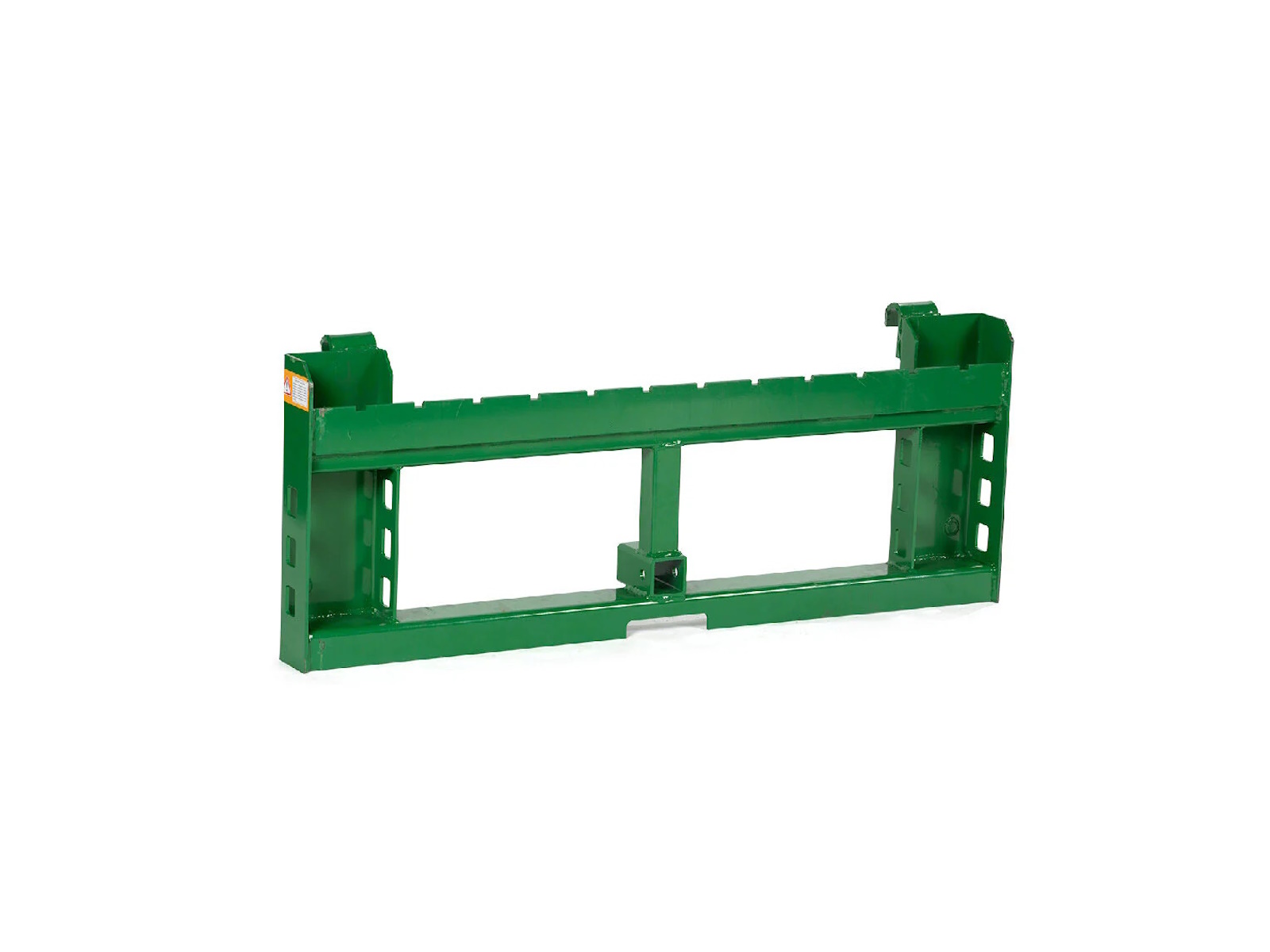

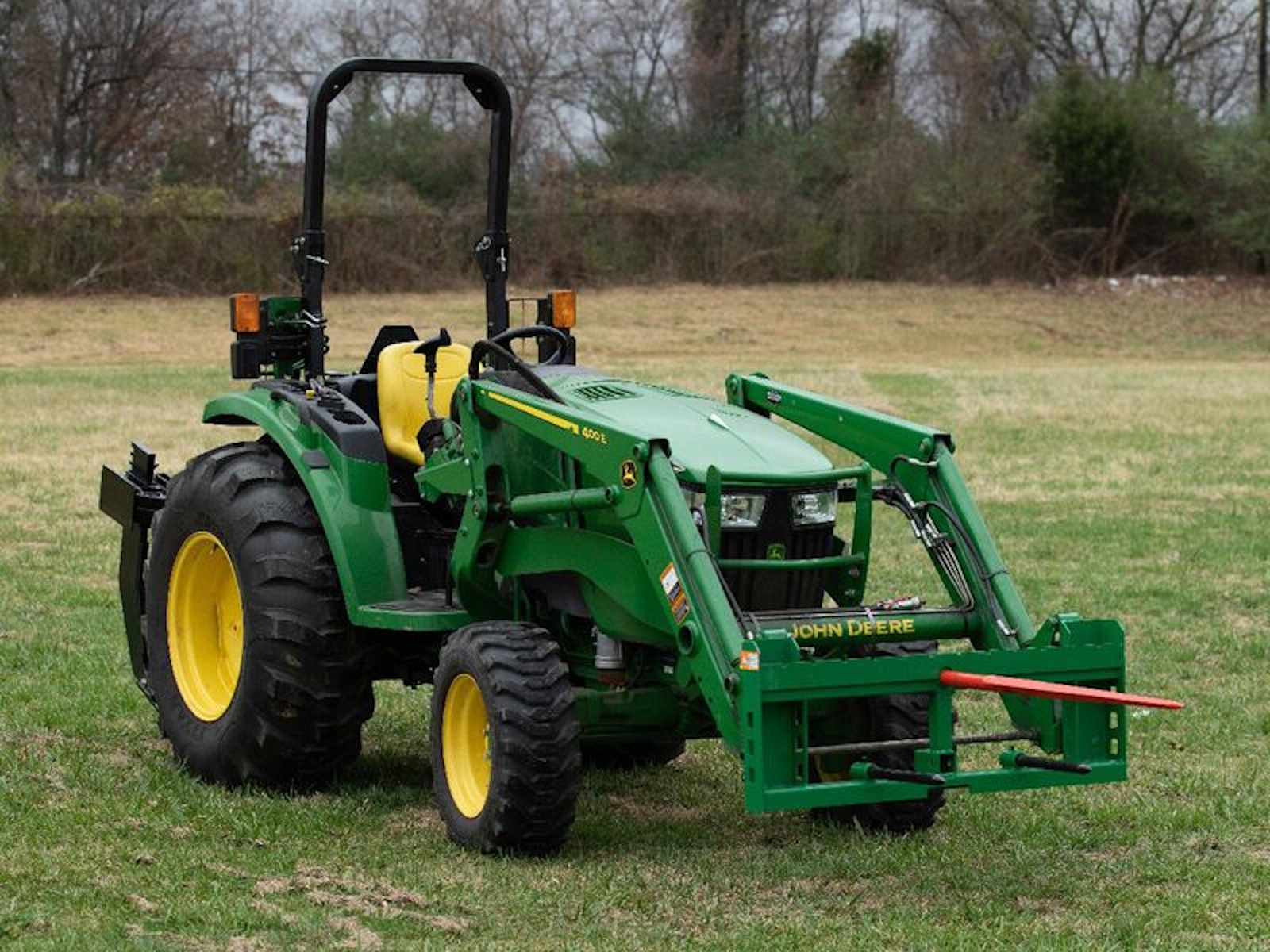

This Pallet Fork Frame Attachment is designed to fit 200, 300, 400, and 500 series John Deere loaders and will handle most lifting and lightweight towing tasks without taxing your machine's power or lift capacity. This durable frame is rated at a 4,000-pound capacity and is crafted with no back guard, providing maximum visibility for optimal fork and spear placement. The frame features a 2-inch receiver hitch, a slotted carriage bar for mounting class 2 pallet fork blades, and Conus 2 sleeves for installing hay bale spears. Whether you are moving something large or small, this sturdy pallet fork attachment will do the job.

DETAILS

• ‍Compatible with John Deere Loaders
• Carriage Bars and Hay Spear Sleeves are already installed

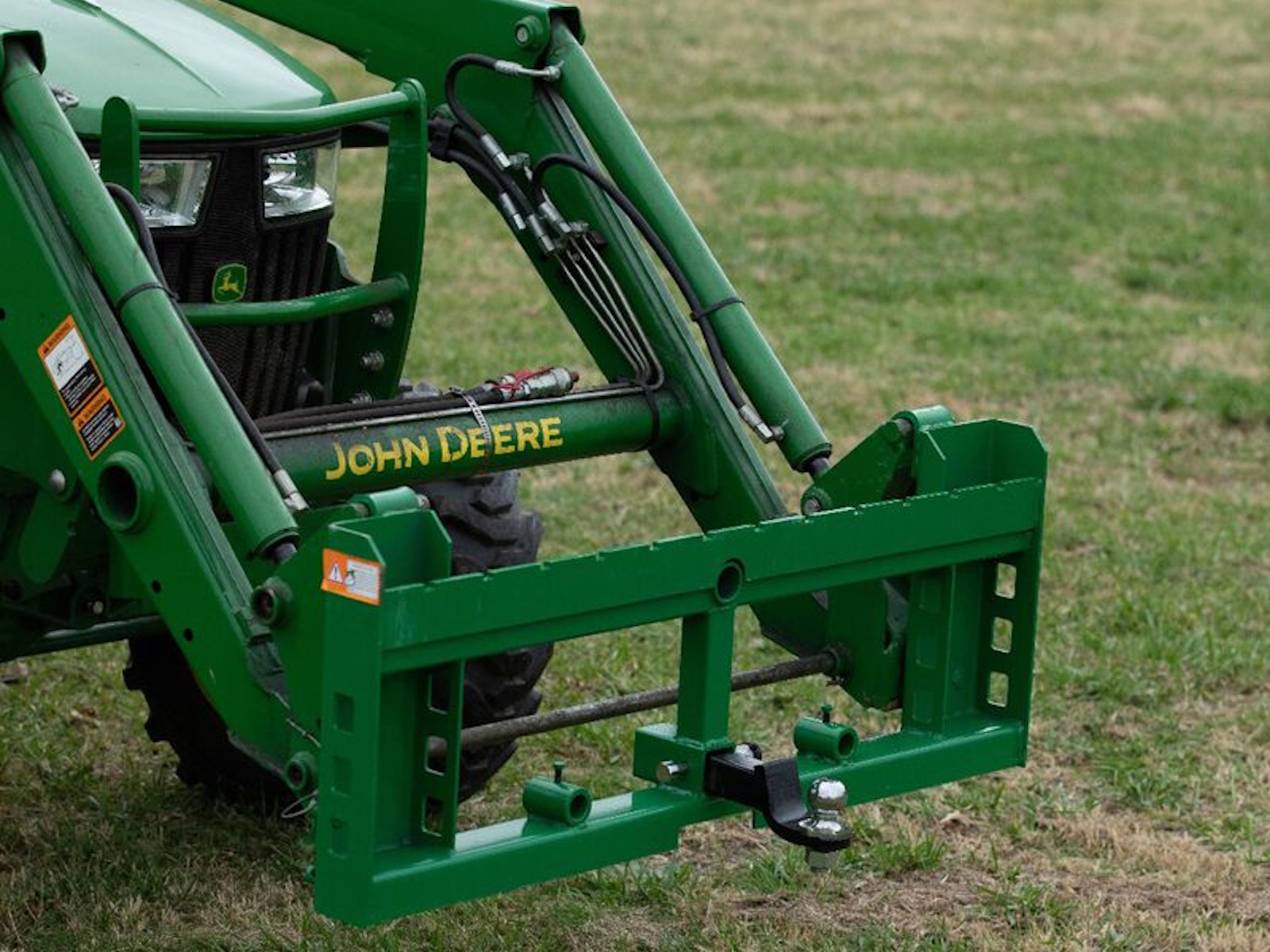

• Standard 2-inch trailer receiver hitch is welded to the frame
• All in one frame design for moving pallets, large round hay bales, and trailers

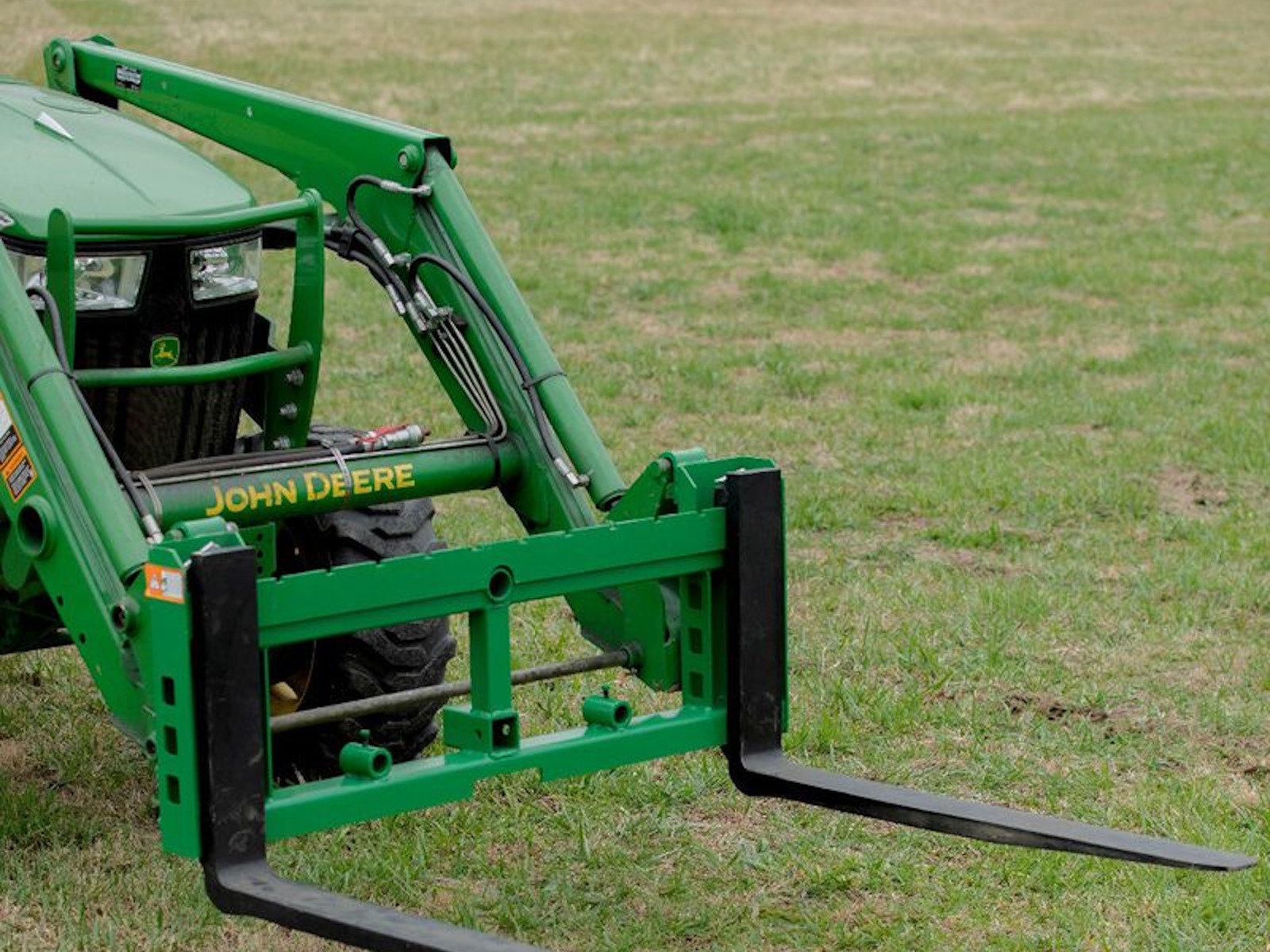

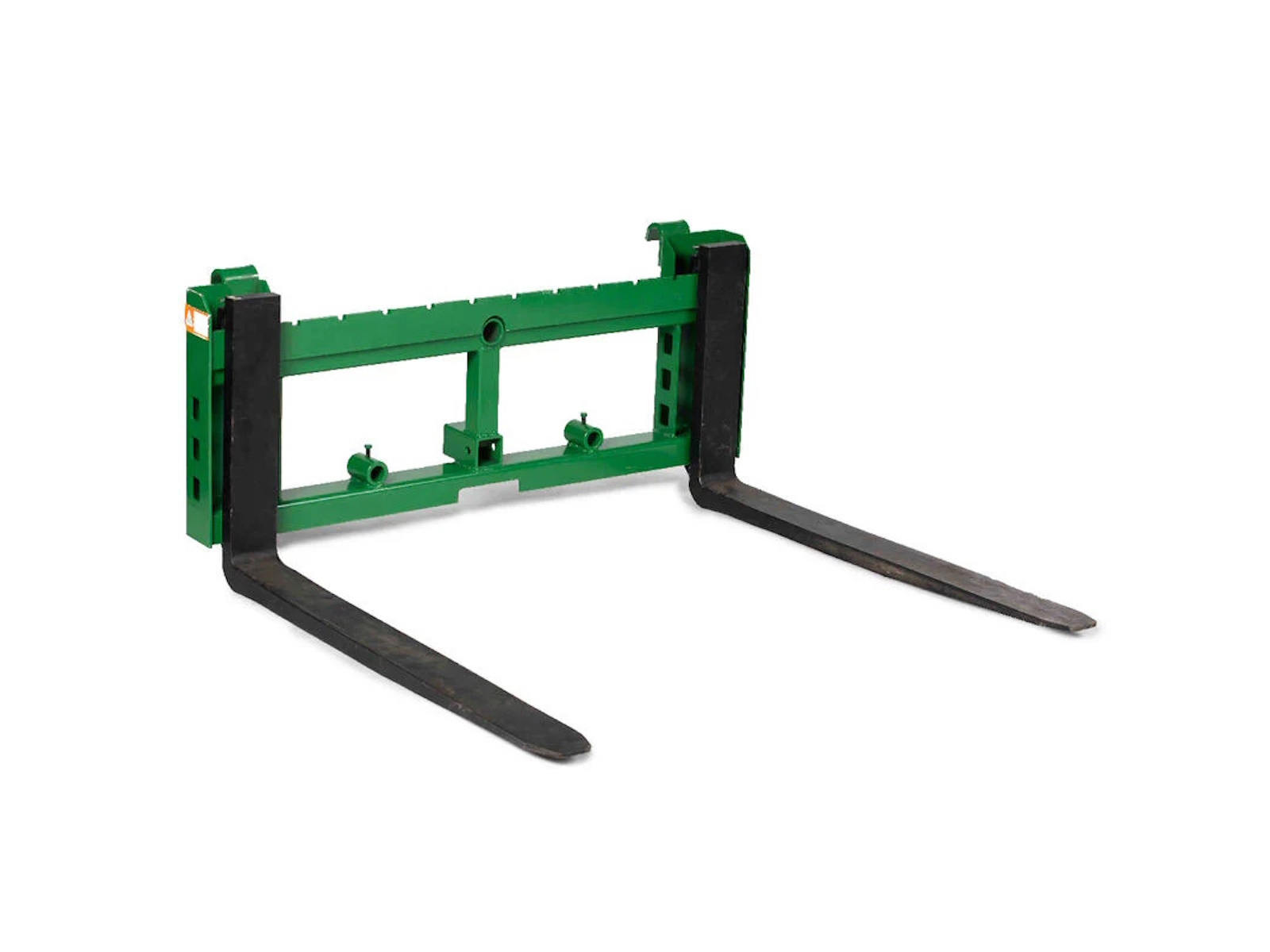

• Accepts Class II Pallet Fork Blades (sold separate)

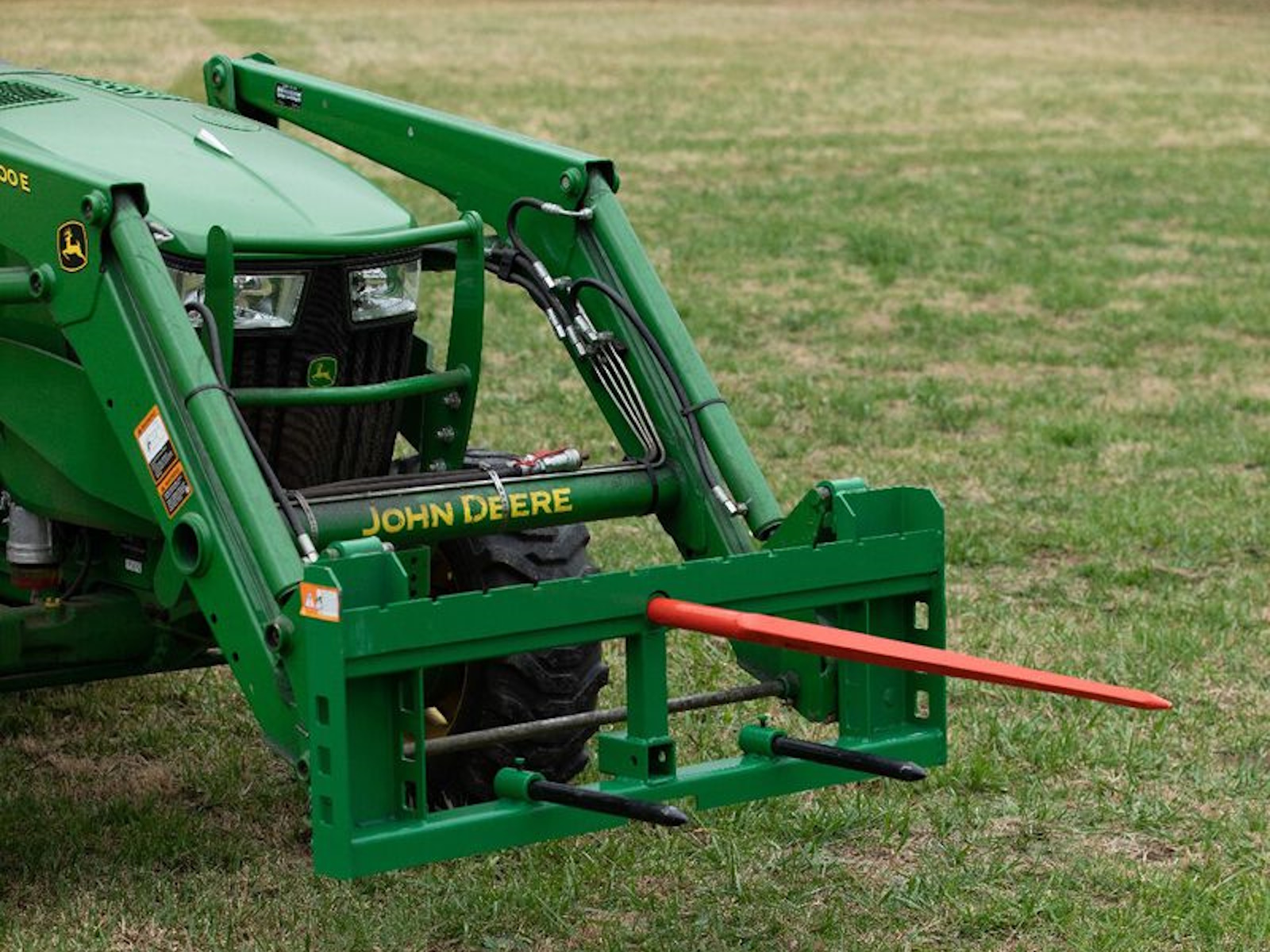

• Accepts (1) Conus 2 Hay Bale Spear (sold separate)

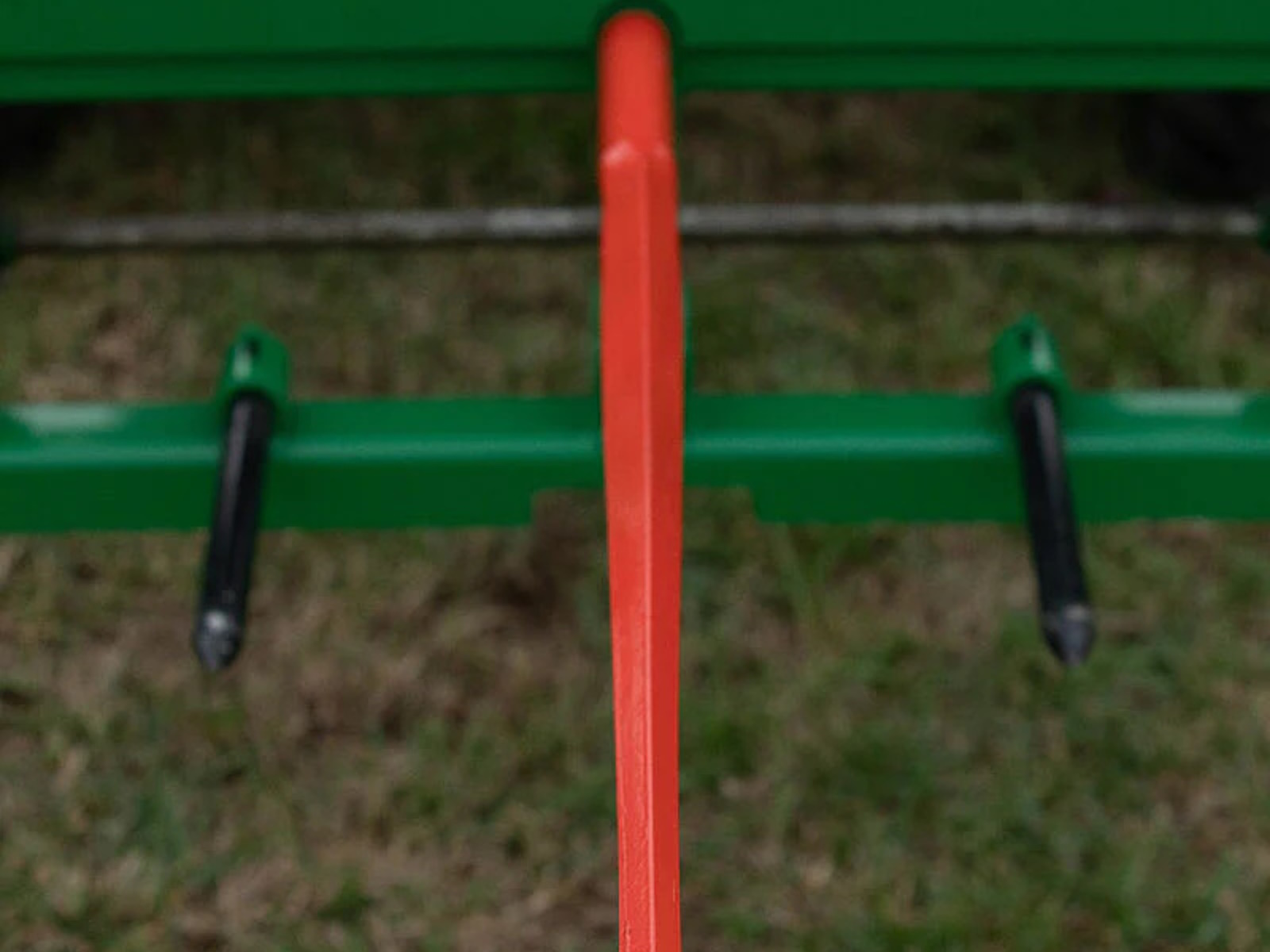

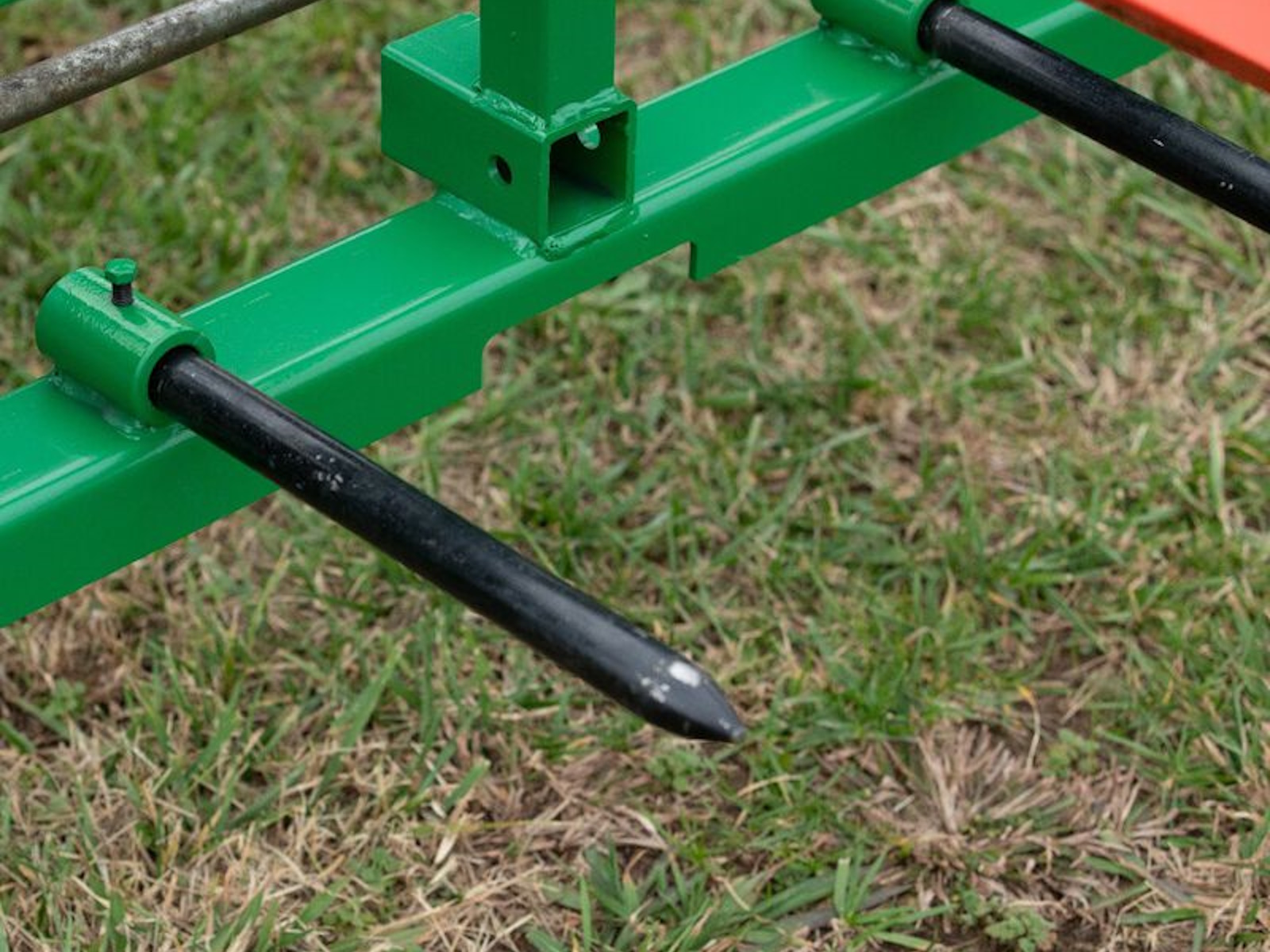

• Accepts a Pair of 17.5-inch Stabilizer Spears (sold separate)
• Top pin set fits D120, D160, D170, H120, H130, H140, 120R, 200X, 200CX, 220R, 300X, 300CX, 300E, 300R, 305, 320R, 400X, 400CX, 410, 419, 420, 440, 440R, and 460 series loaders
• Bottom pin set fits 500, 510, 512, 520, 521, 540, 541, 542, and 553 series Ag loaders
• Does not fit any loaders equipped with the Global/Euro style or universal Skid Steer style mount
