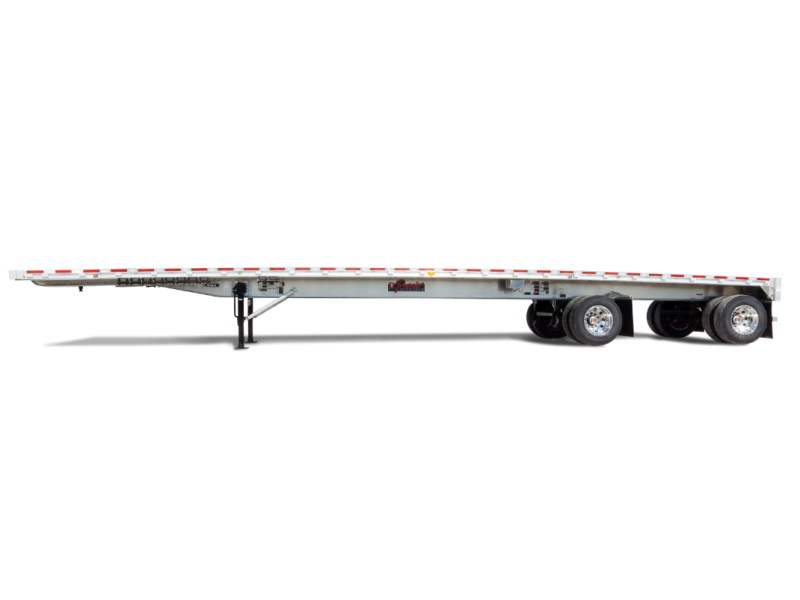

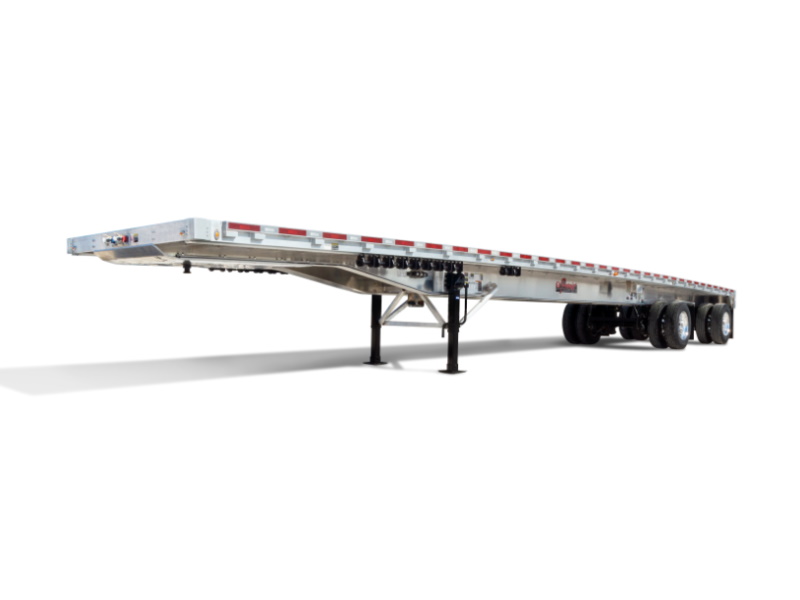

    2023 Wilson Trailer Premier AF-1080 48 ft 10 feet B

    PREMIER ALL ALUMINUM FLATBED TRAILER
    The Premier AF-1080 all aluminum flatbed has a base weight of approximately 8,000 lb. on a typical 48 ft. unit and a 23" main beam depth. The trailer features one-piece aluminum flanges and sections without any splices and its load capacity rating is among the highest in the industry.

    The Premier all aluminum drop deck is what an all aluminum drop deck should be – A full capacity product able to carry an evenly loaded capacity of 80,000 pounds and a concentrated load of 52,000 pounds in 4 feet of space.

    Features may include:

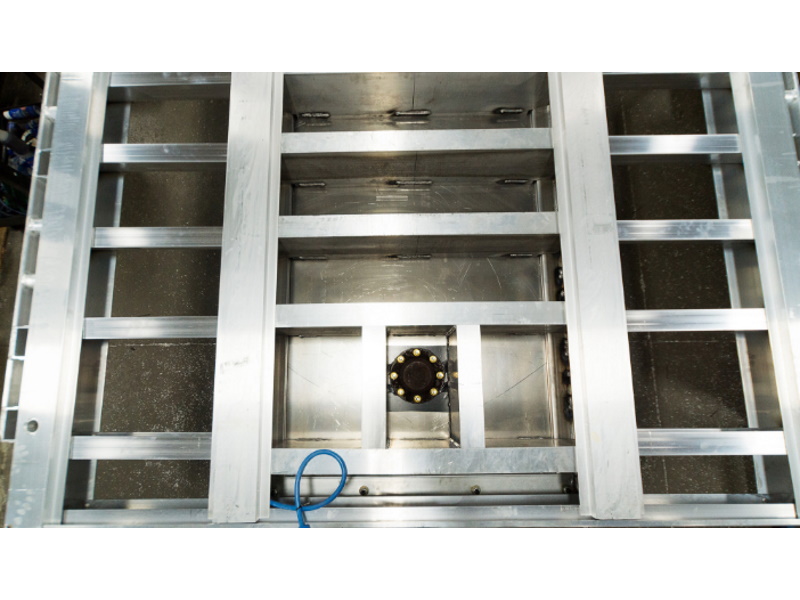

    • KING PIN AREA
      Of course, the king pin area is made of lightweight, rust-resistant aluminum and is bolted in for easy maintenance.
    • SIDE RAILS

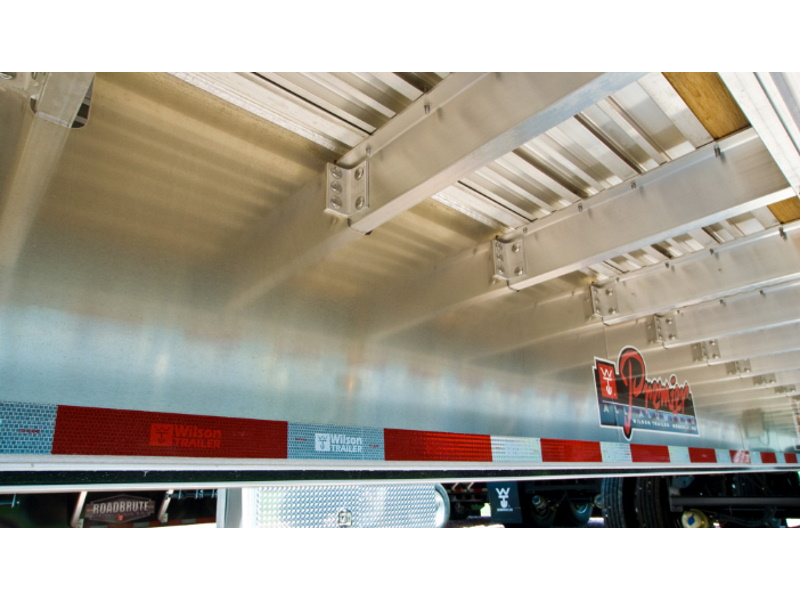

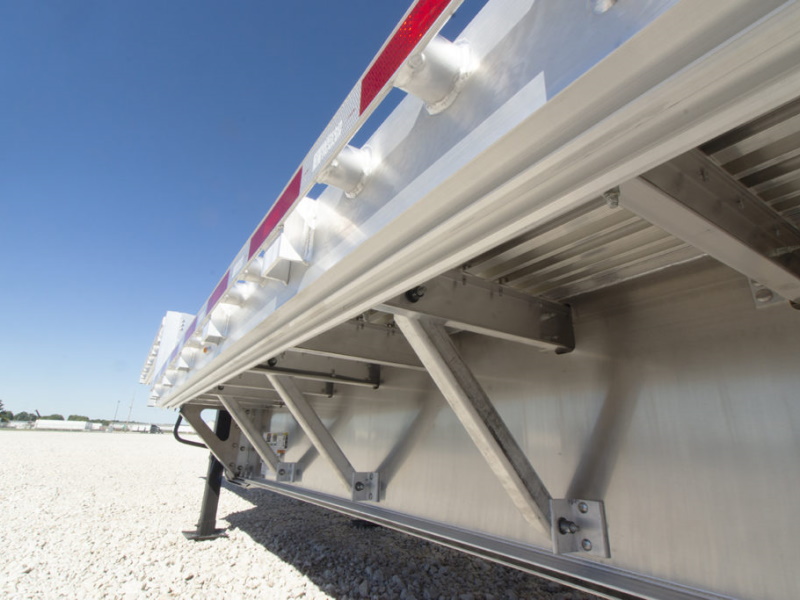

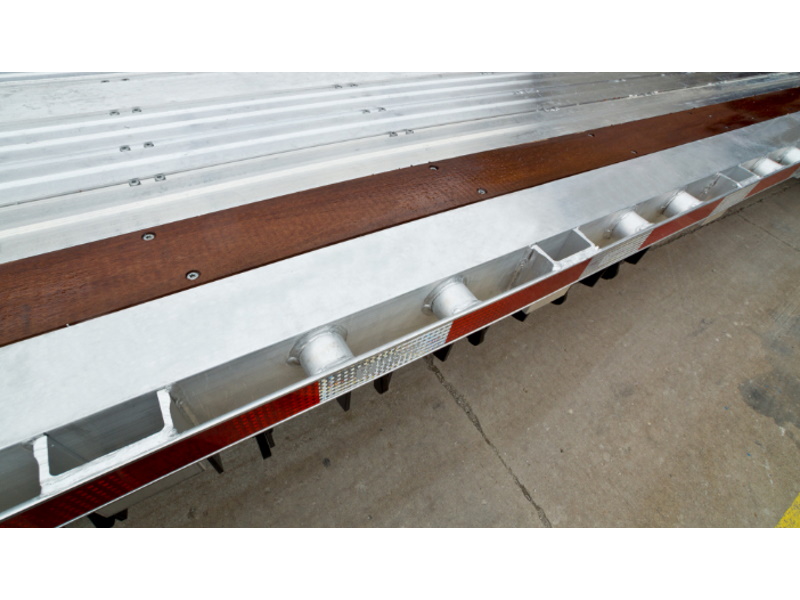

      Wilson’s patented side rail design is fully supported, top and bottom, with our full height TJ style crossbar, which is connected to the side rail in three areas. This design provides unitized strength to the side rails, floors and crossbars, plus increases the side rail’s securement capacities. Shown here is our popular C style side rail. We also offer optional TJ and C+ side rails. See their advantages in the Popular Options section of this website.

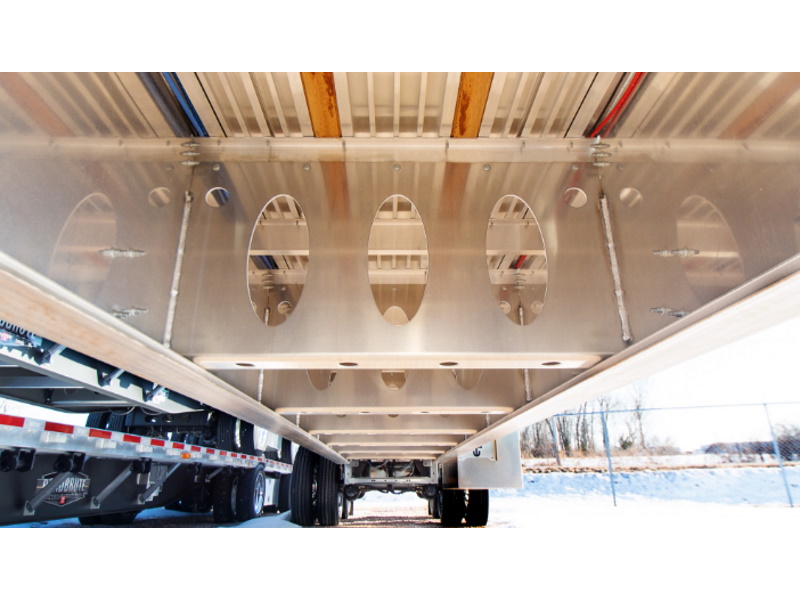

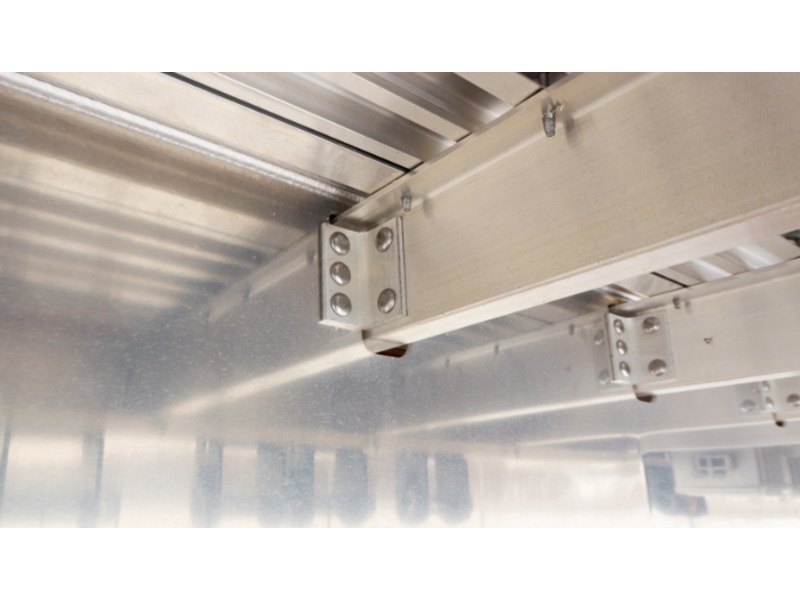

    • CROSS STRUCTURE
      Three full depth internal aluminum cross structures are used for beam stabilization on both Roadbrute and Premier trailers.

    Info

    Industry

    Trailer

    Make

    Wilson Trailer

    Model

    Premier

    Trim

    AF-1080 48 ft 10 feet B

    Year

    2023

    MSRP

    N/A

    Category

    Flatbed Trailer

    Subcategory

    Flatbed Trailer

    Specs

    Length

    Available in 40'-0" through 53'-0" overall length(s) in even one-foot increments.

    Width

    Nominal 96" standard; 102" width available as extra-cost option.

    Height

    56-1/4" - no load on 11-24.5 tires.

    Notes

    KING PIN: 8" high assembly. Standard setting is 30". Other settings available.

    Floor

    1-3/8" aluminum floor with 4 nailer strips is standard.

    Lights

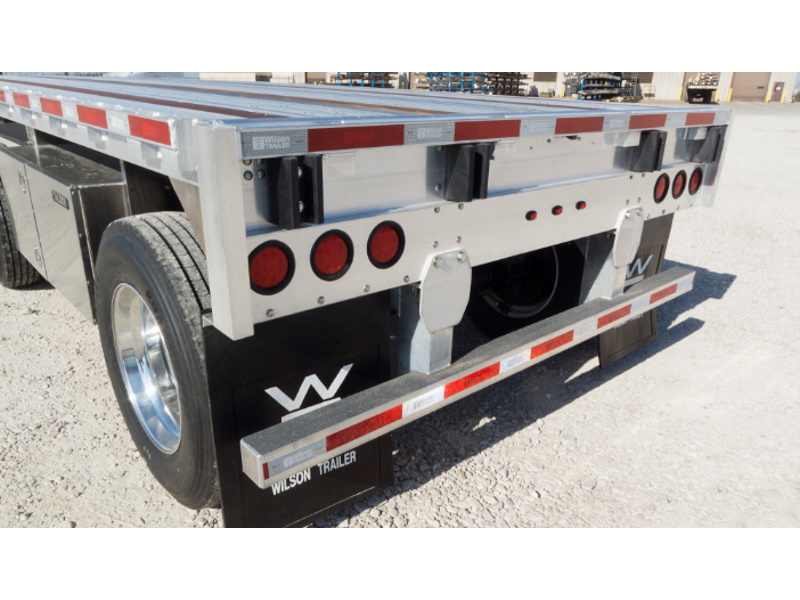

    System: 12 volt I.C.C. standard equipment with 7-way connector. Grote internal ground wiring harness with Ultra-Blue sealed trailer wiring system and Grote LED lights are standard. Exterior lights are Grote MicroNova™ oval grommet mounted lights. Combination Turn/Clearance lights is standard. Tail lights are Lexan, factory sealed, and rubber grommet mounted, and consist of 2 groups of 3 individual STOP & TURN tail light units: one group on each side of rear end. Clearance & marker lights, conspicuity tape, and license plate light are standard. See Light Standard Bulletin.

    Suspension

    Hendrickson AANT-23K air ride is standard. The standard axle spread is 10'-1" (3.07m). Various axle spreads are available as options.

    Axles

    Two: 5-3/4" round, rated at 23,000 lb. (10,215 kg), integral with suspension.

    Brakes

    16-1/2" x 7" x 5/8" with HXS extended service brake package, single anchor pin, air brakes, no dust shields. Mandatory FMVSS-121 and ABS anti-lock braking system standard.

    Wheels

    Eight, 8.25 x 24.5, white, steel disc.

    Tires

    Eight 11-24.5 Radial Bridgestone R196.

    Finish

    All steel components are cleaned chemically, rinsed, and primed with a VOC-compliant, two-component urethane HS primer for rust protection, followed by a finish coat application of VOC-compliant HS acrylic urethane paint in a choice of Silver, White, Black, Dark Blue, or Red standard colors. All aluminum components are left natural.
