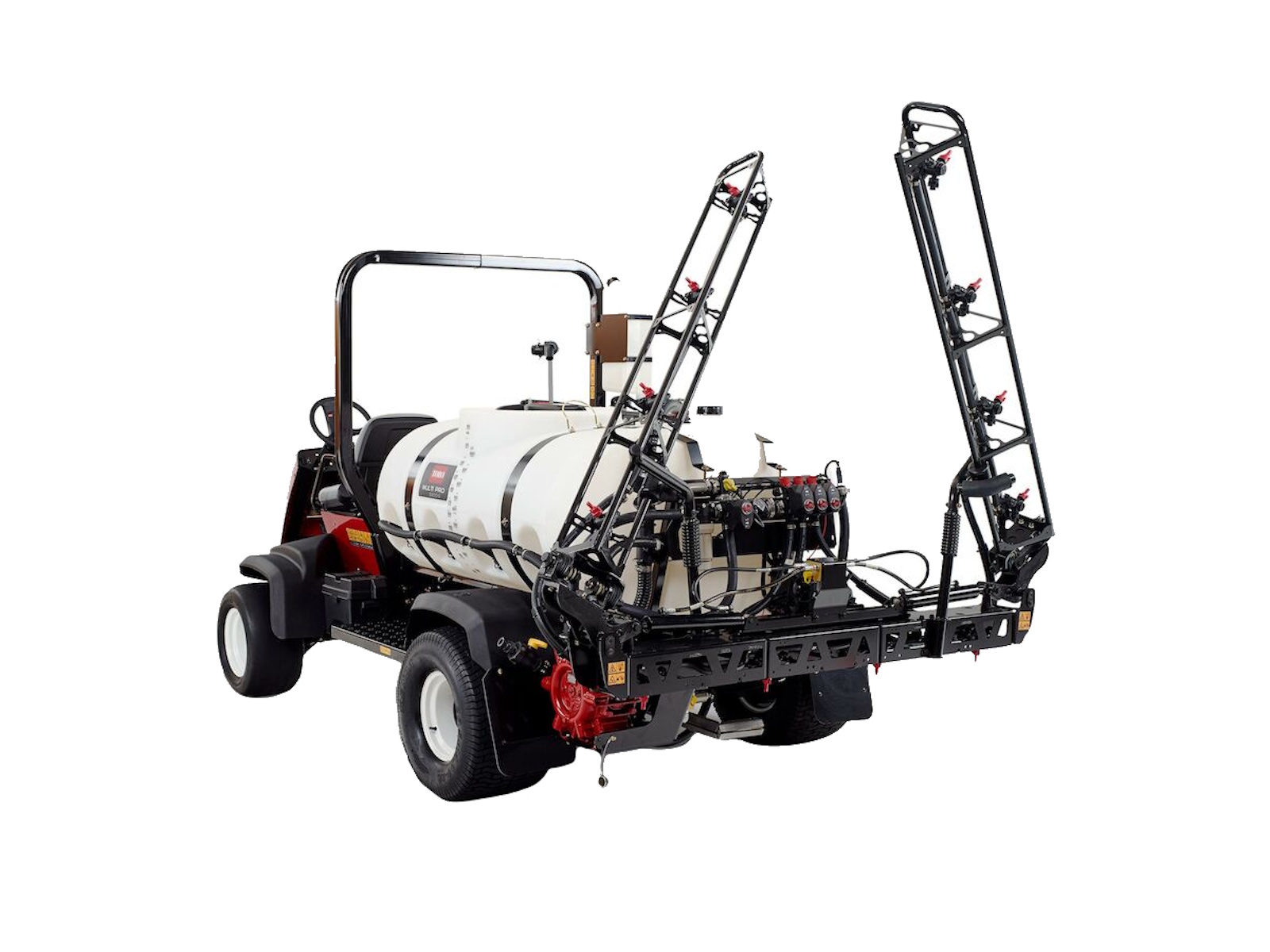

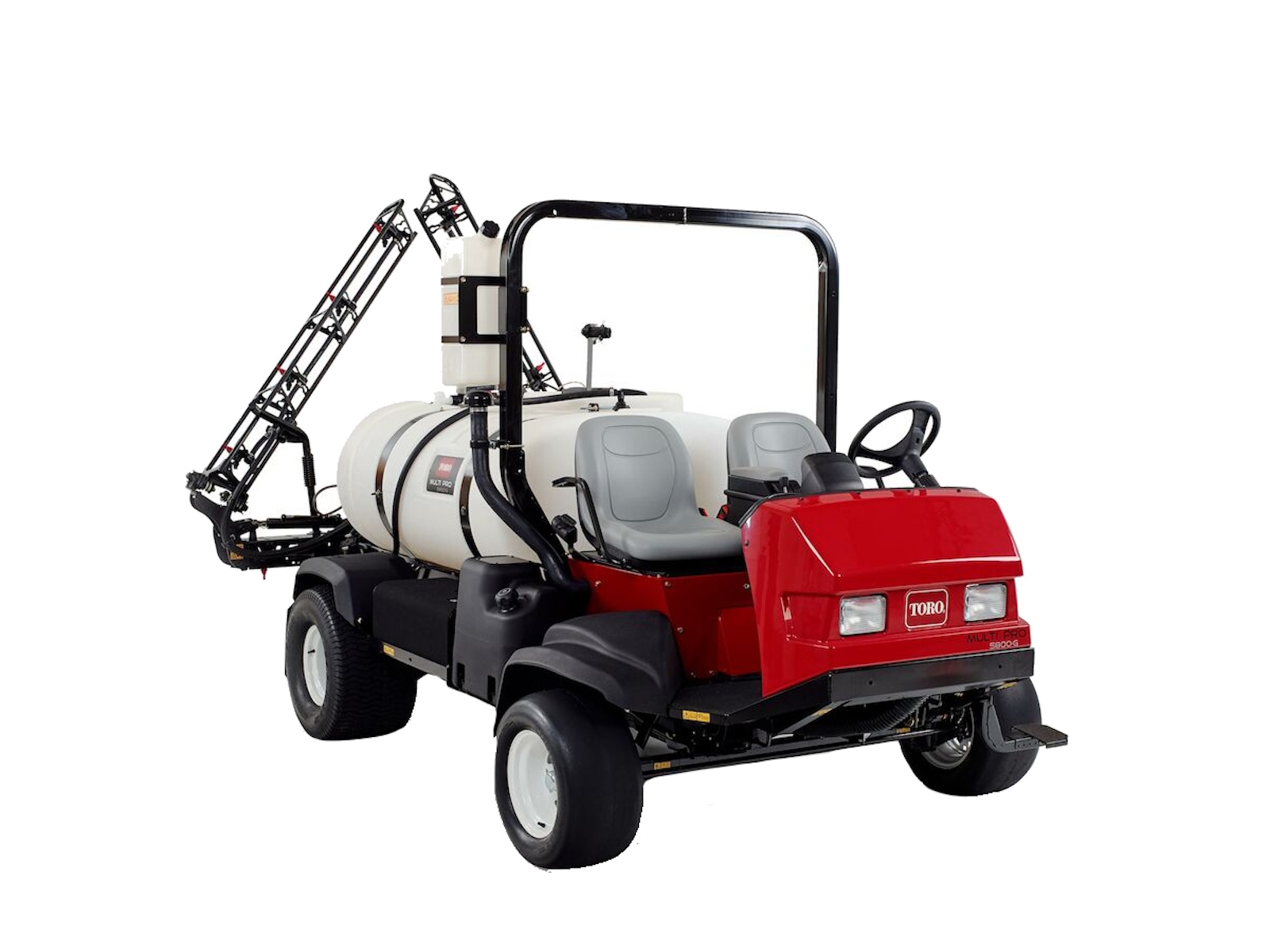

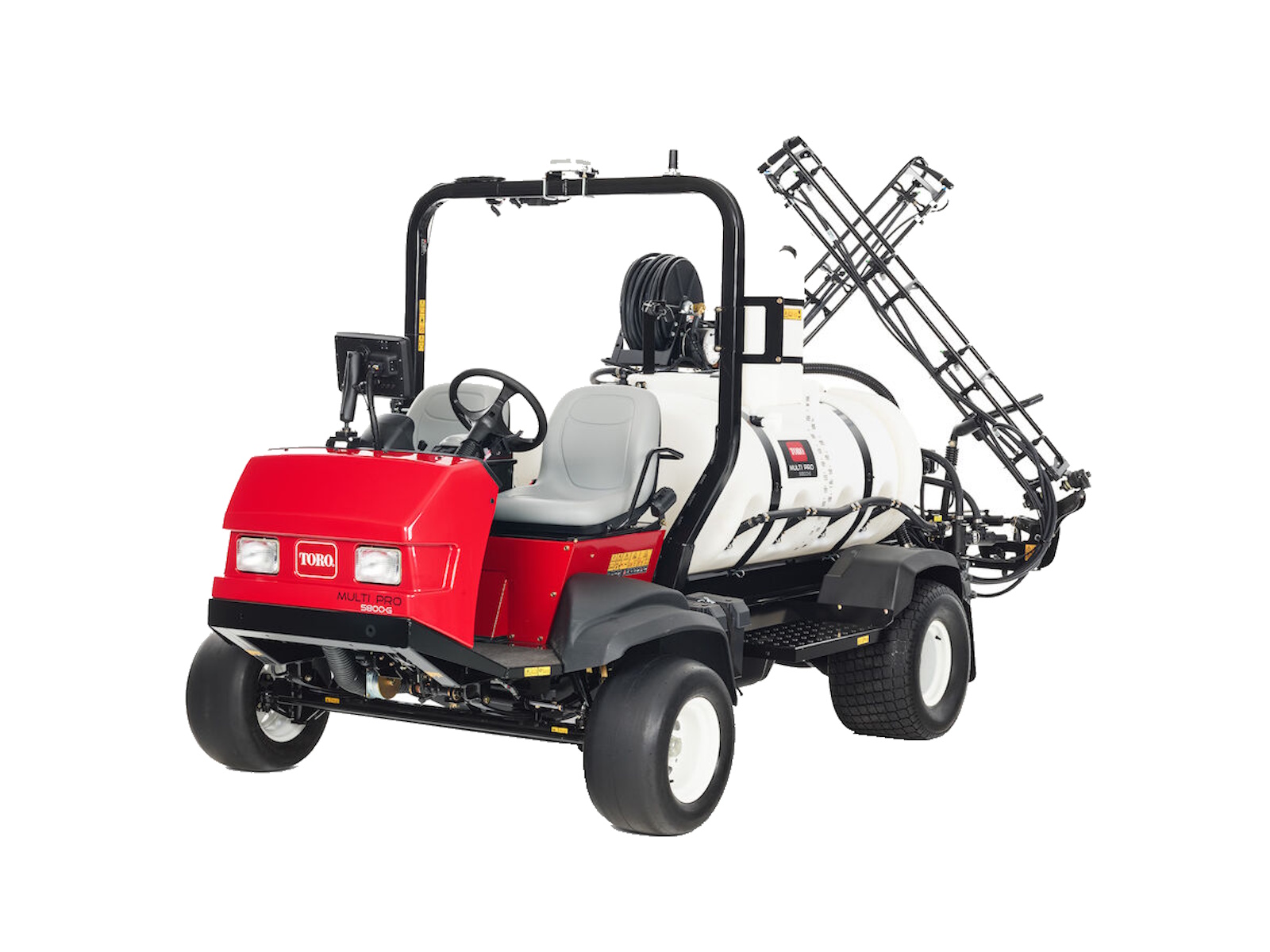

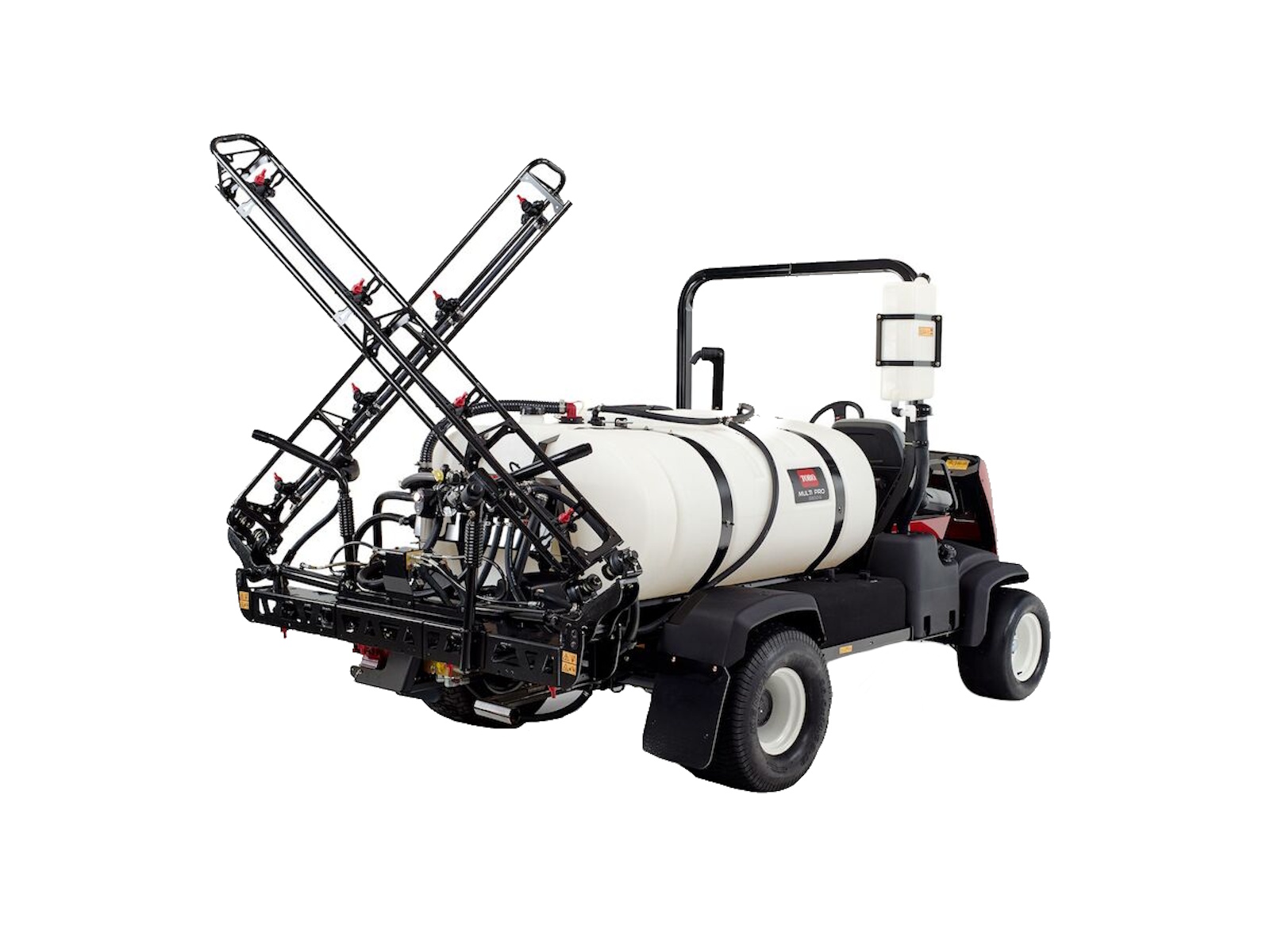

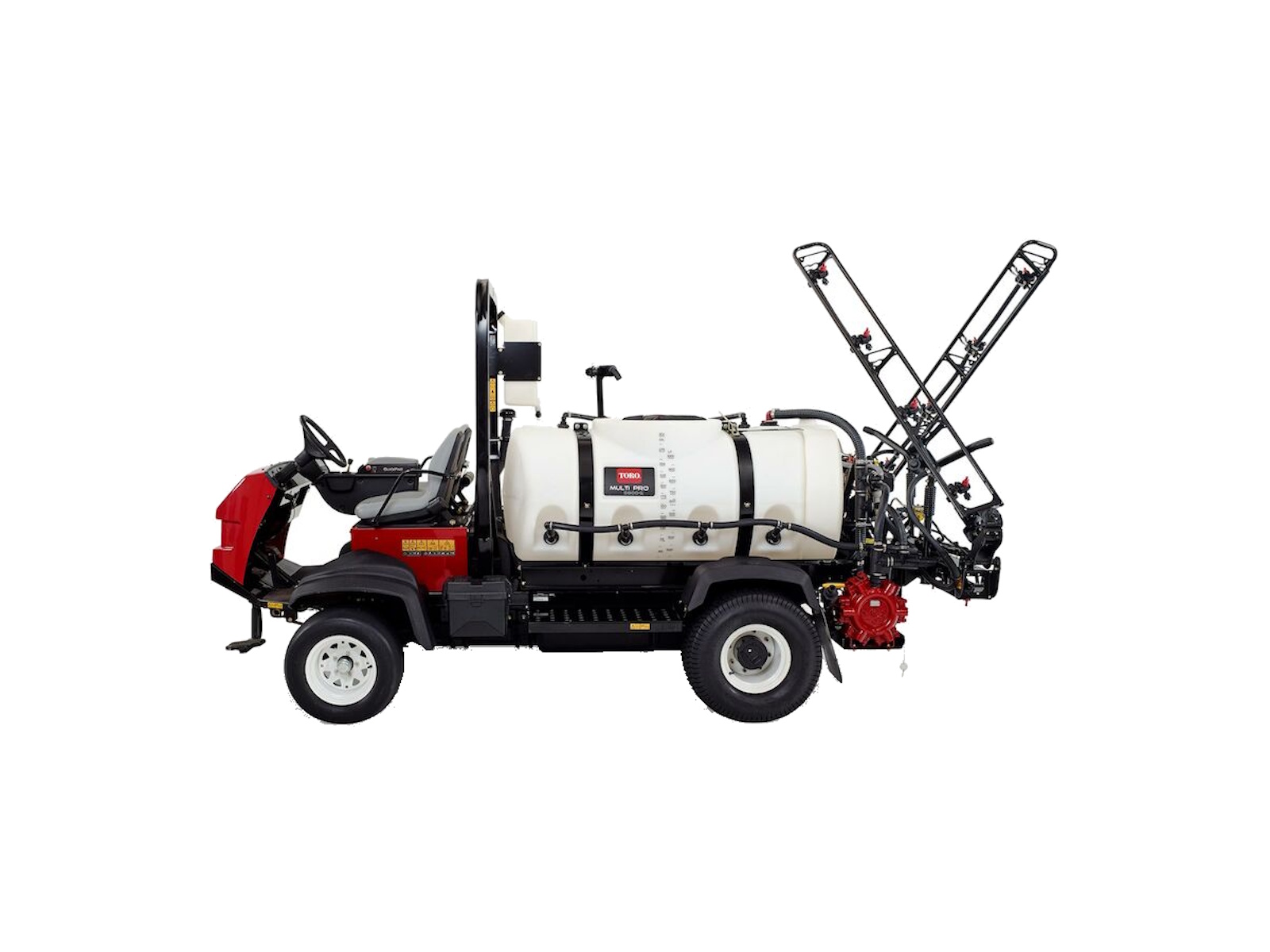

2025 Toro Multi Pro 5800 Turf Sprayer

Multi Pro 5800 300-gallon dedicated sprayer
Leading sprayer technology, proven reliability and innovative accessories provide many performance and operational advancements. Every aspect of the spray system has been engineered to deliver unsurpassed spray accuracy, aggressive agitation and faster response time. Consistently delivers desired spray rates in even the most demanding environments.

Multi Pro 5800 with GeoLink® GPS Technology
This smart system knows your precise location. By automatically turning individual nozzles on and off, overlaps are virtually eliminated, resulting in substantial product savings.* You only need to map out your application area once, and the data will be saved for future.

Features May Incluide:

Rugged Spray Booms:

• The triangulated truss design provides protection to nozzles
• Transport cradles with breakaway capability secure wing booms during transport
• Lift and lower booms without leaving the seat
• Spring-loaded breakaway system returns boom to spray position after an impact during forward or reverse travel
• Reduce damage to trees or other objects with specially rounded boom ends

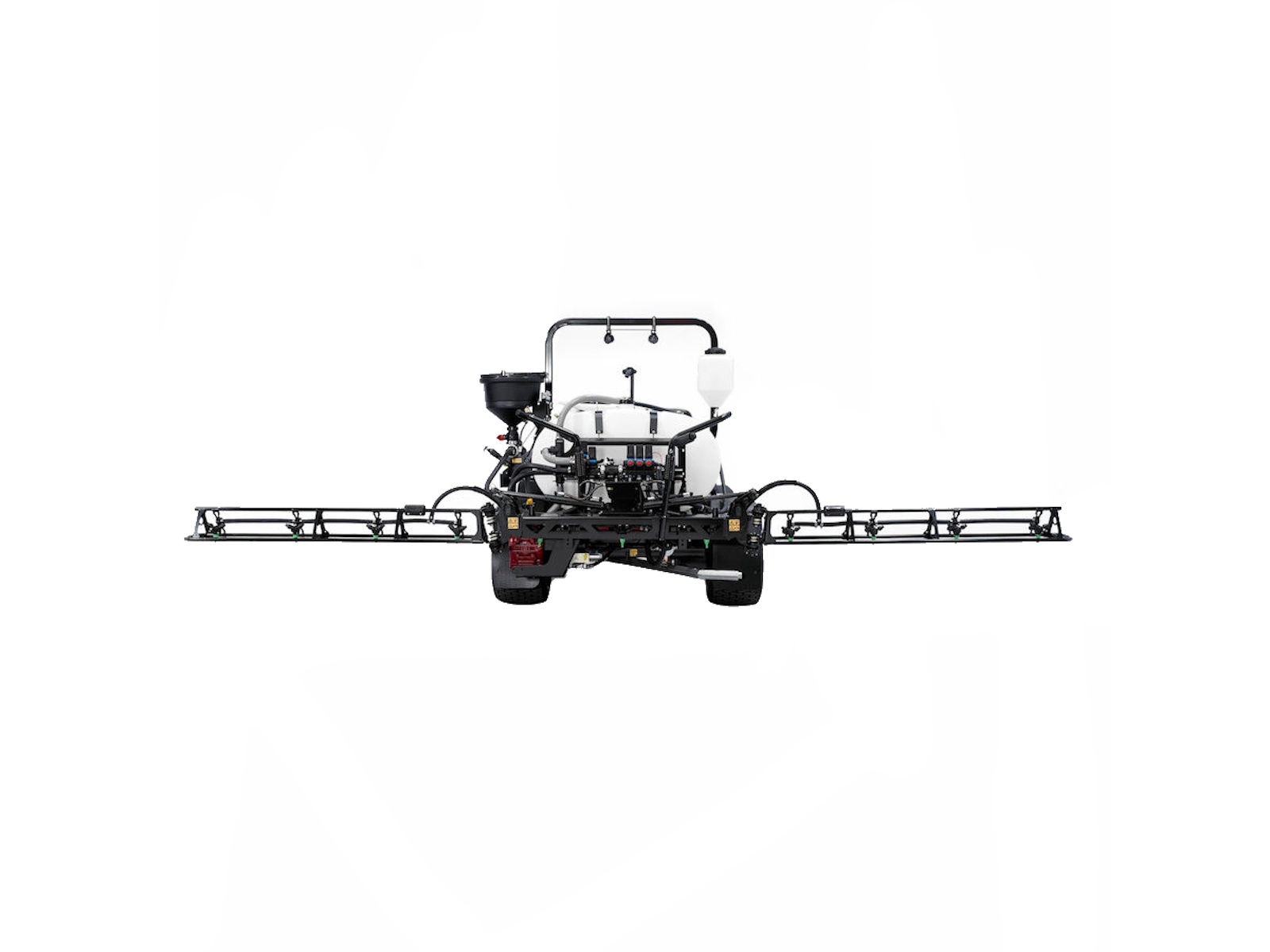

• Three section 20.5’ (6.25 m) boom width

Six Diaphragm Pump: An industry exclusive! This oversized pump satisfies the highest spray rates while simultaneously supplying aggressive agitation flow. The self-priming, positive displacement design means the pump can be run dry without damage. Its dry sump means there's no risk of oil/lubricant contaminating the spray application.

Center Control Console: Positions operational switches and throttle at the operator's fingertips for convenient access and control. With Quick Find™ controls, the operator can easily locate the buttons without taking their eyes off the spray path.

ExcelaRate™ Rate Controller:

• Digital pressure display, Toro-exclusive spray system icons and nomenclature, programmable vehicle parameters (width, nozzles, etc.) and understandable fault codes (engine, operator presence, parking brake, etc.) make operation simple and intuitive.
• Developed by Toro specifically for turf applications.
• Delivers features that no other controller can offer.
• Simplified calibration, multiple application rates and a special boost feature make operating the Multi Pro 5800 easier than ever before.
• Tracks applications for sub areas and total spray area for accurate record keeping.

300 Gallon (1136 L) Chemical Tank: Ready for the long haul, this completely redesigned tank incorporates four, 30˚, side-mounted agitation nozzles to ensure the homogeneous mixing of chemicals for application accuracy. An offset fill well provides easy access for loading chemicals. Engineered polymer material won't crack, dent, rust, chip or peel.

Hydrostatic Vehicle Drive System: Provides a high torque traction system that prevents spinning and turf damage. A speed locking device provides a constant spraying speed.

KZValve® Section Valves: Industry exclusive KZValve® electronically-activated ball valves are easily serviceable for long life and outstanding performance.

Spray Nozzles: Full range of contact, systemic and low drift nozzles are available. Air inclusion nozzles provide improved accuracy, uniform droplet size, and reduced drift and even coverage.Find the right nozzle for your application with our Nozzle Selector Tool
