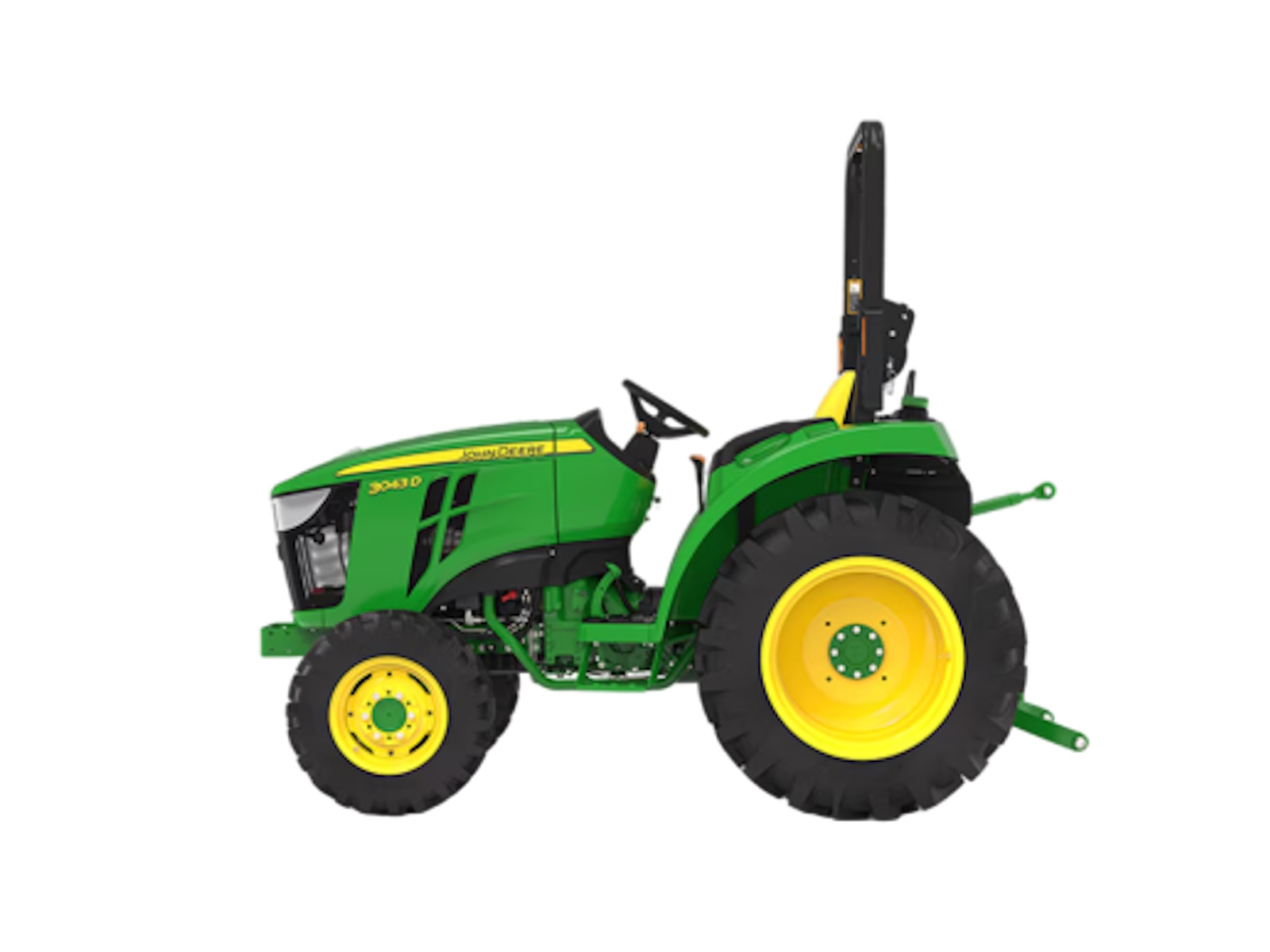

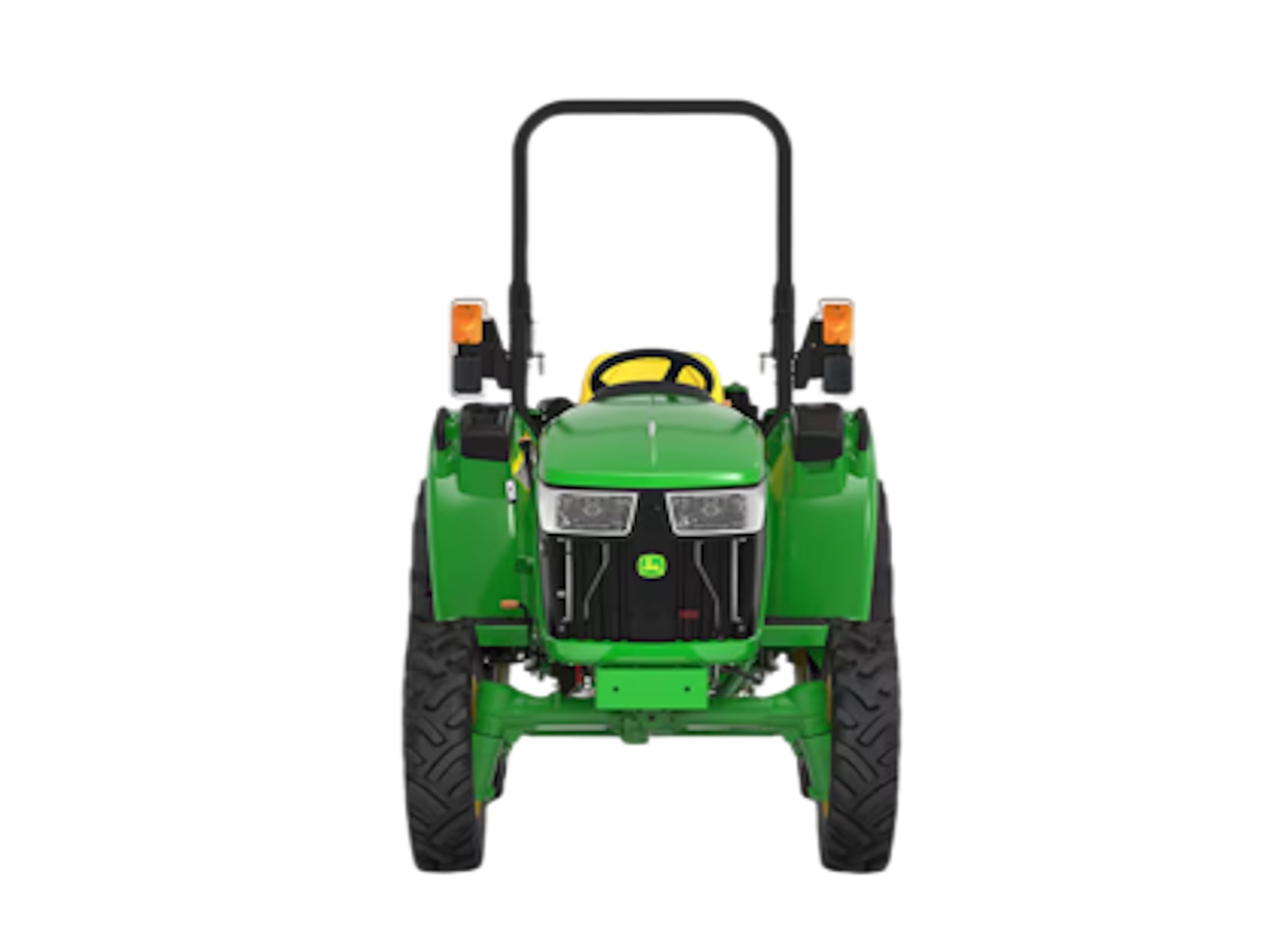

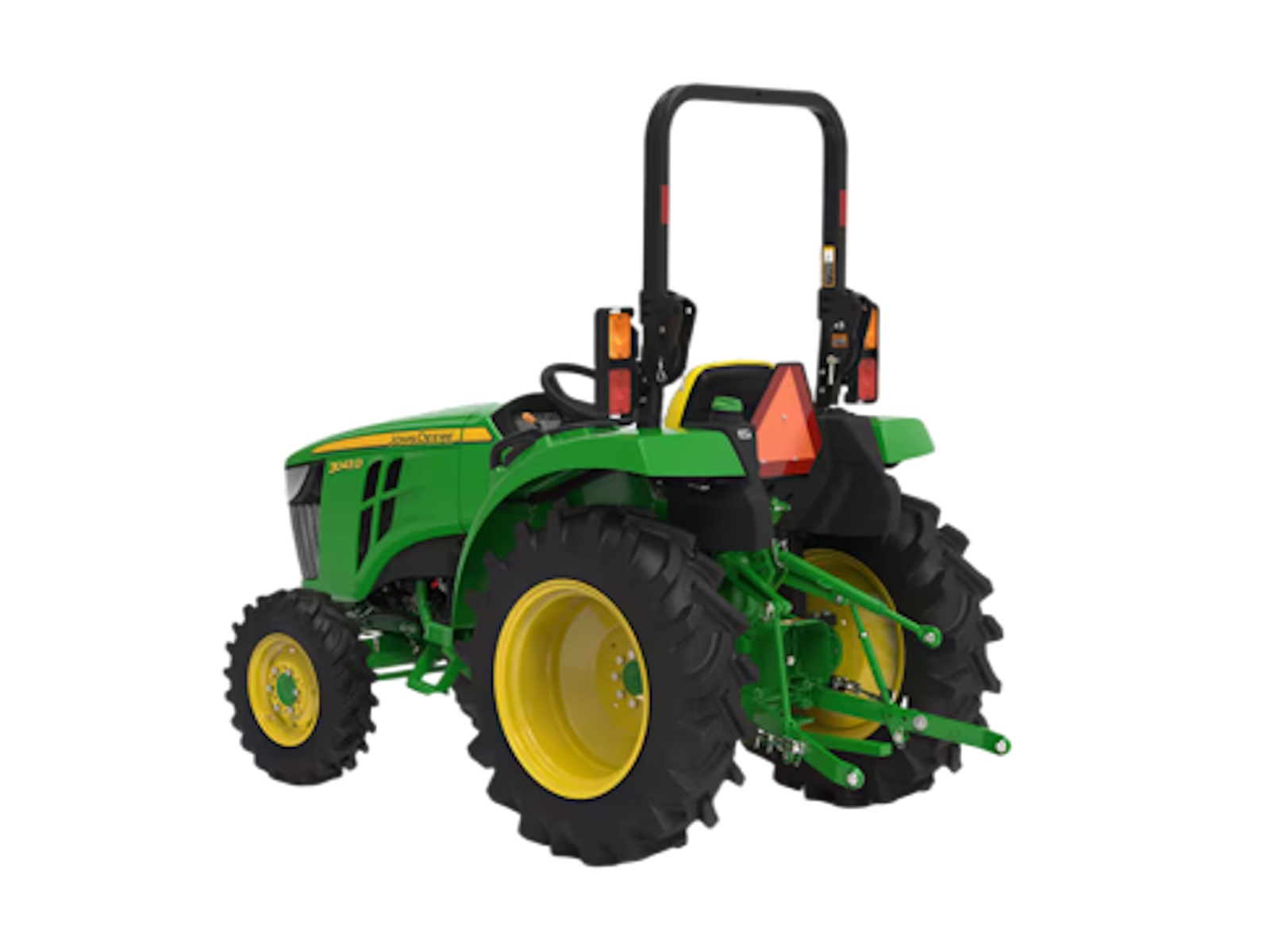

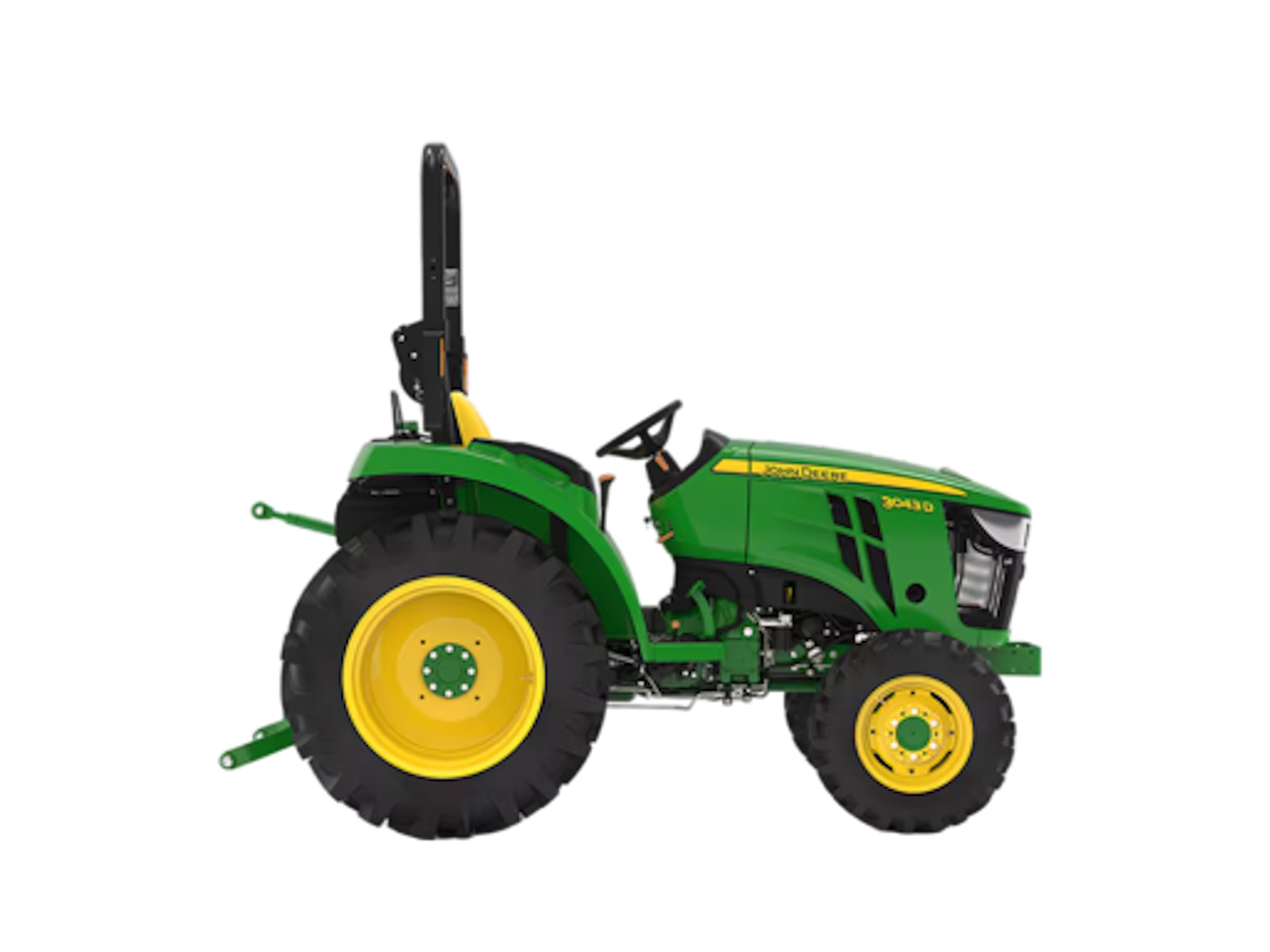

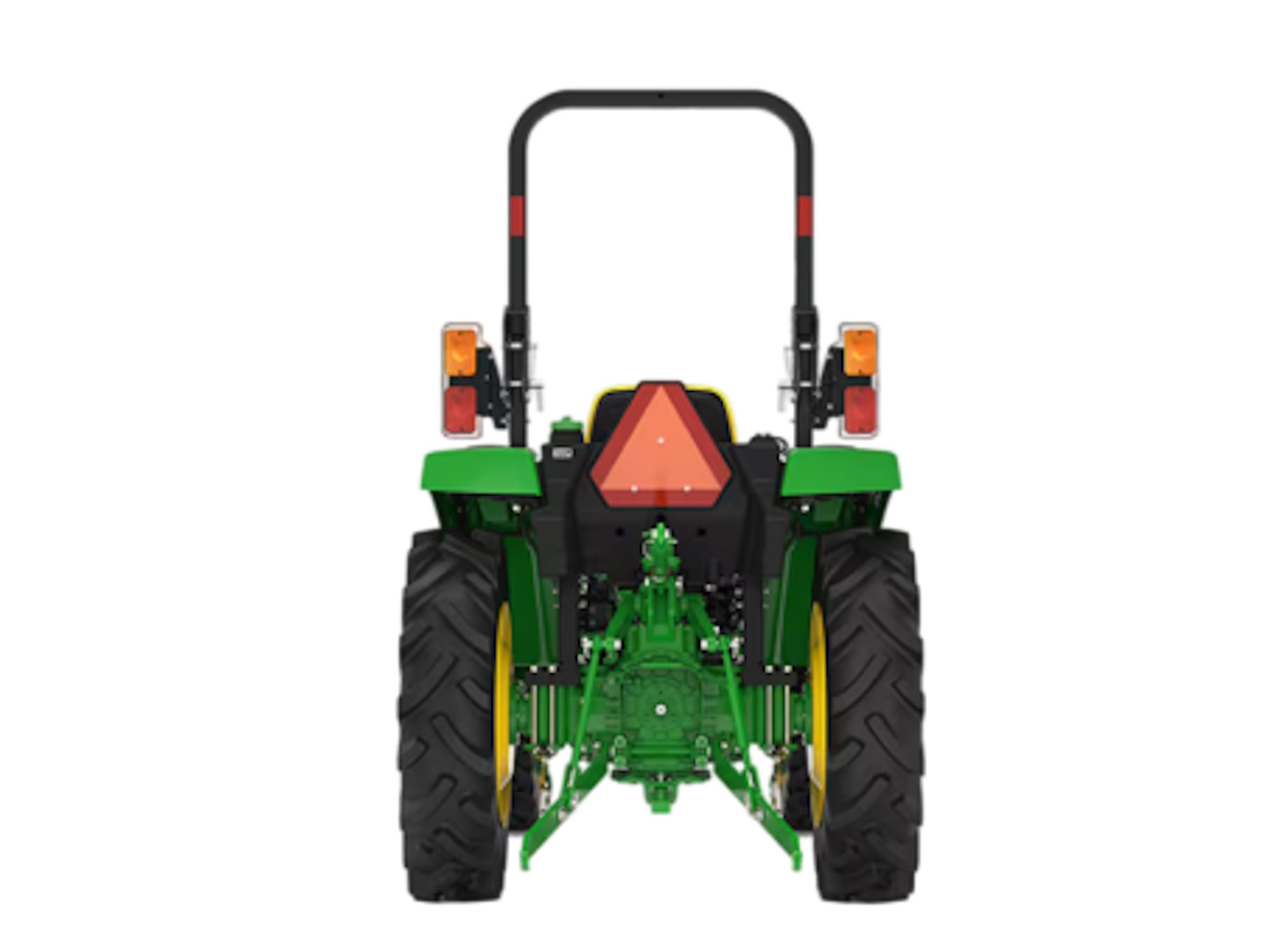

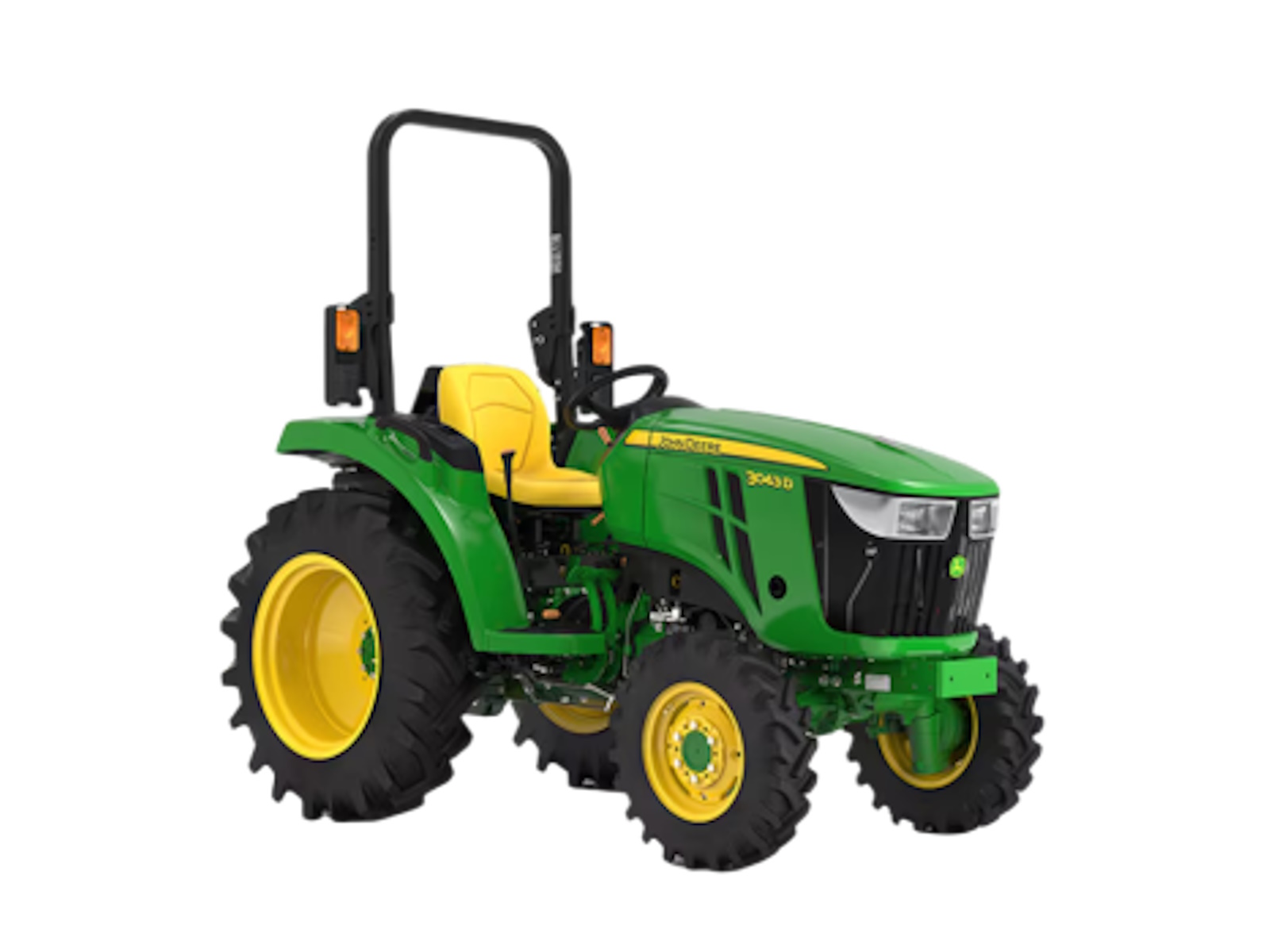

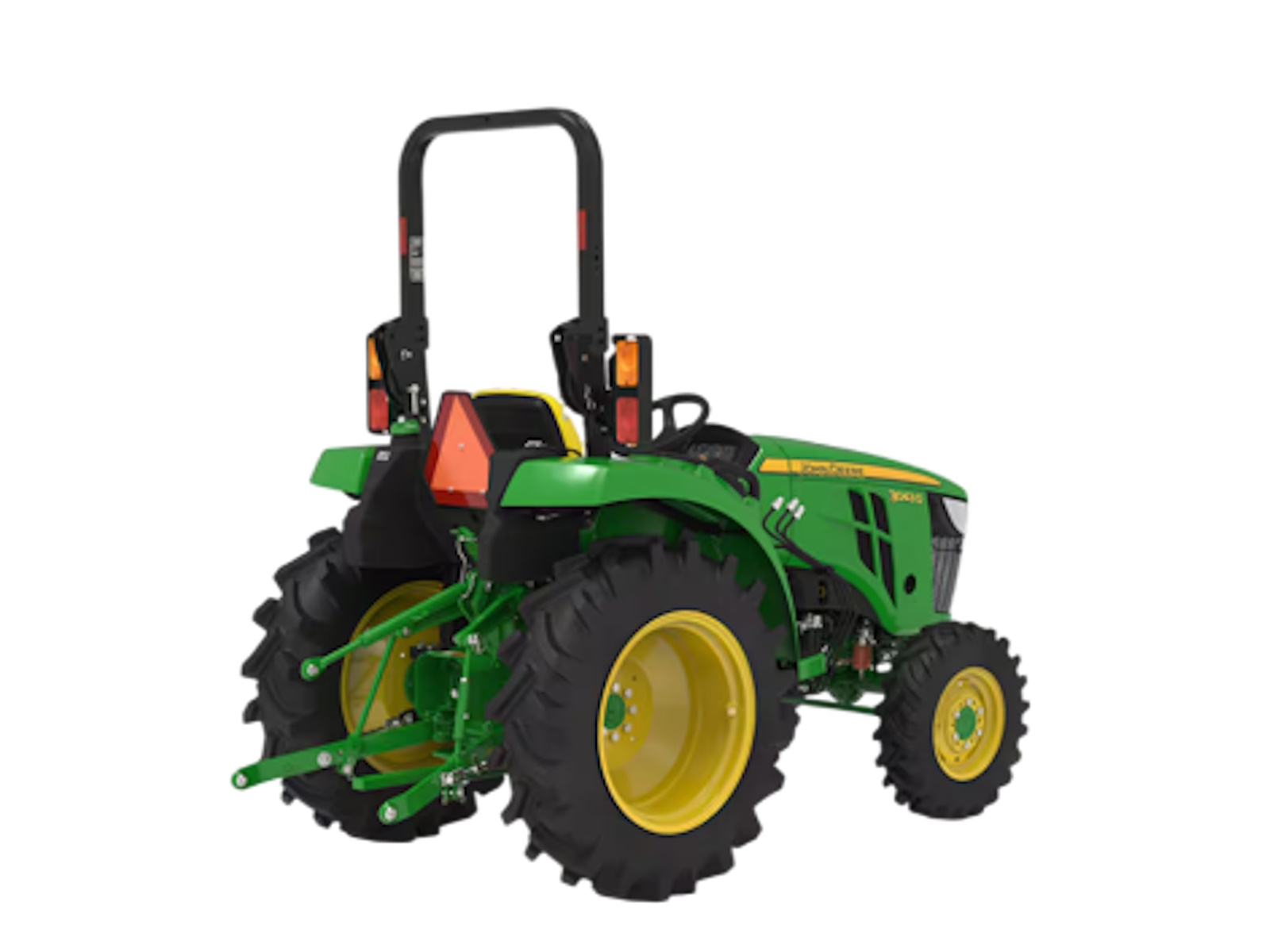

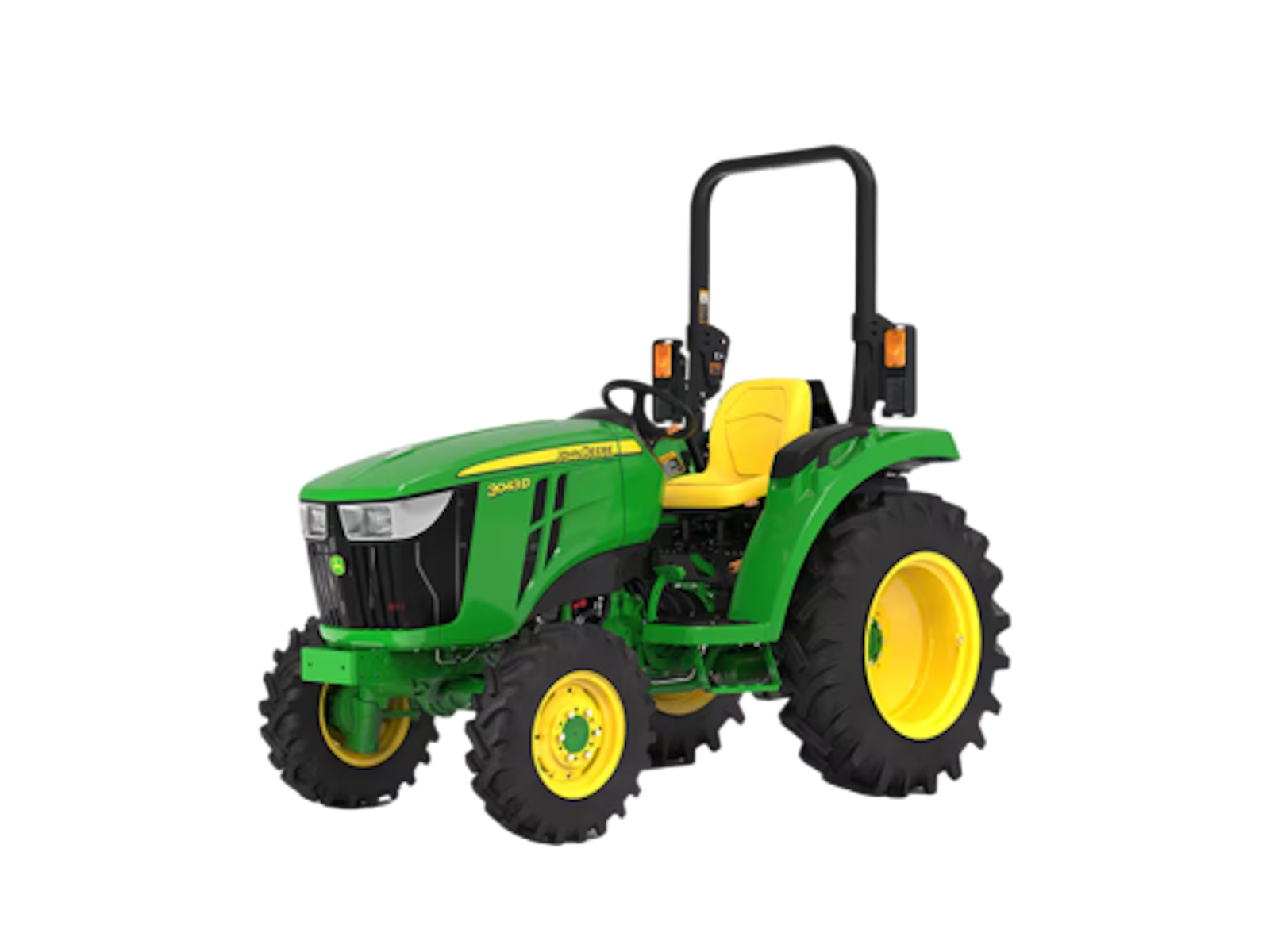

2025 John Deere Lawn & Garden 3043D

• Standard 4WD for Maximum Traction
• Heavy duty drive train with a gear drive transmission 8F/8R

Features May Include:

• Reliable gear-driven transmission provides optimum tractor performance

The 3D Tractors are available with a gear drive transmission with eight speeds in both forward and reverse directions. It includes a drivetrain built with heavy-duty components like those used in some John Deere utility tractors. These components ensure a rugged and durable machine.

• The spiral bevel gear of the 3D machine is larger in diameter than comparable tractors.

• Column-mounted forward and reverse lever for increased efficiency and comfort when changing directions.

• Fender-mounted gear shift lever for more comfortable shifting

Safety features of the 3D Series Tractors include:

• The tractor will only start with the forward/reverse, range, and gear shift levers in neutral.

• The engine will shut off if the operator leaves the seat unless the forward/reverse, range, and gear shift levers are in neutral.

• The engine will shut off if the operator leaves the seat and the power take-off (PTO) is engaged.

Key John Deere advantage - A column-mounted forward/reverse lever is a more ergonomic alternative to the floor-mounted design of the competition. Having controls at the operator’s fingertips allows for an effortless change in directions at any time.

The 3D is much easier and more comfortable to operate when shifting between gears. The fender-mounted gear shift lever provides the ideal location and placement for the operator’s arm.

• Clean and simple operator station is comfortable and convenient

An uncluttered design gives operators of all sizes plenty of room to be comfortable. Color-coded controls are located on either side of the operator.

• Contoured, comfortable seat enhances operator comfort.
  • Seat position adjusts fore and aft
  • Seat flips forward for protection from the elements
• Flat operator platform provides for easy entry to/exit from the tractor.
• Folding Roll-Gard™ rollover protective structure (ROPS) and retractable seat belt increase operator safety.

Operator presence system:

• If the operator leaves the seat when the forward/reverse and range lever are in gear, the engine shuts down.
• If the operator leaves the seat when the power take-off (PTO) is engaged, the engine shuts down.
• The left-side step allows for easy access on and off the tractor.
• Foot platform has a non-skid surface for sure footing.

The thick, soft padding on this seat provides a smooth and comfortable ride.

• Seat flips forward for protection from the elements.
• Adjustable using the fore and aft lever located under the seat, the seat slides on ramped rails to provide comfortable access to all controls.

• Optional two-spool rear selective control valve (SCV) for superior implement performance

3D Series Tractors can be equipped with a field-installed rear hydraulic remote kit, providing two additional hydraulic spools on the back of the tractor. This kit can be field installed on a tractor with a loader or without a loader.

The functions are completely separate from the loader. These rear remotes can be hooked up to a wide variety of implements and attachments such as follows:

• Hydraulically angled blade
• Hydraulically controlled chute/spout on a 3-point hitch-mounted snow blower
• Hydraulic scarifiers on a box blade
• Many other hydraulic rear attachments

This versatile kit gives 3D Series Tractor operators the options they desire for putting their tractors into a wide range of tasks.

The first spool is equipped with a float position, giving the operator the ability to contour the landscape and improve the final grade with certain implements.

NOTE: Neither of the spools in this kit are equipped with a detent position; therefore, they should not be hooked up to anything with a motor, as the valve was not designed to be run open. The kit is designed for momentary, on-demand hydraulic flow such as moving a cylinder.

The approximate installation time is 1 hour to 1.5 hours.

• Optional iMatch™ Quick-Hitch feature allows for easy implement hookup

One of the greatest operator concerns involves difficulty in attaching tractor implements. John Deere has addressed this issue with the iMatch Quick-Hitch.

The iMatch Quick-Hitch provides easy hookup and a guaranteed fit for all Category 1 implements that are designed to meet the American Society of Agricultural and Biological Engineers (ASABE) Category 1 Standard S278.6 for quick-attach hitches.

• All implements require a set of bushings for the attachment to fit and work properly with the iMatch Quick-Hitch. One set of bushings comes with the iMatch Quick-Hitch.

NOTE: The bushing set can be seen in the picture above. These bushings allow the hooks on the iMatch and the pins on the implement to fit together properly. All other implements (box blades, tillers, rear blades, etc.) will require a set of bushings to enlarge the pin to fit with the iMatch hooks. Bushings of different lengths can be found in the parts system or through a bushing supplier (see dimensions below).

• Upper bushing
  • Inside diameter: 1.93-1.95 cm (0.76-0.77 in.)
  • Outside diameter: 3.15-3.18 cm (1.24-1.25 in.)
• Lower bushing
  • Inside diameter: 2.24-2.26 cm (0.88 to 0.89 in.)
  • Outside diameter: 3.63-3.66 cm (1.43 to 1.44 in.)
