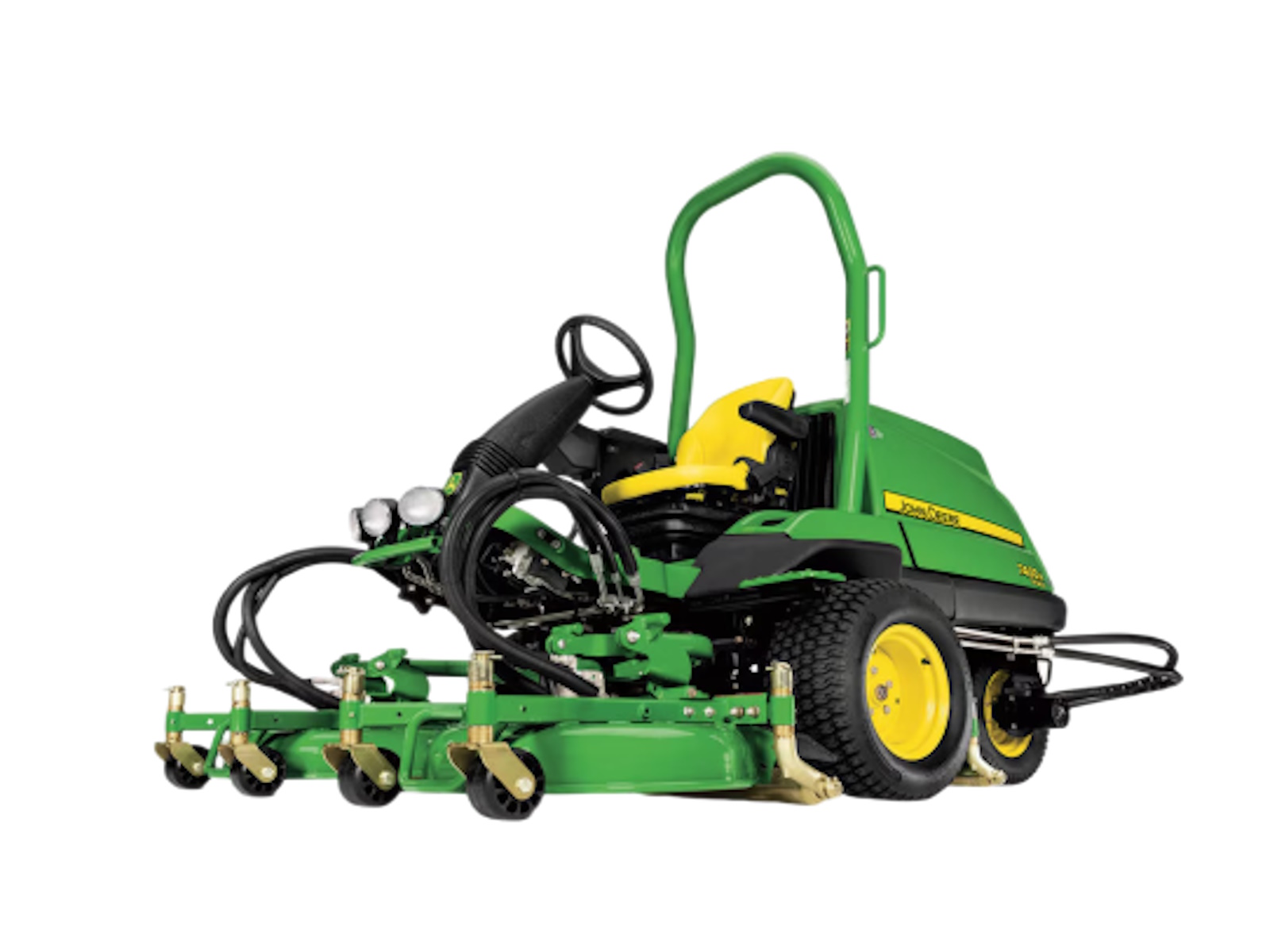

2025 John Deere Golf & Sports Turf 7400A TerrainCut

• TechControl™ Display locks in performance, and uptime
• LoadMatch™ to maintain cut quality
• 35% larger traction drive, 17% larger wheel motor displacement
• Final Tier 4 compliant without sacrificing horsepower

Features May Include:

• Stamped rotary decks and rigid frame construction to maximize deck durability

The 9009A TerrainCut Rough Mower is equipped with five and the 7400A TerrainCut Trim and Surrounds mower is equipped with three 27-in. (68.6-cm) stamped rotary decks for superior productivity and strength. The rotary decks perform exceptionally well across a wide range of grass types, including warm- and cool-season grasses.

A strong stamped, 10-gauge shell construction is an integral part of this durable deck. The stamped design uses a single piece of steel to form the shell that provides consistent strength throughout all areas of the deck. This is the starting point of the strength and durability of the deck construction.

Surrounding the deck is a tough, steel frame designed to protect the deck shell. It all starts with the frame on top of the deck which is then bolted to the shell providing extra protection. The front and rear roller brackets are attached to the framework, so as the front and rear rollers encounter obstacles, the force is transferred through the frame rather than through the deck shell. This design also decreases the distance from the blade tip to outside edge of the deck for closer trimming around objects like trees and fences.

An angled skid plate between the front roller and deck shell helps protect the front lip of the deck from tough terrain such as tree roots or other objects. The skid plate helps move the deck over the object to prevent the front edge from contacting and damaging the deck shell. The side of the deck also has additional protection to increase durability with a 1.5-in. (38-mm) tall and 0.5-in. (12.7-mm) thick steel stock welded to the decks edge.

Roller brackets are cast steel with extended housings to effectively protect the roller bearings from a wide range of debris types. The large front rollers are greaseable to help purge water and debris and use snap rings to ensure bearings stay in place, increasing durability and longevity of the front rollers.

• Rear-discharge design provides premium cut quality and dispersal for less clumping and blowing for clean up

The 9009A and 7400A TerrainCut™ Mowers 27-in. (68.6-cm) deck features a deck design with an asymmetric rear discharge cutout and molded chute to promote better airflow, leading to improved clipping dispersal and cut quality.

The unique shape of the deck shell cutout includes a heavily rounded opening on one side that gradually transitions to a larger opening on the other side of the cutout, allowing the grass to exit the deck evenly while significantly reducing the possibility of the deck congestion. This design incorporates deck structure along the bottom of the discharge area that reduces sound power, does not affect cut quality negatively, and acts as a foot guard eliminating the need for an external guard that can lead to external grass build up which can be dropped in the mowing pass over time.

When the asymmetric deck shell discharge shape is used in combination with the asymmetric discharge chute, this deck outperforms the competition in cut quality by minimizing clumping with smooth transitions and guiding the discharge material in a more dispersed pattern.

The improved dispersal will lead to less clean up and blowing, allowing machines to mow earlier in the day while saving time and reducing labor.

The proper blade selection for heights of grass, grass type, and sharp blades are keys to improved cut quality and dispersal. The removal of no more than one third of the grass blade is recommended. During heavy growth times it may require changing blades, mowing more often or raising the height of cut to improve clipping dispersal.

• No-tool notch adjustment system makes height-of-cut (HOC) changes a breeze

One common element among John Deere golf mowing products, reel or rotary, is that adjustments are quick and easy. The 9009A and 7400A TerrainCut™ Mowers are no different. All HOC adjustments can be performed without tools with an innovative notch system, similar to what is included on the Quick-Adjust 5 and Quick-Adjust 7 reel cutting units.

To adjust the HOC on the 9009A and 7400A TerrainCut, pull the levers at each end of the front and rear rollers outward. With the levers pulled out, give a quick tug to disengage the teeth in the notches. This allows the rollers to rotate upward and downward freely and easily.

Locate the HOC indicator on the inside of the adjuster arm and line up the tabs or use the top edge of the adjuster arm to line up the height on the gauge located on the outside. Re-engage the notches by rotating the levers back inward to lock the HOC into place. No tools are needed to complete the adjustment.

The adjustments must be performed on both the front and rear roller, and both rollers have the same adjustment process. A HOC label is also located on the rear of the deck to serve as a guide for setting the height of cut.

The HOC is adjustable 3/4 in. (1.9 cm) to 4 in. (10.2 cm), in 1/4-in. (0.64-cm) increments.

The HOC system has been redesigned from prior models to include a longer and stronger handle. Hardened notch material is used to improve durability and resistance to rust and debris.

• TechControl display maximizes performance and uptime by allowing more control in operation and diagnostics

Passcode-protected TechControl display enables quickly setting or changing mowing speed, turning speed, or transport speed to limit variations in performance by different operators.
