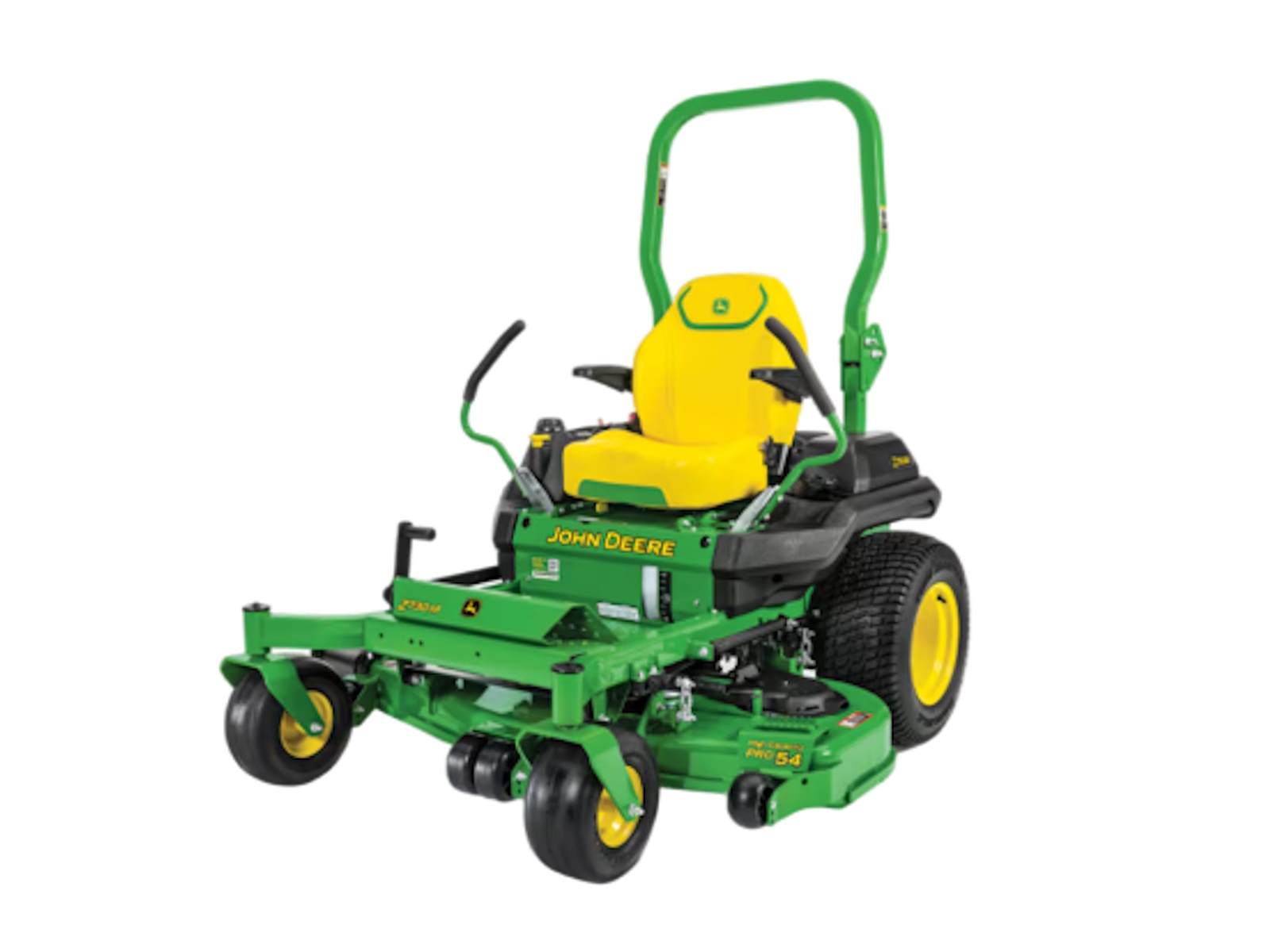

2025 John Deere Golf & Sports Turf Z730M 60 in

• 24-hp (17.9 kW)* FS series engine
• 54- or 60-in. High-capacity PRO mower deck with welded deck reinforcements
• 22.5-in. seat with adjustable armrests, springs and ComfortGlide™ suspension
• Cut height adjustment dial adjusts mower in ¼-in. increments from 1.5 - 5 inches

Features May Include:

• Smooth and powerful V-twin engine for performance and long life

Key engine features:

• 24 hp (17.9 kW) provides plenty of power.
• Large 44.3-cu in. (726-cc) displacement provides excellent torque.
• V-twin, 90-degree cylinder design allows for easy starts, excellent power and performance, and smooth operation.
• Engine model is FS730V.
• Many quality features are included.
  • Cast-iron cylinder liners provide a long-wearing surface for longer engine life.
  • Overhead V-valves allow the engine to breathe easily for excellent power and fuel economy.
  • Automatic compression release provides easy starting.
  • Internally vented carburetor maintains proper fuel mixture and minimizes emissions.
  • Fuel shutoff solenoid stops excess fuel from entering the exhaust system and causing after bang upon shut down.
  • A rotating metal grass chopper screen helps keep the engine fins clean by filtering out debris and reducing the size of material that gets through so it will pass harmlessly past the engine fins.
  • The guard provides protection from the rotating fan.
  • Full-pressure lubrication system provides plenty of oil to the engines moving parts to ensure reliable operation and long life:
    • No-tools oil drain is convenient to use.
    • A flexible drain tube can be placed above a drain pan to eliminate oil spills.
    • Replaceable oil filter keeps the oil cleaner for a longer engine life and extends the time between oil changes.
  • Integrated cleanout ports allow for checking and cleaning the engine cooling fins.
  • Heavy-duty, multi-stage air filter system thoroughly cleans the engine intake air.
  • Electronic ignition contributes to fast starts.

• High-capacity (HC) PRO Mower Decks offer superior cut quality and versatility

Each Z700 Series ZTrak™ Mower is equipped with either a 48-in. (122-cm), 54-in. (137-cm), or 60-in. (152-cm) HC PRO Mower Deck.

The mower deck has a deep-deck design:

• Forged from heavy, 9-gauge, 0.15-in. (3.8-mm) steel.
  • Minimizes the number of welds required
  • Has a smooth underside for reduced material buildup
• Deep-deck design delivers excellent airflow, so large volumes of material can be processed quickly and efficiently.
• A wider and higher discharge opening provides even clipping dispersal for an excellent finished appearance in all conditions.
• A durable, plastic deflector spreads grass clippings evenly across the lawn, is hinged, and can be raised to minimize the storage space required.
• 1-in. (25.4-mm) cold-forged spindles are heat-treated for strength and are supported by ball bearings.
• Standard front rollers and two double-captured wheels provide a more even mowing job and reduce the chance of scalping.
  • Adjustable for different mowing heights
• The front edge is raised above the blade plane to allow for even cutting of tall grass.
• Blade overlap is greater than many conventional decks for a clean cut.
• The mower can side-discharge, mulch, or collect material, except a Z740R or Z760R equipped with Tweel tires are not compatible with a material collection system.

Steel reinforcing bars are welded to the front edge and trim side of the mower deck:

• Strengthens the deck to reduce chance of damage from obstructions
• Increased material thickness for longer life of the deck

The deck has deep, strong spindle pockets to keep the blades aligned, even after years of tough operation:

• Ribs formed in the deck shell add strength where it is needed.
• The aluminum spindle housing has 8-in. (20-cm) base for extra strength.

• Operator station is adjustable for superior comfort

The operator station is designed to provide superior comfort for the operator:

• Adjustable foot platform
  • Ample legroom for comfortable operation
• Adjustable seat position, armrests, and suspension to suit the operator
  • Can be dialed–in for operator height and weight
• Adjustable motion-control levers
  • Upper and lower positioning combined with forward and rearward tilt offers 18 positions
    • Large, padded areas on the control levers allow a choice of operator hand positions

The patent-pending, adjustable three-position toe board allows any operator to quickly adjust the footrest position for greatest comfort.

• Easily and without tools, each operator can adjust the location of the footrest area to the most suitable position.
  • Adjustment range of 2 in. (5.1 cm)
• Large operator platform allows a wide range of foot positions.
• An attractive floor mat is optional on E and M Series.

A deluxe comfort seat with ComfortGlide suspension, fore-aft seat adjustment, and two adjustable suspension springs offers superior ride comfort:

• High-back, 22.5-in. (57.1-cm) seat with adjustable armrests and 3-in. (7.6-cm) fore-aft adjustment

The ComfortGlide suspension is an additional system that generates a controlled fore and aft movement of the seat when experiencing undulations in uneven terrain:

• It dramatically reduces horizontal vibrations, prevents jarring, and makes a big improvement to operator ride comfort.
• The feel of the ride is as if the operator is floating over the ground.
• It allows front-to-rear movement, up to 1-in. (2.5-cm) forward and 1-in. (2.5-cm) rearward, to be absorbed.
• One seat control lever has three positions.
  • Slide seat fore/aft up to 3 in. (7.6 cm)
  • Engages fore/aft isolator function to allow movement of up to 1 in. (2.5 cm)
  • Disengages fore/aft isolator function to lock seat in position

• Seat includes ComfortGlide™ suspension and adjustable springs for a smooth ride

The ComfortGlide seat suspension comes with two adjustable springs and no-tools, fore-aft seat adjustment that can be used by the operator while seated:

• High-back, 22.5-in. (57.1-cm) seat with adjustable armrests and 3-in. (7.6-cm) fore-aft adjustment
• The ComfortGlide seat suspension is an additional system that allows a controlled fore and aft movement of the seat when experiencing undulations in uneven terrain.

• • Dramatically reduces horizontal vibrations and reduces jarring
  • Feel of ride is as if the operator is floating over the ground
  • Makes a big improvement to operator ride comfort
  • Allows front to rear movement, 1-in. (2.5-cm) forward and 1-in. (2.5-cm) rearward, to be absorbed
  • One lever with three positions
    • Slide seat fore/aft up to 3 in. (7.6 cm)
    • Engage isolator function to allow movement up to 1 in. (2.5 cm) fore and aft
    • Disengage isolator function to lock seat in position

Two steel springs under the seat absorb shocks when traveling over rougher areas to provide a smoother ride.

• Fore/aft spring positions – rearward may be suitable for heavier operators and forward for lighter operators
• 4-in. (10.2-cm) long springs have plenty of travel to give a smooth ride
