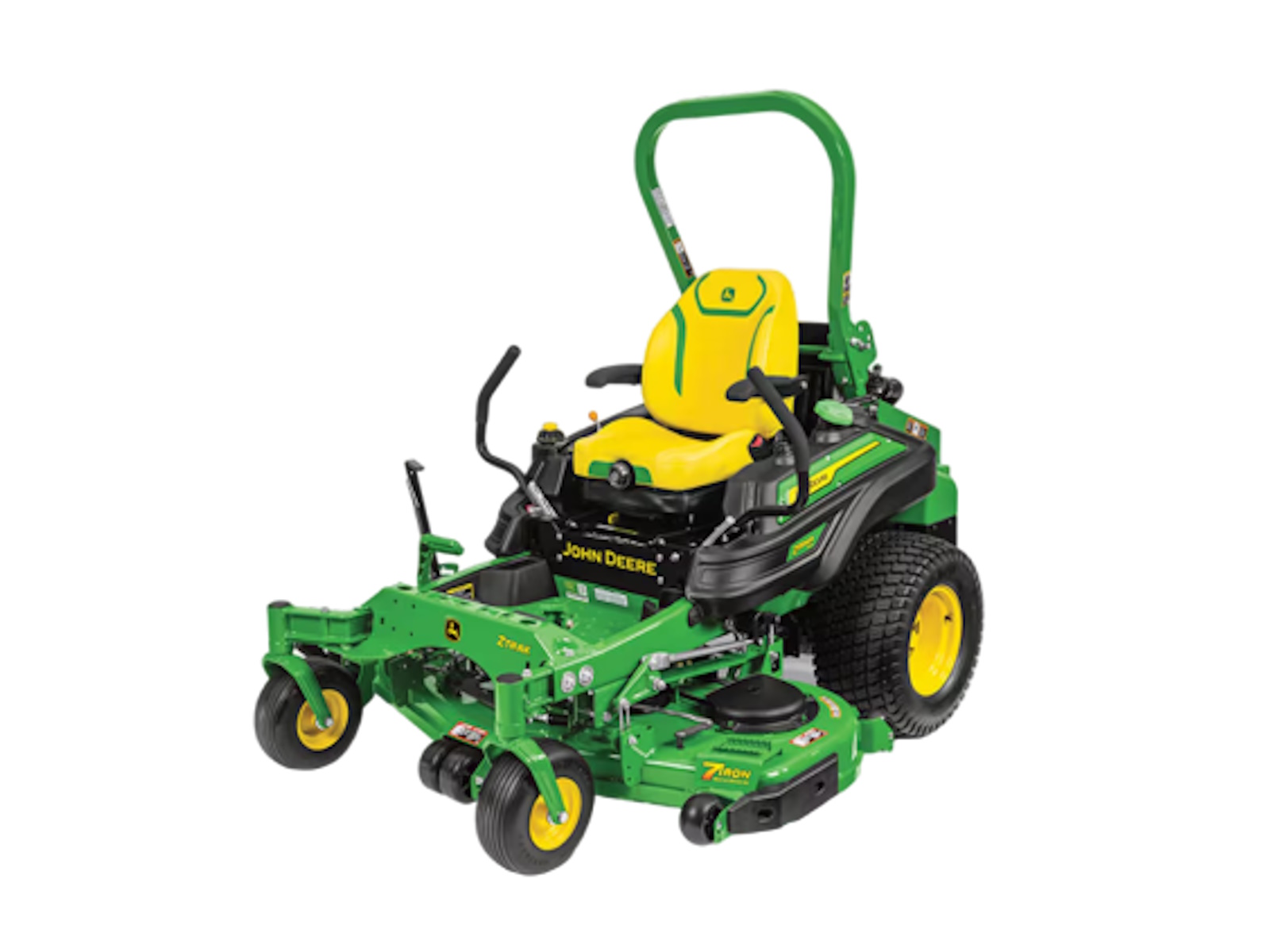

2025 John Deere Golf & Sports Turf Z994R Diesel 72 in

• 24.7 hp (18.4 kW) liquid-cooled diesel engine
• ComfortGlide™ Suspension on all seat options
• 11.5 U.S. gallon fuel tank (43.5 L)
• 7-Iron PRO Deck
• Rear Discharge Deck
• Mulch On Demand™ Available

Features May Include:

• Powerful 24.7-hp (18.4-kW) diesel engine delivers superior performance and efficiency

The Z994R is powered by a 3-cylinder, liquid-cooled diesel engine with gross SAE J1995, PS 24.7 hp (18.4 kW) rated power at 3200 rpm that meets U.S. Environmental Protection Agency (EPA) Final Tier 4 emission standards:

• High-torque, low-emission diesel engine for strong performance in the toughest conditions
• Low vibration and noise levels
• Isolated with rubber mounts for a smoother operator ride
• Superior fuel economy
• High torque reserve for plenty of power and performance

Key features of the engine include:

• Economical, cast-in block cylinder design provides good cooling and long life.
• Liquid-cooled design provides more consistent operating temperatures than air-cooled.
• Fuel filter with replaceable element is provided.
• Indirect fuel injection uses a pre-combustion chamber to give the engine smooth and quiet operation.
• Full-pressure lubrication with full-flow filter lengthens engine life.
  • Engine wear reduced by ensuring proper lubrication, even when operating on hillsides or uneven terrain.
  • Oil filter helps keep oil clean for increased engine life.
• Aluminum alloy pistons with built-in steel struts are lightweight to reduce connection rod bearing loads and provide good heat-transfer characteristics.
  • Design permits tighter tolerances and neutralizes expansion of the piston, thereby reducing blow-by fuel and noise from the piston slap.
  • Higher top rings on the piston and a thinner head gasket greatly reduce the volume of unburned waste and increase combustion efficiency.
• Timing gears and injector drive gears utilize helical profile gears to help lower engine noise.
  • Gear teeth have a ''roll-off'' profile, giving almost no clash, no noise, and no backlash.
• Glow plugs provide quick starts in temperatures down to -18°C (0°F)
• Key start and shutoff eliminate fuel shut-off knob; electric solenoid shuts fuel supply off immediately when key is turned off.
• Dual-element, dry-type air cleaner with safety element and air service indicator
  • Dual-element design for added engine protection and easy service
  • Completely sealed for effective cleaning
  • Ninety to 95 percent of dirt ejected before it reaches the paper element
• Air cleaner restriction indicator to let operator know when the filter needs servicing

A sealed radiator compartment controls trash and debris. A cover is provided over the radiator, and a cooling fan area controls the flow of air.

An automotive-type radiator, coolant reservoir, and electric cooling fan are provided to remove heat from the engine coolant:

• The cooling fan is thermostatically controlled so it only runs when necessary.
• See-through coolant recovery tank permits the operator to check the coolant level without removing the radiator cap.

A debris screen with a corrugated shape to give a large surface area covers the intake air side of the radiator to keep the radiator fins clean.

The debris screen can be easily removed for cleaning, if desired, and also for access to the radiator fins.

The Z994R Diesel ZTrak™ Mower is equipped with a single 11.5-U.S. gal. (43.5-L) fuel tank that provides enough capacity to allow mowing for a full day without refueling:

• Large, angled filler neck makes for easier refueling
• Fuel cap tether is provided to secure the filler cap while refueling
• Fuel gauge is provided as standard equipment

• Three 7-Iron™ PRO Side-Discharge Mower Deck options give superior performance in every application

There are three side-discharge mower-deck options available for the Z994R Diesel ZTrak™ Mower:

• The 60-in. (152-cm) 7-Iron PRO Side-Discharge Mower Deck is suited to a variety of mowing jobs, including trimming and grooming.
• The 60-in. (152-cm) 7-Iron PRO Mulch On Demand™ Mower Deck can be converted from a wide-open, side-discharge mode to a fully chambered mulching mode with a single move of a lever.
• The 72-in. (183-cm) 7-Iron PRO Side-Discharge Mower Deck is suited to a variety of mowing jobs, including trimming and grooming.

On every commercial mower deck there are three 1-in. (25-mm) spindles that are cold-forged and heat-treated for strength. Spindles are supported by precision ball bearings that provide great performance and reliability.

• Superior impact strength provided by ductile cast-iron material.
• Gusseted design puts reinforcement where it is needed.
• Strength of cast iron protects against damage from blade impacts.
• Easy access grease fittings are mounted at the top of the spindle shafts for convenience.
• Grease pressure-relief valve minimizes seal damage from overfilling with grease and keeps debris from entering housing.
• Chance of deck shell damage is minimized with the 8-in. (20.3-cm) diameter housing and six mounting bolts that distribute loads and impacts.
• Ability to be reliably rebuilt is provided by use of cast iron.

Features include:

• Higher blade tip speed of approximately 16,500 fpm (5029 m/min) gives more blade strikes per distance of forward travel.
• The front baffle is designed to better manage airflow and control clippings.
• Spindle-pocket reinforcement provides even greater structural durability.
• A raised discharge chute allows for even clipping distribution.
• Thick, 7-gauge, 0.179-in. (4.55-mm) steel construction gives commercial durability.
• The three-spindle design provides a smooth, even cut.
• The trim edge of the deck is equipped with a bumper that provides great abrasion resistance to protect the machine and the property.
• A plastic discharge deflector reduces damage to foliage and resists bending.
• The formed, steel-deck design is forged from a single sheet of steel to eliminate corners where grass can collect.
• The deep deck gives increased vacuum action that reduces dropped clippings.
• The belt drive efficiently transfers power from gearbox to spindles.
• Spindle grease fittings are on top for easy access.
• Quick-change cutting-height adjustment is easy to use.
• Blade overlap of 1.57 in. (40 mm) reduces the number of missed grass blades.
• A mulching attachment is available.
• The Power Flow rear material collection system is available.
• Quick release belt covers for added convenience

Features include:

• The deck can be converted from a wide-open side discharge mode to a fully chambered mulching mode with a single move of a lever.

• Higher blade tip speed of approximately 16,500 fpm (5029 m/min) gives more blade strikes per distance of forward travel.

• The front baffle is designed to better manage airflow and control clippings.
• Spindle-pocket reinforcement provides even greater structural durability.
• A raised discharge chute allows for even clipping distribution.
• Thick, 7-gauge, 0.179-in. (4.55-mm) steel construction gives commercial durability.
• The three-spindle design provides a smooth, even cut.
• The trim edge of the deck is equipped with a bumper that provides great abrasion resistance to protect the machine and the property.
• A plastic discharge deflector reduces damage to foliage and resists bending.
• The formed, steel-deck design is forged from a single sheet of steel to eliminate corners where grass can collect.
• The deep deck gives increased vacuum action that reduces dropped clippings.
• The belt drive efficiently transfers power from gearbox to spindles.
• Spindle grease fittings are on top for easy access.
• Quick-change cutting-height adjustment is easy to use.
• Blade overlap of 1.57 in. (40 mm) reduces the number of missed grass blades.
• The mulching attachment is available.
• The Power Flow rear material collection system is available.
• Quick release belt covers for added convenience

• Enhanced productivity, safety, and trim ability with a FastBack™ PRO rear-discharge mower deck

For professional landscapers and government municipalities requiring rear discharge placement of grass and debris, John Deere FastBack PRO rear-discharge mower decks deliver a commercial zero-turn mowing solution for both gas and diesel machines. Advantages of a rear-discharge mower include:

• Less chance of damage from objects being thrown from the mower deck
• Time savings with the ability to mow closely around fixed objects with either side of the deck
• A cleaner mowing experience by lessening the amount of debris that can blow onto the operator

A rear-discharge mower deck is ideally suited for:

• Schools
• Parks
• Playgrounds
• Traffic areas (city boulevards, roadsides, etc.)
• Areas with long, grassy spots that need to be cut, where you are not as concerned about wide dispersal of grass (park areas, roadsides, etc.)*

A large volume of material can be thoroughly processed with the deep-deck design:

• Unique baffling system is designed to reduce clumping and windrowing often associated with rear-discharge mowers.
  • Efficiency is enhanced with baffles surrounding each blade to control material as it is moved to the rear.
  • Material exits the deck quickly as the baffles are lower at the rear.
  • Movement of material is controlled to minimize the likelihood that clippings are thrown onto unwanted areas.
• Less debris gets on the operator as material is directed to the rear and toward the ground.
  • Debris is kept low and directed into the turf by the flexible rear shield.

The deck is suspended from and supported by the machine to provide a level cut. Mower deck wheels and rollers help smooth out the mowing job in uneven conditions and reduce the chance of scalping the lawn:

• Two wide front rollers at the center of the mower support the deck when necessary to prevent scalping.
• Wheels at all four corners protect the deck from scalping at the sides of the mower.
• Continued effectiveness results from wheels and rollers that are double captured for extra strength, which reduces the chance of damage.
• Height of rollers and wheels is adjustable to suit mowing conditions.
  • Higher setting (shown in images) are used when mowing at lower cut heights and for rougher conditions at all cut heights where you want to reduce the chance of the wheels hitting the ground.
  • Lower settings are used for higher cut heights and for helping to smooth out the mowing job.
• Mower cut height is adjustable from 1 to 5.5 in. (2.54 to 14 cm) in 0.25-in. (0.64-cm) increments from the machine operator’s station.

These rear-discharge decks are designed to stand up to heavy-duty commercial use:

• Superior strength and durability come from a 7-gauge, 0.179-in. (4.6-mm) steel deck.
• Experience extra strength and long life with a fabricated deck design that is formed, welded, and reinforced for extra protection from damage.
• The front of the deck is protected from damage by a 1.5-in. (3.8-cm) tall by 0.5-in. (1.3-cm) thick solid steel bar welded to the mower deck for additional strength.
• Both sides of the deck have bumpers that are made from compression molded ultra-high molecular weight (UHMW) polyethylene plastic.
  • The bumpers provide great abrasion resistance to protect the machine and the property.
  • Additional strength is provided by a 0.5-in. (1.3-cm) by 0.5-in. (1.3-cm) thick solid steel bar.

Durability is designed into the mower blade drive system:

• Reliably powered by a universal joint shaft drive from the vehicle transmission to a heavy-duty right-angle, cast-iron gearbox (Z997R)
• Dependable v-belt drive system

Extra reliability and long life are provided by cast-iron blade spindle housings:

• Ductile cast-iron material provides superior impact strength.
• Gusseted design puts reinforcement where it is needed.
• Strength of cast iron protects against damage from blade impacts.
• Grease pressure-relief valve minimizes seal damage from overfilling with grease and keeps debris from entering housing.
• Chance of deck-shell damage is minimized with the 8-in. (20.3-cm) diameter housing and six mounting bolts that distribute loads and impacts.
• Ability to be reliably rebuilt is provided by use of cast iron.

• Exceptional operator comfort begins with a high-quality seat and suspension

Operator comfort was a primary focus in the design of the Z994R:

• Large, open operator station and foot platform with plenty of legroom and room for multiple foot positions
• A choice of seat and suspension options to suit the operator and operating conditions
• Instruments, controls, and storage areas that are easy to see and use
• Three-position rollover protective structure (ROPS) and retractable seat belt for operator safety and convenience
• Thick seat cushion for lasting comfort, even after a full day of use
• Retractable seatbelt for convenience and ease of use
• Springs to isolate the seat base for increased ride comfort
• ComfortGlide fore/aft suspension for superior ride comfort over uneven areas
  • Seat can travel up to 2 in. (50.8 mm) fore and aft to absorb bumps for a significant enhancement to ride comfort
  • Ability to easily lock out if desired by the operator
  • One lever for three functions
    • Slide seat forward and back 3 in. (7.6 cm)
    • Activate ComfortGlide fore/aft seat suspension
    • Lock-out ComfortGlide fore/aft seat suspension

• A spring-type locking mechanism holds the seat securely down in the operating position for operator comfort and safety, but allows quick release for tilting the seat up:

• For protection from the elements
• For access to the transmission fluid reserve tank, battery, etc.

The fully adjustable, 24-in. (61-cm) high-back, mechanical suspension seat with adjustable armrests includes:

• Adjustable armrests that can also be raised for operator convenience

• Suspension seat control dial for easy adjustment of suspension to suit the operator
• Adjustable lumbar support for operator preference
  • Lumbar adjustment gives extra operator comfort
  • Adjustment is especially helpful when operating the vehicle for extended periods of time
• Vibration reduction
• Seat back-angle adjustment to maximize operator comfort by using a convenient lever on the side of the seat
