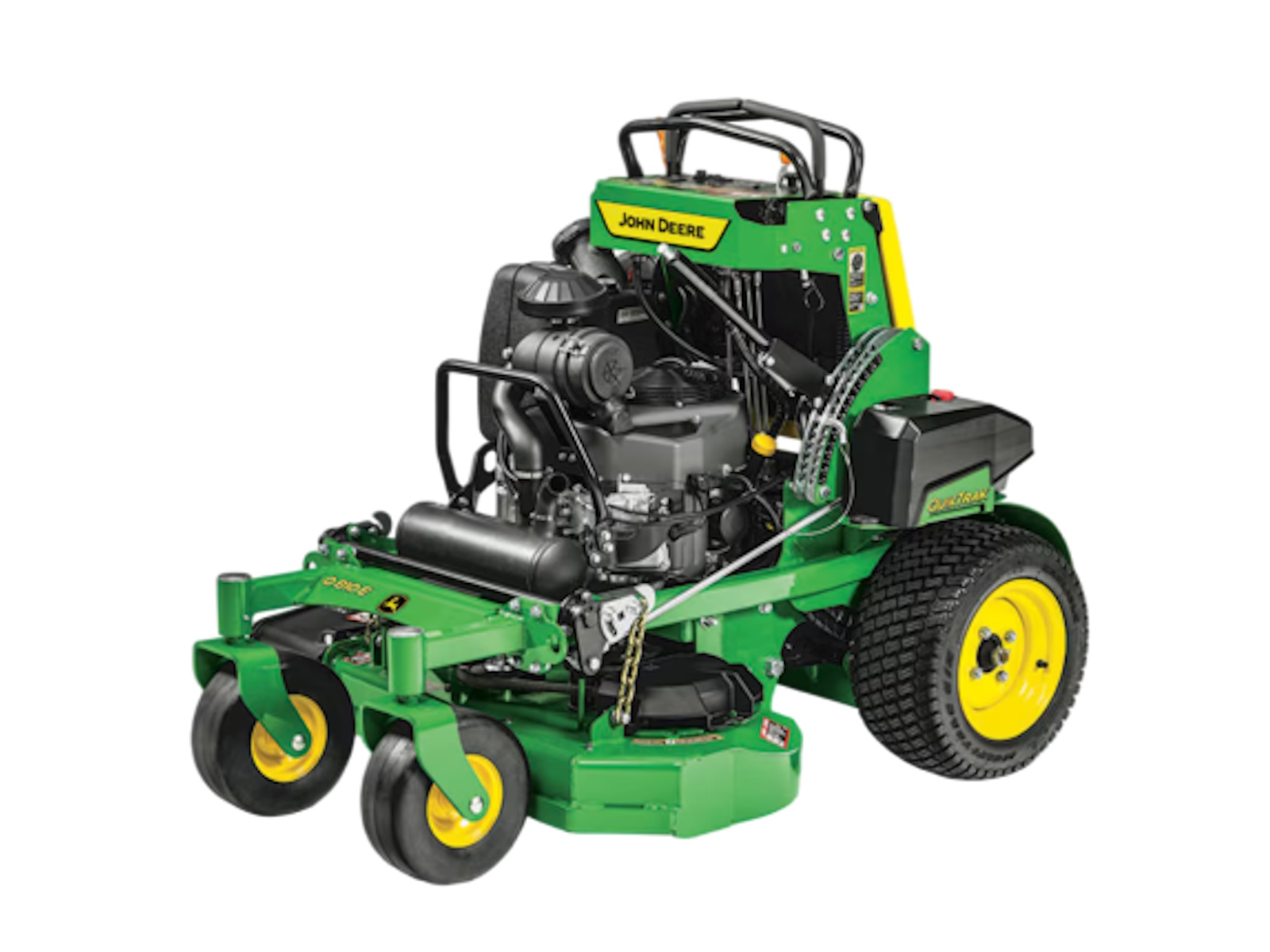

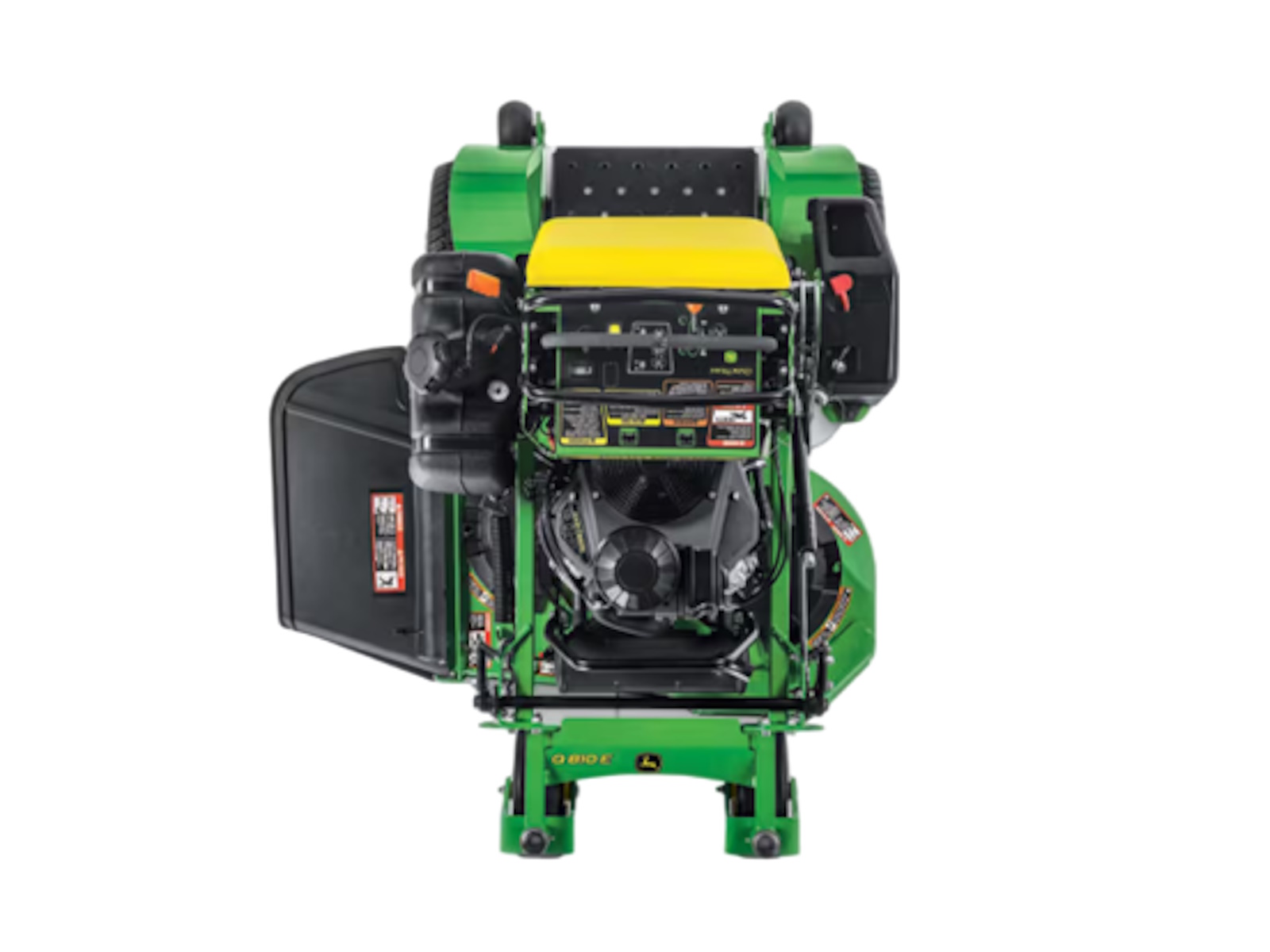

2025 John Deere Golf & Sports Turf Q810E

• 19-hp (14.2-kW)
• 36" deck, 7-gauge fabricated deck
• Mow up to 8 mph
• Warranty: 36 months or 1200 hours, whichever comes first. First 24 months, no hour limitation**

Features May Include:

• Commercial-quality engine is reliable and provides excellent performance and life

Commercial-quality V-twin air-cooled engines power the QuikTrak™ Mowers:

• FX600V 19 hp (14.2 kW) gross at 3600 rpm (Q810E)
• FX730V 23.5 hp (17.5 kW) gross at 3600 rpm (Q820E)

Both engines feature:

• Overhead valve design
  • More horsepower and torque per cubic inch of displacement
  • Better fuel efficiency
• Full-pressure lubrication with full-flow filter
  • Reduces engine wear by ensuring proper lubrication, even when operating on hillsides or uneven terrain
  • Filtered oil reduces risk of contamination for increased engine life
• V-twin design
  • Fast starts
  • Smooth operation
• Vertical shaft for efficient transfer of power to the transmission and mower
• Standard canister-type, dry replaceable, heavy-duty air cleaner
  • Q820E has dual-element air cleaner with safety element
• Fuel pump for consistent and reliable fuel supply to the carburetor
• Air-cooled engine design for minimum maintenance and maximum reliability
• Standard cleanout ports for easy access to remove debris collecting in cooling fins
• Aluminum cylinder block
  • Effectively dissipates heat
  • Lightweight and strong construction
  • Extends engine life due to elimination of debilitating engine temperatures

The engine is equipped with a replaceable oil filter for longer engine life.

Engine oil fill/check tube, oil filter, and oil drain hose are located close together for easy and convenient service.

Quality fuel-system components enhance performance and convenience:

• Large, 5.6-U.S. gal. (21.2-L) capacity
  • Wide fuel tank filler opening
    • Conveniently located
    • Makes adding fuel easy and helps eliminate spillage
• Sealed and tethered fuel cap
  • Reduced fuel vapor loss
  • Less chance of losing fuel cap

A fuel gauge is conveniently located to keep the operator informed about the amount of fuel remaining in the tank.

A fuel shut-off valve is provided. It should be turned off whenever the QuikTrak Mower is not in use.

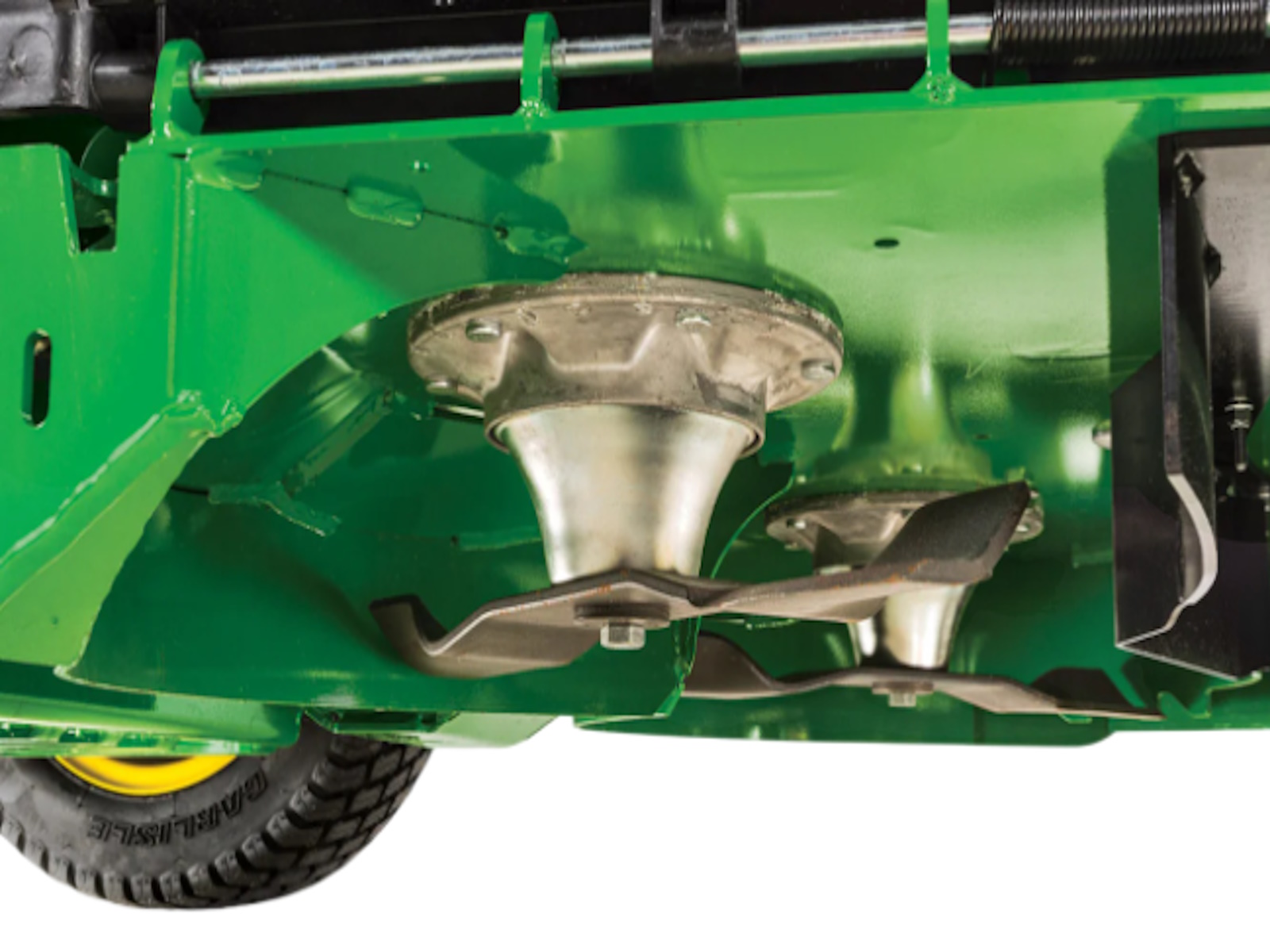

• Fabricated mower deck is made from 7-gauge, 0.179-in. (4.6-mm) steel for reliability and performance

A well-designed mower deck can make the difference between just getting the job done and getting eye-catching results. The 7-gauge, 0.179-in. (4.6-mm) fabricated mower deck delivers a higher quality of cut in more diverse conditions to enhance mowing performance.

Key features of the fabricated mower deck include:

• 36-in. (91-cm) cutting width on Q810E model and 48-in. (122-cm) cutting width on Q820E model
• Manufactured from 7-gauge, 0.179-in. (4.6-mm) steel to minimize the number of welds and provide a smooth underside, with fewer sharp corners, for reduced material buildup.
• A compact footprint delivers greater maneuverability when working in tight quarters.
• A deep-deck design delivers excellent airflow, so material is processed quickly and efficiently.
• A powerful vacuum effect is created by the deck's unique air-flow design, which pulls more grass upright so that the blades can cut more evenly.

The wide-discharge opening and raised deflector provide even clipping dispersal for an excellent finished appearance in all conditions.

Caster wheels with flat-free tires contribute to a smooth, even cutting job:

• Large, flat-free caster wheels carry the mower deck smoothly over the lawn.
• Caster wheels are recessed to reduce the vehicle footprint and turning radius.
  • With the wheels less exposed, there is less chance they will get snagged by immovable obstacles, thus improving maneuverability, and reducing damage.

The QuikTrak is equipped with a floating mower deck that offers several advantages:

•  The lift lever allows the operator to raise the mower to the fully-raised position from the operator's station.

  • Convenient when transporting from one mowing area to another and when loading/unloading.

  • Allows the operator to raise the mower over roots or other obstructions in the lawn on the fly.

• Lift-assist springs reduce the effort required to raise the mower deck.

• Large operator platform and quality leaning pad enhance operator comfort

The large operator platform is cushioned to absorb shock to give the operator a smooth and comfortable ride.

A high-quality leaning pad is provided for operator comfort and to insulate the operator from heat given off by the machine.

A storage pocket on the battery box provides a convenient place for the operator to store a cell phone, gloves, etc.

Control levers are covered with cushioning material for operator comfort. Two stationary reference bars are provided for operator comfort and convenience:

• Front reference bar is included to control speed and reduce fatigue from control lever operation.
• Rear reference bar is included to make reverse operation easy while maintaining operator confidence.

• Controls are easy to locate and use for operator comfort and productivity

 Controls are color coded and logically placed to make them easy for the operator to find and use:

• Ground speed and direction are easily controlled by moving the two hand-lever hydrostatic drive controls forward or reverse.
  • Speeds are infinitely variable up to 8-mph (12.9-km/h) forward and 3.5-mph (5.6-km/h) reverse.
  • A positive neutral-lock holds the control levers in neutral when the park brake is engaged.
• Two stationary reference bars are provided for operator convenience and security.
  • Front reference bar is included to control speed and reduce fatigue from control lever operation.
  • Rear reference bar is included to make reverse operation easy while maintaining operator confidence.
• Control levers return to neutral automatically for safety and convenience.
• Separate choke is easy to locate and use.
  • Less adjustment is needed with the separate choke.

A tire brake is provided to give stability for parking the vehicle on hillsides and for transport; it should be engaged whenever the machine is not being used:

• Brake must be engaged to start the machine, for added safety.
• The tire brake bars are easily adjusted, if necessary, to maintain effective operation.

An easy-to-use cutting height adjustment system allows the operator to adjust the mower deck cutting height with no tools and minimal effort:

• Pull the lift lever back to the fully raised position.
• Remove the tethered pin and place it at the desired cutting height.
• Lower the lift lever; the lift lever and mower will stop at the desired cutting height.
