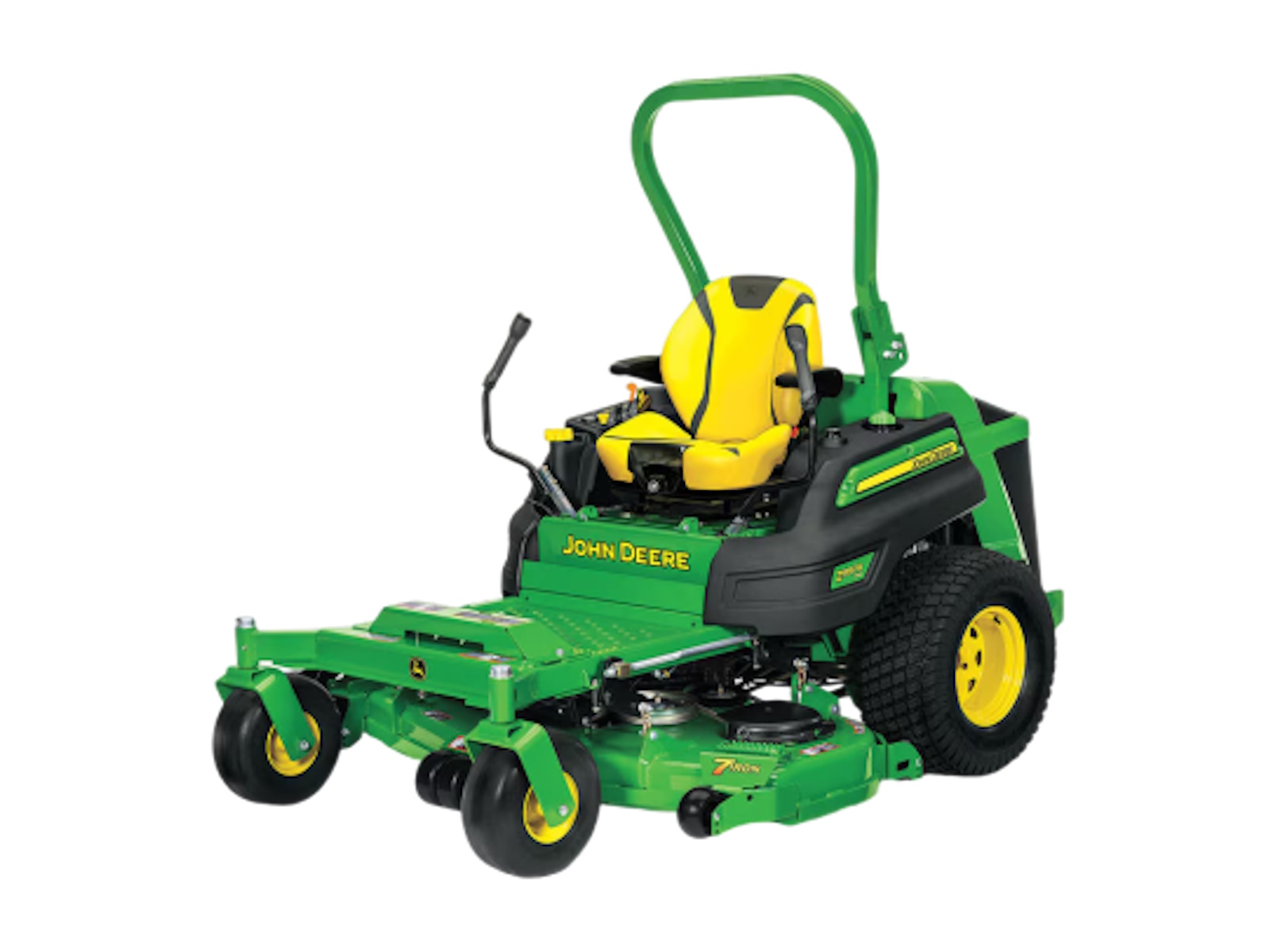

2025 John Deere Golf & Sports Turf Z997R Diesel 72 in

• 37.4 HP (27.5 kW)
• Biodiesel (B20) compatible
• Tier 4 compliant
• 7-Iron™ PRO deck
• Rear Discharge Deck Available

Features May Include:

• Powerful diesel engine for increased performance

The Z997R is powered by a 3-cylinder, liquid-cooled diesel engine with a gross 37.4 hp (27.5 kW) that meets U.S. Environmental Protection Agency (EPA) Final Tier 4 emission standards. The engine achieves Final Tier 4 compliance by using a diesel oxidation catalyst with diesel particulate filter (DOC/DPF) system.

The three-cylinder diesel engine features low noise levels, superior fuel economy, and a high torque reserve that provides plenty of power and performance.

Key features of the engine include:

• Economical, cast-in block cylinder design gives good cooling and long life.
• Liquid-cooled design provides more consistent operating temperatures than air-cooled.
• Direct fuel injection is provided.
  • Injects fuel directly on top of pistons for more efficient combustion
  • Develops more horsepower per gallon of fuel
  • Improves starting
• Aluminum alloy pistons with built-in steel struts are lightweight to reduce connection rod bearing loads and provide good heat-transfer characteristics.
  • Design permits tighter tolerances and neutralizes expansion of the piston, thereby reducing blow-by fuel and noise from the piston slap
  • Higher top rings on the piston and a thinner head gasket greatly reduce the volume of unburned waste and increase combustion efficiency
• Timing gears and injector drive gears utilize helical profile gears to help lower engine noise.
  • Gear teeth have a newly designed ''roll-off'' profile, giving almost no clash, no noise, and no backlash
• Fuel filter with replaceable element is provided.
• Full-pressure intake manifold provides quick starts in temperatures down to 0°F (-18°C).
• Auto-bleed fuel system gives extra convenience.
  • No need to prime the system if the unit runs out of fuel; the system will self-prime the injection pump, lines and injectors, providing fast fuel recovery
• Key start and shutoff eliminate fuel shut-off knob; electric solenoid shuts fuel supply off immediately when key is turned off.
• See-through coolant recovery tank permits operator to check coolant level without removing radiator cap.
• Sealed radiator compartment keeps trash and debris on outside of hood.
• Dual-element, dry-type air cleaner with safety element and air service indicator is provided.
  • Dual-element design for added engine protection
  • Easy to service
  • Completely sealed for effective cleaning and 90 to 95 percent of dirt ejected before it reaches the paper element
  • Secondary safety element for additional filtering
  • Air-restriction indicator to let operator know when the filter needs servicing
• Full-pressure lubrication with full-flow filter lengthens engine life.
  • Engine wear reduced by ensuring proper lubrication, even when operating on hillsides or uneven terrain
  • Oil filter helps keep oil clean for increased engine life
• Automotive-type alternator (75 amp) provides plenty of charge to the battery.
• Rear-mounted, covered radiator and fan keeps noise away from the operator and is easy to service.
• Isolated engine mounting reduces engine vibration at operator's station for more comfortable operation.

The ZTrak™ Z997R Diesel Mower is equipped with a dual-element, canister-style air filter that is easily accessible from the rear of the machine without tools.

• Filtration system pulls clean air from above the engine, in turn filtering out the dust that can damage an engine over time.
• Filters are easy to change when required.
• Pre-cleaner provides extra protection against contamination in dusty and dirty applications.

The Z997R Diesel ZTrak™ Mower is equipped with a single fuel tank, providing the following:

• 12-U.S. gal. (45.4-L) capacity allows the operator to mow for a full day without refueling.
• Large filler neck makes for easier refueling.
• Standard fuel gauge is provided.
• Top fuel draw provides added safety by reducing the chance fuel will leak out.

• Two 7-Iron™ PRO Side-Discharge Mower Deck options for the Z997R give superior performance in every application

There are two side-discharge mower-deck options available for the Z997R Diesel ZTrak Mower:

• The 60-in. (152-cm) 7-Iron PRO side-discharge deck is suited to a variety of mowing jobs, including trimming and grooming.
• The 72-in. (183-cm) 7-Iron PRO side-discharge deck is suited to a variety of mowing jobs, including trimming and grooming on larger properties.

On every commercial mower deck there are three 1-in. (25-mm) spindles that are cold-forged and heat-treated for strength. Spindles are supported by precision ball bearings that provide great performance and reliability.

• Superior impact strength provided by ductile cast-iron material.
• Gusseted design puts reinforcement where it is needed.
• Strength of cast iron protects against damage from blade impacts.
• Easy access grease fittings are mounted at the top of the spindle shafts for convenience.
• Grease pressure-relief valve minimizes seal damage from overfilling with grease and keeps debris from entering housing.
• Chance of deck shell damage is minimized with the 8-in. (20.3-cm) diameter housing and six mounting bolts that distribute loads and impacts.
• Ability to be reliably rebuilt is provided by use of cast iron.

Mower decks are shaft driven. Benefits of using this type of system include:

• Live independent power take-off (PTO) powers the mower deck.
• PTO can be engaged or disengaged on the go for greater productivity.
• Hydraulic PTO clutch has delay relief valve for soft engagement.
• Wet clutch is designed for long life.
• PTO is easily accessible.
• 250-lb-ft (339-Nm), heavy-duty hydraulic clutch provides long life.
• Splined PTO shaft transfers power to the cast-iron gearbox.

Features include:

• Higher blade tip speed - approximately 18,000 fpm (5486 m/min) gives more blade strikes per distance of forward travel.
• Front baffle is designed to better manage airflow and control clippings.
• Ductile cast-iron blade-spindle housings have a gusseted design for extra reinforcement.
• Spindle-pocket reinforcement for even greater structural durability.
• A raised discharge chute provides even clipping distribution.
• 7-gauge, 0.179-in. (4.5-mm) steel construction gives commercial durability.
• 3-spindle design provides a smooth, even cut.
• The trim edge of the deck is equipped with a bumper that provides great abrasion resistance to protect the machine and the property.
• Plastic discharge deflector reduces damage to foliage and resists bending.
• Formed, steel-deck design is forged from a single sheet of steel to eliminate corners where grass can collect.
• Deep deck gives increased vacuum action that reduces dropped clippings.
• Shaft drive from engine to mower gives excellent reliability.
• Belt drive efficiently transfers power from gearbox to spindles.
• Grease fittings are greased from the top for easy access.
• Quick-change cutting-height adjustment is easy to use.
• Tricycler mulching kits are available.
• Blade overlap of 1.57 in. (40 mm), nearly 0.79 in. (20 mm) greater than previous decks, reduces the number of missed grass blades.

Features include:

• Higher blade tip speed - approximately 18,000 fpm (5486 m/min) gives more blade strikes per distance of forward travel.
• Front baffle is designed to manage airflow and control clippings.
• Spindle pocket reinforcement gives greater structural durability.
• Ductile cast-iron blade-spindle housings have a gusseted design for extra reinforcement.
• A raised discharge chute provides even clipping distribution.
• 7-gauge, 0.179-in. (4.5-mm) steel construction gives commercial durability.
• 3-spindle design gives a smooth, even cut.
• The trim edge of the deck is equipped with a bumper that provides great abrasion resistance to protect the machine and the property.
• Plastic discharge deflector reduces damage to foliage and resists bending.
• Formed, steel-deck design is forged from a single sheet of steel to eliminate corners where grass can collect.
• Deep deck gives increased vacuum action that reduces dropped clippings.
• Shaft drive from engine to mower gives excellent reliability.
• Belt drive efficiently transfers power from gearbox to spindles.
• Grease fittings are greased from the top for easy access.
• Quick-change cutting-height adjustment is easy to use.
• Tricycler mulching kits are available.
• Blade overlap of 1.57 in. (40 mm), nearly 0.79 in. (20 mm) greater than previous decks, reduces the number of missed grass blades.

• Enhanced productivity, safety, and trim ability with a FastBack™ PRO rear-discharge mower deck

For professional landscapers and government municipalities requiring rear discharge placement of grass and debris, John Deere FastBack PRO rear-discharge mower decks deliver a commercial zero-turn mowing solution for both gas and diesel machines. Advantages of a rear-discharge mower include:

• Less chance of damage from objects being thrown from the mower deck
• Time savings with the ability to mow closely around fixed objects with either side of the deck
• A cleaner mowing experience by lessening the amount of debris that can blow onto the operator

A rear-discharge mower deck is ideally suited for:

• Schools
• Parks
• Playgrounds
• Traffic areas (city boulevards, roadsides, etc.)
• Areas with long, grassy spots that need to be cut, where you are not as concerned about wide dispersal of grass (park areas, roadsides, etc.)*

A large volume of material can be thoroughly processed with the deep-deck design:

• Unique baffling system is designed to reduce clumping and windrowing often associated with rear-discharge mowers.
  • Efficiency is enhanced with baffles surrounding each blade to control material as it is moved to the rear.
  • Material exits the deck quickly as the baffles are lower at the rear.
  • Movement of material is controlled to minimize the likelihood that clippings are thrown onto unwanted areas.
• Less debris gets on the operator as material is directed to the rear and toward the ground.
  • Debris is kept low and directed into the turf by the flexible rear shield.

The deck is suspended from and supported by the machine to provide a level cut. Mower deck wheels and rollers help smooth out the mowing job in uneven conditions and reduce the chance of scalping the lawn:

• Two wide front rollers at the center of the mower support the deck when necessary to prevent scalping.
• Wheels at all four corners protect the deck from scalping at the sides of the mower.
• Continued effectiveness results from wheels and rollers that are double captured for extra strength, which reduces the chance of damage.
• Height of rollers and wheels is adjustable to suit mowing conditions.
  • Higher setting (shown in images) are used when mowing at lower cut heights and for rougher conditions at all cut heights where you want to reduce the chance of the wheels hitting the ground.
  • Lower settings are used for higher cut heights and for helping to smooth out the mowing job.
• Mower cut height is adjustable from 1 to 5.5 in. (2.54 to 14 cm) in 0.25-in. (0.64-cm) increments from the machine operator’s station.

These rear-discharge decks are designed to stand up to heavy-duty commercial use:

• Superior strength and durability come from a 7-gauge, 0.179-in. (4.6-mm) steel deck.
• Experience extra strength and long life with a fabricated deck design that is formed, welded, and reinforced for extra protection from damage.
• The front of the deck is protected from damage by a 1.5-in. (3.8-cm) tall by 0.5-in. (1.3-cm) thick solid steel bar welded to the mower deck for additional strength.
• Both sides of the deck have bumpers that are made from compression molded ultra-high molecular weight (UHMW) polyethylene plastic.
  • The bumpers provide great abrasion resistance to protect the machine and the property.
  • Additional strength is provided by a 0.5-in. (1.3-cm) by 0.5-in. (1.3-cm) thick solid steel bar.

• Standard operator comfort and convenience package for ease of use

The Z997R Diesel ZTrak™ Mower is ergonomically designed to give the operator an enjoyable and comfortable ride while increasing productivity.

Two-lever hydrostatic drive control

• Commercial cutter can select the ground speed and direction control simply by moving levers forward or in reverse.
• Positive neutral lock position for levers provides added safety.
• Wide-bend steering levers swing out easily for entry and exit from the operator platform.

The comfort and convenience package includes large, ergonomically angled control levers with specially padded grips and built-in electronic controls to raise or lower the mower deck and disengage the mower blades.

The push button (A) on the left motion control lever raises the mower deck. The push button (B) on the right-hand control lever shuts off the power take-off (PTO).

Once the PTO has been shut off using the button, the PTO switch must be pushed down and pulled up again to engage the PTO.

• Positive park position allows the operator to park on hillsides and lock the park brake during
  trailer transport.
• Park brake automatically disengages the machine during panic stop, for added safety.
