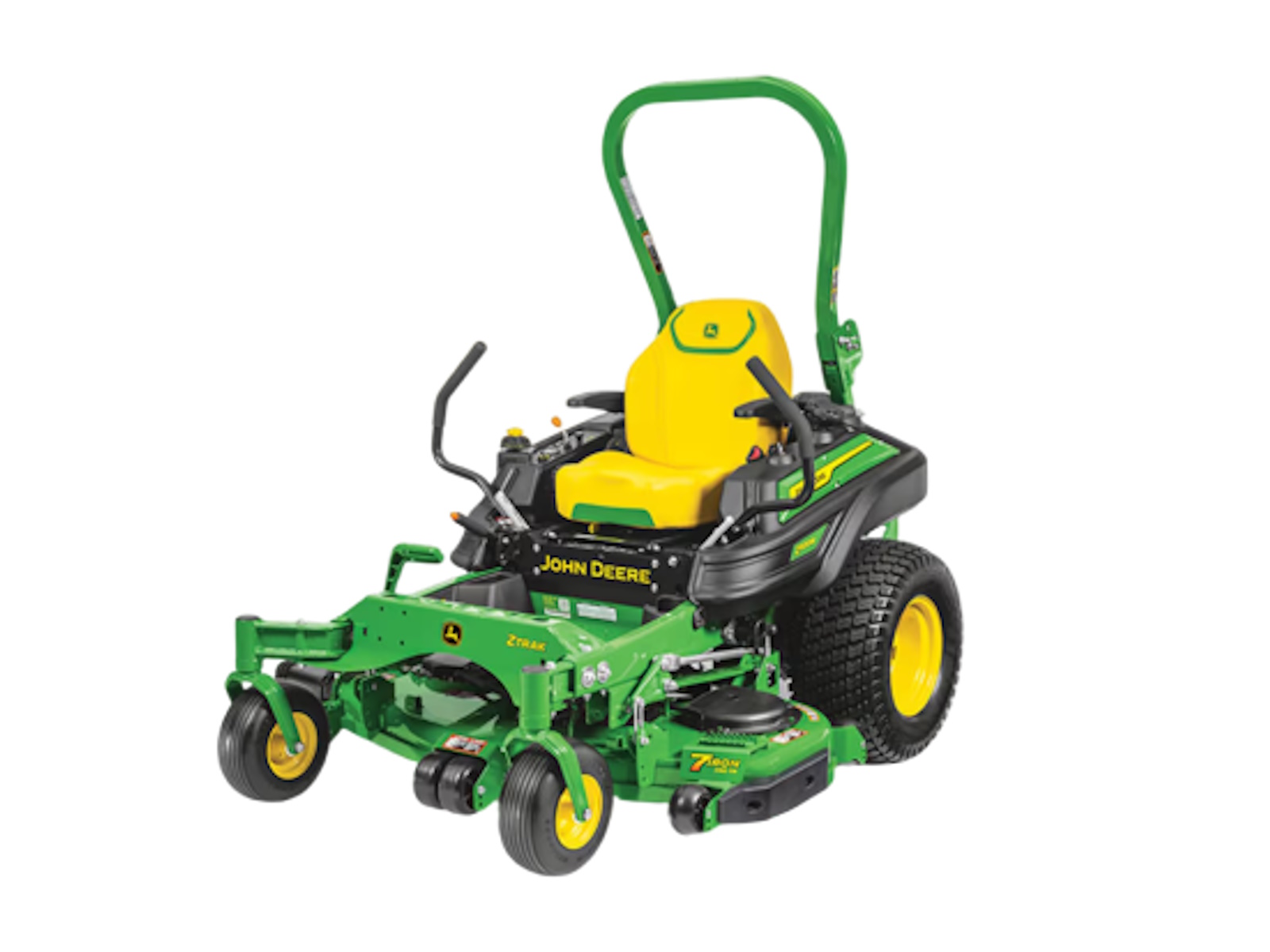

2025 John Deere Golf & Sports Turf Z920M 48 in

• 7-Iron™ PRO Mowing Deck
• Gasoline Engine

Features May Include:

• Powerful 23.5-hp (17.5-kW) commercial-grade engine delivers class-leading performance and efficiency

The Z920M is powered by an air-cooled, vertical shaft engine:

• 23.5-hp (17.5-kW) gas engine

Engine features include:

• Overhead valve design
  • More horsepower and torque per cubic inch of displacement
  • Better fuel efficiency
• Full-pressure lubrication with full-flow filter
  • Reduces engine wear by ensuring proper lubrication, even when operating on hillsides or uneven terrain
  • Oil filter helps keep oil clean for increased engine life
  • V-twin big block design
• Vertical shaft
• Easy-access, dual-element air filter with quick release latch
• 30-amp alternator
• Fuel pump
• Aluminum block engines
  • Effectively dissipate heat
  • Lightweight and strong construction
  • Extend engine life due to elimination of debilitating engine temperatures
  • Air-cooled engine design

Engine service

The engine is easy to service, including changing the oil:

• The engine oil check/fill tube is located at the top of the engine and easy to see and reach.
• No-tools oil drain is convenient to use.

ZTrak™ Z900 Mowers are equipped with a dual-element, canister-style air filter, easily accessible from the rear of the machine without tools.

• The filtration system pulls clean air from above the engine, in turn filtering out the dust that can damage an engine over time.
• Filters are extremely easy to change when required.
• Pre-cleaner provides more protection against contamination in dusty and dirty applications.

The ZTrak Z900 Mowers are equipped with one single-fill, top-draw fuel tank:

• 11.5-U.S. gal. (43.5-L) capacity enables operators to mow all day without refueling.
• The fuel gauge makes it quick and easy to see how much fuel is in the tank.
• Top draw provides added safety.
• A large fuel-filler neck is angled to make it easy for an operator to complete the fueling process.

Under normal conditions, load, and operation, fuel consumption for carbureted Z900 ZTrak Mowers is 1.5 U.S. gph (5.7 L/hr) to 2.2 U.S. gph (8.3 L/hr), depending on the horsepower and conditions.

• Extra durability and mowing performance from 7-Iron™ PRO Side-Discharge decks pressed from a single piece of steel

7-Iron PRO mower decks have demonstrated quality, performance, and durability. They deliver a high-quality cut in diverse conditions.

Key features of the 7-Iron PRO mower deck:

• Deck is forged from 7-gauge, 0.179-in. (4.6-mm) steel to minimize the number of welds and provide a smooth underside with fewer sharp corners for reduced material buildup.
• Significantly fewer welds on the deck shell to wear or break - it is forged from a single sheet of steel rather than multiple fabrications. An anti-skid step on the deck provides easy machine mounting.
• Extra reliability and long life with cast-iron blade spindle housings.
• Higher blade tip speed than many competitors - approximately 18,500 fpm (5,639 m/min) for more blade cuts per inch mowed.
• A deep-deck design of 5.5 in. (14 cm) delivers excellent airflow so material can be processed quickly and efficiently.
• The wider and higher discharge opening provides even clipping dispersal for an excellent finished appearance in all conditions.
• Quick-release belt covers do not require tools or the removal of a ring clip; just lift one corner of the cover and rotate it slightly to remove.
  • A hole in the deck tab is provided for use of an optional ring clip for extra security, if desired.
  • This makes it quick and easy for you to clean out trash that may collect around the spindle sheave.

• Deck has rectangular leading deck edge reinforcement and the rounded corners of the forged deck help distribute impact stress to reduce the potential of damage when the mower contacts trees, rocks, curbs, and other fixed obstacles.
• Dual-captured front and rear anti-scalp wheels provide deck flotation over even the toughest terrain.
• Three 1-in. (2.5-cm), cold-forged spindles are heat-treated for strength without bulk and are supported by ball bearings, providing reliability and performance; spindle housings are ribbed cast iron providing both excellent strength and heat dissipation.
• The trim edge of the deck is equipped with a bumper that provides great abrasion resistance to protect the machine and the property.
• The front edge is raised above the blade plane to allow even cutting of tall grass and is reinforced with a square bar for durability. The front baffle has been redesigned to better manage airflow and control clippings.
• Three spindle grease fittings are accessible from the top.
• Blade overlap is 1.6 in. (40.6 mm), nearly 0.79 in. (20 mm) greater than previous decks, to reduce striping between blades.
• Quick-change, cutting-height adjustment.

On every commercial mower deck there are three 1-in. (25-mm) spindles that are cold-forged and heat-treated for strength. Spindles are supported by precision ball bearings that provide great performance and reliability.

• Superior impact strength provided by ductile cast-iron material.
• Gusseted design puts reinforcement where it is needed.
• Strength of cast iron protects against damage from blade impacts.
• Easy access grease fittings are mounted at the top of the spindle shafts for convenience.
• Grease pressure-relief valve minimizes seal damage from overfilling with grease and keeps debris from entering housing.
• Chance of deck shell damage is minimized with the 8-in. (20.3-cm) diameter housing and six mounting bolts that distribute loads and impacts.
• Ability to be reliably rebuilt is provided by use of cast iron.

• Three seat choices with ComfortGlide™ fore/aft suspension offer exceptional operator comfort

There are three seating options available for the M Series, all of which are factory installed:

1. Deluxe comfort seat with armrests
2. Deluxe comfort seat with armrests and isolation
3. Fully adjustable suspension seat with armrests

Each seat has the ComfortGlide fore/aft suspension system that gives superior ride comfort over uneven areas:

• Seat can travel up to 2 in. (50.8 mm) fore and aft to absorb bumps for a significant enhancement to ride comfort.
• Control lever provides the ability to easily lock out fore/aft suspension movement if desired.
• One lever has three functions:
  • Slide seat forward and back 3 in. (10.2 cm) to allow the operator the ability to choose the leg room needed
  • Activate ComfortGlide fore/aft seat suspension
  • Lock out ComfortGlide fore/aft seat suspension

The deluxe comfort seat with armrests is standard on all M Series models:

• Rubber springs are provided to increase ride comfort.
• A convenient seat latch makes it easy to lift the seat.
• The seat is factory installed.

The deluxe comfort seat with armrests and isolation is available on the M and R Series:

• Rubber springs are provided to isolate the seat base and to increase ride comfort.
• A convenient seat latch makes it easy to lift the seat.
• Isolation mounting is a good feature to reduce vibration for operators who do not require the fully adjustable suspension seat option.
• Factory installed on Z900s ordered with the deluxe comfort seat with armrests and isolation option.

A fully adjustable suspension seat with armrests option is available on the M and R Series:

• Adjustable back angle is provided for individual operator comfort.
• Adjustable lumbar support helps to suit the needs of the operator.
• A suspension seat control dial gives easy adjustment for operator weight and ride comfort.
• A convenient seat latch provides ease of lifting the seat.
• On Z900s ordered with the fully adjustable suspension seat with armrests option, it is factory installed.

wo-lever hydrostatic control provides the following:

• The operator can select the ground speed and direction control simply by moving levers forward or reverse.
• Positive neutral lock position for levers provides added safety.
• Brake & Go operator-presence system returns levers to the neutral position when the brake pedal is actively engaged.
• Starting the machines is as easy as starting a car. It no longer matters if the control levers are extended out or pulled in, as long as the parking brake is engaged. Just turn the key and go.
• Wide-bend, large-diameter steering levers swing out easily for entry and exit from the operator platform.

• Three-year, bumper-to-bumper warranty

An exclusive 2-year, unlimited hour/3-year, 1200-hour (whichever comes first) bumper-to-bumper warranty is standard for all John Deere M Series Mowers. The warranty is best in its class and places John Deere at the forefront of commercial mowing. It is also hassle free, with one company handling all of the paperwork.

An exclusive 2-year, unlimited hour/3-year, 1500-hour (whichever comes first) bumper-to-bumper warranty is standard on all John Deere R Series mowers. The warranty is best in the industry and puts John Deere at the forefront of commercial mowing. It is also hassle free, with one company handling all of the paperwork.

Mowers decks are evaluated by the manufacturer (John Deere Turf Care) and conform to American National Standards Institute (ANSI) B71.4 2004 safety certification specifications for commercial turf care equipment.
