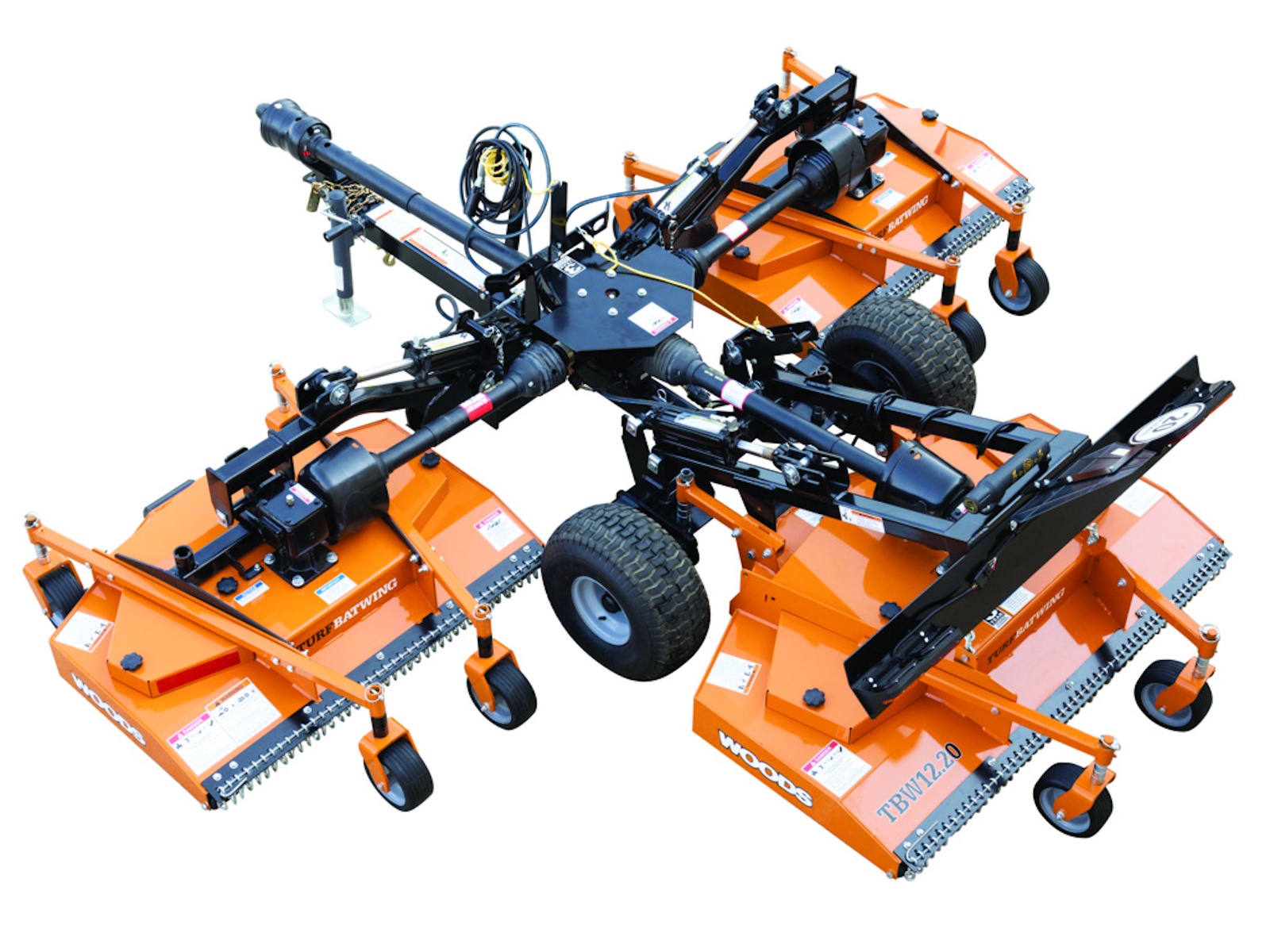

2026 Woods TBW12.20
Get in Touch
Description
2026 Woods TBW12.40
#1 In Cut Quality
Every Turf Batwing® features the best-in-class cutting technology of the TurfKeeper® Series verified by independent testing.
Faster Finish Results
High blade tip speeds and a high-torque belt design let you mow faster while maintaining superior cut quality.
Unmatched Gearbox PROTECTION
10-year warranty including parts, labor, and seals.
Features May Include:
Additional Features
- Large Caster Wheels enable a smooth finish cut across rugged terrain.
- Wide Discharge Area for better clipping dispersal.
- Easy Shield Removal no tools needed to access belt sheaves, belt, and spring-loaded idler.
- Hydraulic Cylinders fold the mower for easy transport and storage.
- PTO Lock Collar holds PTO collar back for easier tractor connection on professional models.
Info
Industry
Agriculture
Make
Woods
Model
TBW12.20
Trim
Base
Year
2026
MSRP
N/A
Category
Attachments
Subcategory
Rotary & Finish Mowers
Specs
Cutting Width
144 in
Cutting Height
1.5 – 5.0 in | Adjustment: Caster spacers
Cylinders
Wing Deck Lift: 3 x 10 single-acting | Center Deck Lift: 3 x 8 single-acting
Power/Horsepower
Tractor: 25-60 hp | Gearbox: 100hp splitter / 30 hp deck
RPM
540 rpm
Blades
Tip Speed: 17,900/18,200 fpm | Spindle Bearings: Double ball bearings | Dimensions: (6) .25 x 2.5 x 17.0, (3) .25 x 2.5 x 20.8 in
Deck Size
Cut Widths: Wing Deck 48 in / Center Deck 60 in | Overlap: 6 in | Thickness: 0.141in
Length
Transport: 135 in
Width
Transport: 91 in
Height
Transport: 71.5 in
Weight
Overall: 2005 lbs | Transport Tongue: 384 lbs
Tires
Transport: (2) 20.5 x 8-10 in Transport: Non-highway speed-rated
Wheels
Caster: (10) 8 x 3.5 solid | Bearings: Tapered roller bearings
Warranty
Spindle/Gearbox: 1 years / 6 years
