    Description

    2025 Wallenstein GE605

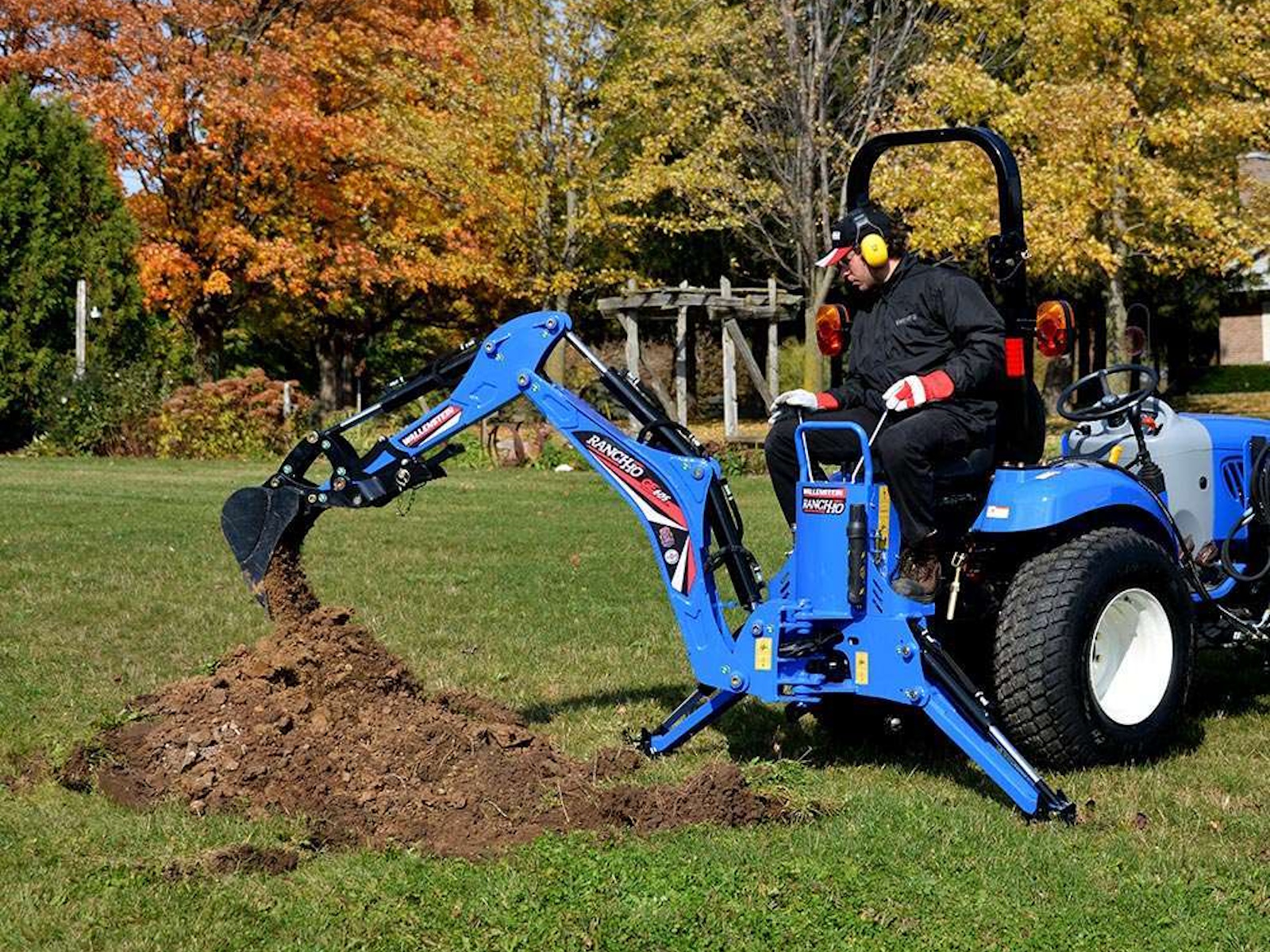

    6' 4" digging depth, the GE605 backhoe can mount on your tractor to handle any landscaping or dirt excavating job. For rural property owners, farmers or small businesses, this rugged backhoe is ready to sink its teeth into any task you give it.

    Features May Include:

    • Curved Boom: Protects backhoe from unnecessary damage while preventing ground from falling back into the hole.
    • Greaseable Pins: Maintenance is easy with greasable pins on all pivot points.
    • Hydraulic Stabilizers: Easy to use hydraulic stabilizers help to prevent tipping.
    • Replaceable Teeth: Our pin-on bucket teeth allow you to swap out worn or damaged teeth and get back to work as soon as possible.
    • Subframe Mounting: Allows your tractor to safely handle the stresses developed by digging with a backhoe attachment.
    • Swing Cushioning: When swinging the boom to the extreme ends, hydraulic cushioning gracefully brings the boom to a controlled stop.

    Info

    Industry

    Agriculture

    Make

    Wallenstein

    Model

    GE605

    Trim

    Base

    Year

    2025

    MSRP

    N/A

    Category

    Implement / Attachment

    Subcategory

    Backhoe

    Specs

    Notes

    Mounting System: Subframe | Operating Pressure: 1800 psi (12411 kPa) | Includes Hydraulic Hoses and Couplers: Yes | Boom Lift Capacity: 250 lbs (113 kg) | SAE* Bucket Digging Force: 2054 lbs (932 kg) | SAE* Dipper Boom Digging Force: 1250 lbs (567 kg) | Swing Arc: 150° | Bucket Rotation: 180° | Reach from Swing Post: 100" (254 cm) | Digging Depth: 6' 4" (193 cm) | Required Hydraulic Flow: 4 - 12 gpm (15 - 45 lpm)

    Power/Horsepower

    Range (Tractor): 15 - 35

    Width

    41" | Stabilizer Width (Spread): 72" (183 cm)

    Cylinders

    Stabilizer Cylinder Diameter: 2" (51 mm) | Swing Cylinder Diameter: 2.5" (64 mm) | Number of Swing Cylinders: 1 | Bucket Cylinder Diameter: 2" (51 mm) | Main Boom Cylinder Diameter: 2.5" (64 mm) | Dipper Cylinder Diameter: 2.25" (57 mm)

    Ground Clearance

    8.5" (22 cm)

    Height

    65" | Loading: 62" (158 cm) | Overall Operating Height (Fully Raised): 91" (231 cm)

    Weight

    Total Weight: 500 lbs (227 kg)

    Length

    56"
