2025 Wallenstein BX102RI



Get in Touch
Description

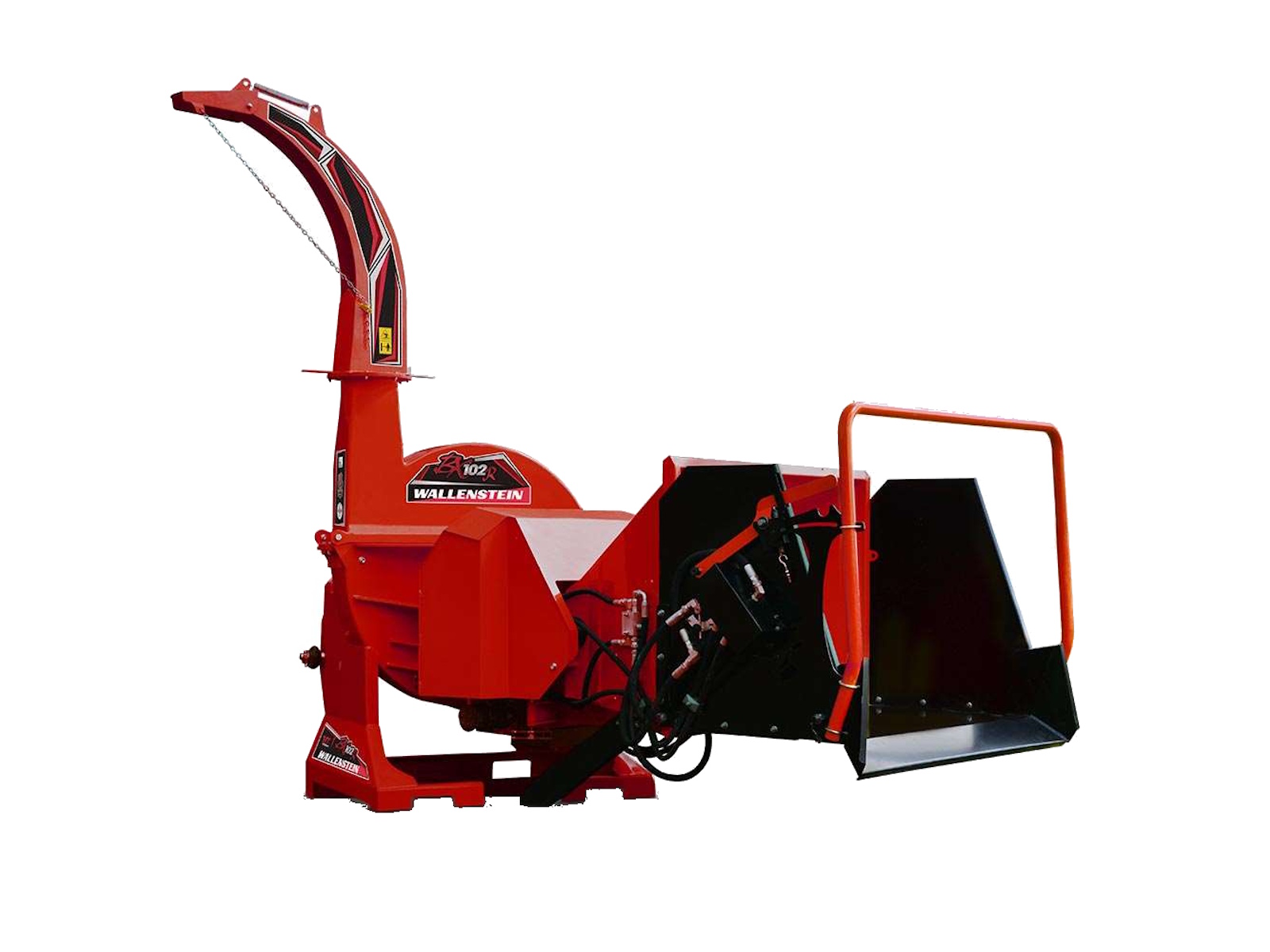

2025 Wallenstein BX102RI
10" chipping capacity, the BX102RI PTO driven wood chipper will handle all your rural, fence line, or commercial landscaping projects. The two feed rollers are driven by two hydraulic motors and matched with automatic roller speed control. This keeps the oversized heavy duty rotor spinning and processing through all your wood and brush piles.
Features May Include:
- Adjustable Discharge Chute: Control the output of the chipper with the easily adjustable chute allowing the user to direct the flow of chips where they want.
- Dual Driven Hydraulic Rollers: Hydraulically powered top and bottom feed rollers grip and pull brush directly into the chipper.
- Fold Up Feed Hopper - No Tools: For easy transport. No tools required.
- Oversized Heavy Duty Rotor: Extra large chipper intake backed up by extra large rotor spinning with high momentum.
- P3 Pulse: The P3 Pulse controller is designed to enhance the machines power, performance, and productivity.
- Positional Discharge Deflector: The discharge chute is equipped with a positional discharge deflector on the end of the chute to direct the chips exactly where desired.
- Reversible Rotor Knives: Standard reversible rotor knives double the longevity of your knives.
- Safety Control Bar: Forward/reverse control with two stop positions.
- Shearbolt Protected PTO Drivetrain Included: Move on from a power spike by simply replacing a single shear bolt.
- Twig Breaker:The discharge paddle passes around the twig breaker and helps to break the material into smaller pieces and turn it into mulch.
- Wide Infeed Opening: Extra large chipper intake easily receives crooked branches, reducing the amount of prior trimming required.
Info
Industry
Agriculture
Make
Wallenstein
Model
BX102RI
Trim
Base
Year
2025
MSRP
N/A
Category
Agriculture Equipment
Subcategory
Miscellaneous Equipment
Specs
Notes
Mounting System: Cat II, iMatch™ & Quick Hitch Compatible | Drive System: PTO Direct Drive | Rotor Diameter: 36” (92 cm) | Number of Chipper Knives: 4 | Chipper Infeed Opening: 10" x 17" (25 cm x 43 cm) | Chipper Hopper Opening: 30" x 42" (76 cm x 107 cm) | Required Hydraulic Flow: 4 - 8 gpm (15 - 30 lpm) | Chipper Type: Disc | Chipping Capacity: 10" (25 cm) | Feed System: Dual Hydraulic Roller | On-Board Intelligence: P3 Pulse™
Power/Horsepower
75 - 120
Weight
Rotor: 425 lbs (193 kg) | Total: 1950 lbs (885 kg)
Discharge
Discharge Chute Height: 100" (253 cm) | Discharge Chute Rotation: 360°
RPM
540 - 1000
Blades
Height
PTO Height: 34" (86 cm) | 100" | Folded: 100"
Length
108" | Folded: 85"
Width
85" | Folded: 71"
