    Description

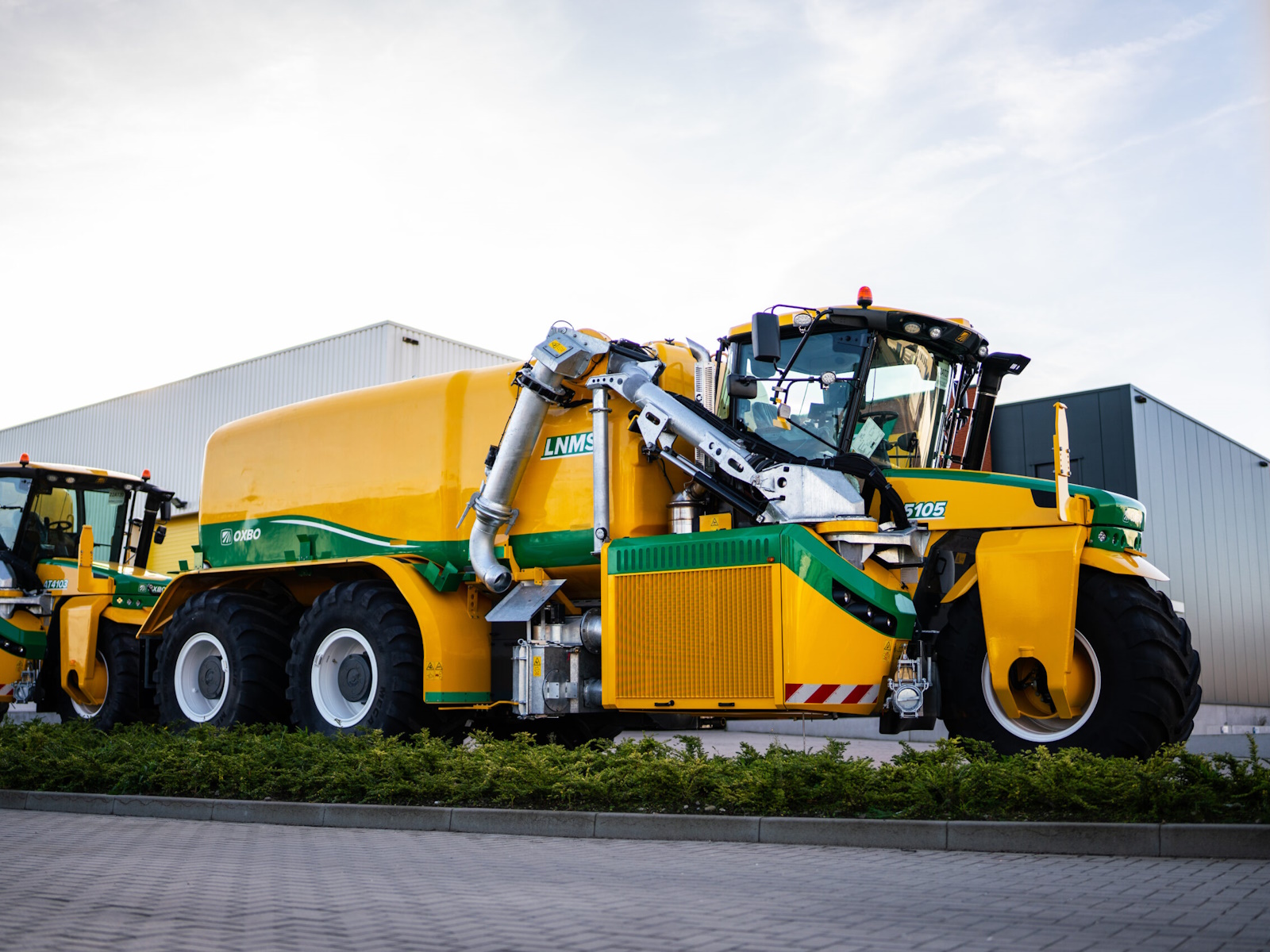

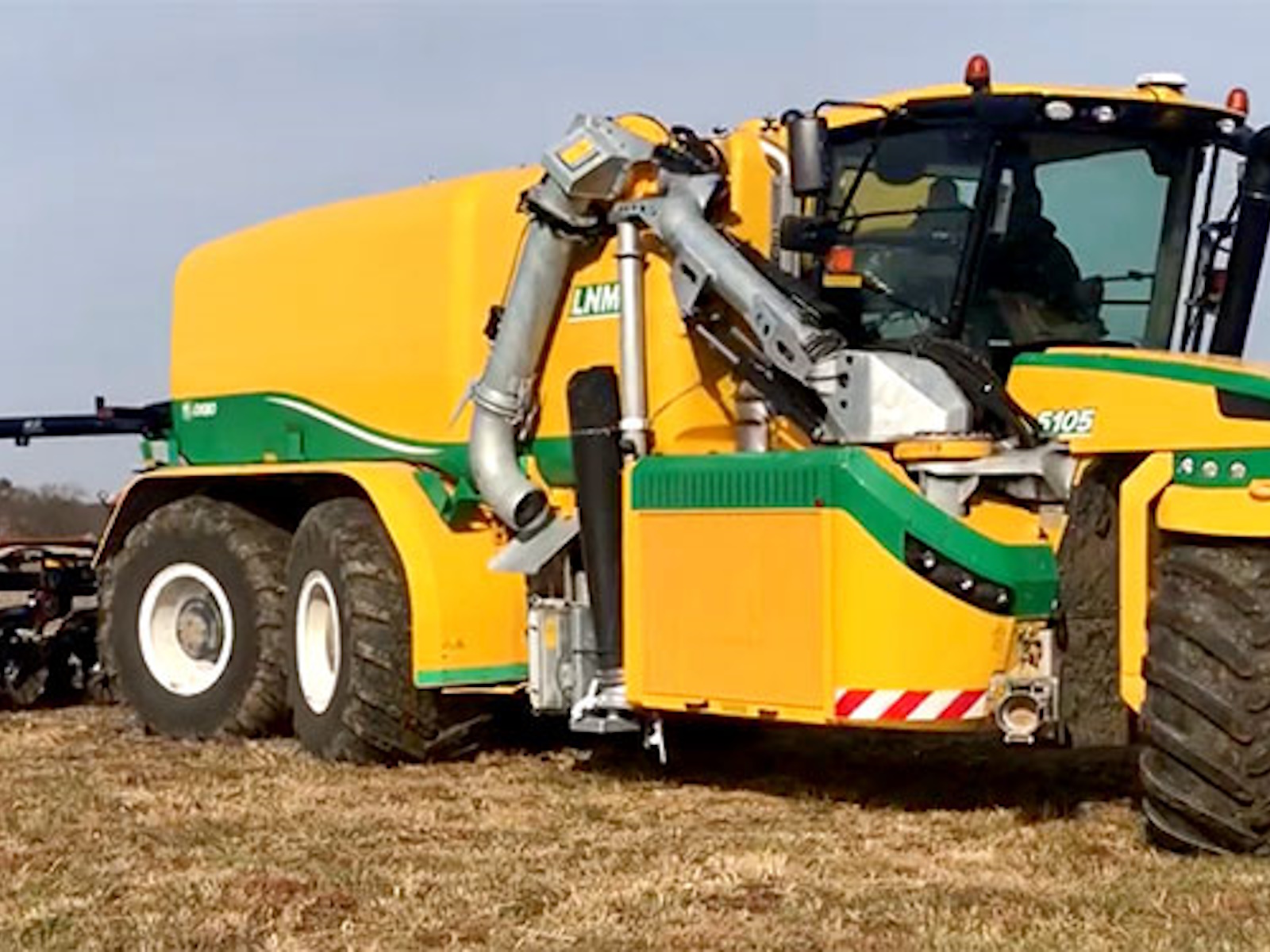

    2026 Oxbo AT5105

    The Oxbo 5105 sets the standard for capacity and productivity. This all-wheel drive – all-wheel steer chassis has the capability to efficiently spread large volumes of liquid and dry manure. The combination of the powered front wheel and steerable rear axles povide additional agility and maneuverability while reducing the amount of stress to the frame and axles. This versatile machine can be equipped with several spreader options for liquid, semi-solid or solid materials.

    Features May Include:

    All-Wheel Drive

    • Adjustable, powered front wheel equipped with hydraulically driven planetary. Full 70 degree turning without berming

    All-Wheel Steering

    • The steerable rear axles provide additional agility and maneuverability while reducing the amount of stress to the frame and axles. Kessler axles with outboard planetaries provide the optimal durability and load handling capability for both dry and liquid systems.

    Spreader Choices

    • The 5105 can be equipped with a Tebbe 30-ton capacity DNMS system, or a 6,600 gallon LNMS system equipped with a Cat III, 3-point hitch and can be used with many different types of manure injectors or drag hose systems

    Info

    Industry

    Agriculture

    Make

    Oxbo

    Model

    AT5105

    Trim

    Base

    Year

    2026

    MSRP

    N/A

    Category

    Application Equipment

    Subcategory

    Applicators

    Specs

    Air Filter (Cabin)

    Claas Vista 2 cabin with radio, air conditioning, passenger seat, on-board pilot touchscreen and camera system

    Engine

    Scania DC13, EU Stage 5, 550 PS - 405 kW @ 1.500 rpm.

    Displacement

    13 liters

    Cylinders

    6

    Torque

    Max. 2.500 Nm

    Alternator

    100 Ampère

    Transmission

    ZF ECCOM 5.0 CVT transmission, continuously variable from 0 to 40km/u, automatic range shifting, no need to stop to shift gears for speed range

    Tires

    Front: 1050/50 R32 | Rear: 1050/50 R32

    Width

    3,30m - 3,35m | Transport: 3,30 to 3,35m | Working: 18m, depending on material

    Drivetrain

    Front axle: hydraulically driven with inside brakes and adjustable traction | Rear axle: mechanically driven with disk or drum brakes and separate parking brakes

    Steering

    Front: Front wheel steering 70 degrees | Rear: Kessler axle, with double planetary end reduction depending on superstructure

    Fuel Capacity

    650 litre standard - optional 350 litre extra

    Family/Type

    Polyester GFK-tank met geintegreerde leidingen en mix-functie

    Load Capacity

    25m³

    Length

    11,2m

    Height

    3,8m
