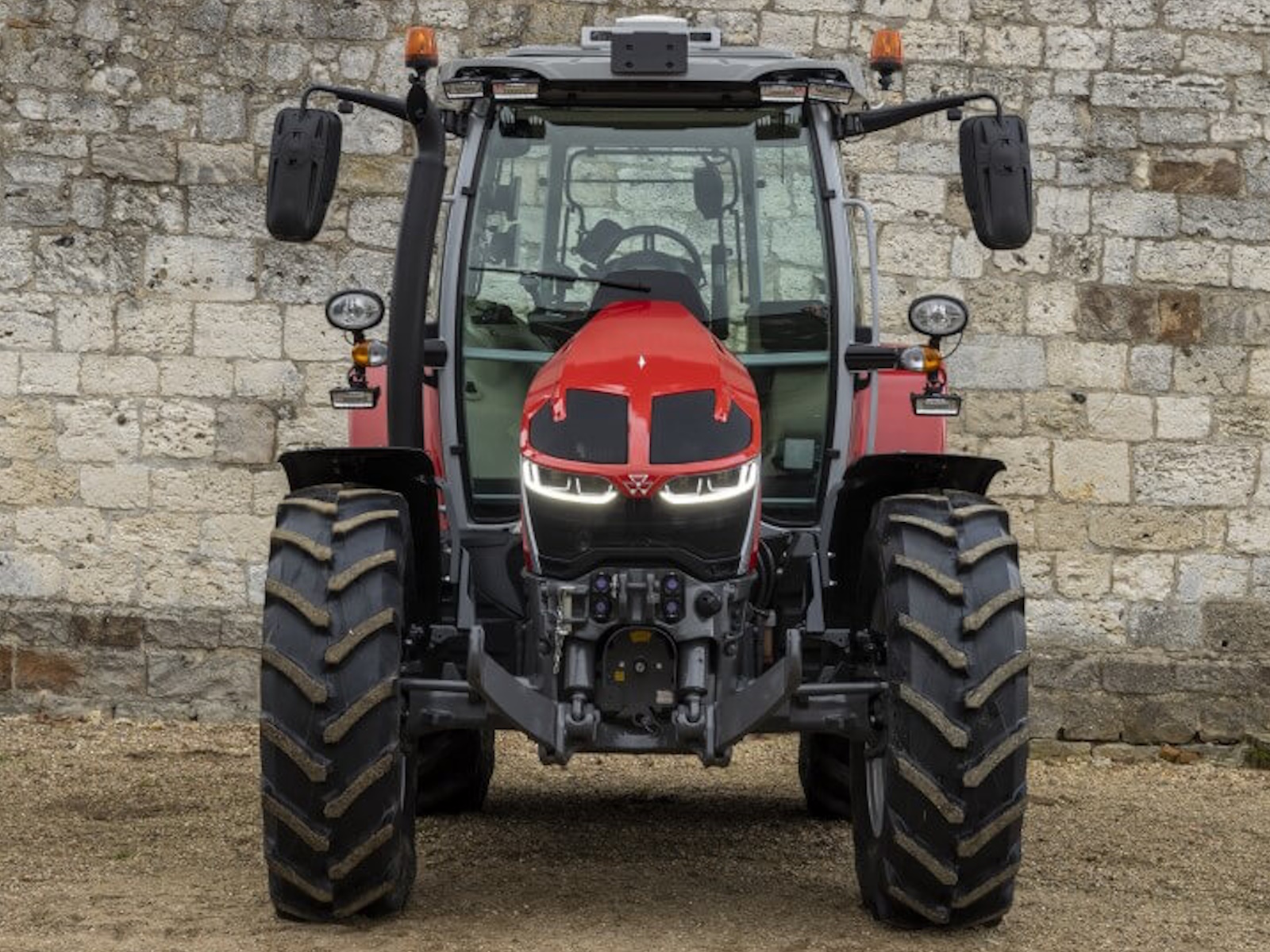

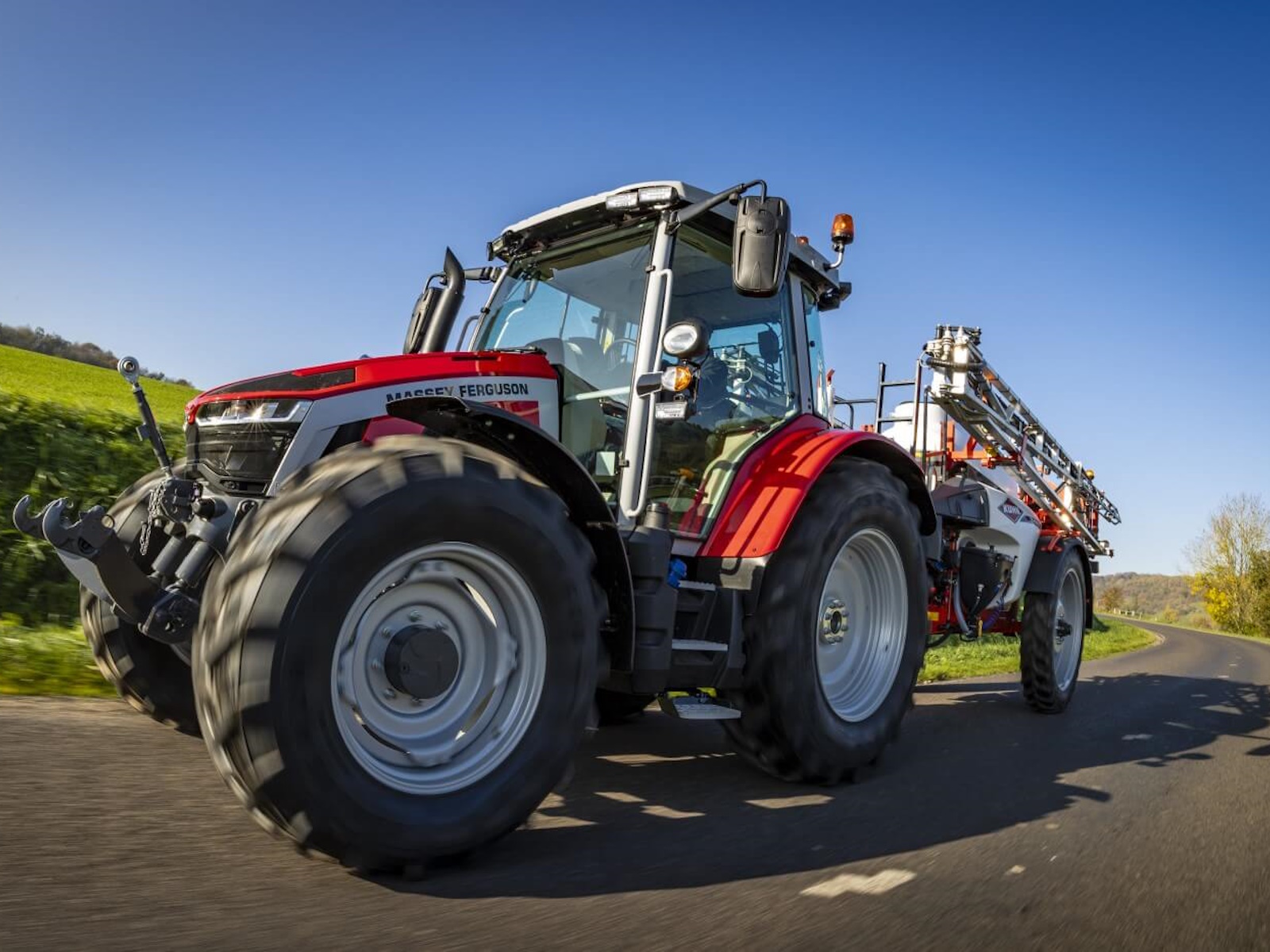

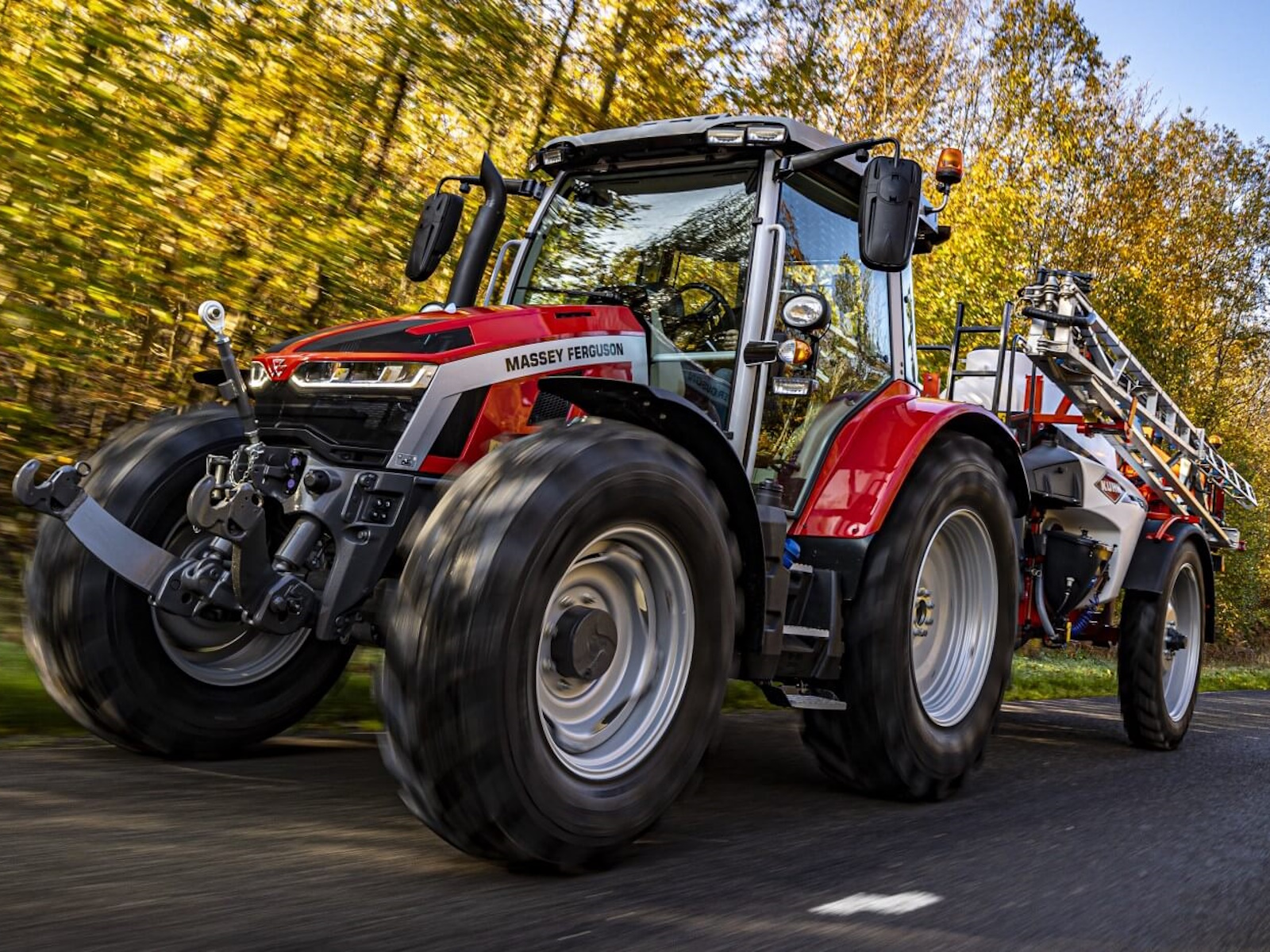

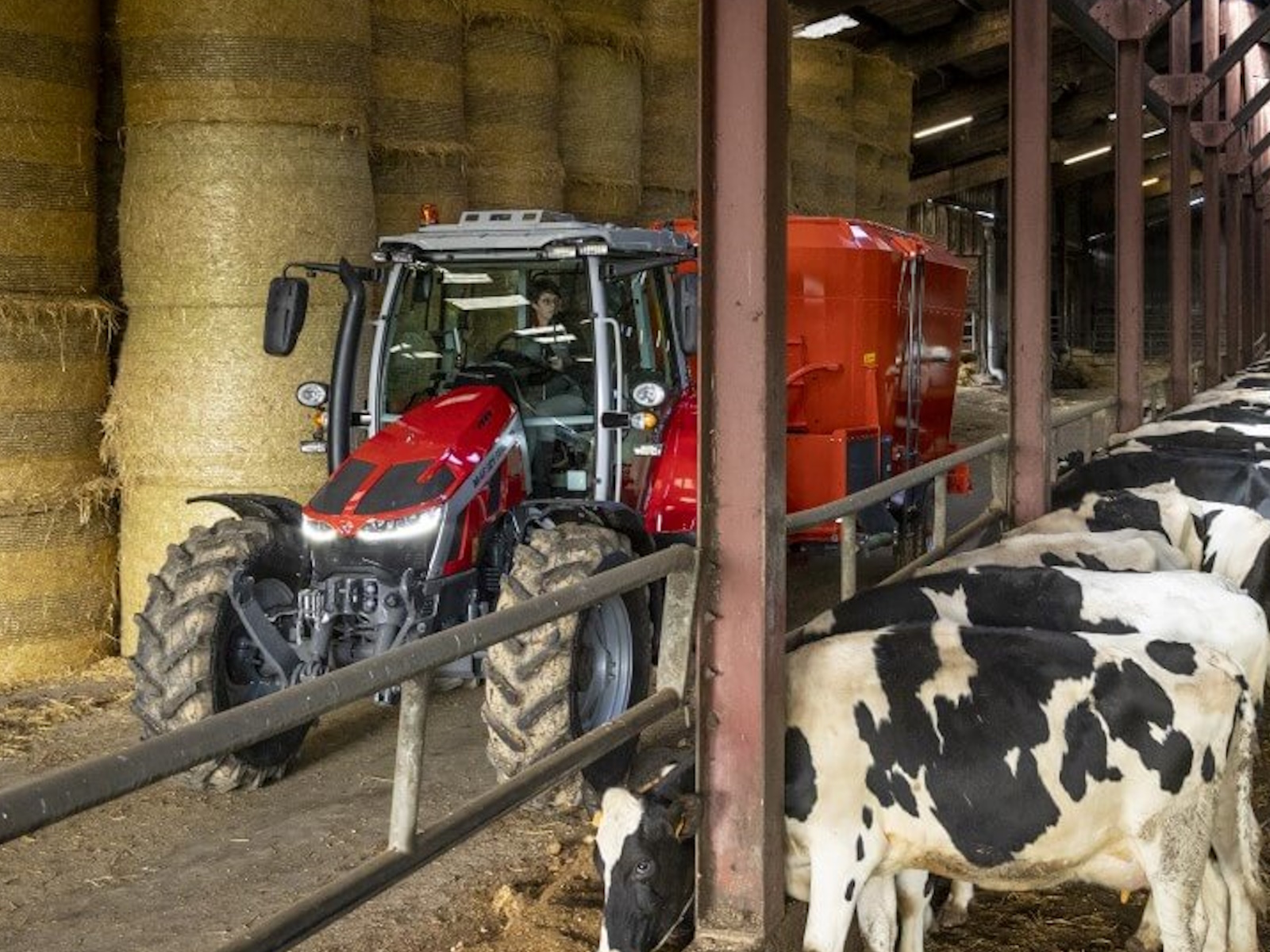

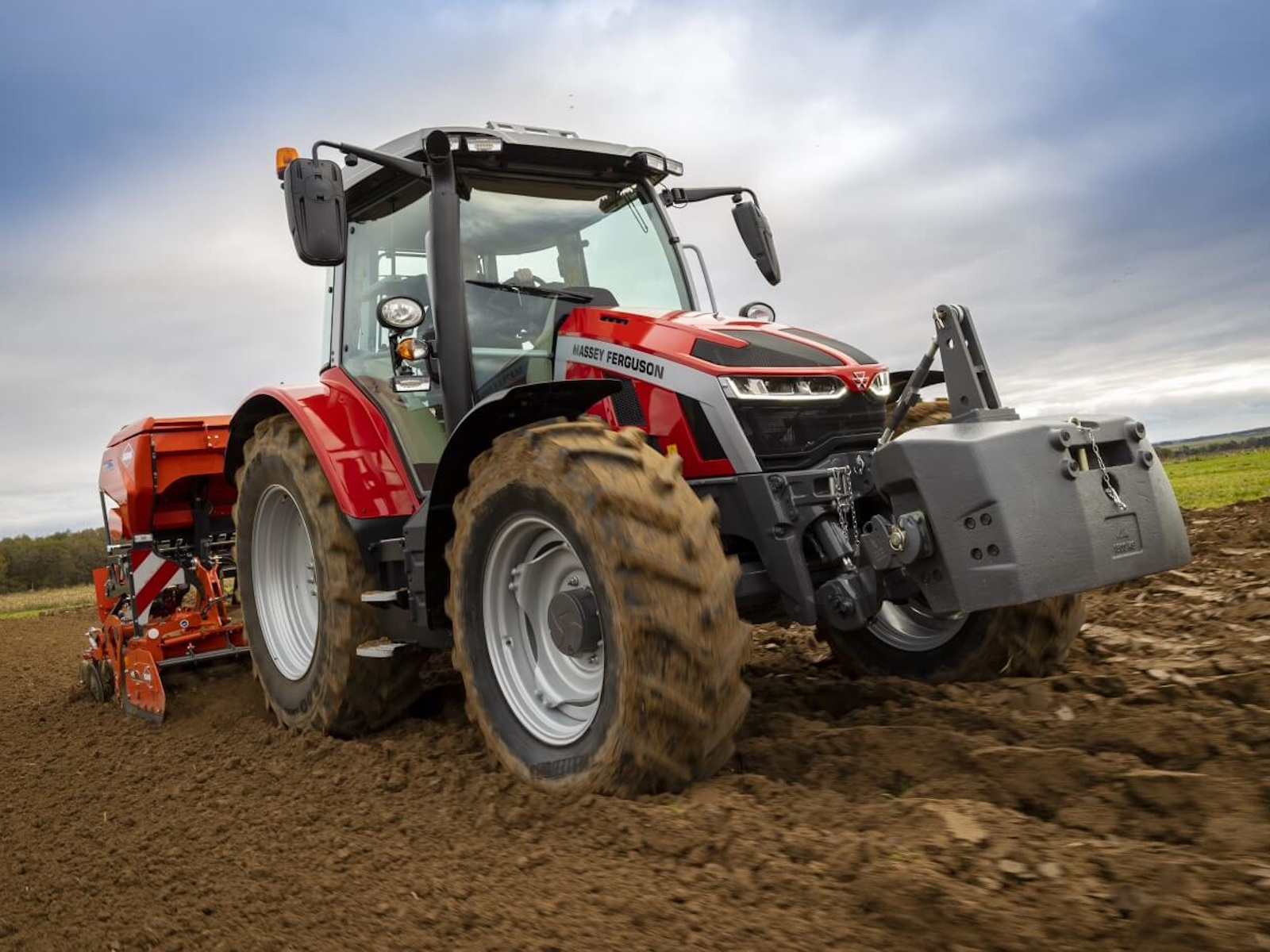

2026 Massey Ferguson MF 5S.135 Dyna-4

Move into a new era of possibilities
Simply the best-in-class tractor between 105hp and 145hp, the new MF 5S Series offers a choice of five models with a totally new, upgraded design incorporating the iconic sabre line livery.

Agile and nimble, it offers best-in-class visibility combined with excellent manoeuvrability from its tight, 4m turning radius. Delivering great performance, the MF 5S combines economy with high levels of comfort and control along with a wide choice of equipment and options to suit all applications.

Developed to tackle all challenges and tasks on the farm efficiently and economically, the MF 5S is indisputably the first choice for contractors, dairy, livestock and arable farmers as well as other producers.

Straightforward and Dependable

Power

The muscle to tackle any task

AGCO Power Engine

• All MF 5S tractors are powered by a new AGCO Power four cylinder, 4.4 litre, Stage V engine, which delivers maximum powers from 105hp to 145hp and up to 550Nm of torque on the largest model.

All-in-One SCR Technology

• These compact engines use the advanced and highly efficient All-In-One SCR Technology.

Performance

• Further improving performance and emissions control is the electronic wastegate on the turbocharger, while the automatic low idle engine speed also cuts fuel consumption.

After-Treatment Components

• All the after-treatment components are located on the right side, below the cab, so there is no impact on visibility or cab access. This position maintains the good ground clearance and service access and allows fuel tank capacity to be increased to 200L.

Airflow System

• A new optimised airflow system improves engine cooling, which increases performance and boosts efficiency.

Dyna-4

• The impressive performance and efficient design of the Dyna-4 transmission provides unbeatable productivity, control and convenience, with completely clutchless shifting of 16 forward and 16 reverse speeds.

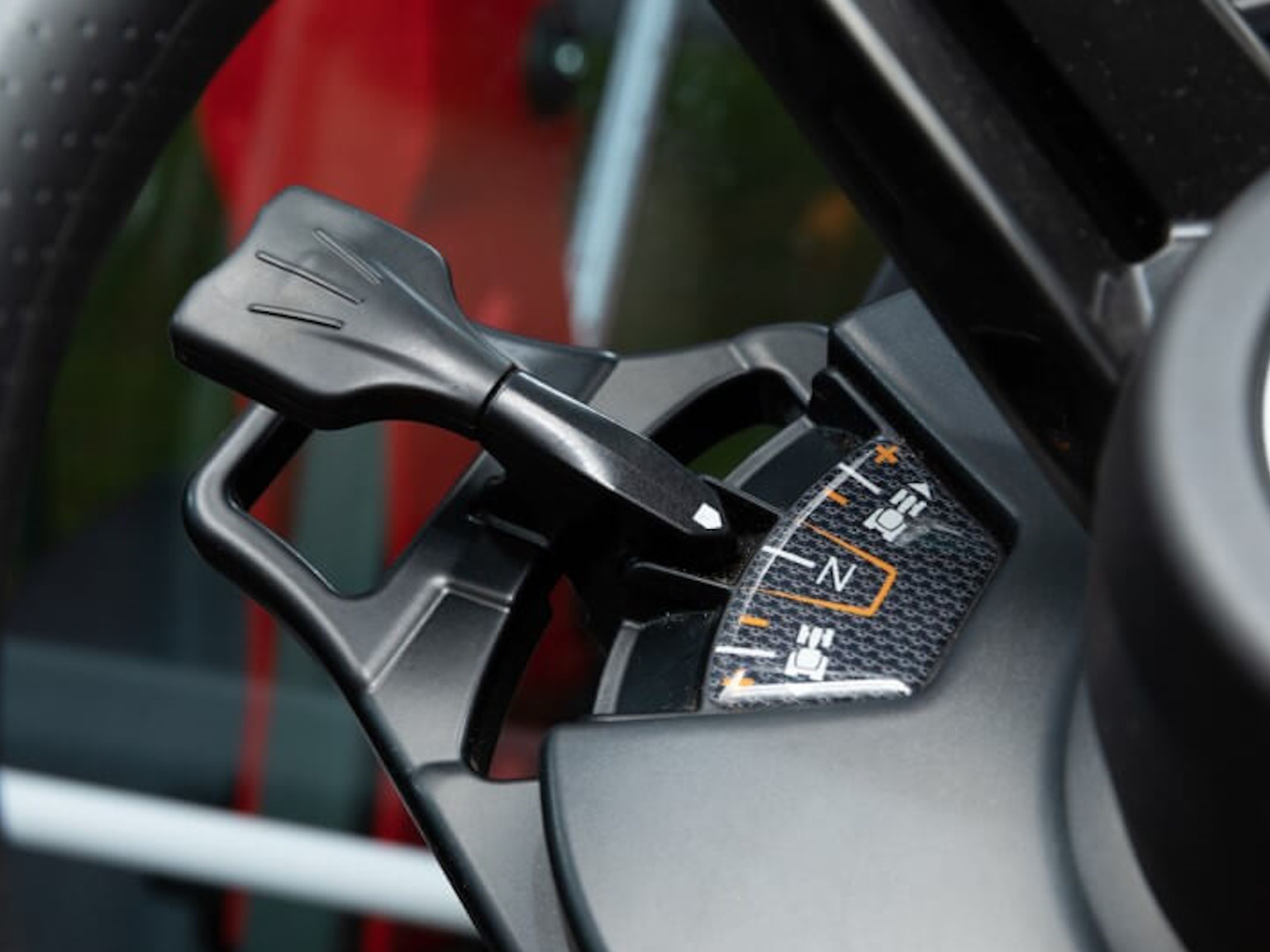

Power Control

• The Power Control lever provides convenient three-in-one, straightforward operation. Operators can shuttle between forward/reverse, shift Dynashift speeds and ranges and select neutral, leaving the right hand free.

Right-Hand T-Handle

• Renowned for its outstanding, robust reliability with smooth and effortless operation, Dyna-4 is easy to operate using the left-hand Power Control Lever or the T-lever on the right-hand console on Essential models.

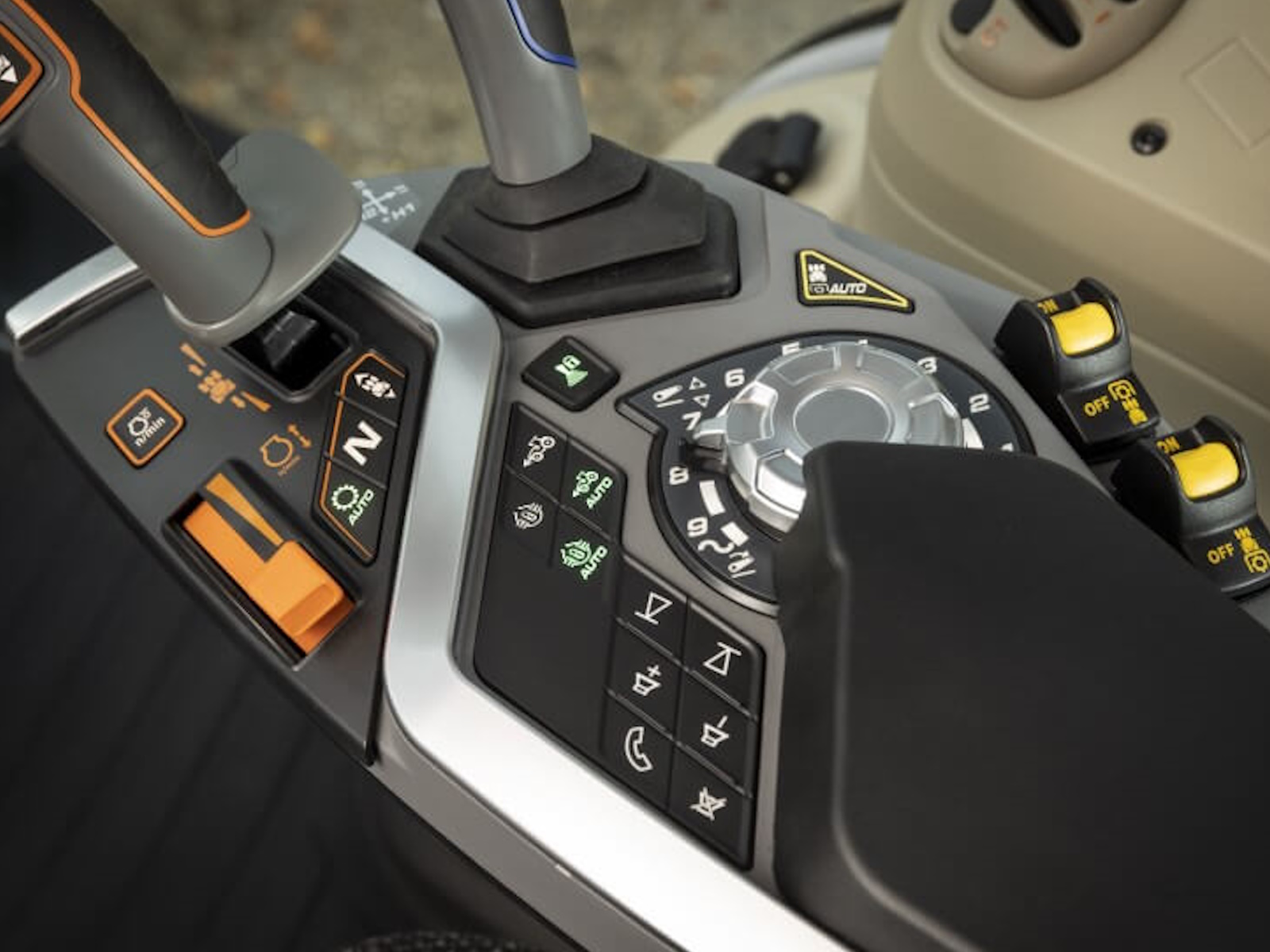

Multipad - Control at the Palm of your Hand

• As standard on Efficient and Exclusive, the Multipad lever operates the transmission as well as controlling cruise control, the rear linkage, PTO, headland management, spool valves through the integrated mini-joystick.

Speedmatching as Standard

• Speedmatching automatically selects the correct Dyna-4 speed to match the forward speed when changing gears.

Brake to Neutral

• Brake to Neutral switch (Option) simultaneously operates the clutch as soon as the brake pedal is pressed. This eases the load on the operator, while increasing efficiency and convenience and is particularly useful for loader operations.

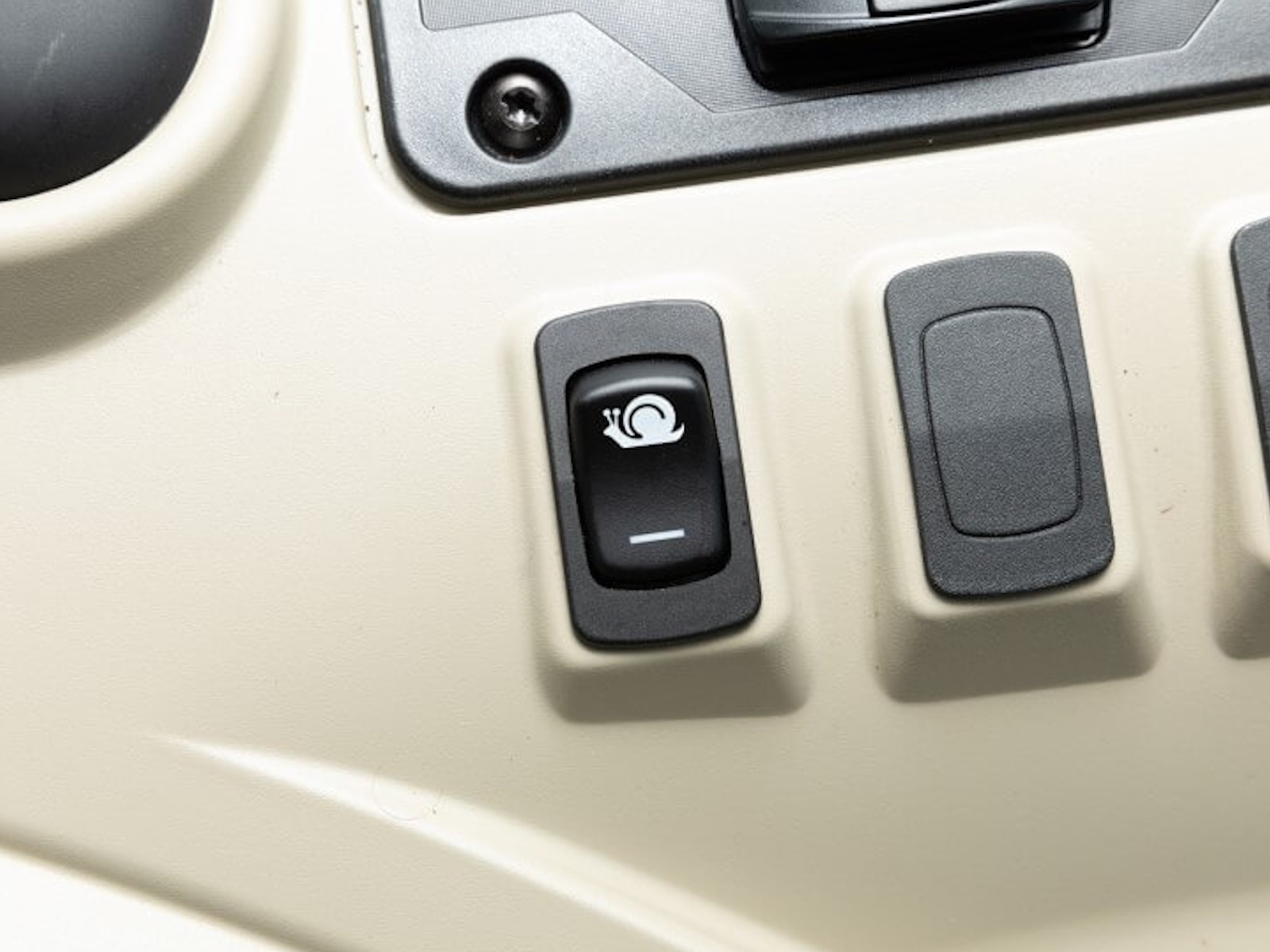

Supercreep

• Close control in specialist low-speed tasks is assured with additional supercreep gears, enabling forward speeds as low as 100m/hr to be achieved.

Comfort Control

• Smooth or quick shuttling – you choose by simply adjusting the Comfort Control that suits the job – slow and smooth or fast and efficient.

Dyna-6

• Delivering class-leading dynamic performance and reliability, the semi-powershift transmission consists of six Dynashift ratios, optimally stepped in four ranges and changed without recourse to the clutch pedal.

Automatic mode

• Taking automatic care of up and downshifting to maximise versatility and output. Response point is adjustable according to desired engine rpm parameters.

SuperEco

• Automatic mode also cuts costs, with standard SuperEco ensuring top speed is achieved at a very low engine rpm, cutting fuel consumption – achieving 40km/hr @ 1,550rpm and 50km/hr @ 1,800rpm (depending on tyres).

Hydraulic Performance

The MF 5S Series is engineered for hard work with uprated lift capacities that allow it to carry heavier loads and work faster with modern machines and implements.

High Capacity Rear Linkage

• Specifically optimised for the new MF 5S, the rear linkage now boasts an impressive lift capacity of up to 6,000kg (+14% vs previous range), in some specific circumstances, enabling it to lift and handle heavy mounted equipment with ease.

Hydraulics Adjustment

• Fully adjustable lift rods and heavy-duty stabilisers provide plenty of adjustment for the perfect attachment and setting for a wide range of mounted and semi-mounted implements.

Auxiliary Spool Valves

• A wide choice of spool valves and control options help you make the most of using modern implements as well as ease operation. Depending on your tractor’s specification, you’ll find up to four spool valves to meet all your requirements.

Essential Version - Spool Valves

• There’s straightforward mechanical control of the spool valves on Essential versions, with the addition of a comfortable dedicated joystick option for precise loader control.

Efficient Version - Spool Valves

• In Efficient models you’ll find new, armrest-mounted fingertip switches for the 1st & 2nd spool valves, which work in combination with mechanically operated levers for the 3rd & 4th spool valves.

Exclusive Version - Spool Valves

• Exclusive version operators benefit from a new armrest-mounted electronic joystick for the control of the four spool valves.

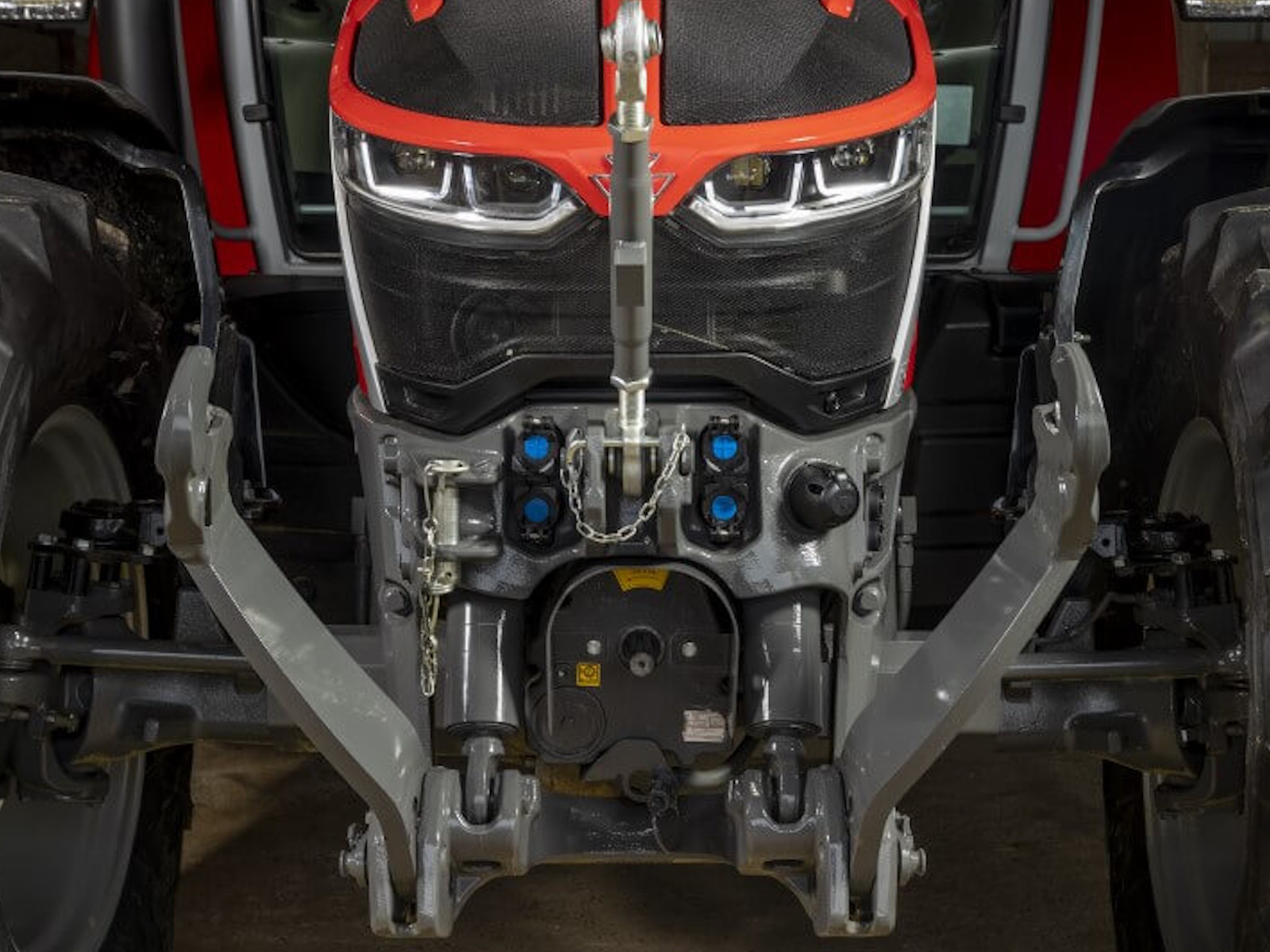

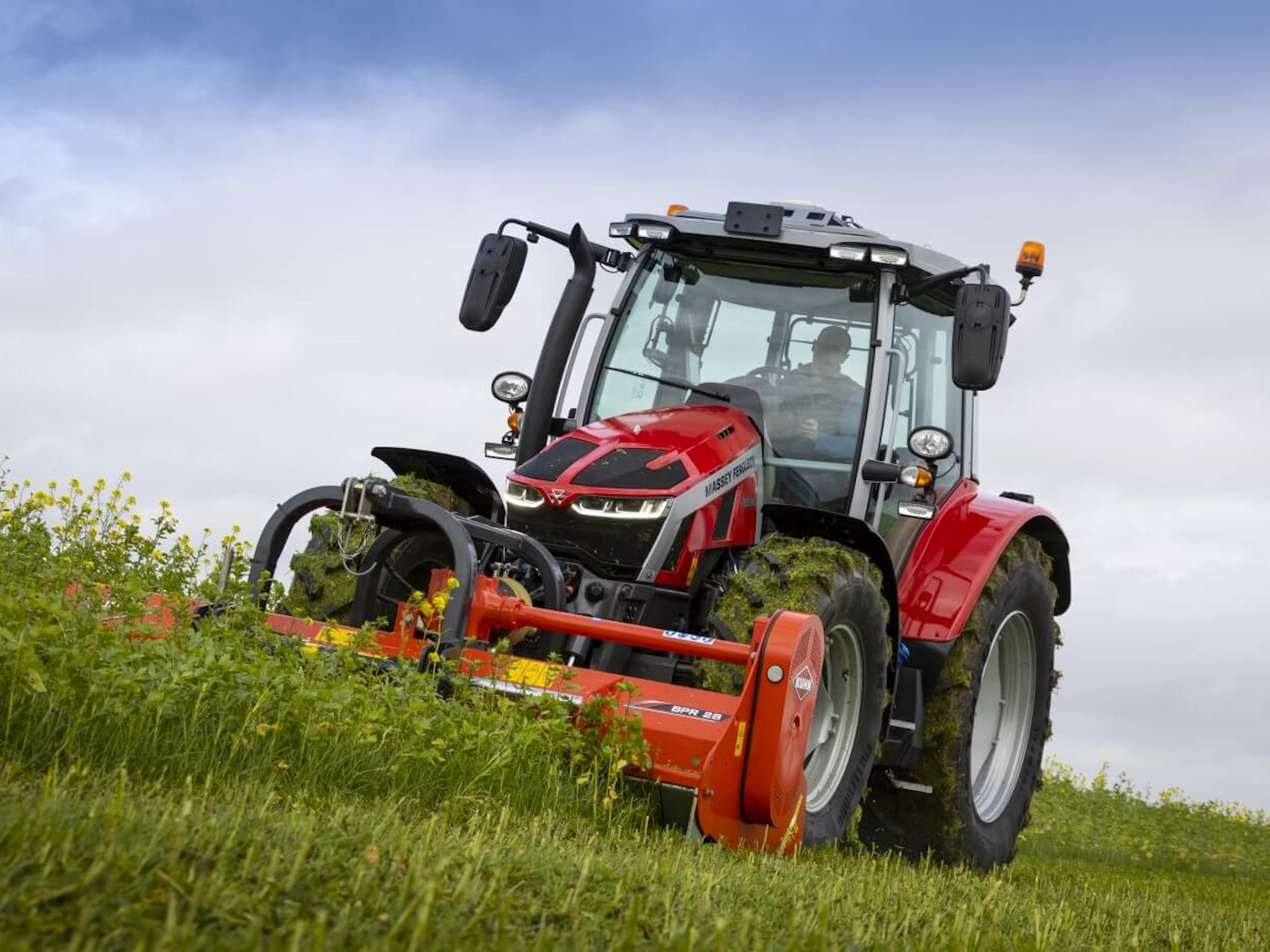

Heavy-duty Integrated Front Linkage System

• With its 3,000kg lift capacity (+17% vs previous range), at the ball ends, the new stronger, compact Integrated Front Linkage System enables you to take full advantage of the power of the MF 5S Series.

Close-Coupled Front Linkage

• Redesigned to match the new optional front suspension, the close-coupled front linkage is an integral part of the design, maintaining the tractor’s compact dimensions, while enhancing stability and manoeuvrability.

Industry-leading Electronic Linkage Control (ELC)

• The latest Electronic Linkage Control (ELC) system provides precise and responsive operation of the linkage functions, ensuring accurate control of the working depth for soil-engaging implements and working height for mounted implements.

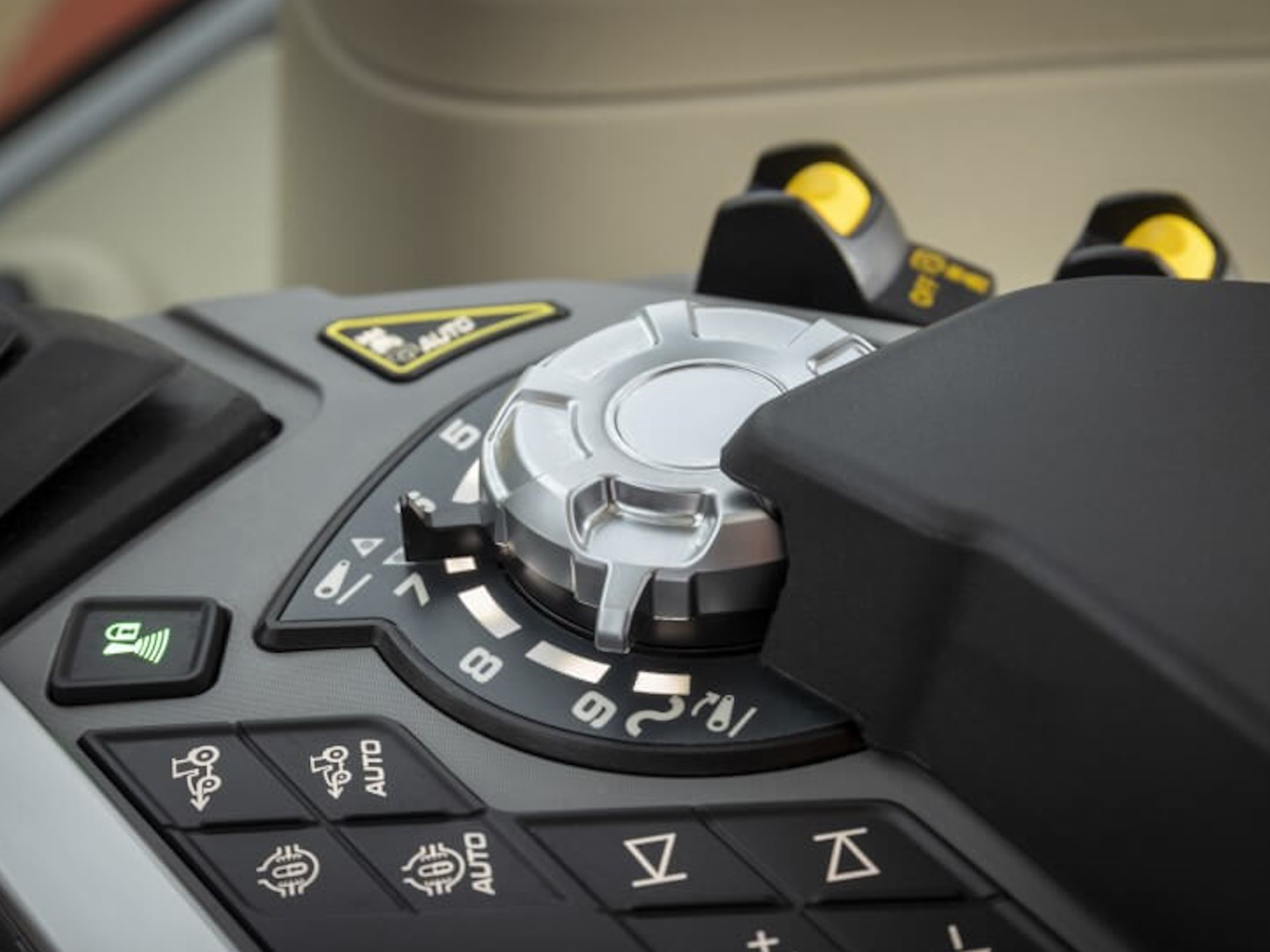

ELC Potentiometer

• Accurate electronic control provides convenient linkage operation. The ELC potentiometer is positioned to the right of the operator for comfortable and easy use, providing precise control of implement depth as well as lifting and lowering the linkage.

Electronic Lift Control Panel

• The Electronic Lift Control panel provides straightforward adjustment of other rear linkage functions helping to improve productivity.

ELC Standard Features

• Useful standard features include Active Transport Control, which automatically absorbs shocks on the road, as well as external lift/lower controls, located on the right and left-hand fenders.

Standard Open-Centre 58 litre/min system

• The system provides plenty of flow and pressure to the linkage and external hydraulic functions for lifting heavy equipment or powering ancillary accessories.

Optional Open-Centre Combined Flow 100 litre/min

• This system employs a simple, novel design to generate continuous flow. This provides full flow to separate functions, such as the linkage and spool valves, as well as provide higher efficiency and power for loader applications.

Optional Closed-Centre, high-flow 110 litre/min

• This system with the fastest hydraulic response. This employs a variable displacement swash plate pump and load-sensing control to deliver high flowrates at low engine speeds, helping to maintain high output with economy.

High efficiency PTO

• A straightforward driveline to the Independent PTO delivers maximum power and efficiency. There is a choice of three speeds, selected easily using rocker switches, conveniently located on the console.

PTO Engagement

• The PTO is engaged electro-hydraulically, using a three-position safety switch (On, Off, and Lock/Brake). The PTO can also be engaged and disengaged using external fender-mounted switches.

Manoeuvrability

Compact and manoeuvrable, MF 5S tractors are easy and comfortable to use – in the field, on the road and around the farmyard and buildings.

Automated Control

• A smart transmission controller automates frequently-used functions, including differential lock, PTO and Speedmatching transmission.

Hydralock

• Hydralock delivers true four-wheel drive with fast and fully simultaneous engagement of the front and rear differential locks.

Driveshaft

• Centre-mounted (enclosed) driveshaft offers excellent ground clearance.

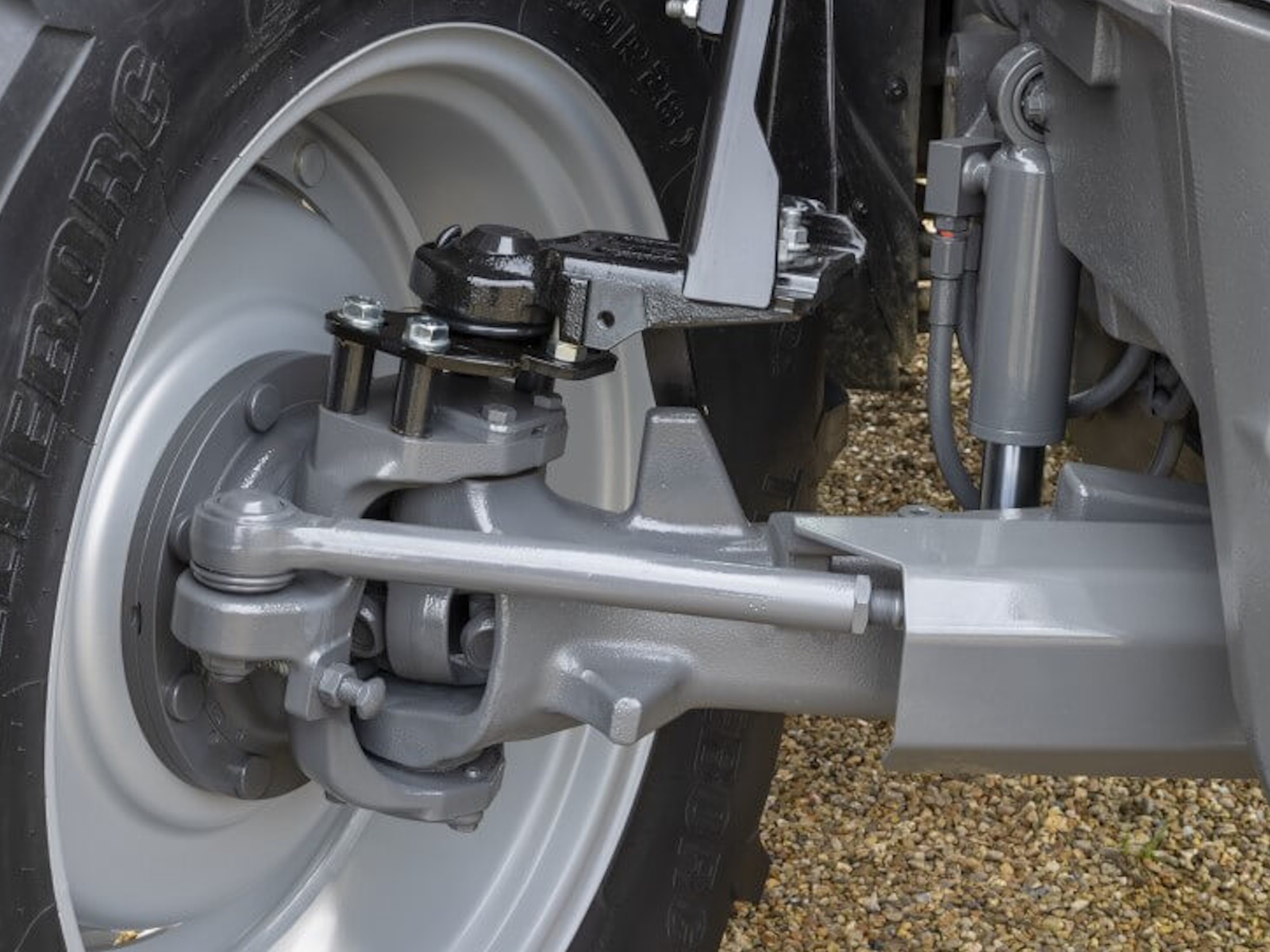

Front Axle Suspension

• A new, stronger suspended front axle offers an industry-leading 4m turning radius. Working with the new 3t capacity front linkage, which can now lift an extra 500kg, it helps improve efficiency, enabling the tractors to use larger front-mounted equipment.

Hydraulic Suspension

• Extra comfort is offered by the electronically-controlled hydraulic suspension, which uses two longer stroke cylinders (100 mm) and three accumulators to absorb shocks.

SpeedSteer

• This new, optional feature enables the operator to adjust the steering ratio and select the optimum number of turns of the steering wheel required for a given amount of steering angle turns.

Tight Turning Circle

• Specially designed cutaways in the chassis and bonnet help deliver a turning radius of 4m - one of the best on the market, making it easier to access confined areas and buildings - helping you work more easily.

Fade Free Braking

• Safe and efficient braking from large disc brakes cooled by constant pressure lubrication. For even better safety in transport applications, this system is now completed by pneumatic or dual hydraulic lines as well as an ABS socket.

Rear Hitches to match any application

• The rear hitch has been completely redesigned and increased to make coupling quicker, easier and safer and comes with a new choice of pintle pin, pick-up hitch, clevis, K80 ball or drawbar.

Comfort

Operators of the new MF 5S series sit comfortably in a high quality, productive environment that is quiet and cool with straightforward controls making it easy to get the best from the tractor.

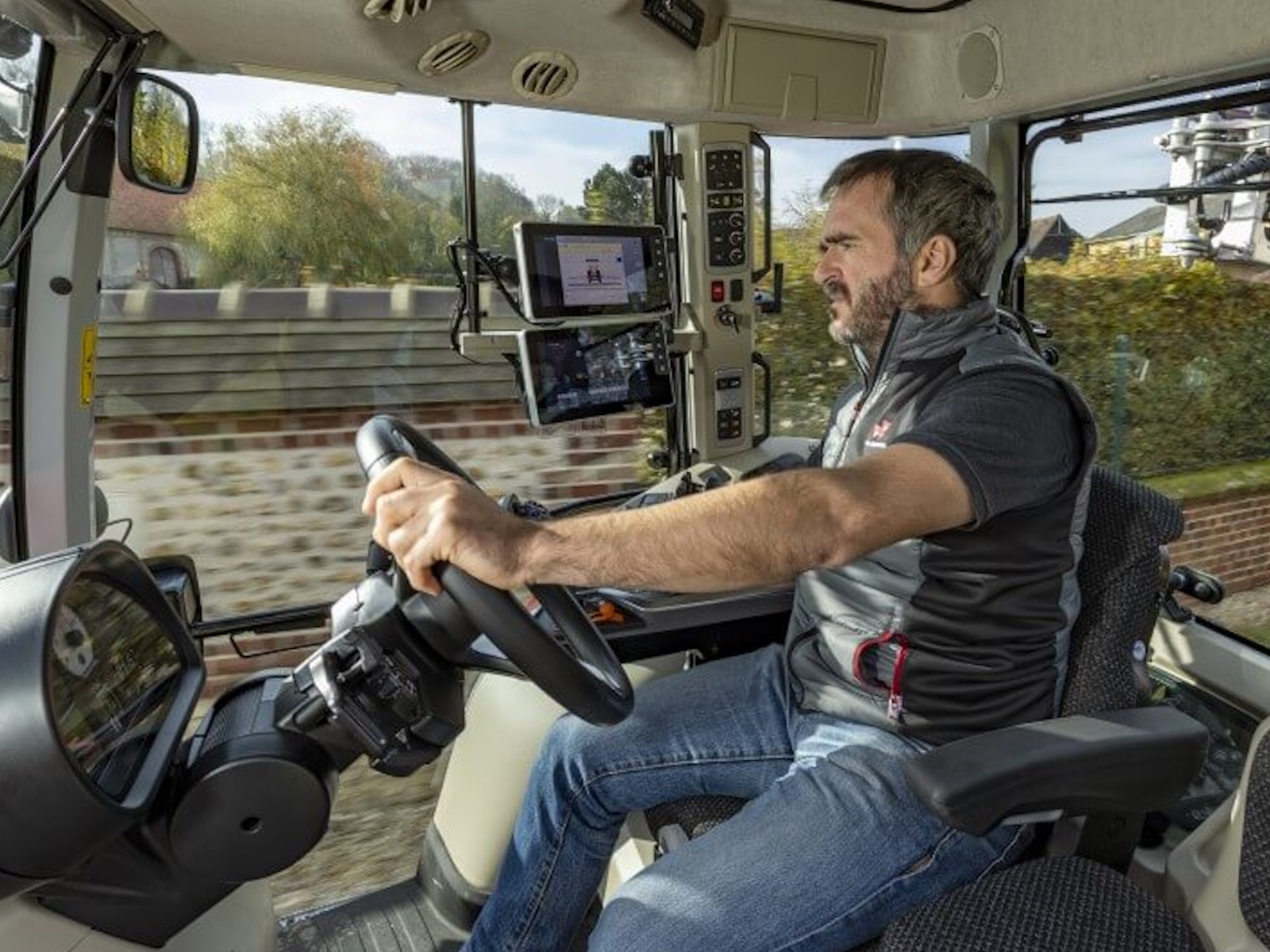

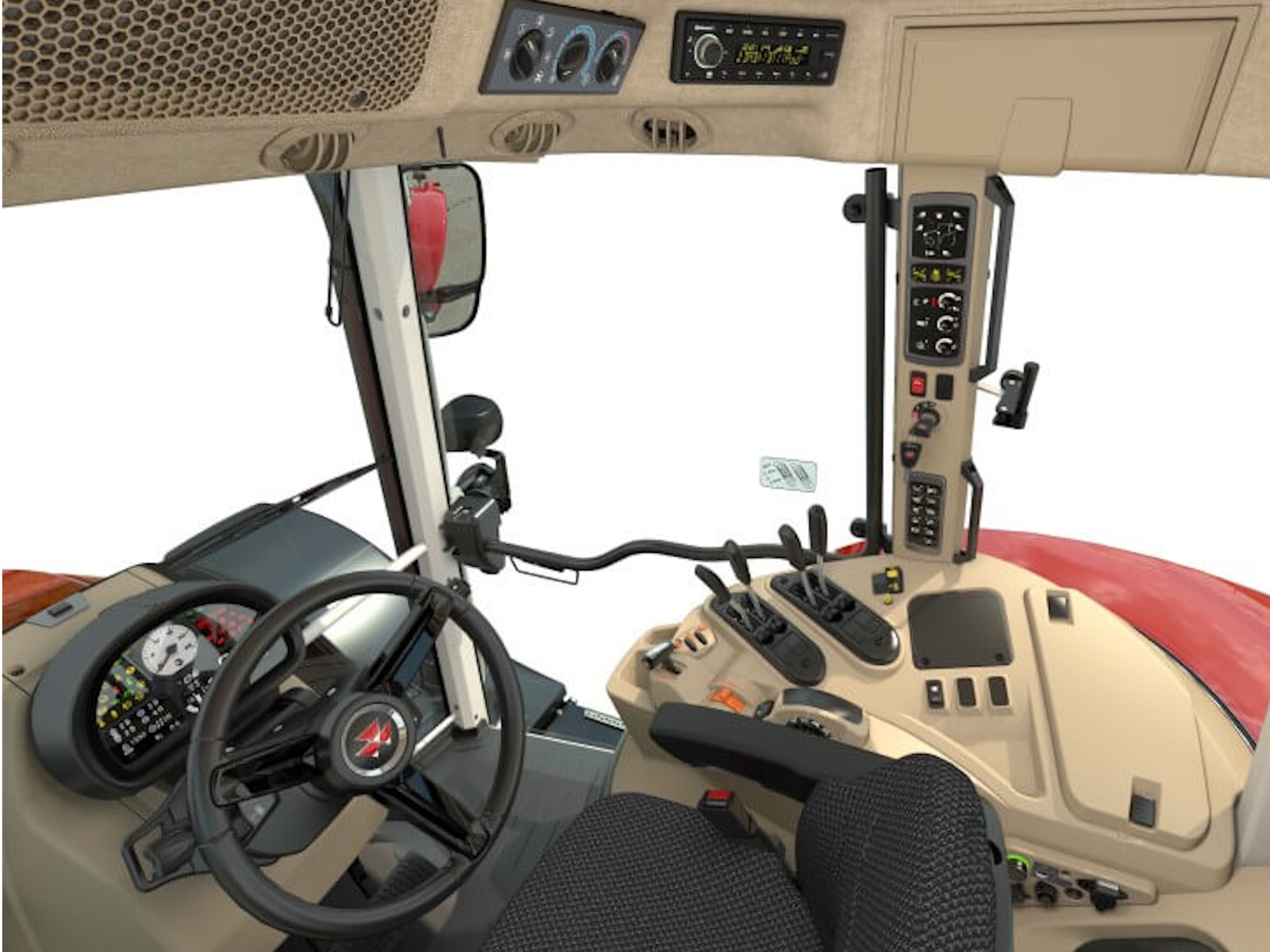

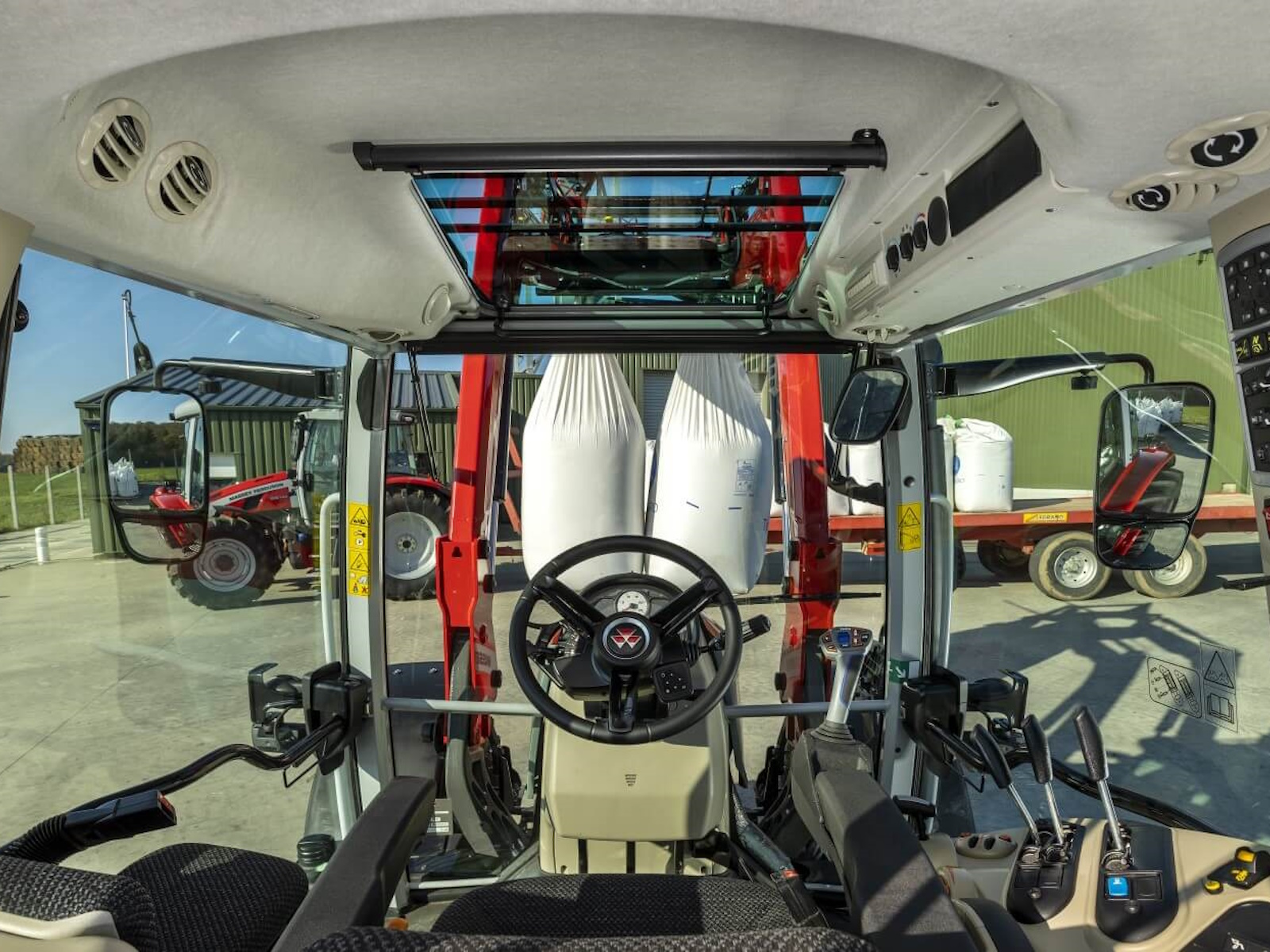

Ergonomics

• Large doors and wide, well-spaced steps offer easy access to the MF 5S cab. Here you will find all operating information is where you need it on the comprehensive new dashboard.

Armrest

• The new armrest houses all the key elements, offering a blend of simplicity and ease of use, with all main functions ergonomically grouped. Here you will also find quick and convenient controls for other items such as Bluetooth phone and radio.

Benefit from top class comfort

• The MF 5S helps you to boost productivity, save time and improve performance thanks to its 360° visibility, easy access and new cab suspension.

Comfort Features

• Features include automatic beacon activation on the road and a ‘return home’ function, which automatically switches off the worklights and has a comfort cab light delay so you can safely leave.

Cab Features

• There’s also extra sockets for mobile phones or laptop, radio and MP3 player (USB, Aux and CD), Bluetooth connection, DAB + digital radio, telescopic side mirrors and electric de-icing, plus automatic air conditioning.

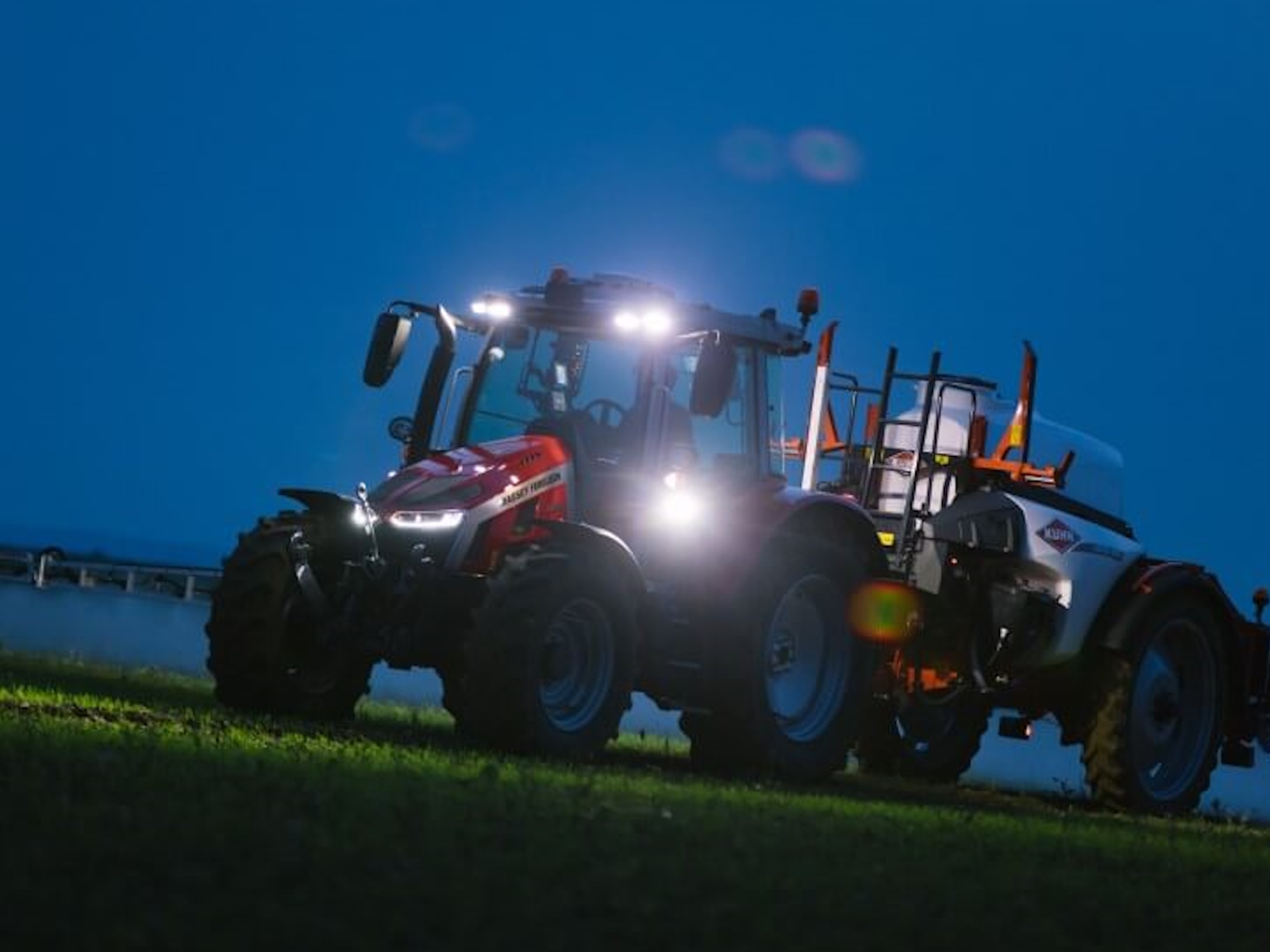

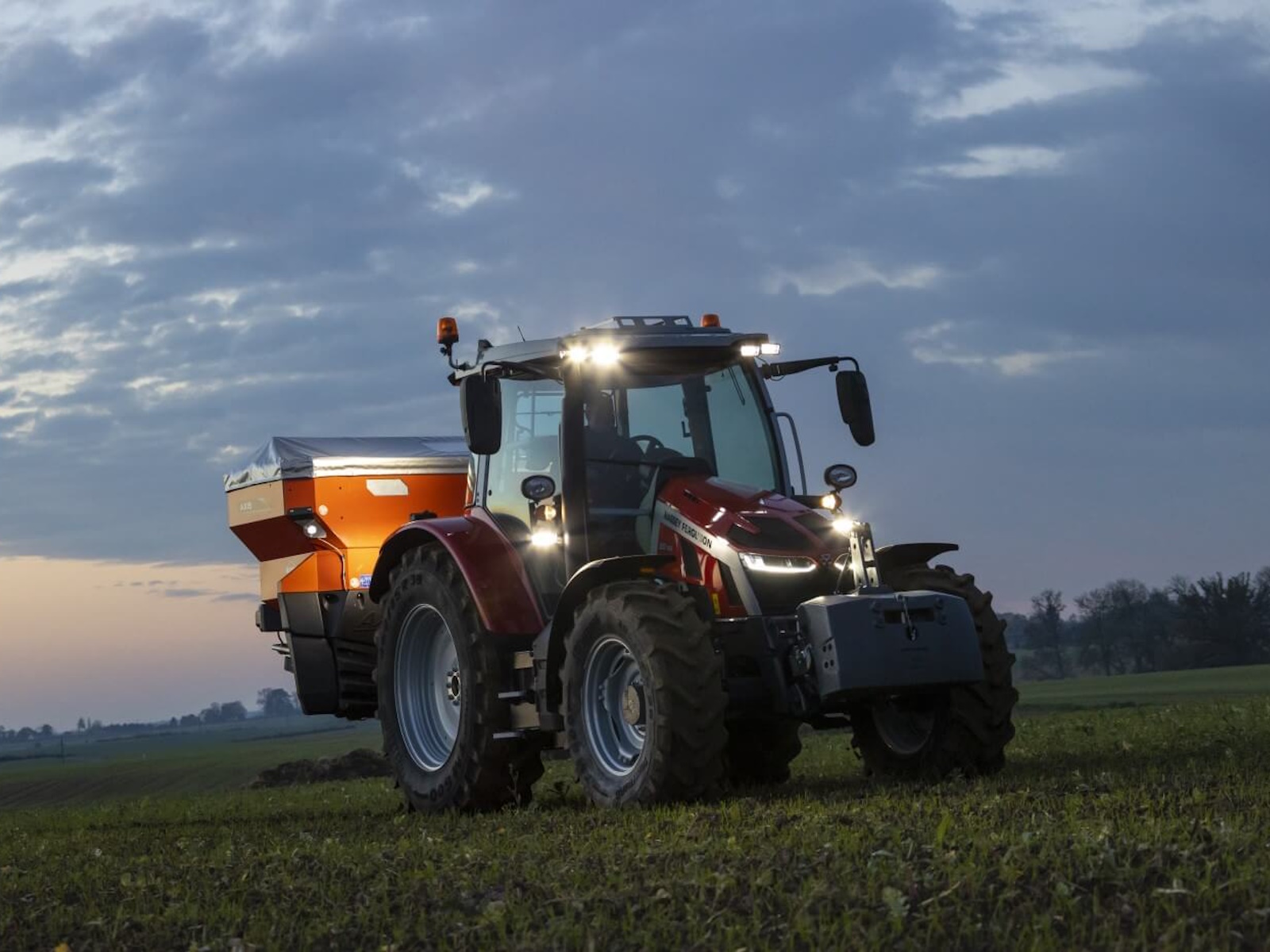

Optional 12 LED Lights

• The addition of the option of up to 12 LED working lights provides outstandingly bright illumination.

Seats

• For top class comfort, you’ll find a choice of seats to suit the work you do. Mechanical suspension is ideal for road applications, while a choice of automatic, air suspended seats give extra comfort for long working days.

Dashboard with SIS – Setup and Information Screen

• The clear, sharp and easy to read 70mm x 52mm colour screen shows a range of information including tractor performance, working area, working distance, fuel and AdBlue® consumption as well as engine and transmission temperature.

Select the roof to suit

• A choice of cab heights and roof types allow you to tailor your MF 5S Series tractor to offer excellent access to buildings and suit your exact needs.

Standard Cab Position

• The standard cab position has a fully flat floor and, combined with the standard roof and cab suspension option, offers optimum comfort.

Low Cab Position

• The low position cab structure is the same, but the frame is mounted lower down, reducing the overall height and providing excellent access to buildings.

Better by design

• With the introduction of the MF 5S, Massey Ferguson continues its striking new era design first seen on the advanced, new MF 8S Series, following the same striking ‘neo-retro’ livery with modern headlights and LED signature.

Heritage

• This design pays tribute to the brand’s heritage, incorporating an interpretation of the iconic MF grey sabre stripe on the side and horse head collar motif on the bonnet, which dates back to the MF 100 series.

Operator Environment

• The MF 5S Series is equipped to a high standard specification, which is complemented by useful optional equipment packages that help you get job done more easily and efficiently. All information regarding these packages can be found in the table below.

Essential Specification

• Essential is the base specification for the MF 5S Series, but it is anything but basic. It provides all the key elements you would expect from MF, with a blend of simplicity, ease of use and versatility to fit the needs that require power and performance.

Essential Panoramic cab

• The Essential Panoramic cab option provides ultimate, all-round visibility for maintenance operations. The wide, one-piece polycarbonate screen is extremely tough and protects operators from flying debris.

Efficient specification

• Equipped with key, productivity enhancing features, the Efficient package helps you to work faster, to a higher standard and with more accuracy.

Exclusive specification

• Exclusive tractors, equipped with many advanced features, are designed for more intensive, larger-scale operations seeking cost-effective benefits for the business.

Farm Management

• A range of technology in the MF 5S helps you manage your operations and business more effectively and efficiency. Offering these advanced systems in the 105hp to 145hp sector clearly shows the pace of innovation and progress being set by Massey Ferguson. More than ever before, modern progressive farmers are relying on data and information to keep vital records, improve efficiency and productivity to increase yields, reduce costs and increase returns. Massey Ferguson’s straightforward, dependable and intuitive technology is easy to use helping owners and operators to operate equipment more effectively, analyse operations and make informed decisions to increase profits.

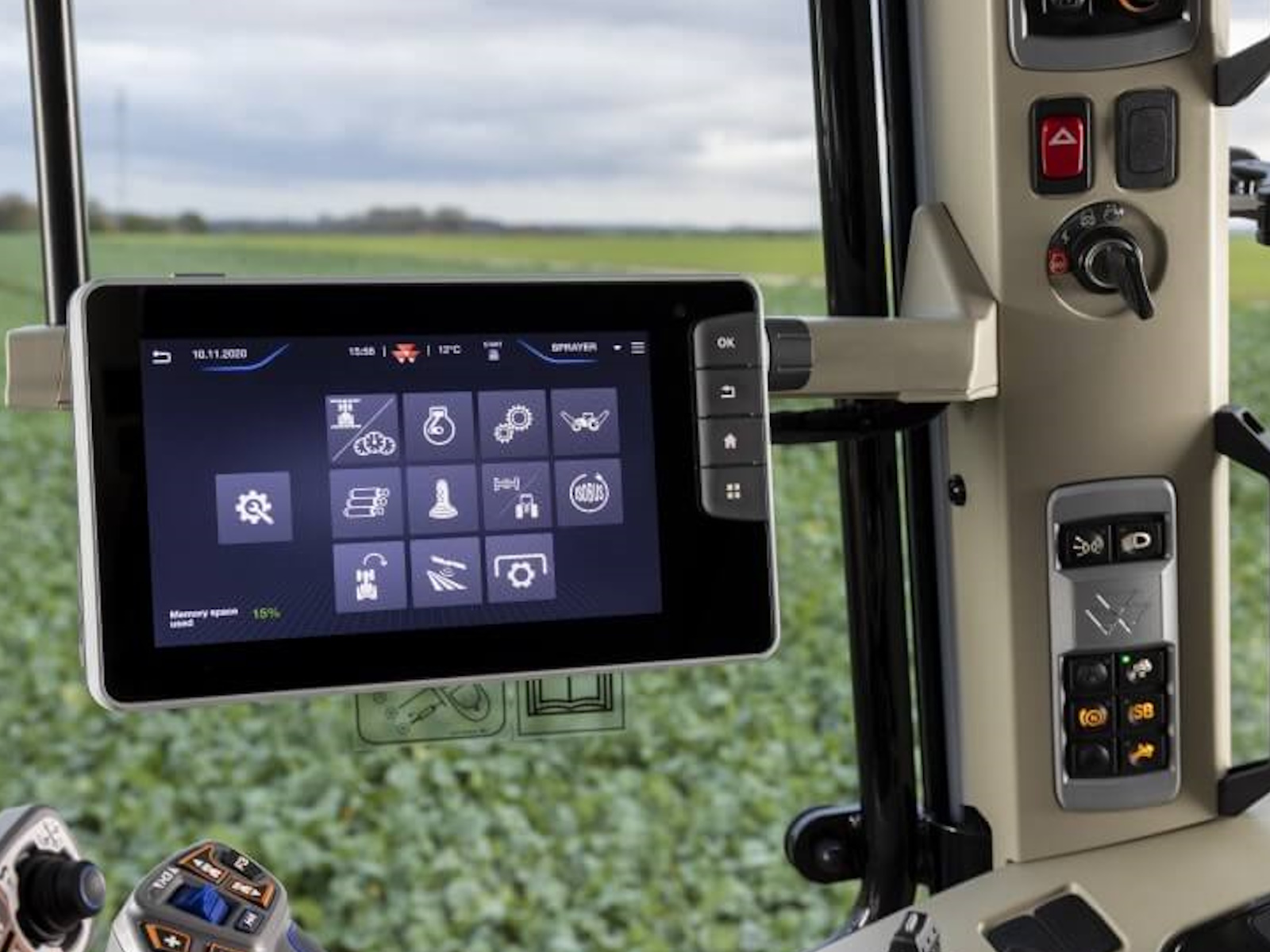

Datatronic 5 - Standard on Exclusive, Optional on others

• The Datatronic 5 system literally puts all the functions of the MF 5S tractor at the operator’s fingertips via its smart 9in touch-screen.

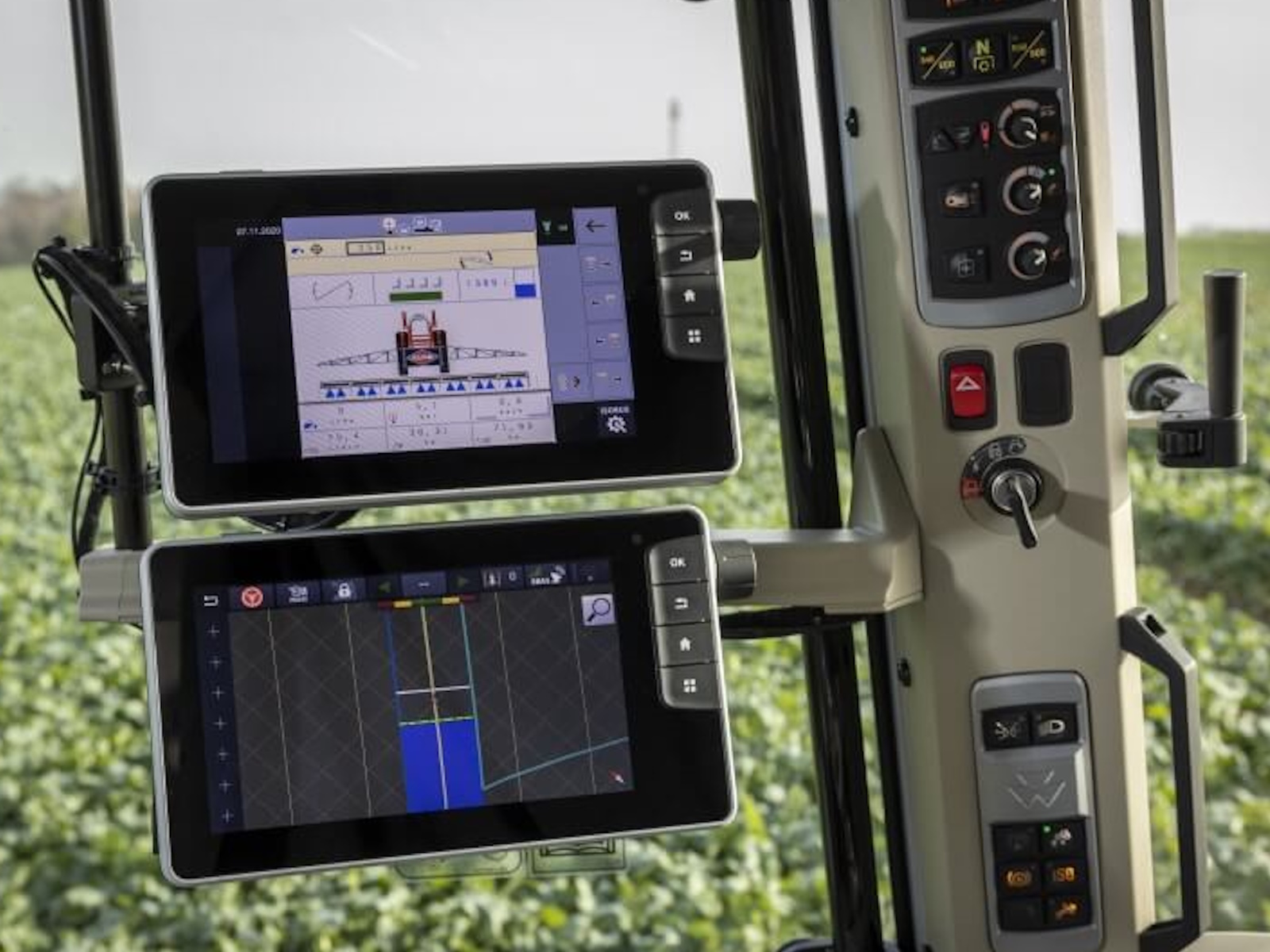

Fieldstar 5

• The new Fieldstar 5 terminal is designed in order to create a more intuitive Precision Farming experience, providing a system that delivers a straightforward an easy to use experience, improving efficiency, productivity and profitability.

MF Guide

• MF Guide is MF’s full featured, hands free steering system, available on new tractors or as an after-market installation. It is capable of delivering sub-metre, decimetre and centimetre accuracy, increasing the efficiency of your farming.

MF Section Control

• With the fully automatic Section Control for ISOBUS implements, operators can apply seeds, fertilizer or Crop protection products without overlapping. This prevents double treatment and areas worked outside of the field edges.

MF Task Doc

• The MF Task Doc system has a real place in the future of agriculture, helping farmers to become more productive through the knowledge brought by putting precision-measured data at the business owner’s fingertips.

MF Connect

• MF Connect service enables you — and your dealer — to coordinate, optimize and seamlessly connect your fleet, to better manage maintenance and remotely monitor equipment in the field.

Features May Include:

Low operating costs

• AGCO Power, 4-cylinders, 4.4 litre engine complies with Stage V emission rules using the compact All-in-One (DOC+SCR+SC) after-treatment system. All models deliver more power with reduced fuel and AdBlue® consumption. An electronic wastegate turbocharger further improves performance and reduces emissions. Also cutting costs and fuel consumption are the Super Eco transmission for roadwork, Eco PTO speed and automatic low idle engine speed.

Efficient drivelines deliver higher productivity

• Proven transmission technology: Dyna-4 (16x16) with Speedmatching or Dyna-6 (24x24) with Automatic mode for automatic shifting. Super Eco operation attains 40km/hr at a low 1,530rpm helping to significantly cut fuel consumption and increase driving comfort. Perfect engine and transmission partnership for maximum outputs.

Equipped to work faster with the widest implements

• A wide choice of hydraulic systems deliver flowrates from 58 to 110 litres/min from open-centre or load-sensing systems. Double-up operations with the new front linkage design offering lift capacities up to 3,000kg (+17% vs previous range), with dedicated control valve and two spool valves; while the stronger, rear linkage lifts up to 6,000kg (+14% vs previous range). A new suspended front axle offers higher comfort, an improved turning radius and permits a higher Gross Vehicle Weight of 9,500kg. The MF 5S can safely carry and handle larger loads to operate wider machines at faster speeds. SpeedSteer further improves operation in the field making it easier and faster to make tighter (4m radius) headland turns.

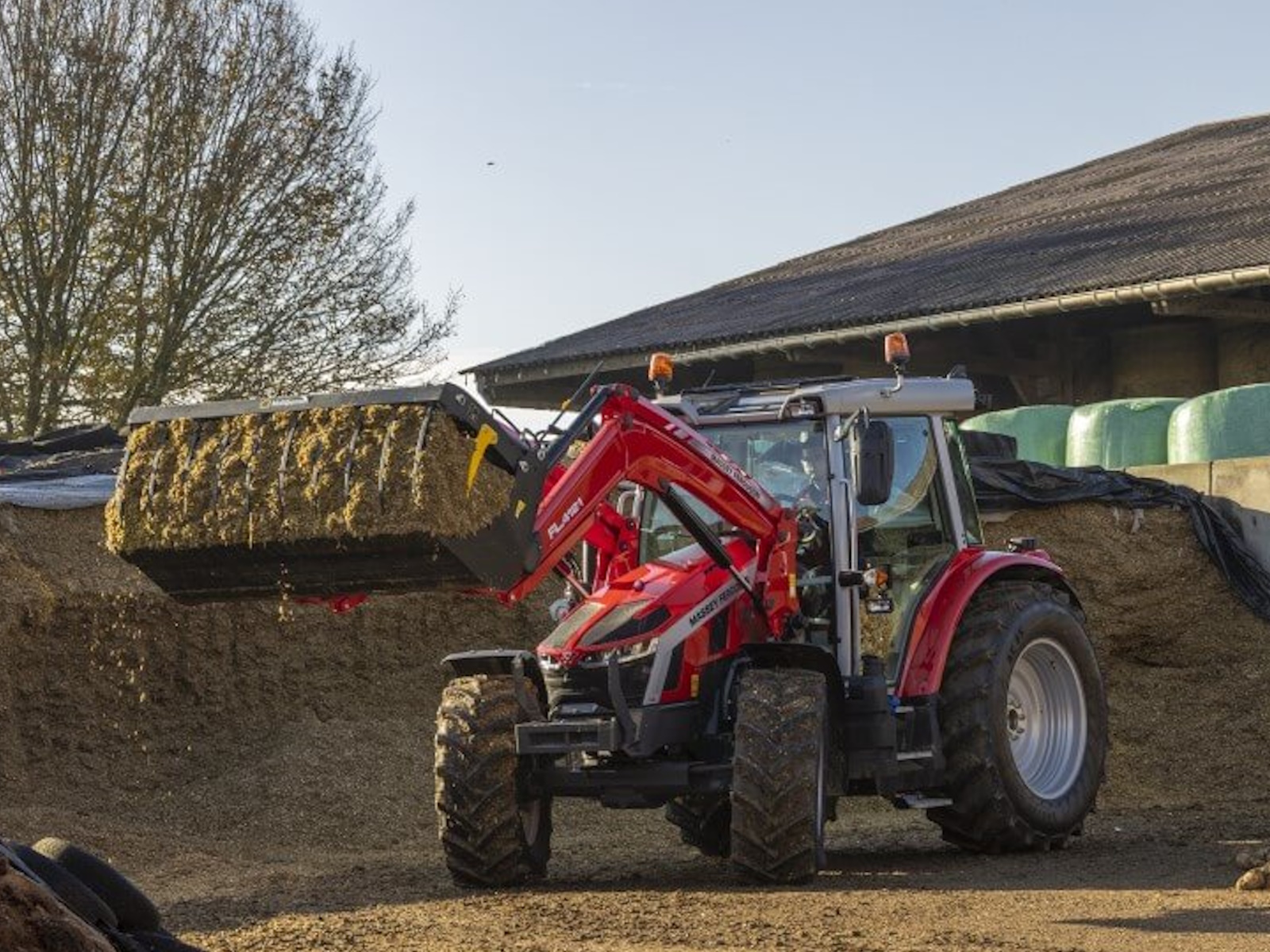

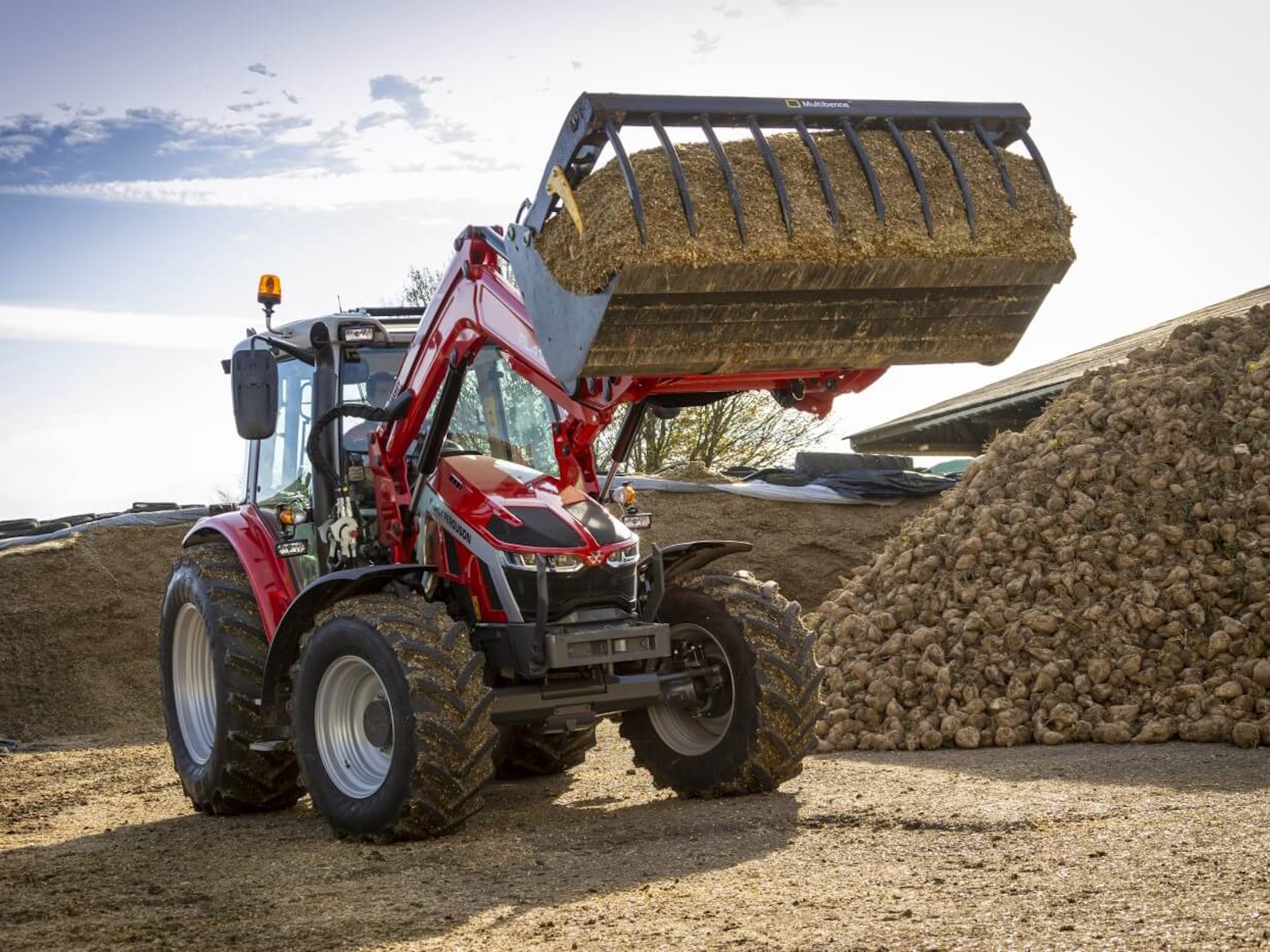

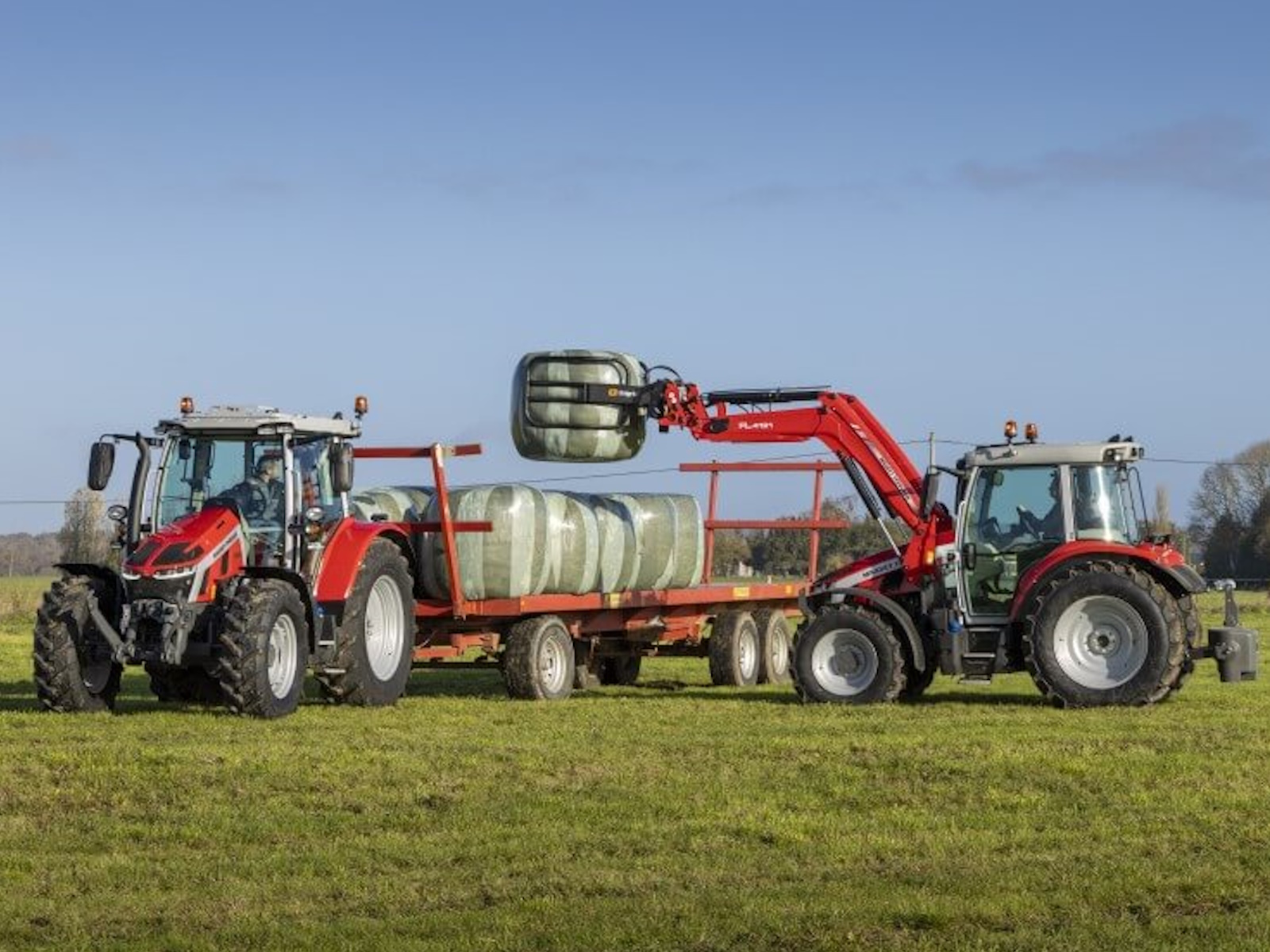

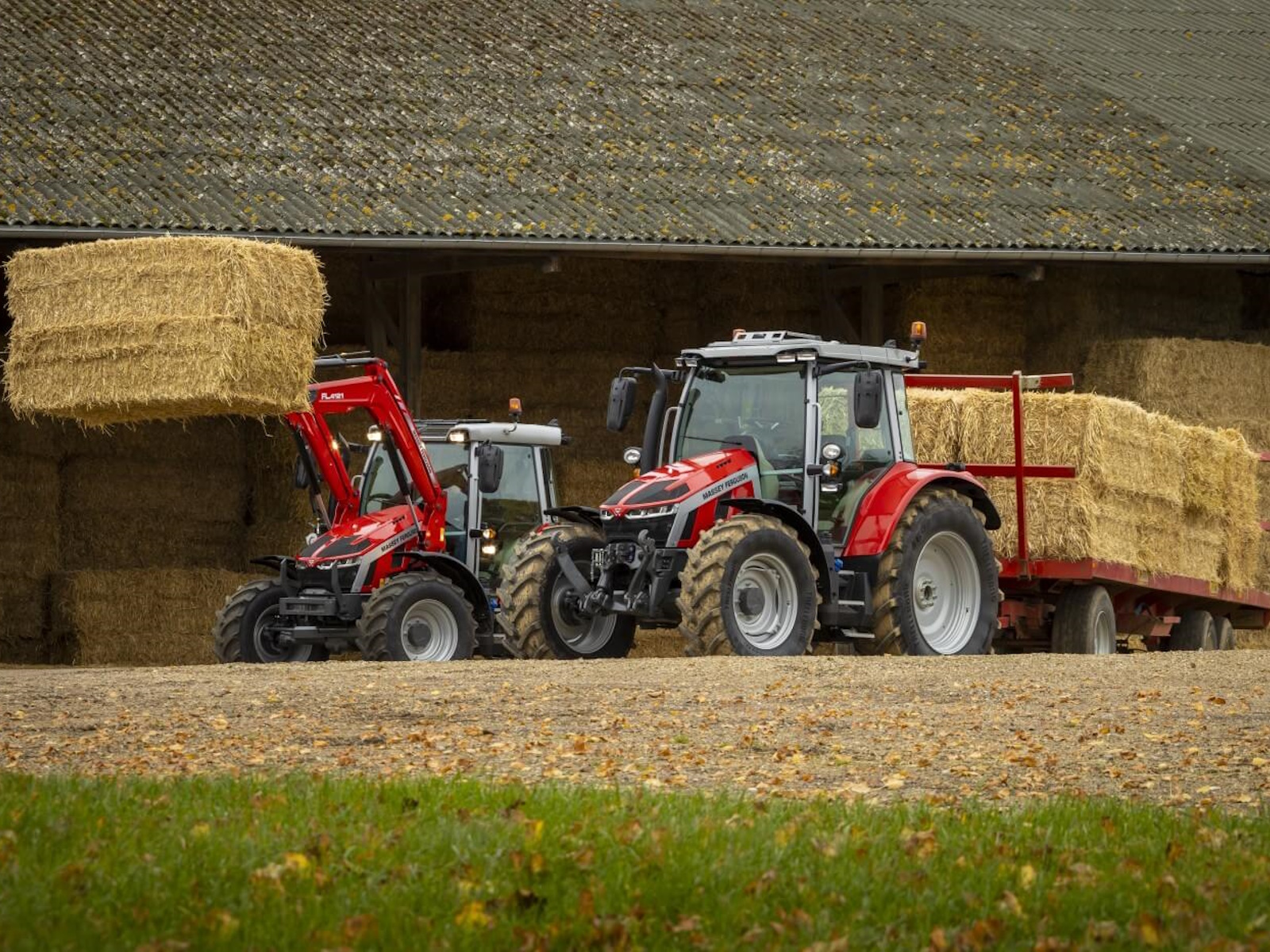

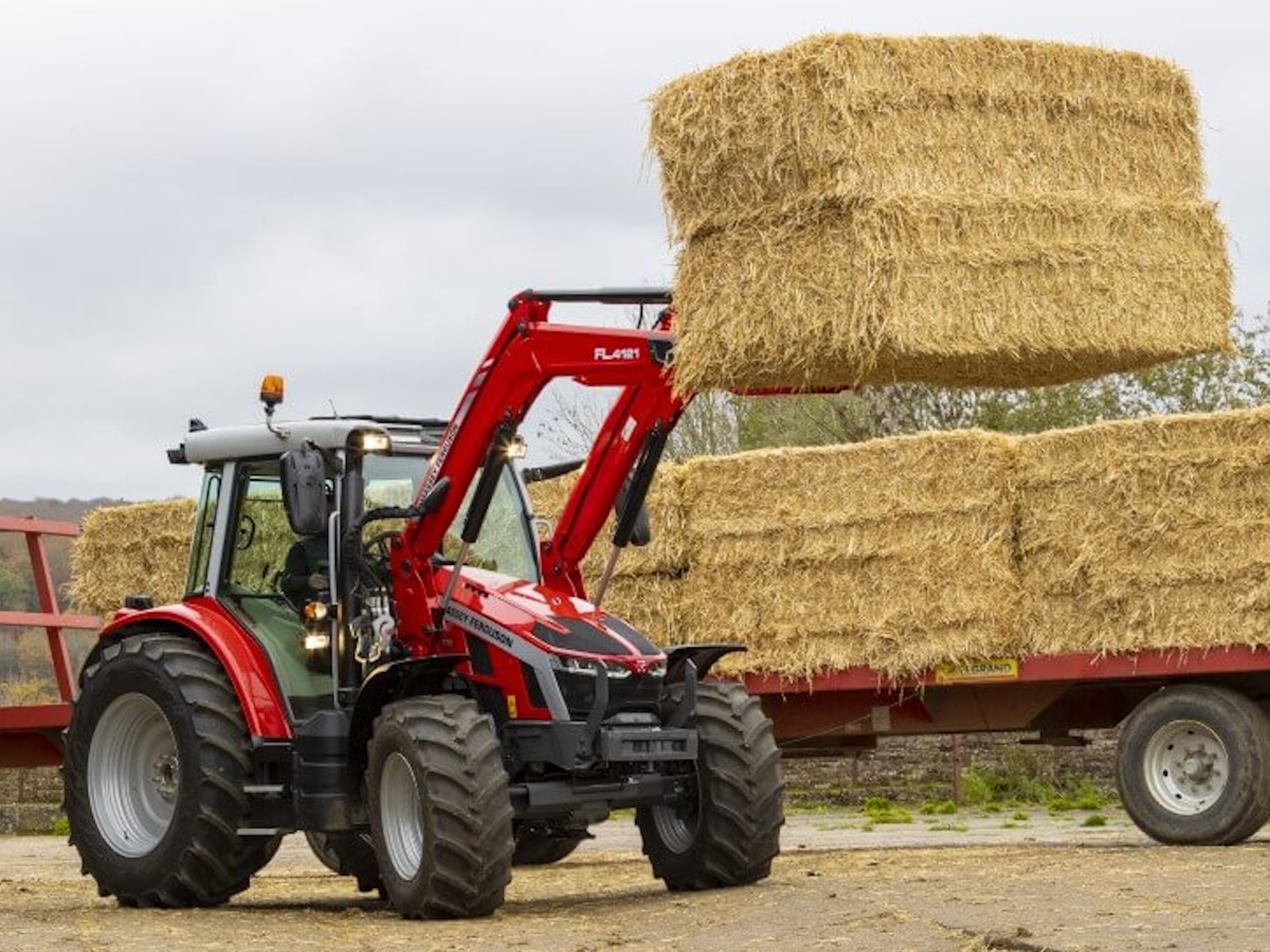

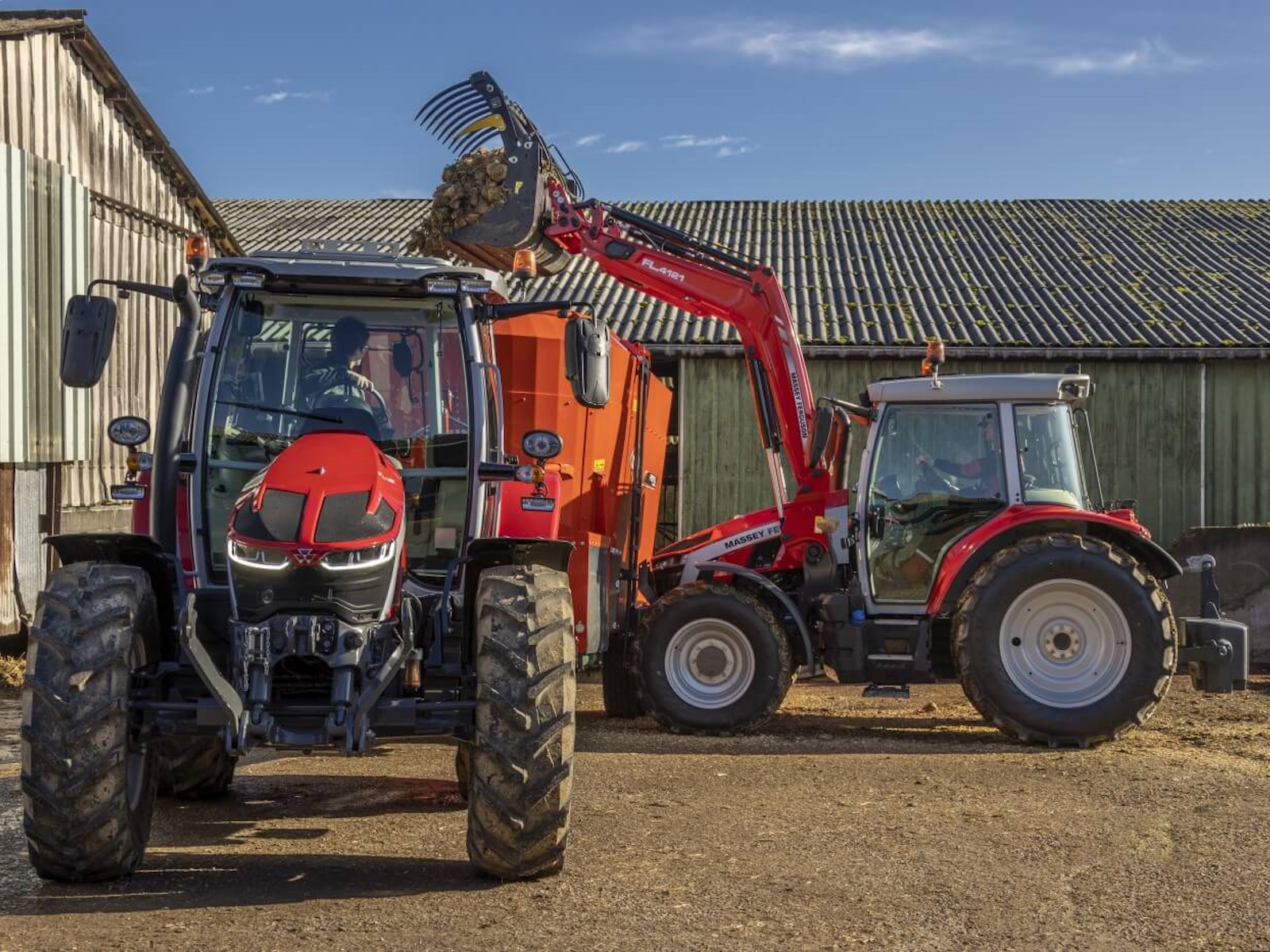

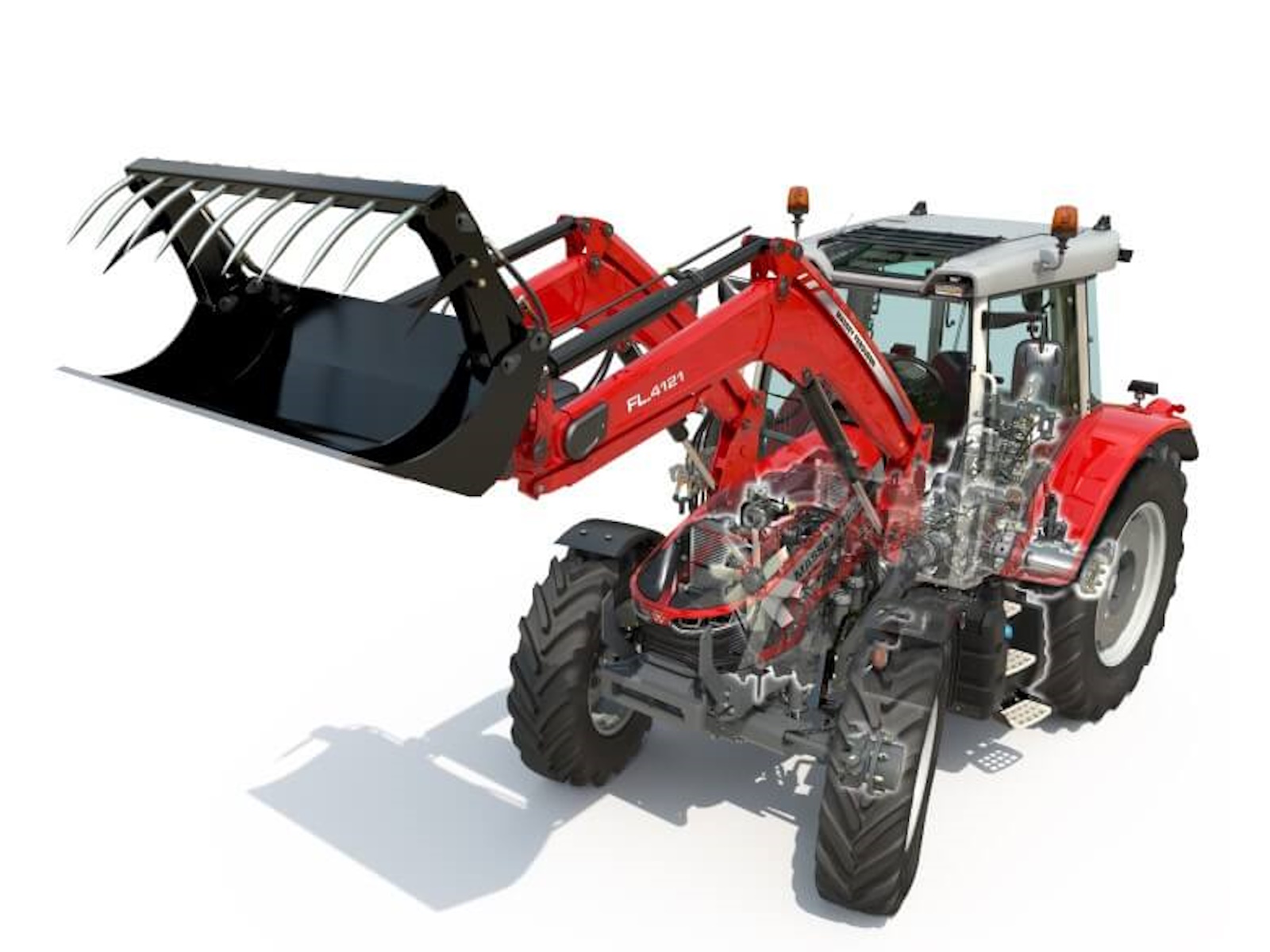

The perfect loader partner

• Best-in-class visibility, down to just 4m ahead of the tractor, over the slim dashboard and narrow steep-nose bonnet, combines with great manoeuvrability and a choice of three hydraulic systems to provide exceptional pressure, flow and response. Left-hand Power Control lever changes direction, shifts speeds and selects neutral, while a choice of joysticks operate the loader, as well as change direction and speeds. MF 5S tractors are now available with factory-fitted loaders or can be ordered loader ready, just requiring the mounting of the loader arms and implement.

Ultimate comfort for a more productive working day

• Wide choice of Essential, Essential Panoramic, Efficient or Exclusive specifications - all equipped with a comfortable quiet, cool cab with simple and efficient suspension. Easy to access cab offers the best visibility on the market from its large glass area and steep bonnet with unrivalled visibility, down to just 4m ahead of the tractor. New front axle suspension further improves comfort. New, intuitive Datatronic 5 console (standard with Exclusive version) delivers the information you need to manage and control all tractor’s functions. New armrest and perfect ergonomics mean all controls fall easily to hand for effortless operation.

Straightforward Fuse Technology for more accuracy

• MF Guide offers sub-metre and centimetre accuracy improving economy by reducing overlaps with a choice of Novatel or Trimble receivers and correctional signals.
• MF Section Control minimises overlaps by 12% controlling sections, while MF Rate Control adjusts the application rate on the move, saving precious inputs.
• MF Connect telemetry helps you manage fleet performance by remotely accessing machine data in real time to monitor and analyse operating information from your MF 5S.
• MF TaskDoc™ and MF TaskDoc™ Pro create and securely transfer detailed job records between the field and office.
• Datatronic 5, 9in touch-screen terminal for tractor functions, ISOBUS, MF Guide, MF Section Control and MF Rate Control, with intuitive operation to deliver more precise farming.
• Optional Fieldstar 5 terminal provides the convenience of another touch-screen display creating an easy to use precision farming package.

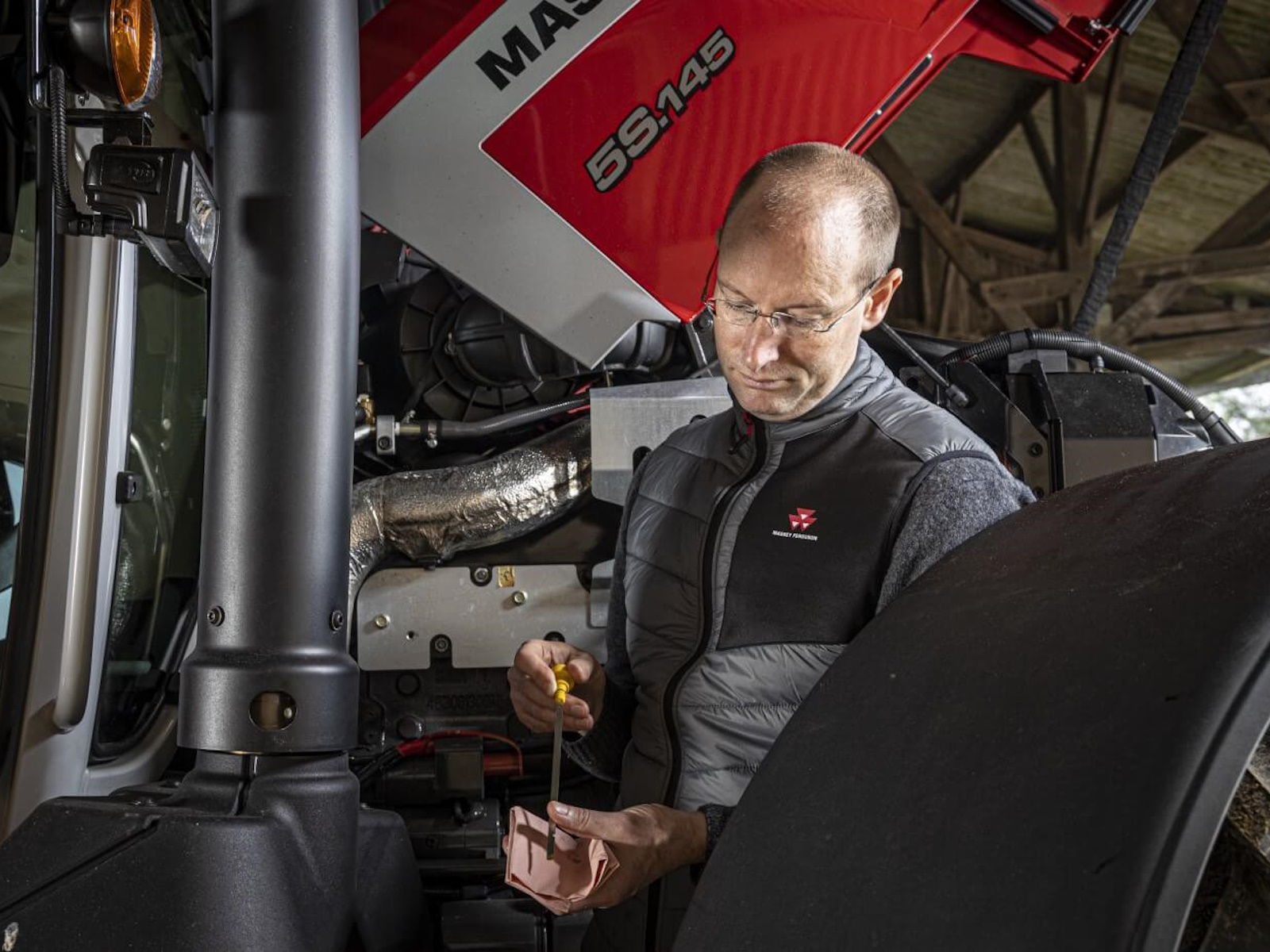

Low repair and maintenance cost

• Long, 600hr, engine maintenance interval cuts the cost of ownership. MF Care repair and maintenance contracts are available to help farm businesses to operate competitively and cost-effectively, while an extensive dealer network means that support is only just a phone call away.
