    Description

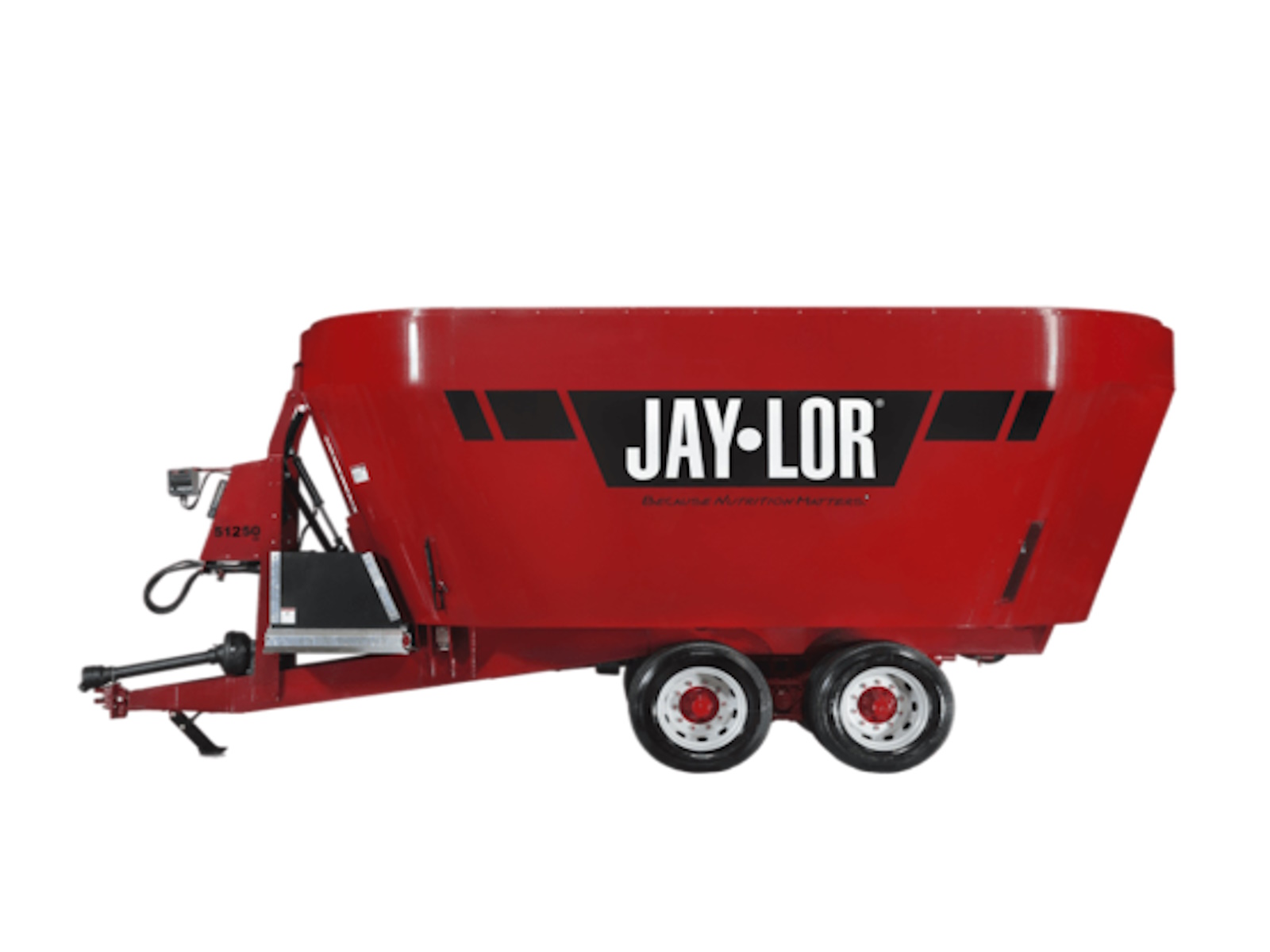

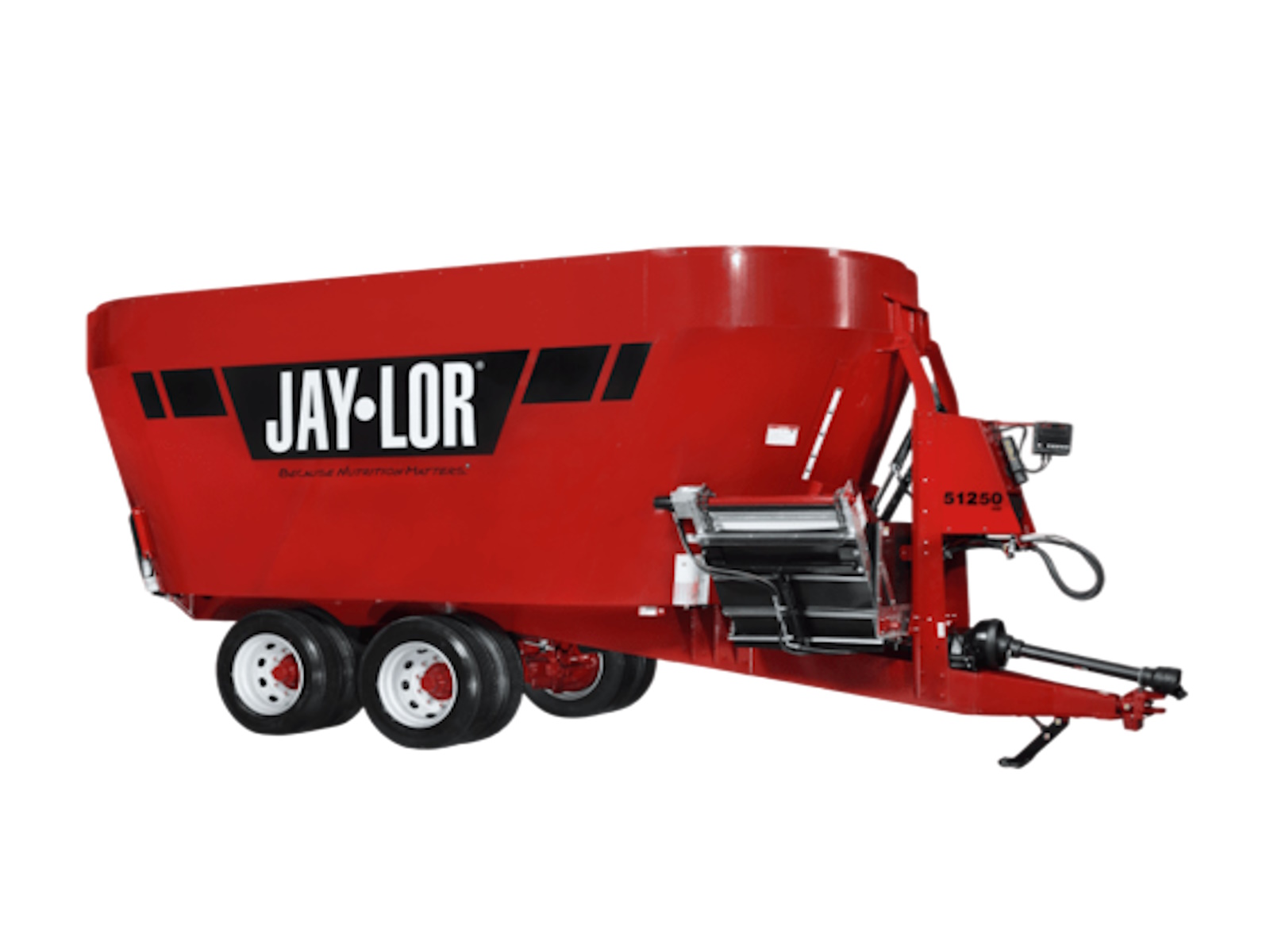

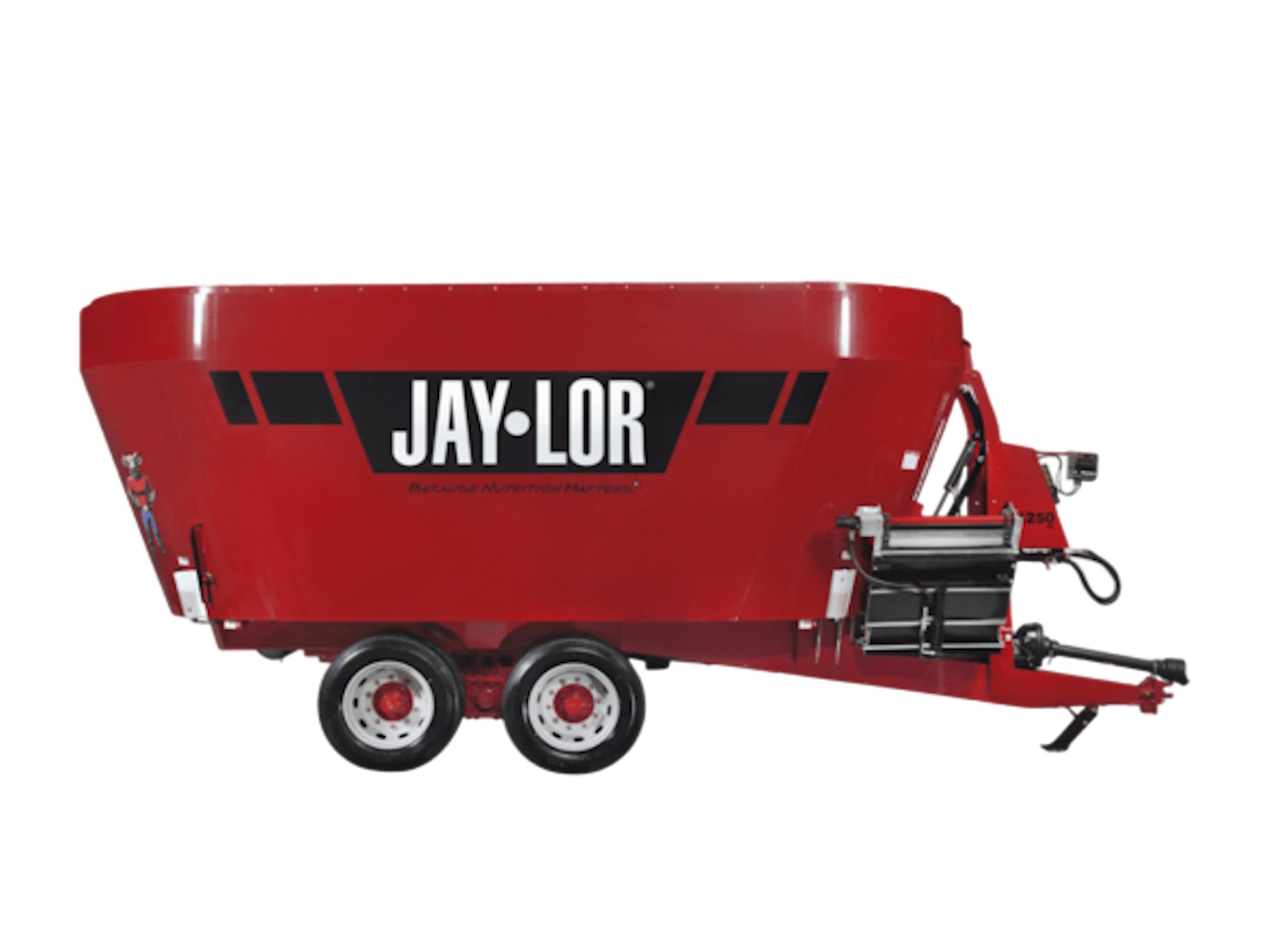

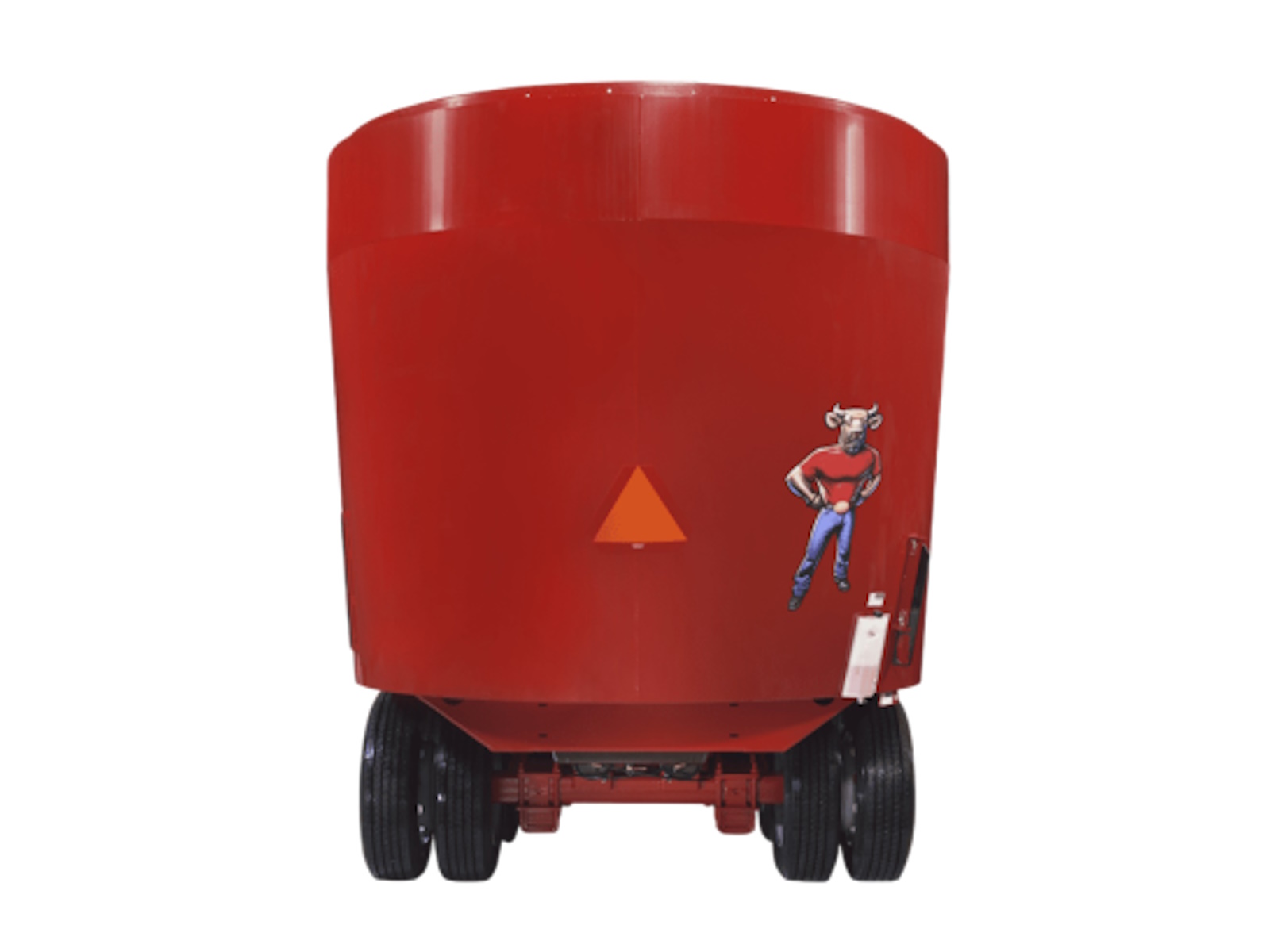

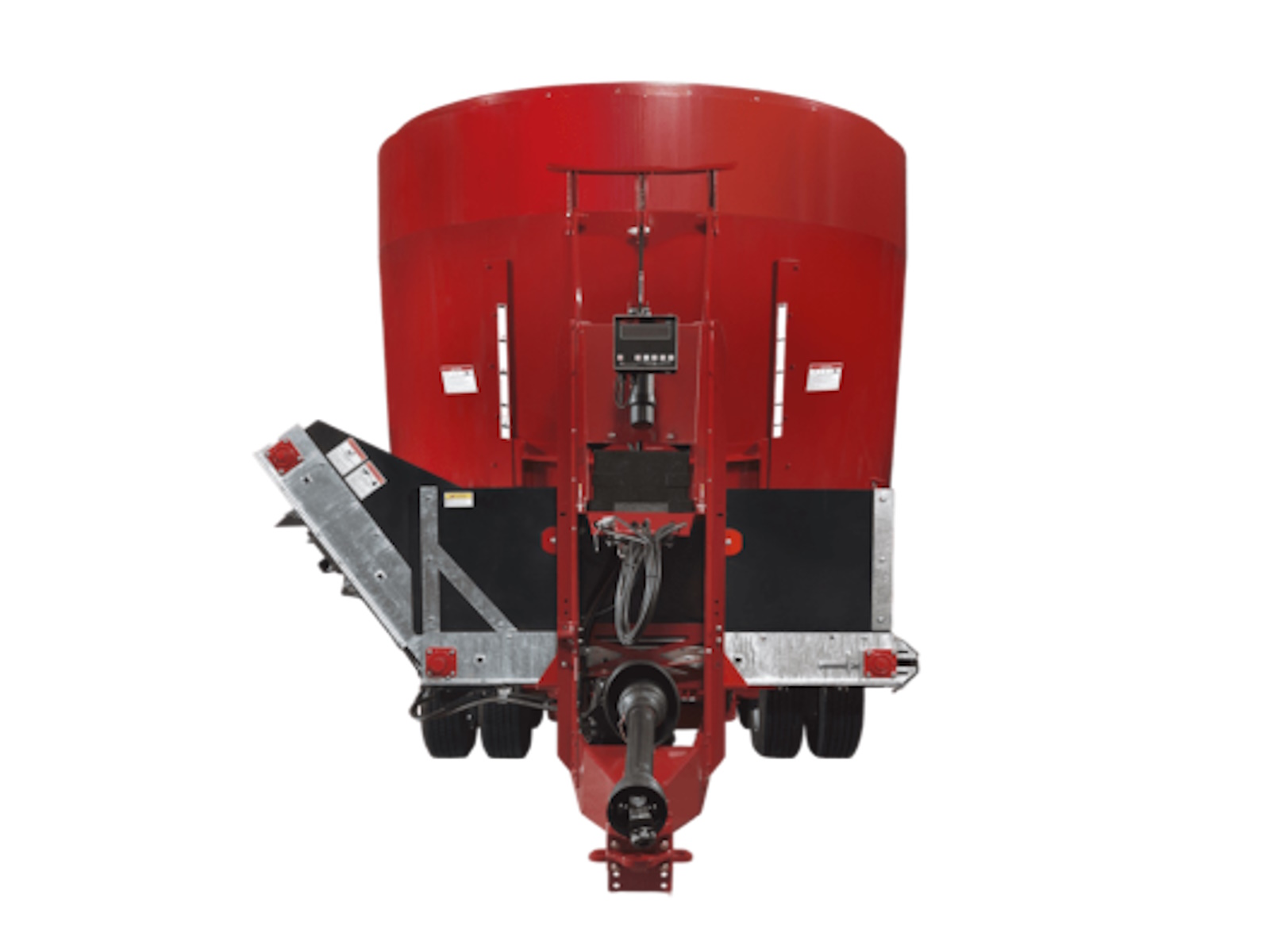

    2025 Jaylor 51250HD No Extension

    The Jaylor 51250HD Twin Auger TMR Mixer is our largest and most robust feed mixer, built to meet the demands of large-scale dairy and beef operations. With a capacity exceeding 1,000 cubic feet (32m³), it effortlessly handles heavy feedlot rations while delivering consistent, high-quality TMR. Equipped with a rugged walking tandem with dual tires and optional hydraulic or pneumatic brakes, the 51250HD Mixer is designed for durability, stability, and smooth transport in demanding conditions.

    Choose from two patented auger options to match your feeding needs:
    • Slide Plate Augers – for rapid, low-Horsepower forage processing
    • Angling Blade Augers – for denser rations with heavier auger loading

    Features May Include:

    • Sloped top Square-Cut Auger
    • 5-Point Weigh system with DG500 Indicator
    • Heavy Duty Axles, Hubs and Bearings
    • Planetary Gearbox
    • Heavy Duty Hydraulic Jack
    • Shaker Box to Optimize Your Mix
    • Central Greasing Bank
    • Structurally Reinforced Frame
    • Rapid Discharge Door with Self-Cleaning Tracks
    • Mix Viewing Window

    Info

    Industry

    Agriculture

    Make

    Jaylor

    Model

    51250HD

    Trim

    No Extension

    Year

    2025

    MSRP

    N/A

    Category

    Feed / Mixer

    Subcategory

    Wagon


    Specs

    Load Capacity

    No Extension: 1125ft³

    Weight

    23100 lbs

    Height

    135 in

    Length

    318 in

    Width

    Drum: 102 in | Conveyor: 36 in | Door Opening: 42 in

    Tires

    275/70R22.5 (8)

    Wheels

    Walking Beam

    PTO Type

    Speed: 1000 RPM

    Power/Horsepower

    Minimum: 200 HP

    Notes

    Auger Speed: 41 RPM | Number Of Knives: 26 | Auger Flighting Thickness: 3/4in | Max Discharge Height: 68 in | Floor Thickness: 3/4in |Drum Wall Thickness: 1/4 in
