2025 Jaylor 5150 Trailer No Extension





Get in Touch
Description

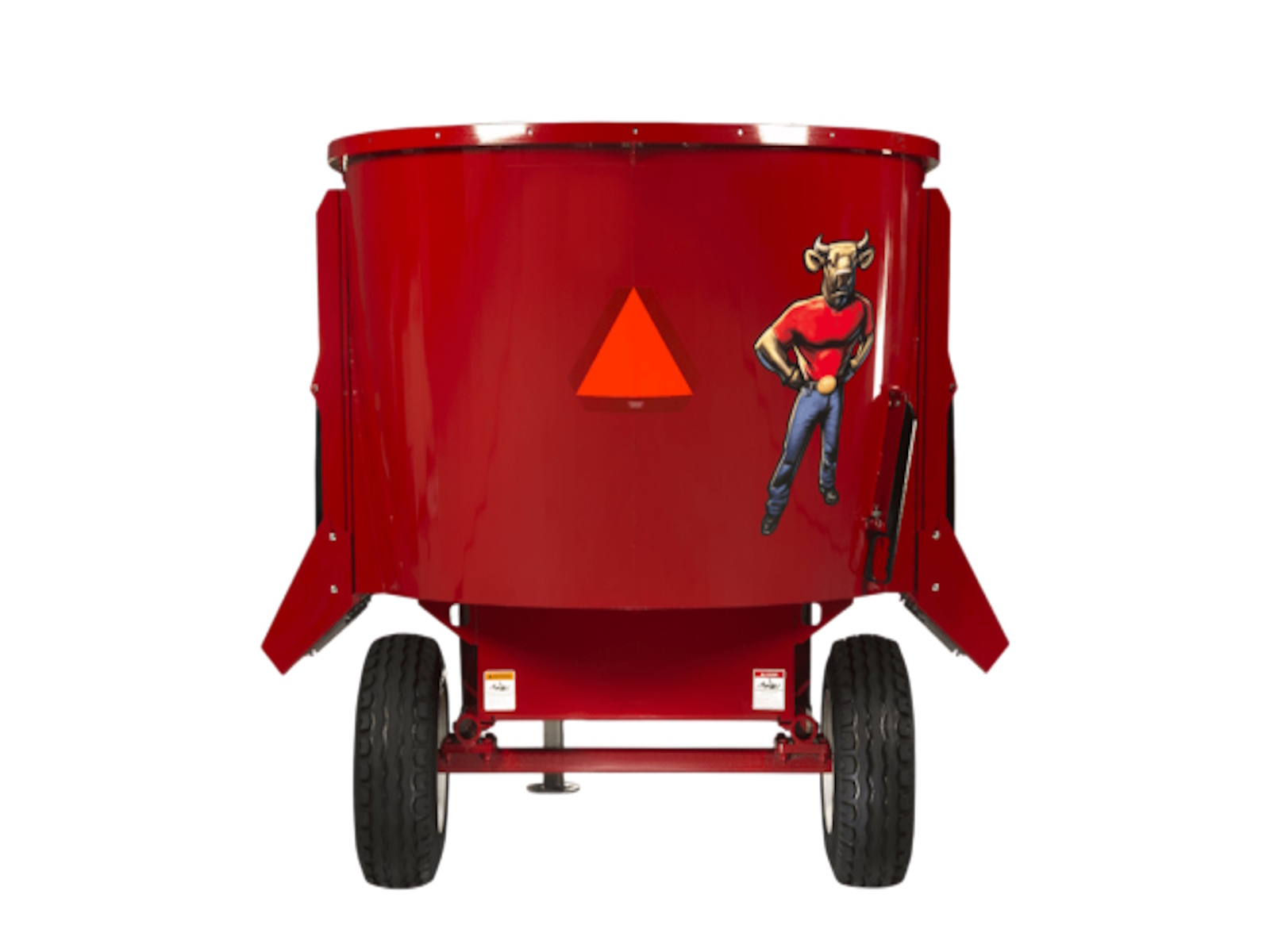

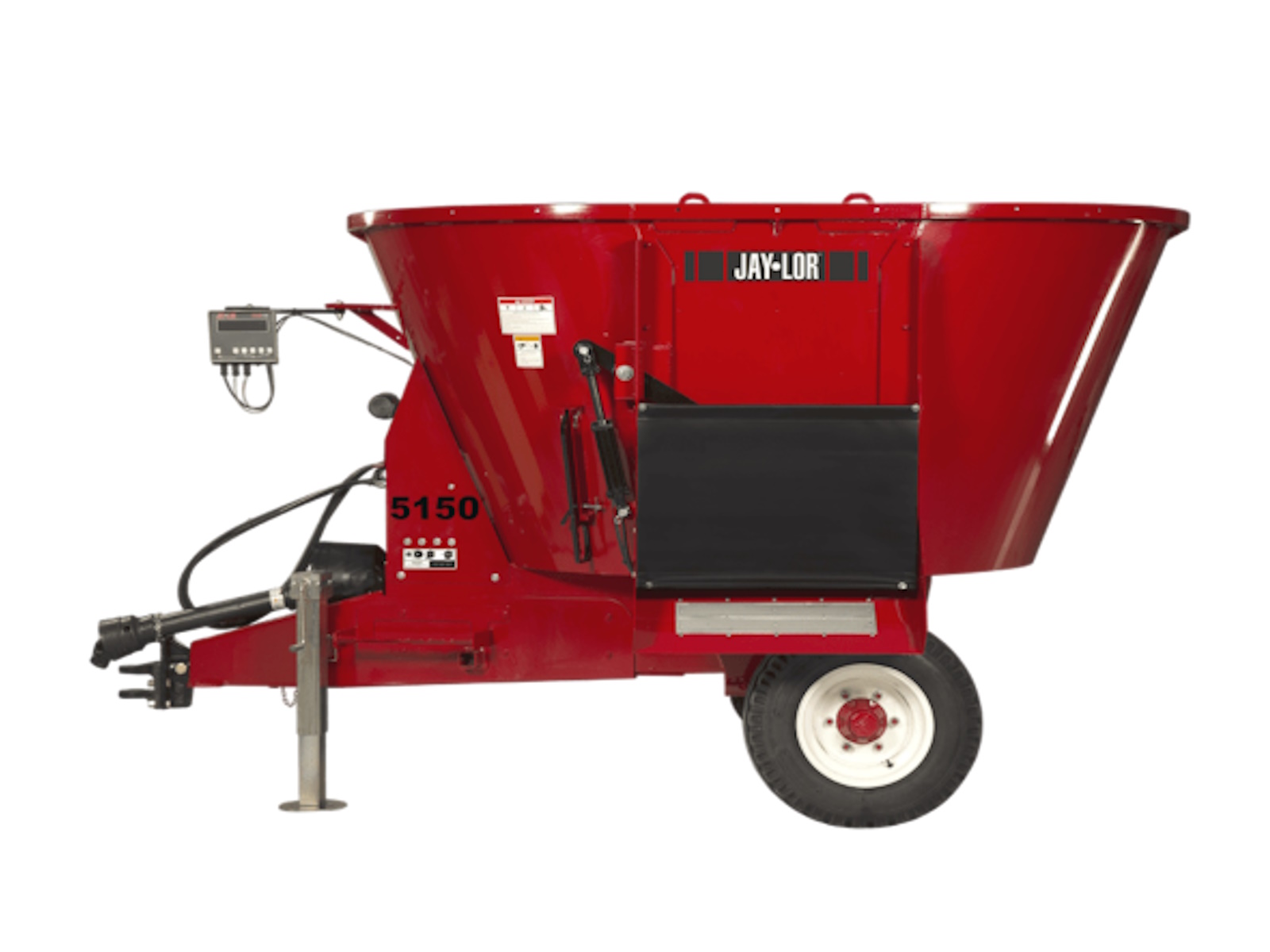

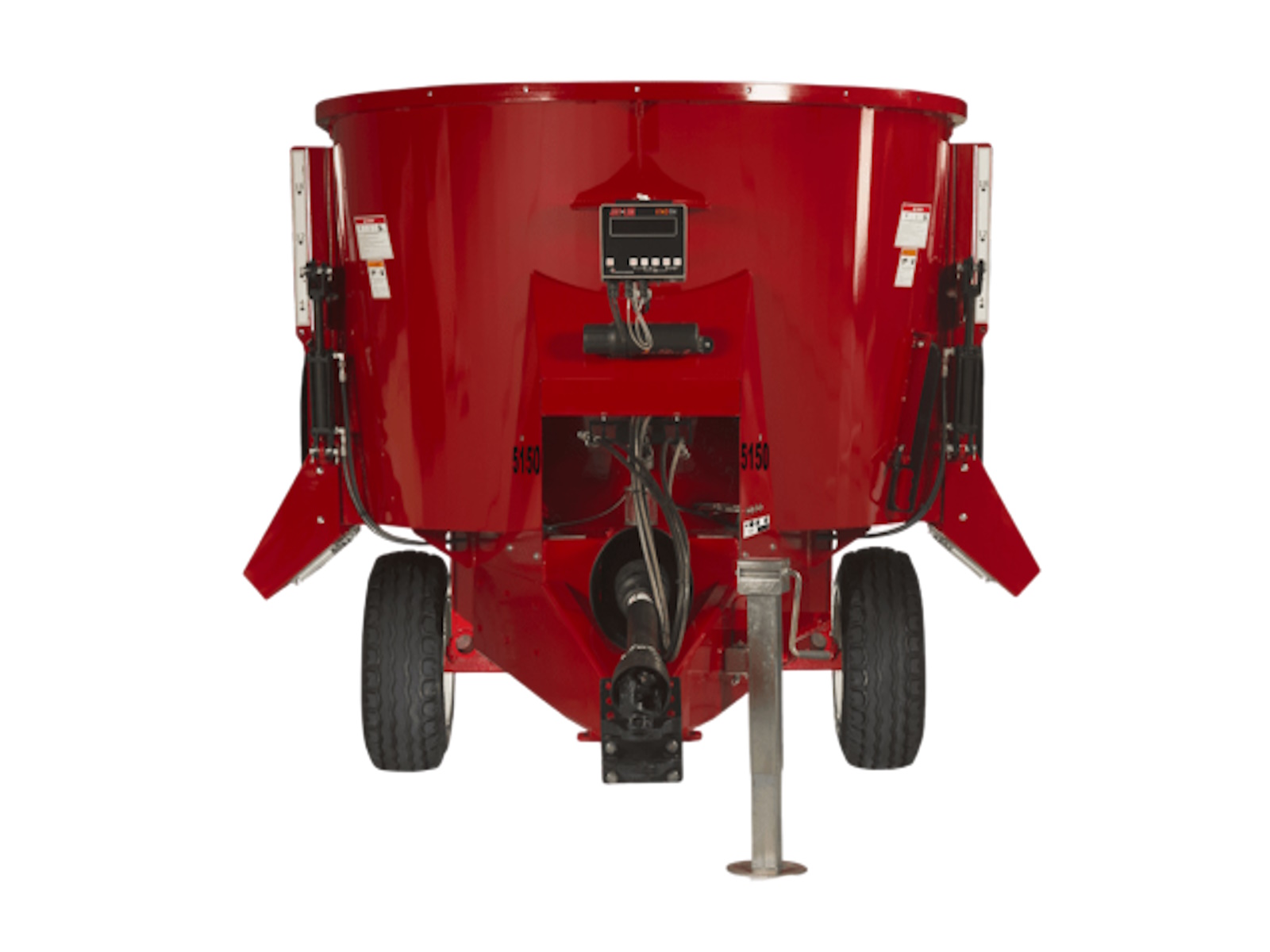

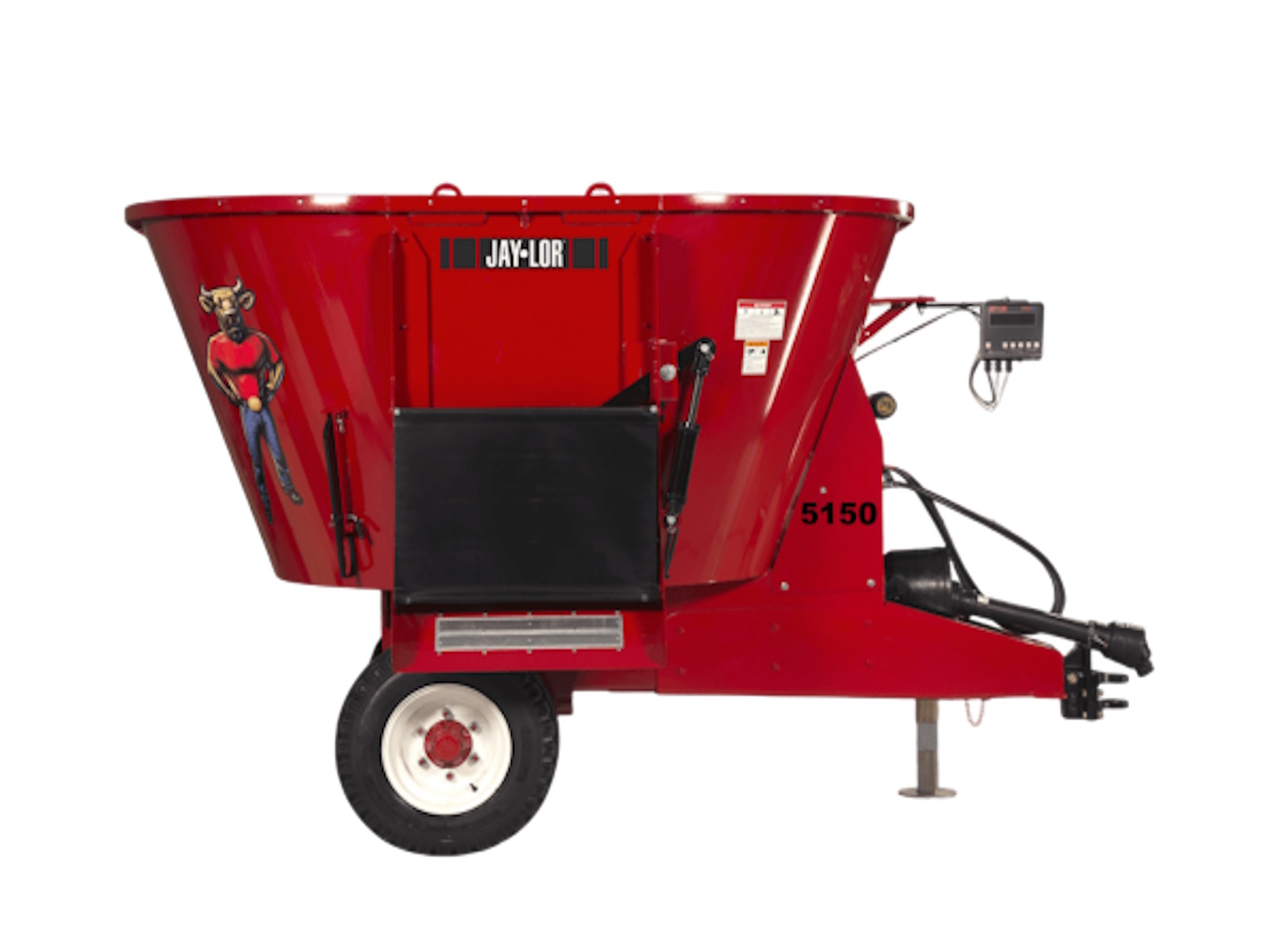

2025 Jaylor 5150 Trailer No Extension
Your 35 HP (PTO) tractor is all you need to power the Jaylor 5150 Trailer Mini TMR Mixer! This compact yet powerful mixer creates a true Total Mixed Ration (TMR) by blending baled forage, silage, and additives into a uniform mix that resists sorting. Capable of processing and mixing a 4×4 round bale (600 lbs/275 kg hay equivalent) per load, or an equivalent portion of a larger bale, the 5150 Trailer Mixer delivers consistent, high-quality feed every time. Featuring a simple, reliable driveline, a planetary gearbox-powered auger, and unloading doors on the left, right, or both, it’s built for efficiency and versatility.
Features May Include:
- Sloped top Square-Cut Auger
- Planetary Gearbox
- 3-Point Weigh System with DG500 Indicator
- Fully Welded Mixing Chamber
- Structurally Reinforced Frame
- Mix Viewing Window
- Tungsten Carbide Coated Knives
- Central Grease Bank
- Heavy Duty Adjustable Cast Hitch
- Heavy Duty Single Straight Axle
Info
Industry
Agriculture
Make
Jaylor
Model
5150 Trailer
Trim
No Extension
Year
2025
MSRP
N/A
Category
Agriculture Equipment
Subcategory
Feed / Mixer Wagon
Specs
Load Capacity
No Extension: 155ft³
Weight
4300 lbs
Height
86 in | Max Discharge: 35in
Length
140 in
Width
Drum: 76.5 in | Door Opening: 25in
Power/Horsepower
Minimum: 35 HP
Wheels
Single Straight Axle
Tires
10.0/75 – 15.3 18 PLY (2)
PTO Type
Speed: 540 RPM
RPM
540
Notes
Scale System: DG500 | Drum Wall Thickness: 1/4in | Floor Thickness: 1/2in | Auger Flighting Thickness: 1/2in | Auger Speed: 41 RPM | Number Of Knives: 8
