Southern Trailer Works Showroom
2025 JLG 450AJ Diesel Fuel
Get in Touch
Description

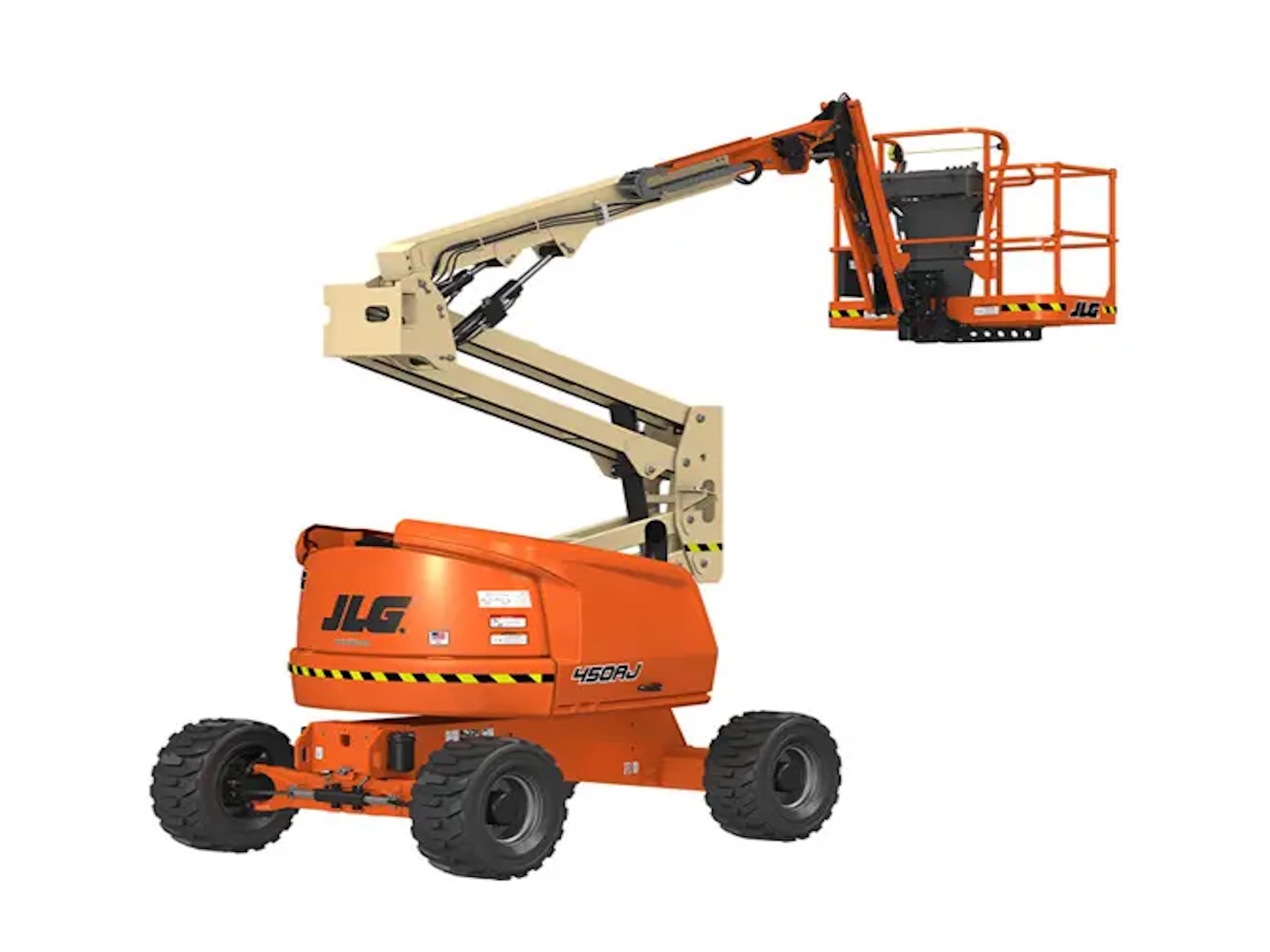

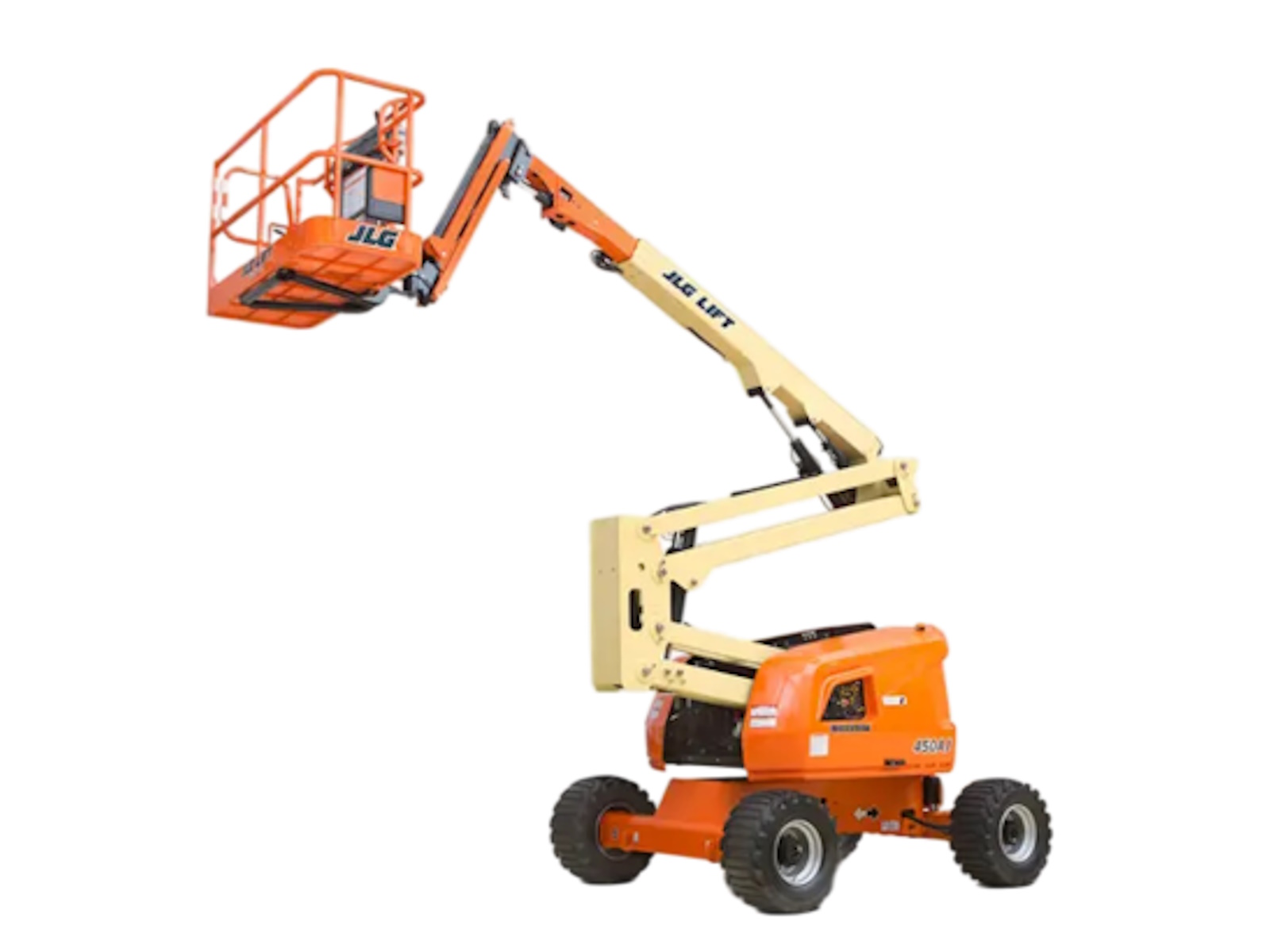

2025 JLG 450AJ Diesel Fuel

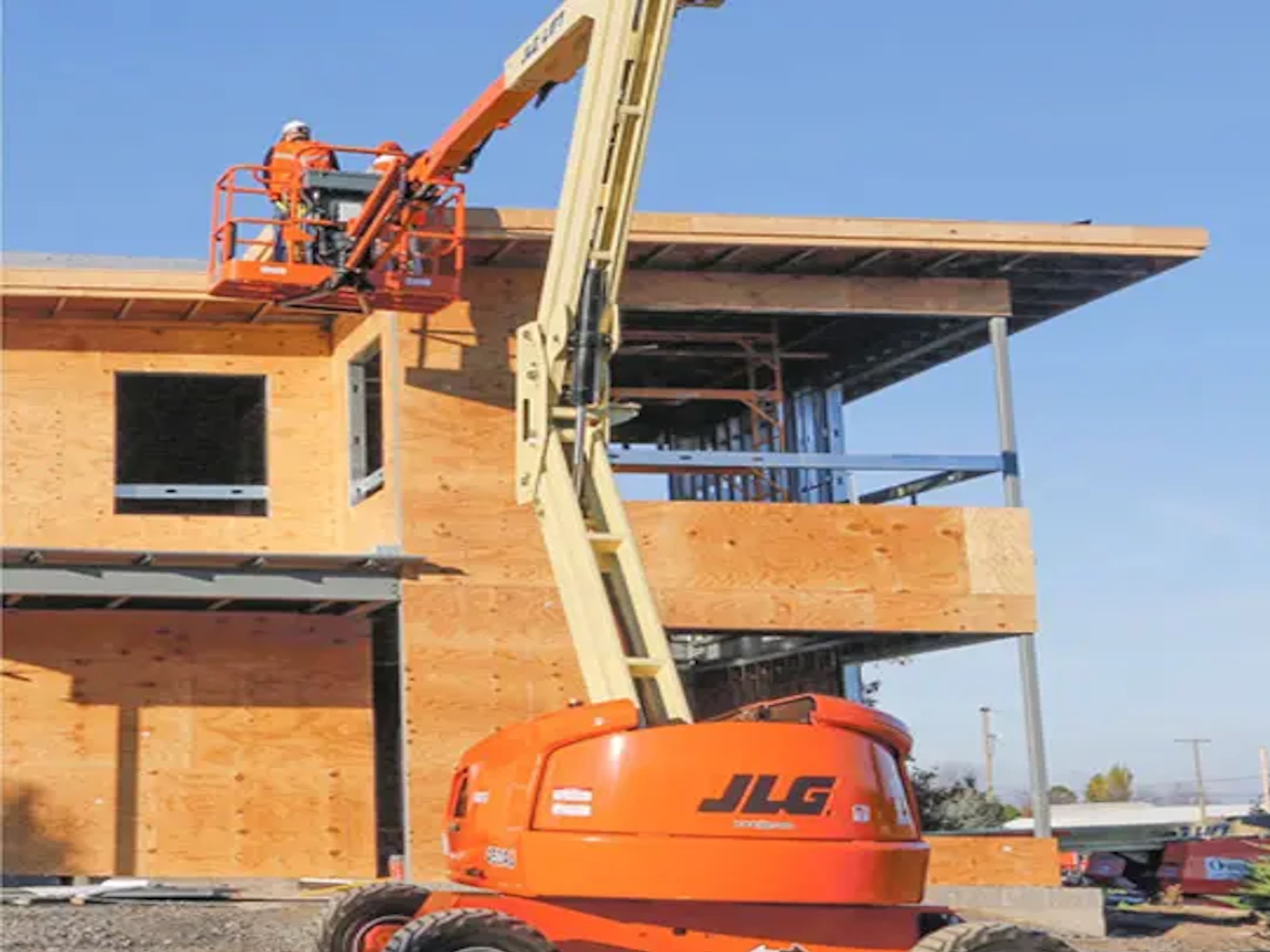

The 450 Series provides the perfect solution for when you're working around tricky architecture or in smaller spaces where access can be limited. Plus, our Hi-Capacity model allows you to push the envelope without compromise, offering three capacity zones, each rated for up to three occupants and tools.
Features May Include:
- Improved multifunction capability for increased productivity.
- Delivers a zero calibration automatic load sensing system that eliminates the need to use external weights to calibrate the-machine.
- Provides durability and serviceability with DuraTough hood design.
- Optimized 550-lb platform capacity for occupants and tools.
Info
Industry
Agriculture
Make
JLG
Model
450AJ
Trim
Diesel Fuel
Year
2025
MSRP
N/A
Category
Boom Lift
Subcategory
Articulating
Specs
Engine
Deutz D2.9L4 Tier 4 Fina
Engine Type
Diesel Fuel
Power/Horsepower
49 hp
Turning Radius
Inside: 6 ft 9 in | Outside: 15 ft 8 in
Height
Platform: 45 ft | Machine: 7 ft 5.3 in
Weight
14,150 lb
Tires
Foam Filled, 33/1550 x 16.5
Width
Platform: 30 in | Machine: 7 ft 8.6 in
Length
Platform: 72 in | Machine: 21 ft 6.9 in
Wheelbase
7 ft 9 in
Ground Clearance
16.4 in
Notes
Horizontal Outreach:25-ft | Up and Over Height: 24-ft | Swing: 355 Degrees Non-Continuous | Platform Rotator: 180 Degrees Hydraulic | Jib: 4-ft 1-in | Range of Articulation: 145 Degrees (+76, -69) | Max. Ground Bearing Pressure: 65 psi | Gradeability 2WD / 4WD: 30% | Drive Speed: 4.25 mph | Tilt Cut Out: 5 Degrees | Axle Oscillation: 4-in
Fuel Type
Diesel
