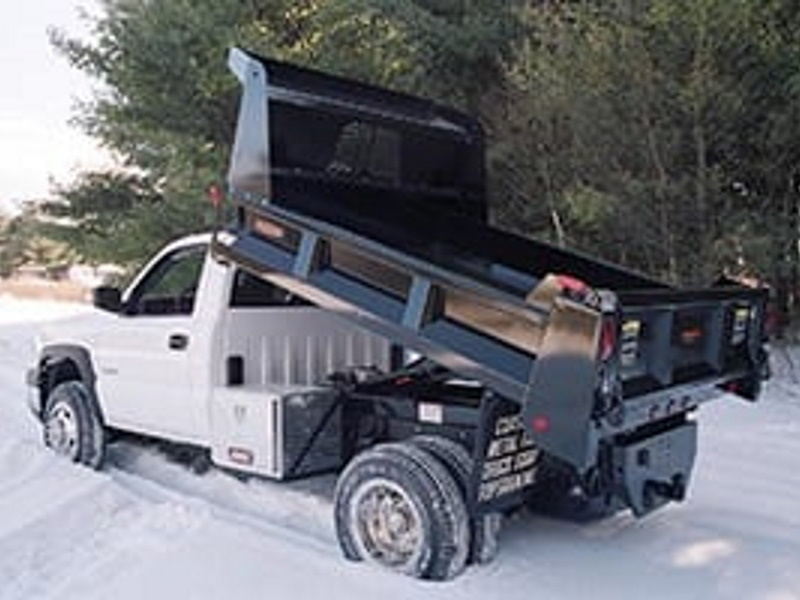

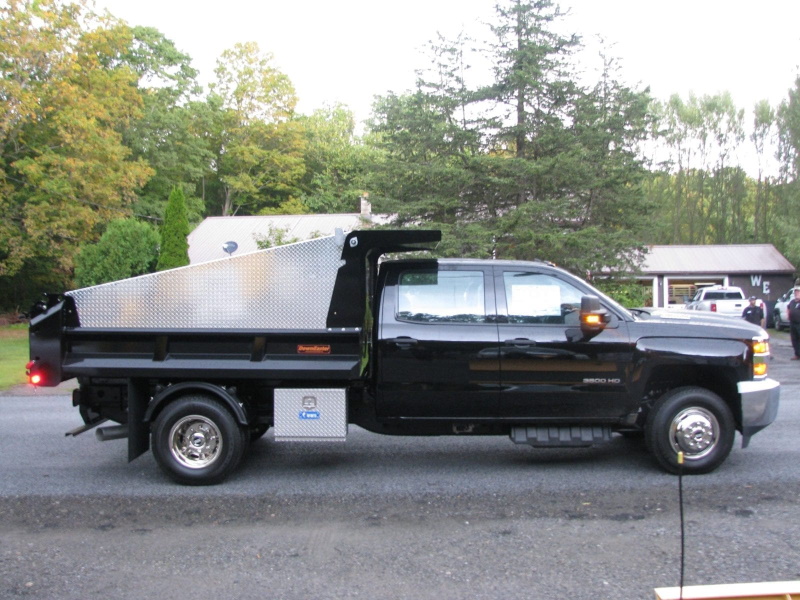

2023 DownEaster DED1096-HD

Features May Include:

GENERAL

• ATSM 572 Grade 50 High Tensile steel (65ksi) inside of body

• 10GA Grade 50 front panel with integral stiffener

• Double panel side plates equal over 5/16″ thickness.

• 10 gauge outer side panels material & holding gate in down position.

• Full depth 3/16″ rear corner pillars incorporate recessed lighting, keyhole banjo eyes and lower tailgate pin receiver.

• Dirt shedding , sloped design at side plate and tailgate top

• 10″ board extension pockets

• Class 40 (single cylinder), 50 & 70 hoists available (dual cylinders)

• Epoxy primer with Phosphate prewash

• Mounting hardware and brackets provided

• All lighting is LED rubber mounted and NTEA and Federal compliant.

• DuPont™ Imron® Elite black oven cured paint w/ epoxy primer

FLOOR & UNDERSTRUCTURE

• 3/16″ Grade 50 floor w/ radius corners & single weld seam

• 10″, 3/16″ formed long sills w/ interlaced cross members

• 4″ x 5.7# Channel cross members w/ formed  – 3/16″ cross members over hoist

• Greasable Bronze bearings for underbody release mechanisms

• Front handle tailgate release, standard

• Mounted & painted Sub frame for ease of installation

• Dual safety props

TAILGATE

• Formed 3/16″ grade 50 inner panel, 10GA outer and end panels

• 1 1/4″ lower lock pins, with forged latch receiving lock fingers.

• Adjustable 5/16” chain for spreading aggregate

• Integrated tarp hooks

• 1.50″ dia. 4140 hinge pins

CAB SHIELD

• Bolt on, multi height position, 10GA cab protector for ease of install & future optional / custom overhang.

• 24″ (1/2 cab) overhang, standard.

• Pre punched tarp mounting provisions
