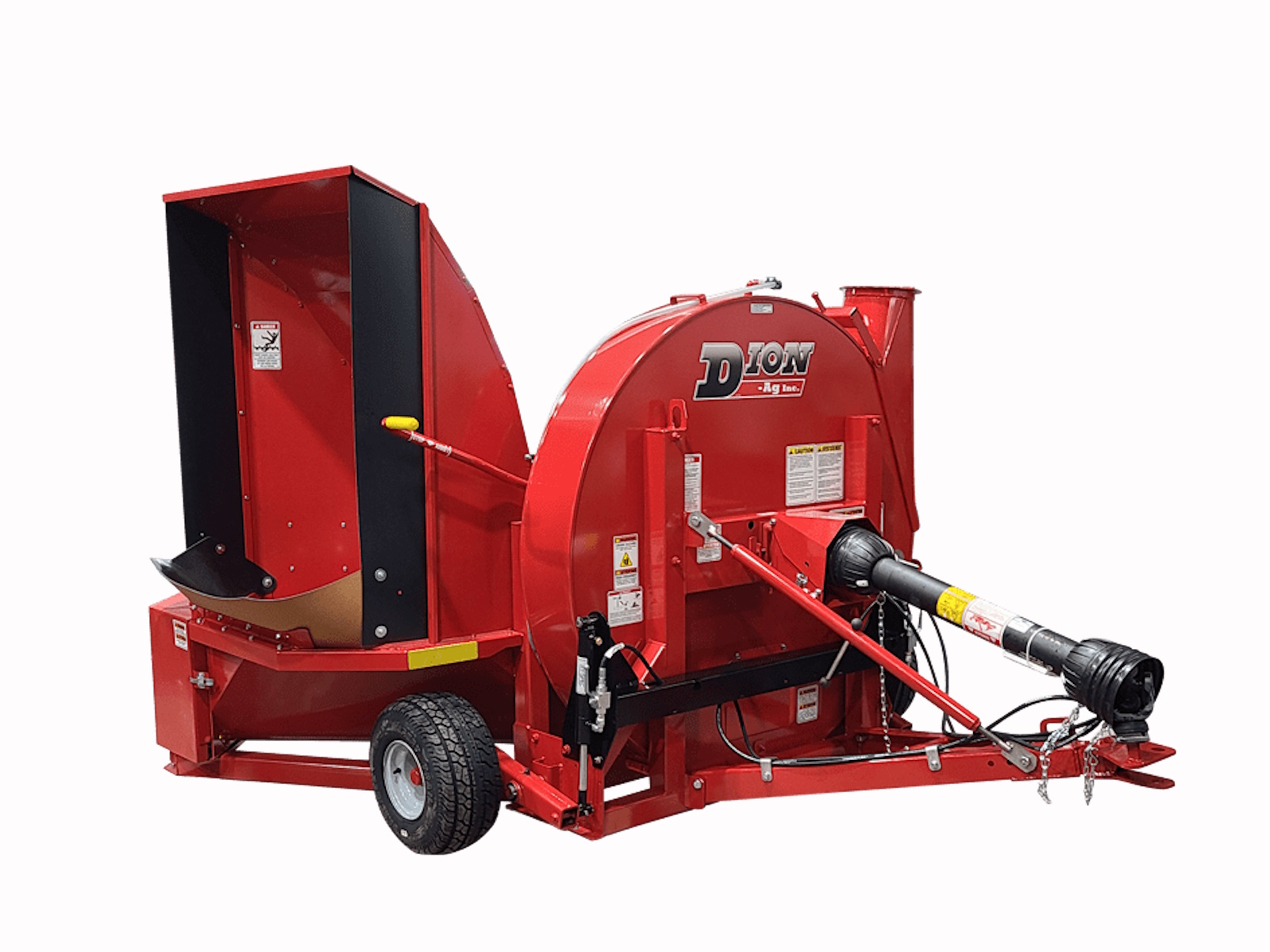

2026 Dion Ag 860

From the intake to the rotor, the 860 blower moves silage with efficiency and capacity.

Features May Include:

• Overruning clutch on PTO

Paired with high torque rating PTO shaft, the overruning clutch protects the blower drive components and the tractor from variations in the load.

• Reversable blower band & 8 paddles

The blower band is fabricated in two sections. The 'wear' section, between the entry into the gan and the silage ejection point, is made of Hardox 450. This section is eversible to ensure excellent durability.

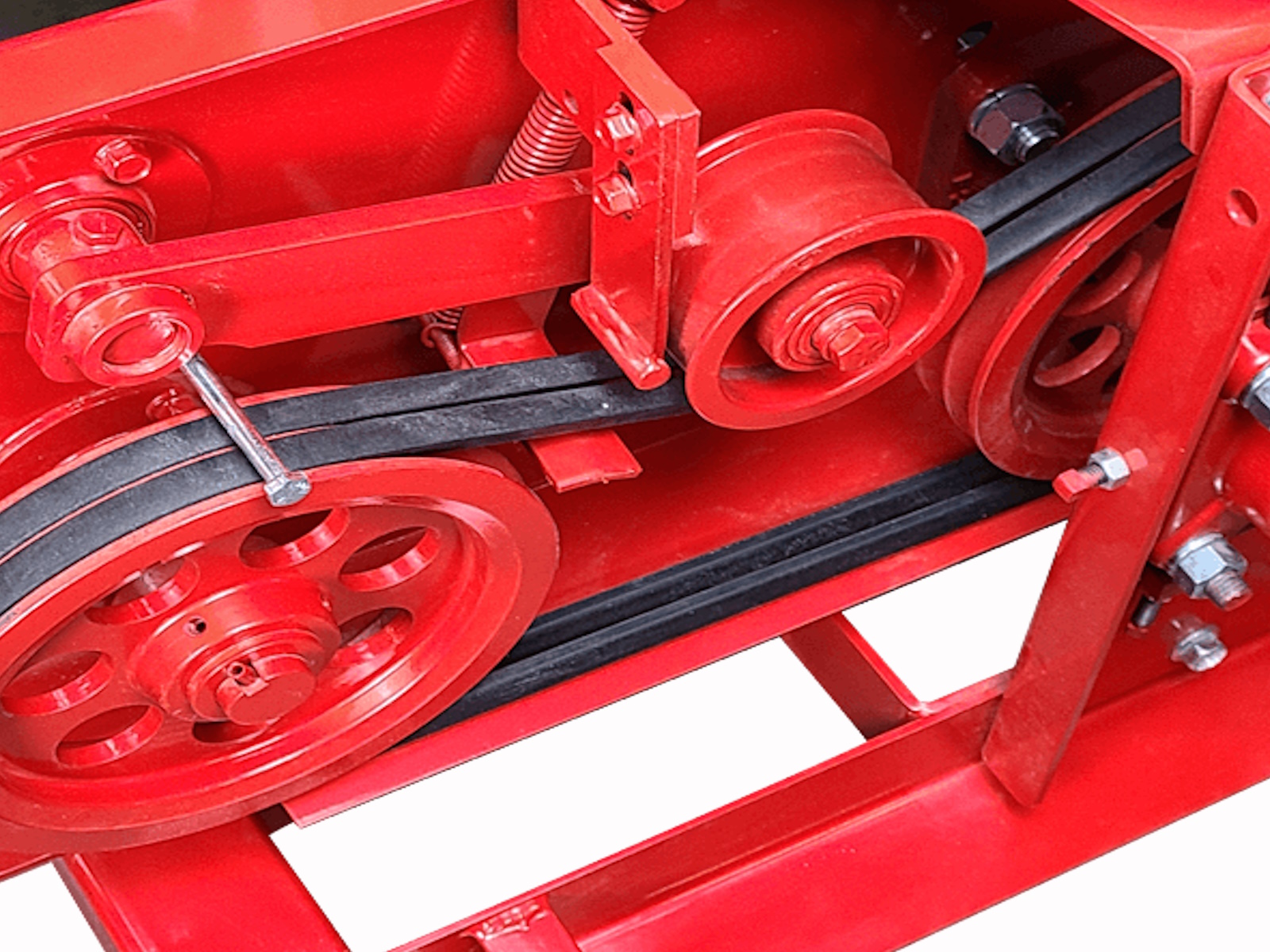

• Robust drive

The feeding auger is driven by 2 pair of 5VX belts (cogged belts) capable of transmitting all the required power. All pullies are cast iron, double belted and double bearing mounted for unmatched longevity. Teh large 2" diameter auger shaft is supported by premium cast iron, NTN, flange bearings.

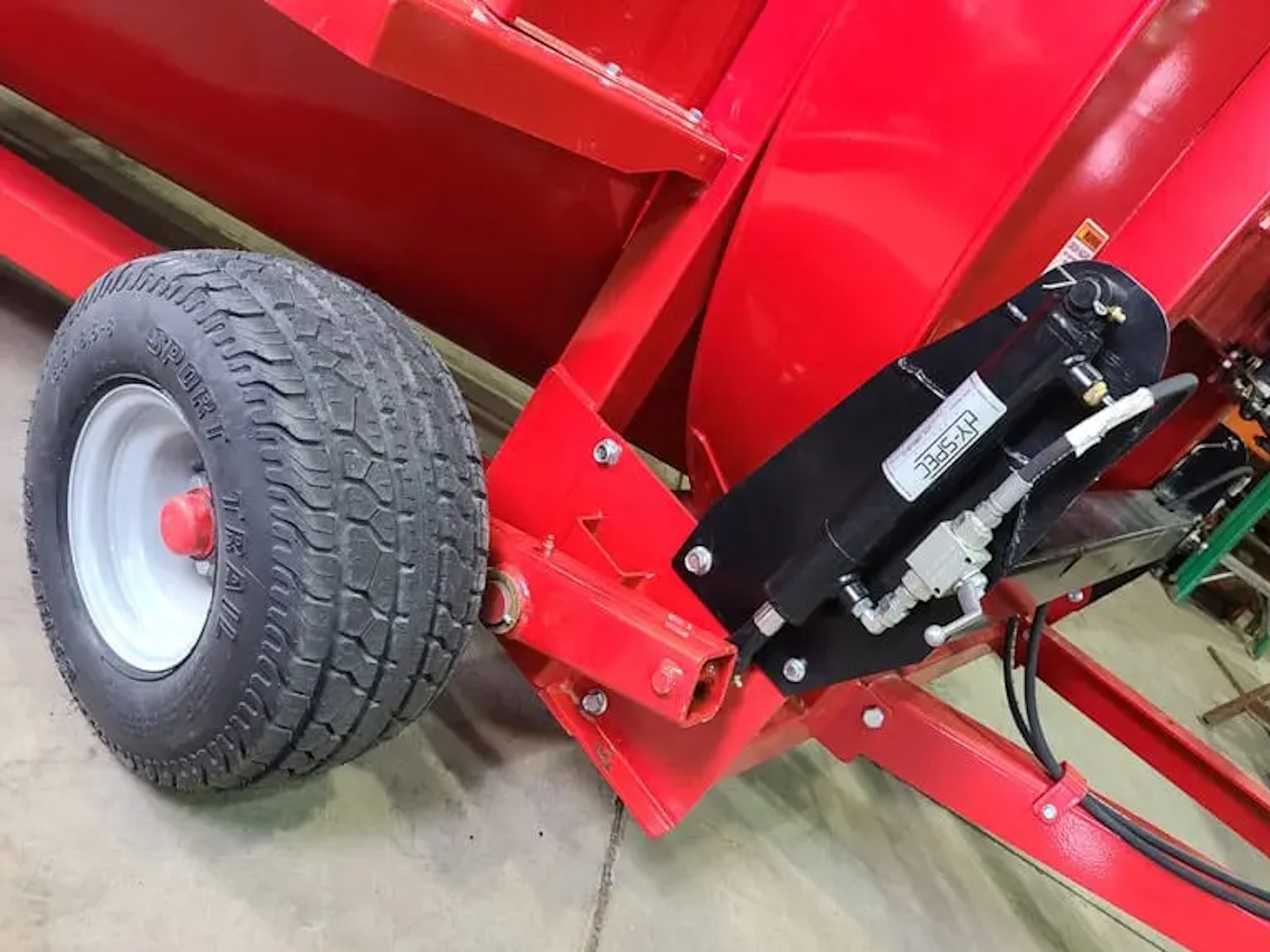

• Hydraulic wheel adjustment

Independent cylinders lift both wheels without effort. Travel between & set up at the silo has never been so easy. Wheels and tires are mounted on heavy-duty cast iron hubs, equipped with conical wheel bearings ensuring exceptional reliability.

• Largest intake table on the market

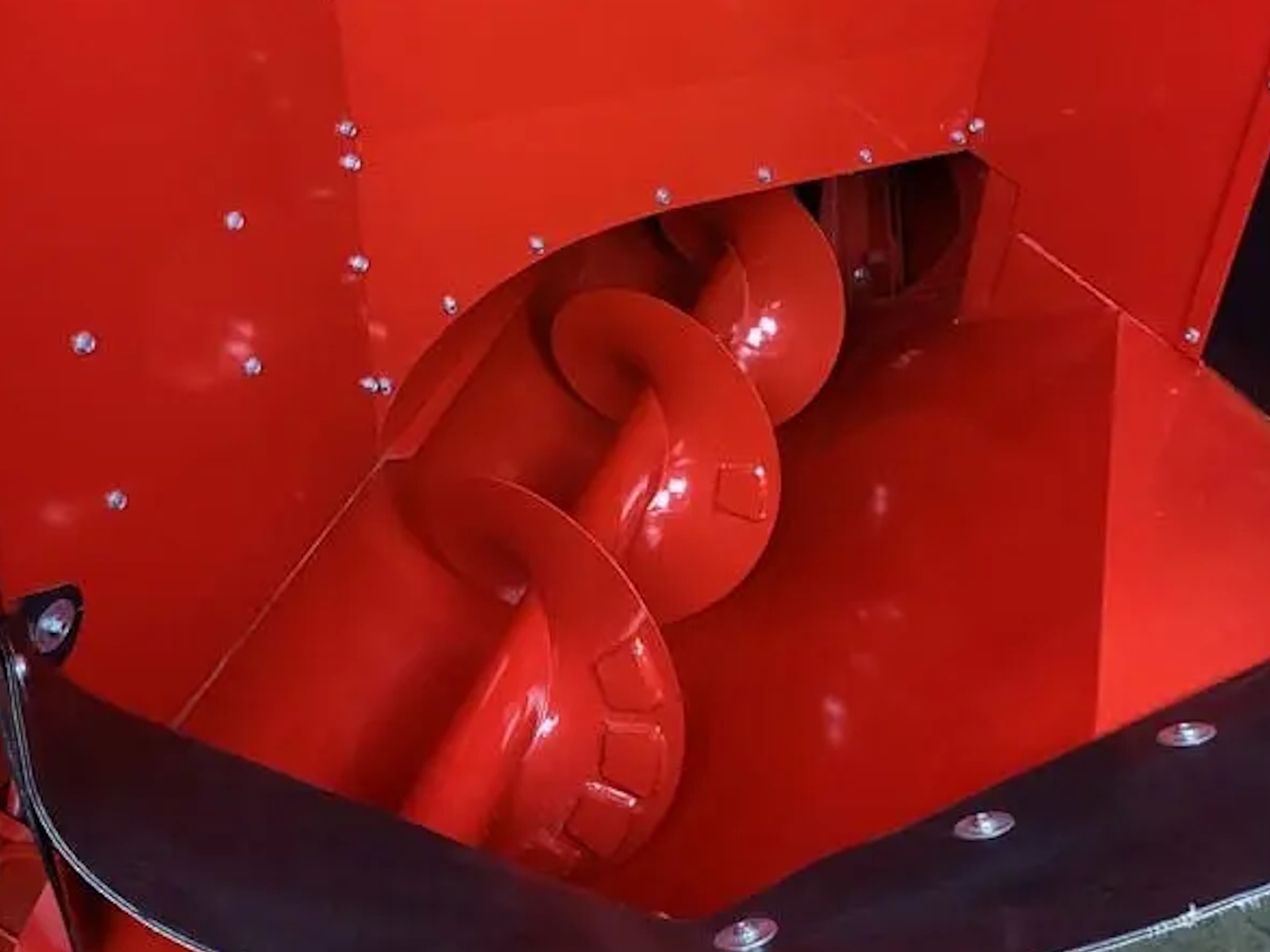

The rotor capacity means nothing if it's not fed properly- Dion forage blowers offer an oversized intake table capable or accepting high throughputs without bridging or clogging. The 14" diameter augers easily outperforms the competition.

Ergonomic and safe

The auger engagement system is simple and a safe.

Hinged guards provide easy access for maintenance and adjustments.

PTO shearbolts are stored on the driveshaft guard for handy access.

• Water intake

Two water intakes are standard equipment on the 860 blowers. They provide lubrication to the rotor band and auger to prevent debris adhesion, accumulation and also reduce power requirement and wear.

• The Dion advantage

The 860 provides the following benefits over the competition:

High inertia, stable operation, less vibrations.

Uniform feeding with the high capacity auger.

More paddles, therefore longer paddle replacement intervals.

High paddle/min frequency resulting in a smooth operation and high air flow

Competitive price.
