2026 Dawn 5090 Series Pneumatic Coulter Setup

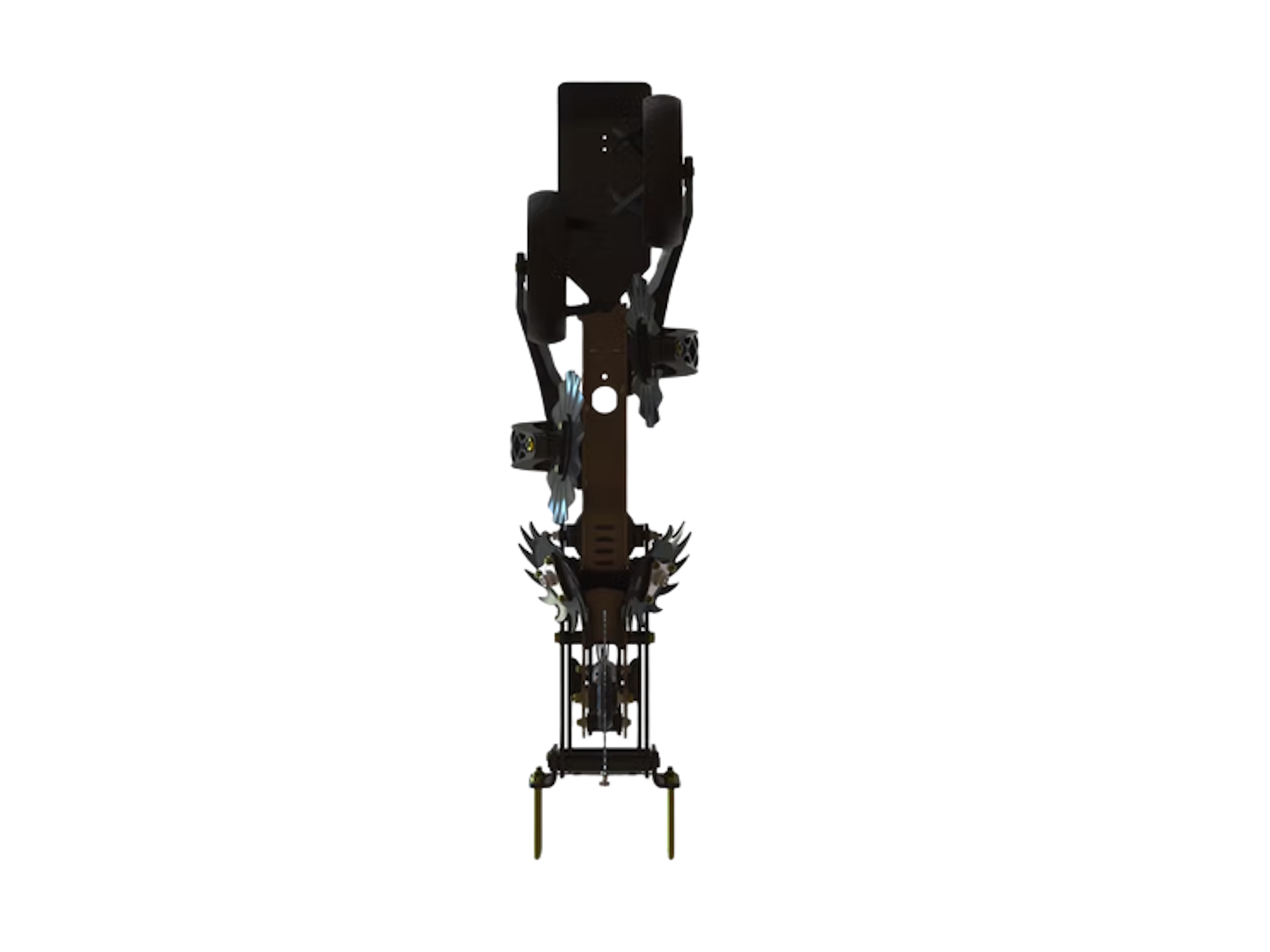

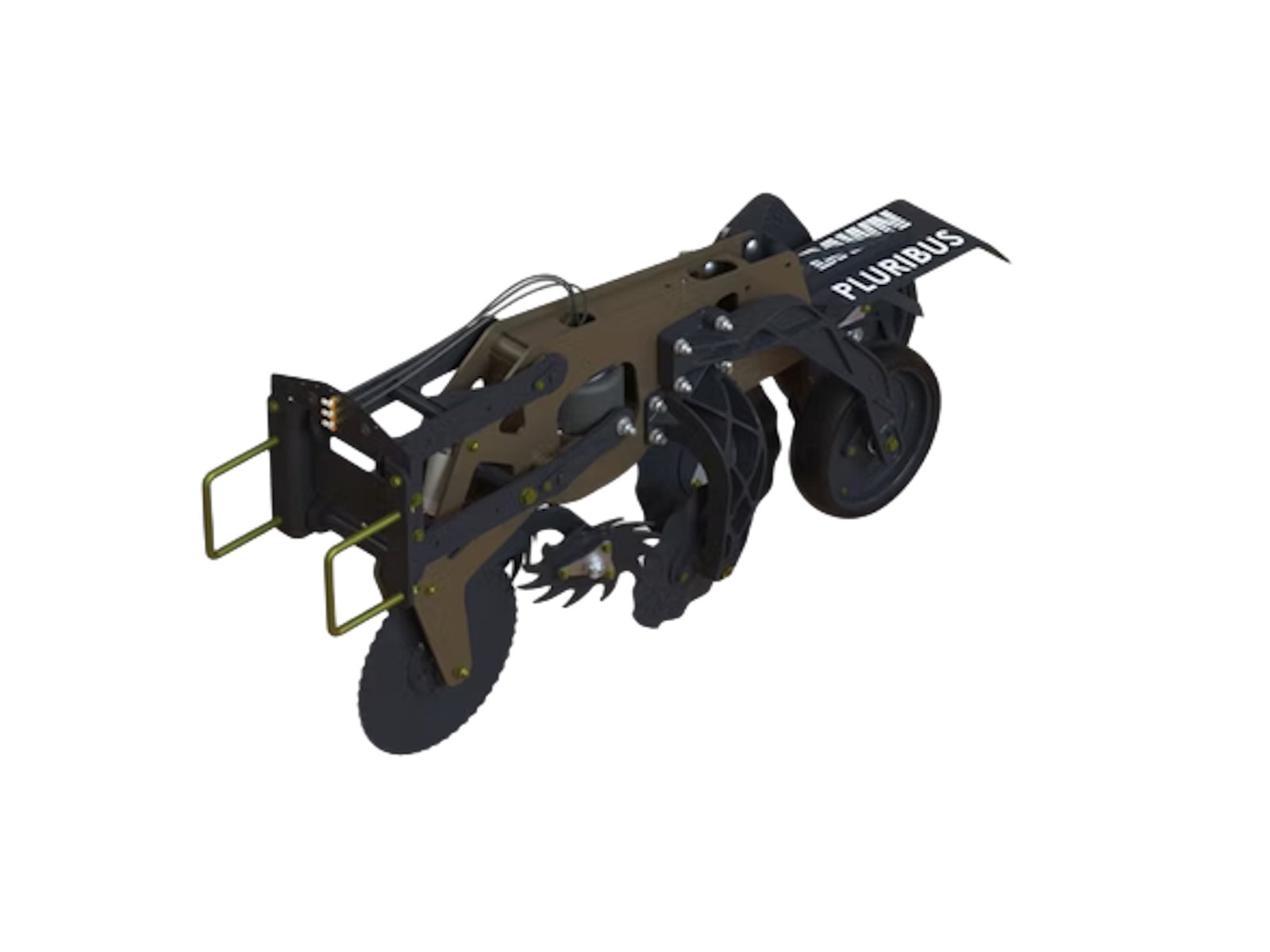

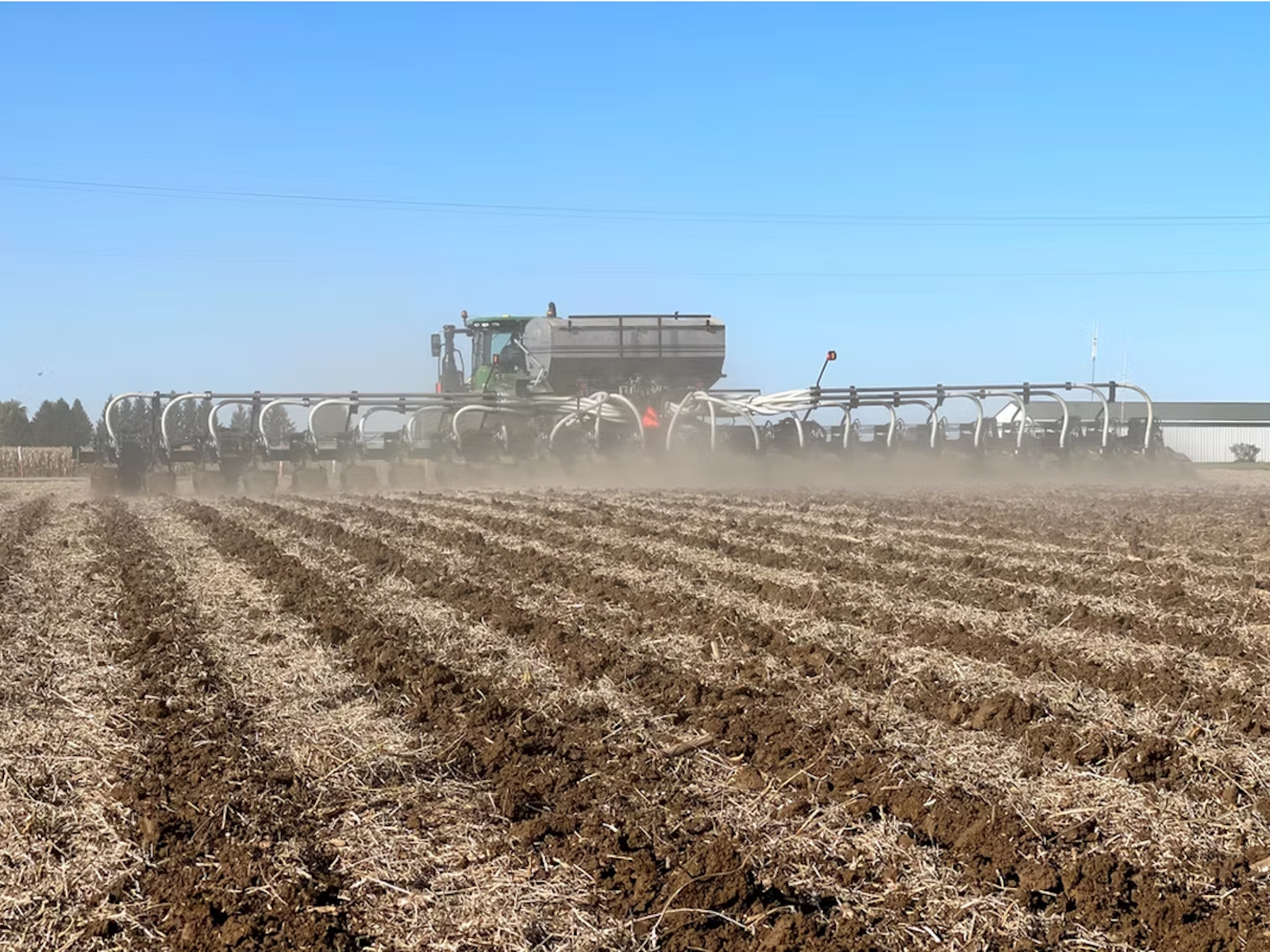

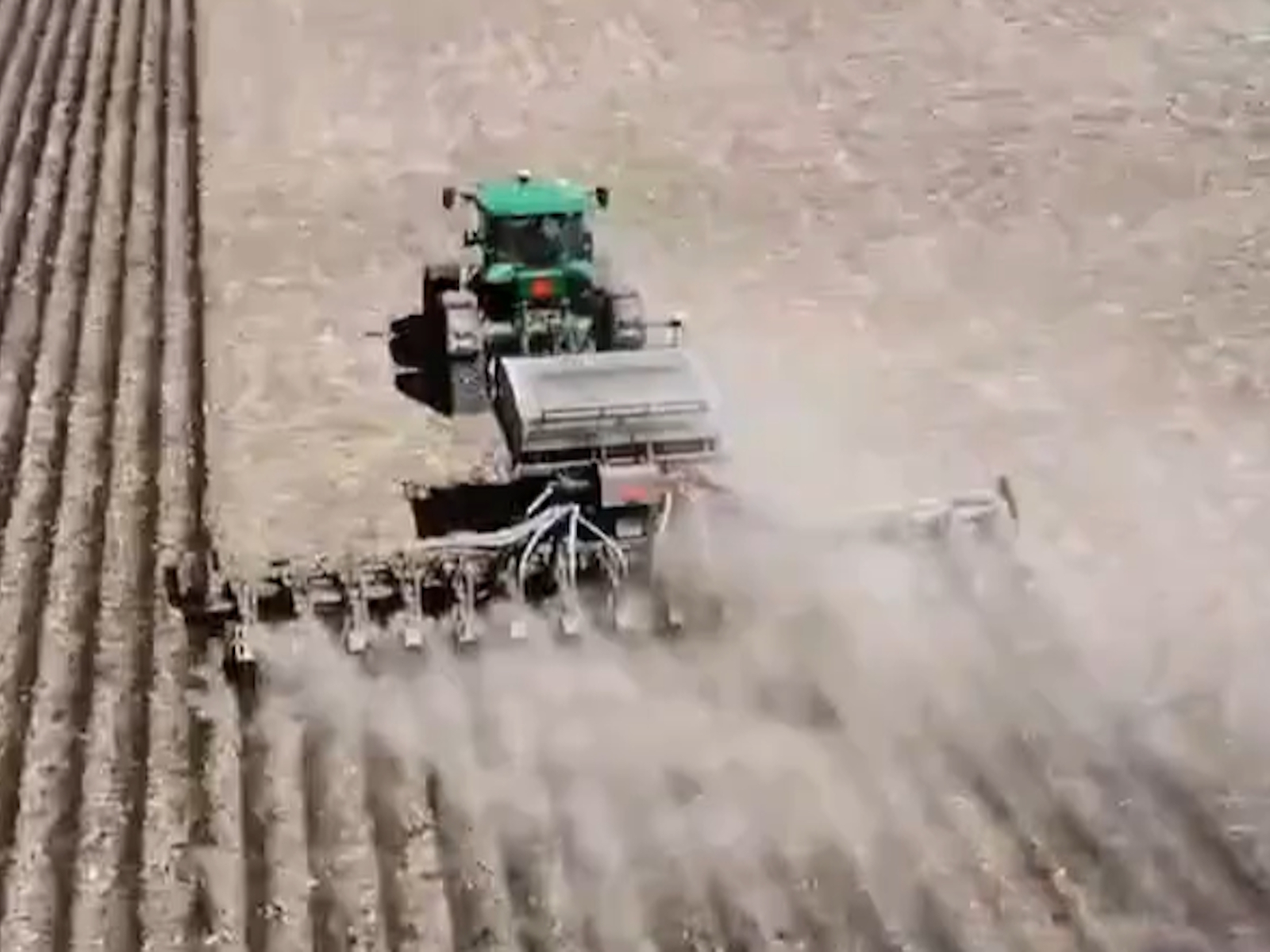

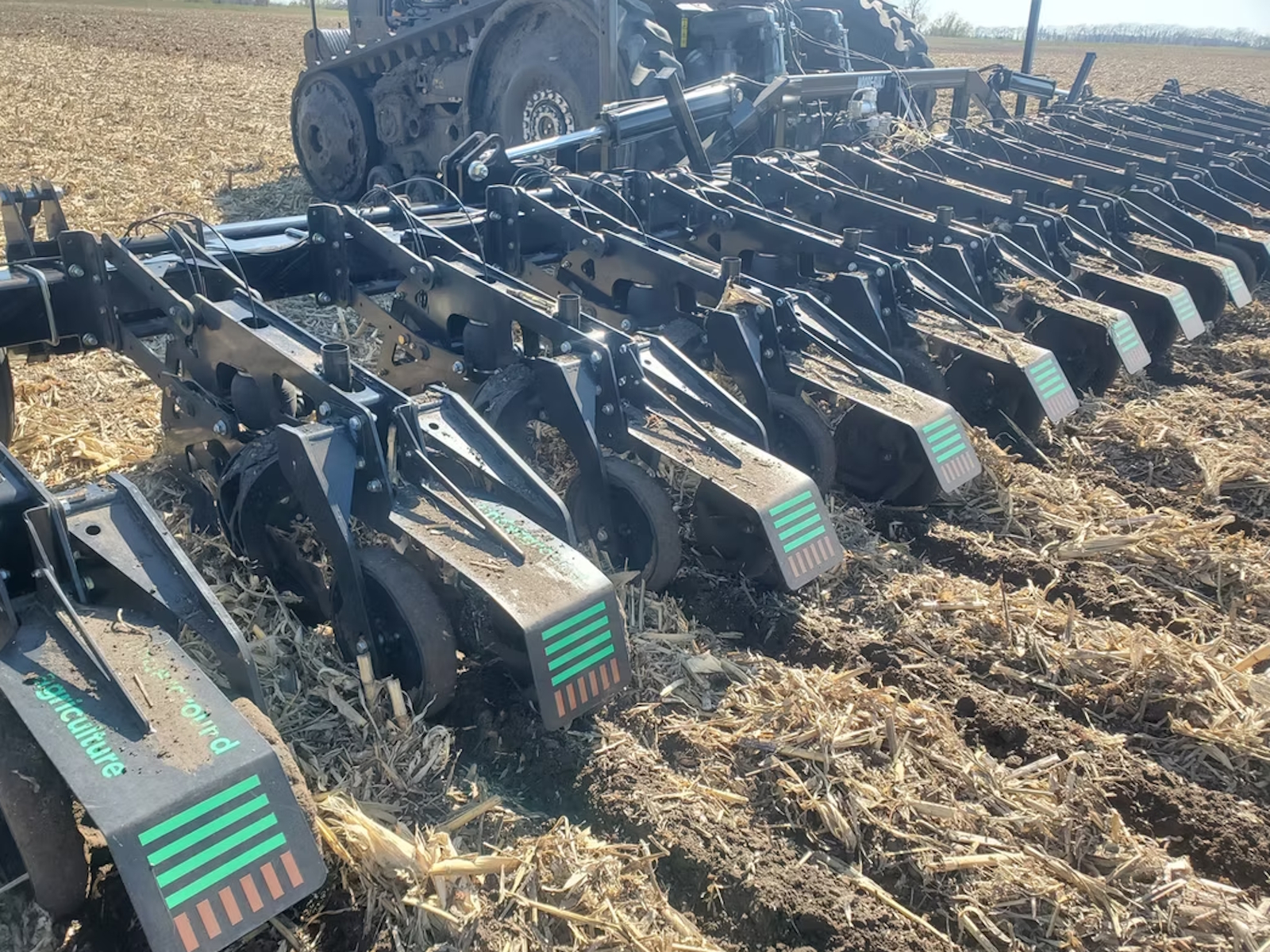

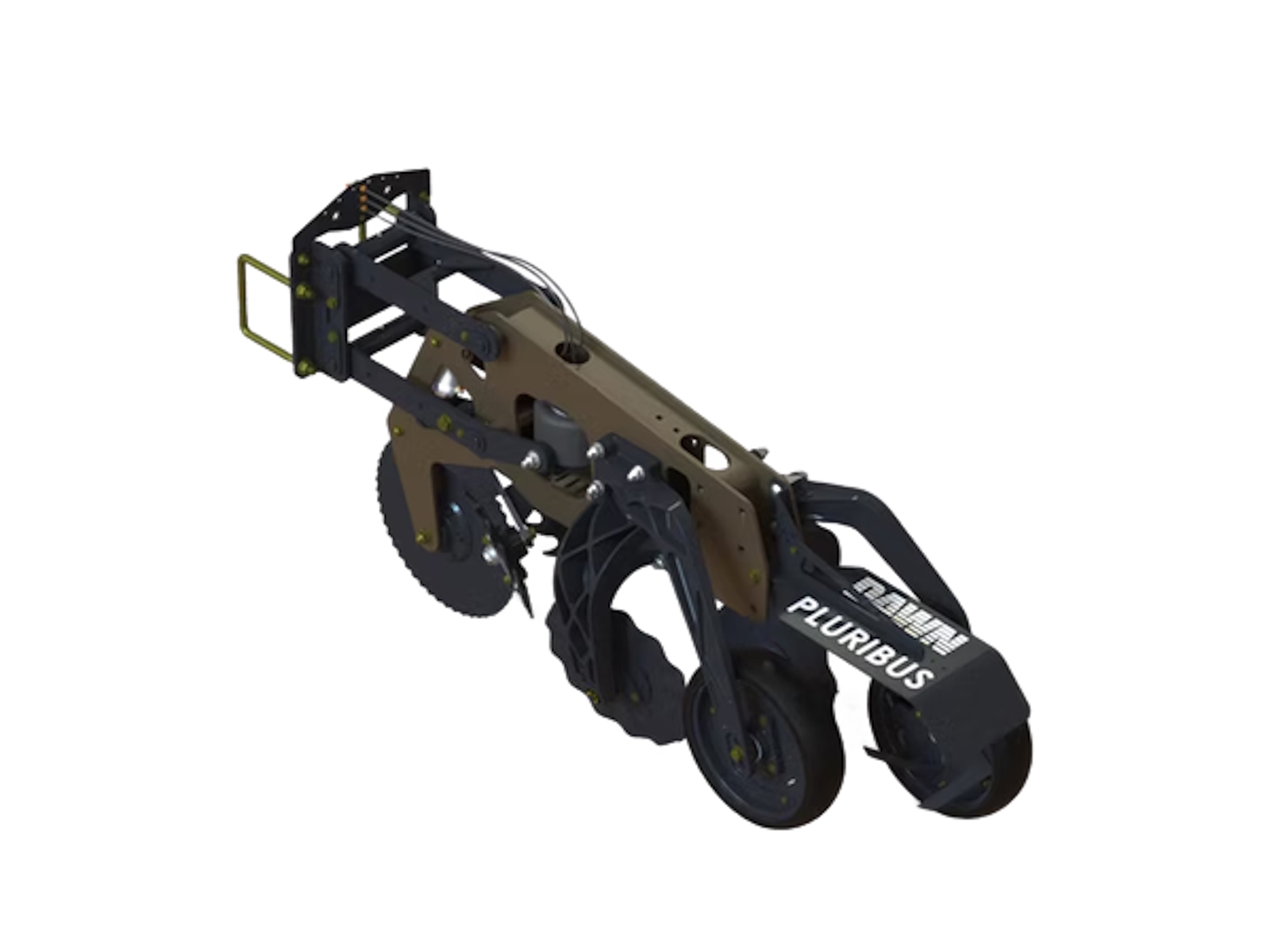

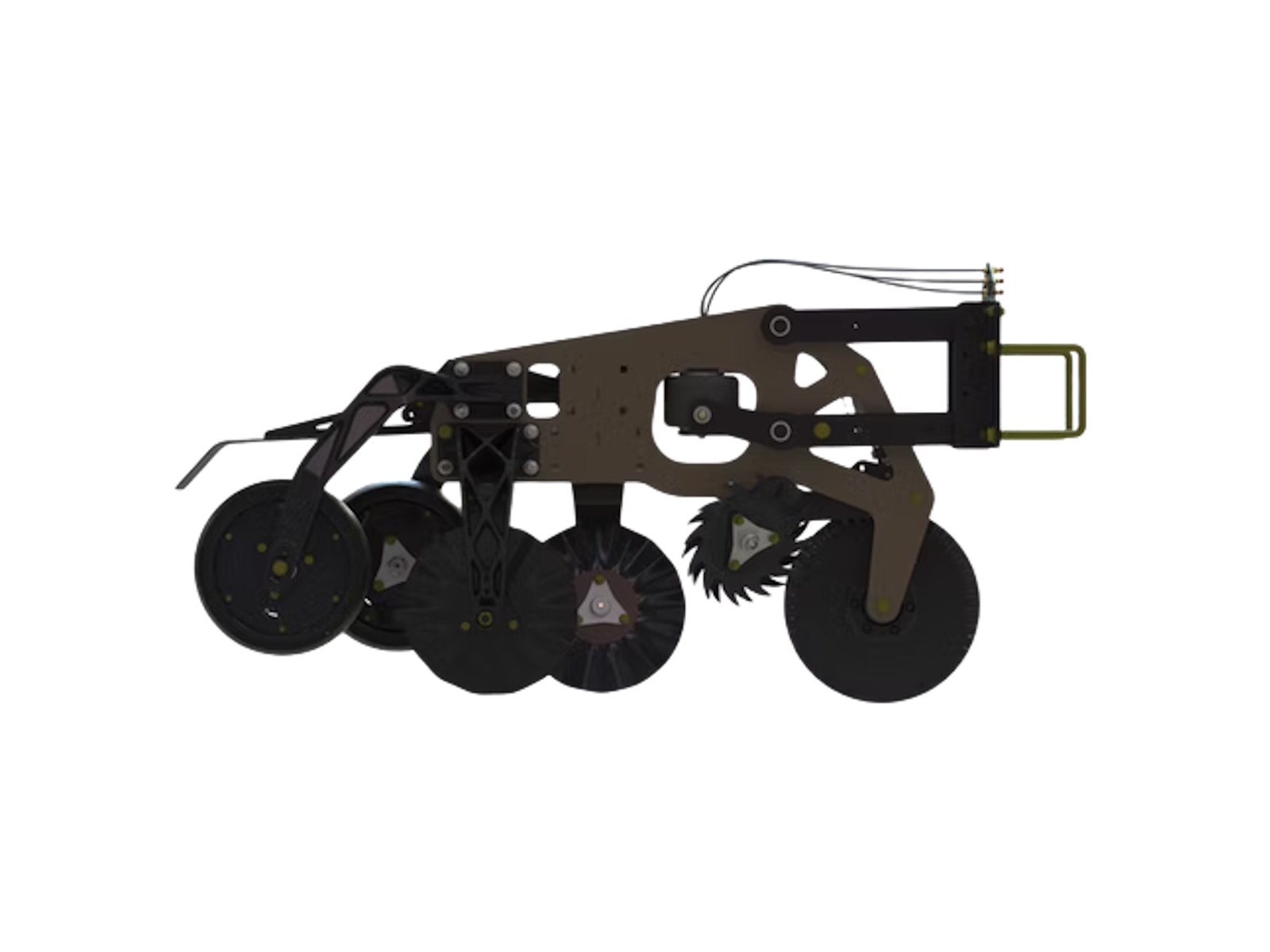

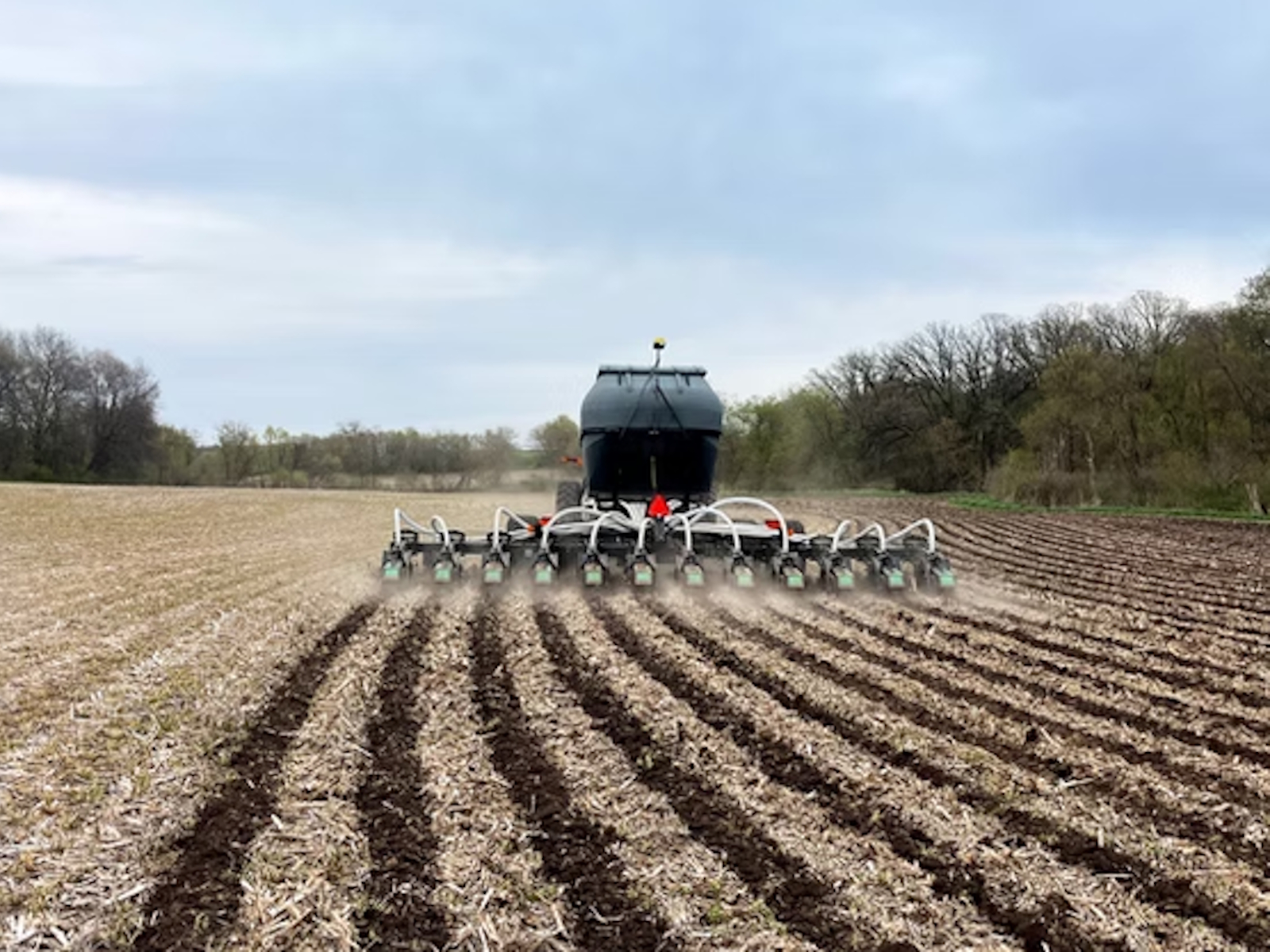

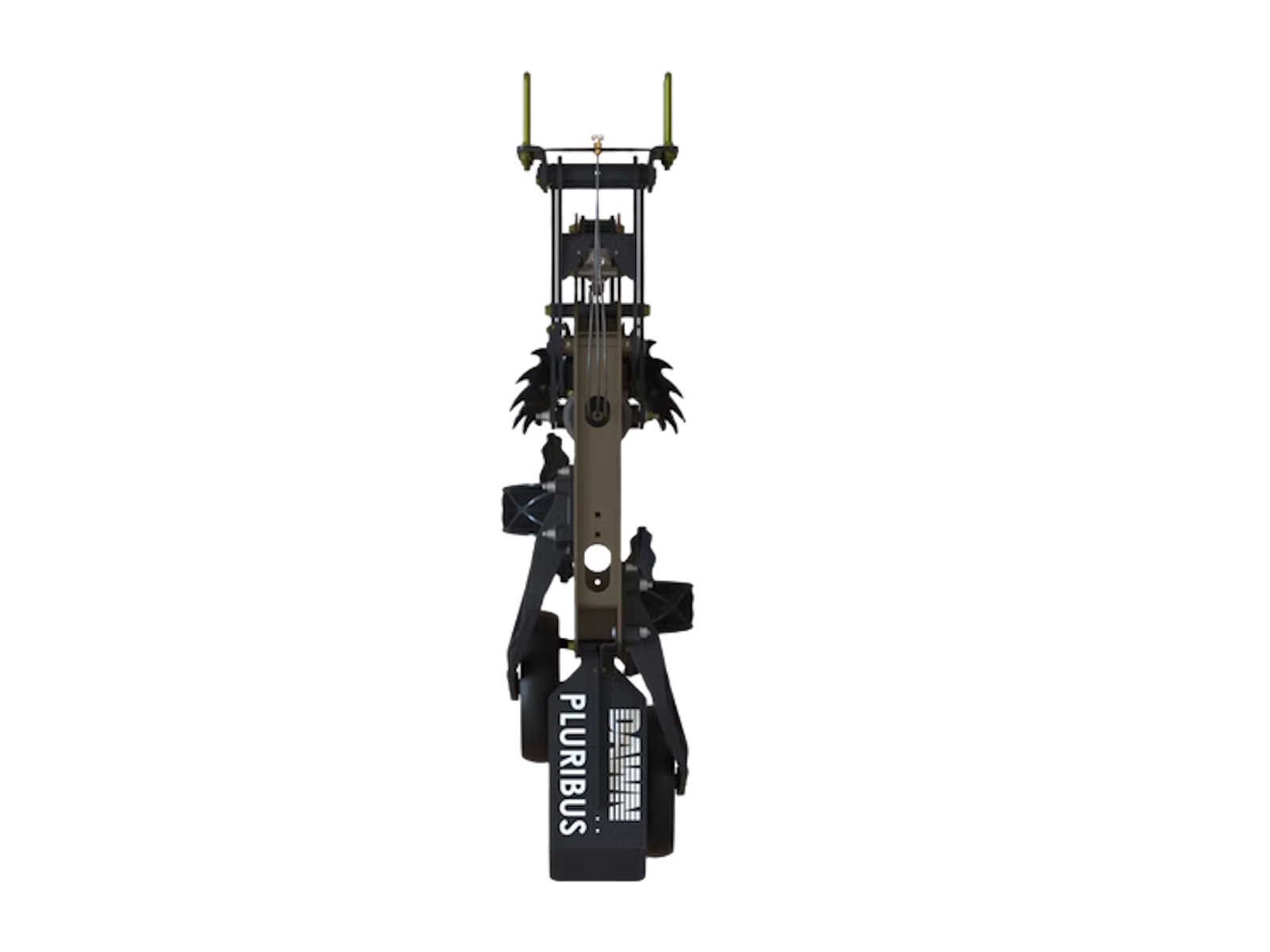

The Pluribus Strip Till Row Unit provides a versatile and modular solution designed to meet growers' tillage requirements. Whether you need a coulter or a knife unit, its design allows for simple configuration change over, enabling minimal investment if your farming practice change. The pneumatic coulter setup forms a strip that is up to 8" wide and 6" deep while minimizing the amount of rocks disturbed. The design of this unit prioritizes simplicity, featuring easy depth adjustments and in-cab controls for both unit downforce and row cleaners. Additionally, it boasts a reduction in wear points that usually affect the quality of the strip negatively. Additionally, we machine our tested and trusted coulter angle into the coulter arm to ensure minimal strip variation. While strip tilling, the unit can apply both liquid and dry fertilizers and can be ordered with various wheel options to accommodate different needs. Whether you require a coulter, knife, or freshener, the Pluribus Strip Till Unit delivers outstanding flexibility and reliability.

Features May Include:

• Pneumatic Control​
• Modular Setup
• Simple Adjustments
• Fertilizer Application Options
• Standard Trailing Row Cleaners

• Improve Air Tube Routing with Bulkhead Plate

  The bulkhead plate is designed for clean and straightforward installations. With push-to-connect fittings, it's easy to set up and troubleshoot issues within the air system. The bulkhead keeps everything organized and minimizes the risk of damage to pneumatic hoses. Additionally, there are two integrated holes with grommets to assist with a neat installation for any liquid system.

• Optimal Cleaning Performance with Trailing Row Cleaners

  The Pluribus is fitted with integrated trailing row cleaners that effectively remove debris for a cleaner strip. These row cleaners are strategically positioned to enable the leading blade to size the material before it is moved, significantly reducing the risk of wrapping and plugging. Additionally the trailing design of the row cleaners minimizes soil disturbance.

• Simplicity with Pneumatic Control

  The Pluribus makes use of an air spring to provide downforce for the row unit and features an air cylinder for controlling the row cleaner. This configuration not only decreases costs but also simplifies the design of the row unit. With our in-cab pneumatic control, you can effortlessly adjust downforce for both the row cleaners and the unit, and conveniently raise the row cleaners when they are not needed.

• Decrease Adjustments with Preset Coulter Blade Angle

  One of the key components of any strip-till unit is the coulter arms. They carry out most of the tillage, so it's essential to ensure a dependable and consistent blade angle for each row unit to function reliably. By machining our tested and trusted blade angle into a custom casted coulter arm, we guarantee that the blade angle remains accurate, leading to a more consistent uniform strip. If the angle was adjustable, it can wear and change over time, leading to increased maintenance costs and a reduced performance.

• Change Depth with Simple Gauge Wheel Adjustments

  The Pluribus is equipped with cast gauge wheel arms that are machined to ensure reliable depth control. These arms offer three adjustable settings, allowing users to easily reposition the gauge wheel to their desired depth by simply unbolting it. This design creates a robust connection, significantly minimizing wear on components and lowering maintenance costs.

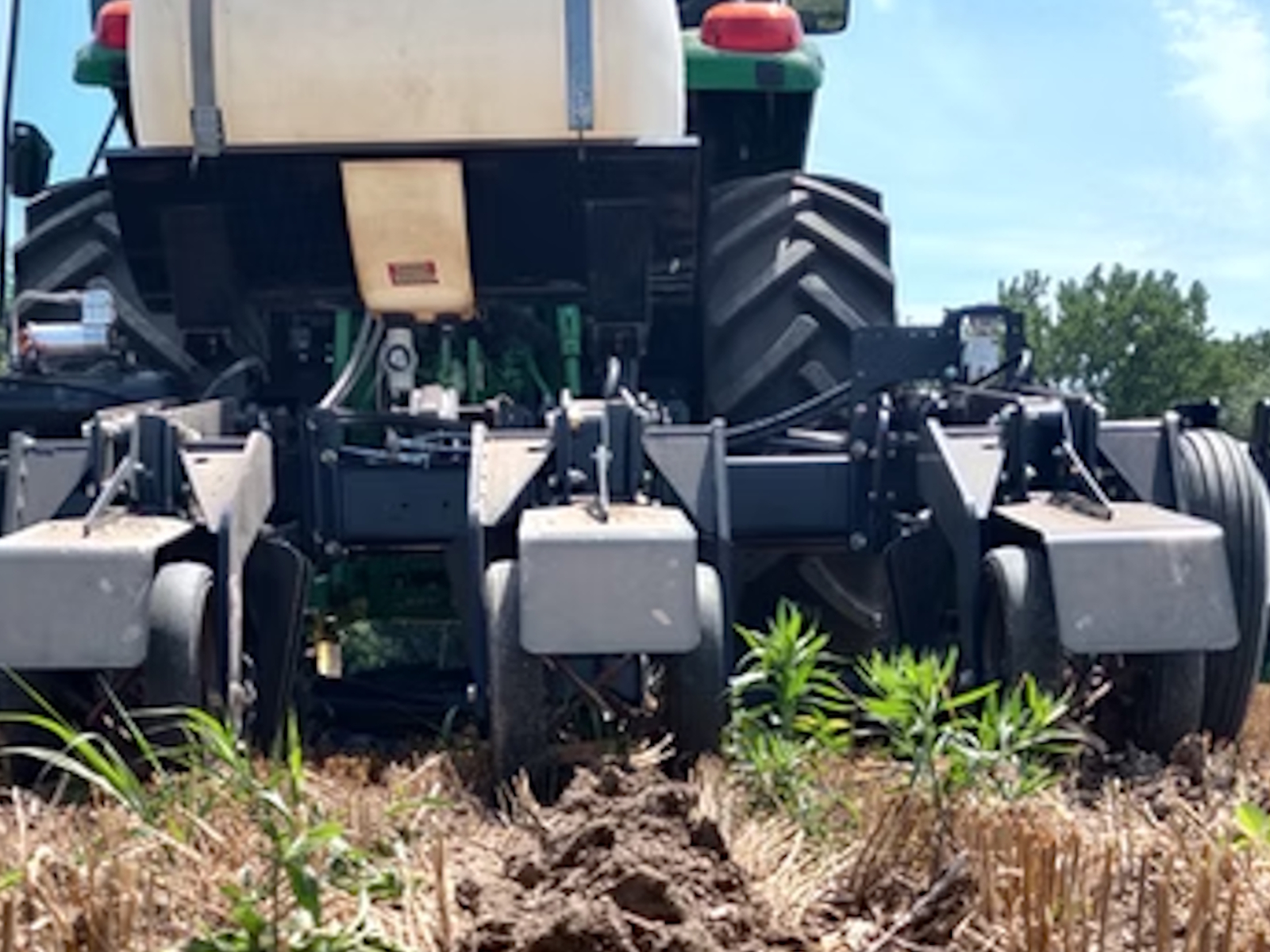

• Control Soil Placement with Adjustable Tail Shield

  The tail shield can be adjusted with a series of holes. It plays a crucial role in managing the soil flow from the swirls and also aids in breaking up soil that comes into contact with it. The formed piece at the end ensures that the soil is directed evenly back to the strip.
