2024 Beaver Valley Supply Co APV01001-1-001

Items Included

• Electric Control Box 2.10 with Steel Bracket For Mounting In the Driver’s Cab
• Complete Spreader With Electric Spreading Disc & adjustable Throwing Vanes Each
• Adaptor Sleeves For Extending The Agitator For Grass
• 1 Deflectors, Upper Linkage Mounting, Counter Plate, & Agitator Extension
• 3 m Cable For Power Supply From The battery to the control box, 6 m cable from the spreader to the control box

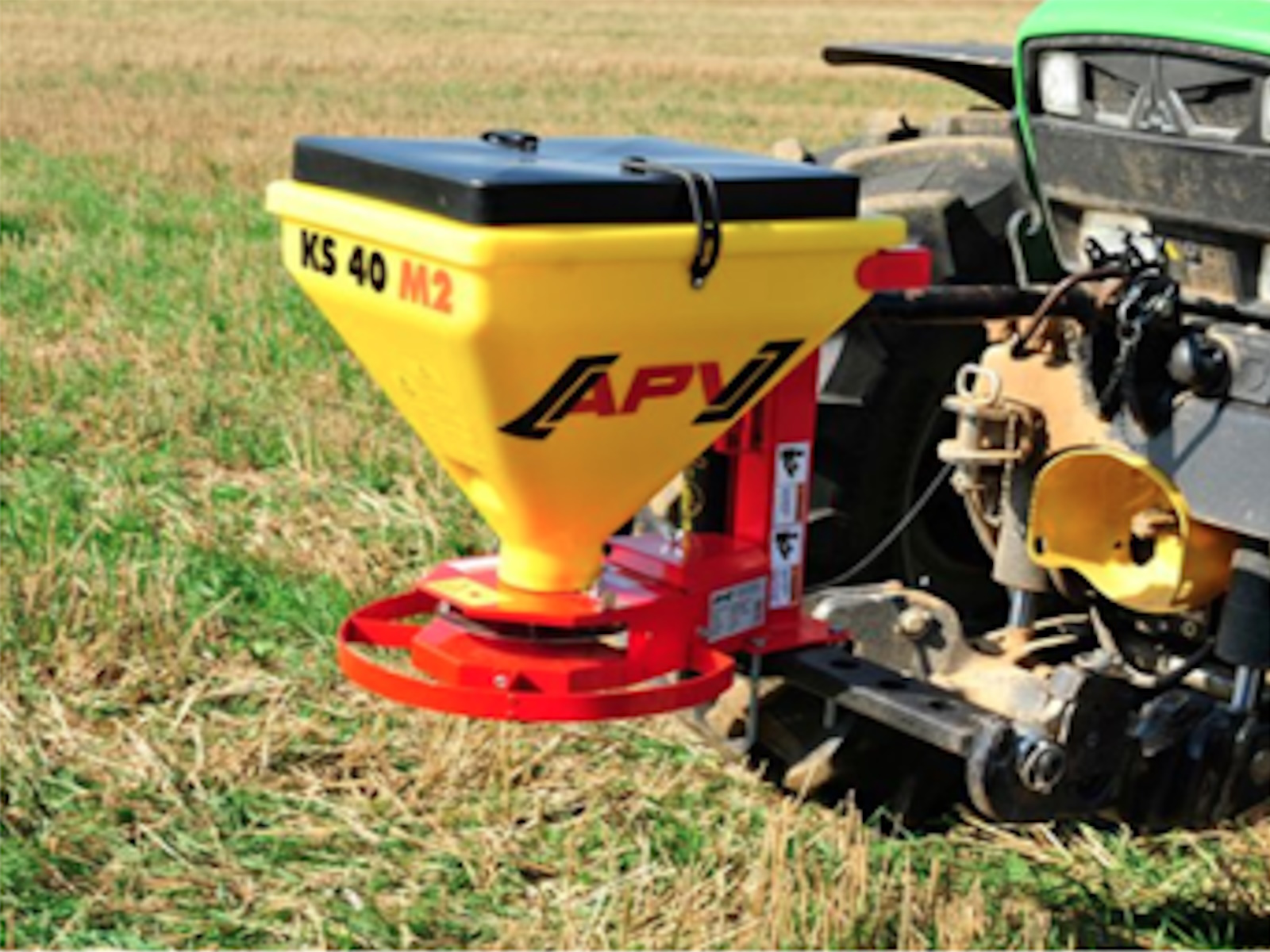

APV KS 40 M2 Seeder

The compact Mini Spreader KS 40 M2 is versatile in use thanks to its low weight. The seed hopper has a volume of 40 l for the output of low quantities of spreading material. Use the KS for the output of small seeds, such as seeding a lawn, cultivating catch crops (e.g. mustard) or for spreading slug pellets.

Functional Principle
The plastic hopper ensures the low weight of the entire spreader. It contains the spreading material, which securely reaches the metering shutter through an agitator. You can control the spread rate with the stepless metering shutter. The spreading material falls on the spreading disc and is distributed equally across the working width. The speed of the spreading disc and thus the working width are easy to set from the driver’s seat via the control box.

EXACT
-Low power consumption in operation
-Little space needed on the machine and for storage
-High quality control box (RPM measurement, regulation and control)

VERSATILE
-Large filling opening
-Automatic start in the case of firmly tapped spreading material
-Can be used with almost any implement1

-Note: Power supply of 12 V required

COMFORTABLE
-Low power consumption in operation
-Practical and compact spreader
-Large standard scope of delivery – All important mounting elements are included!
-Straightforward adjustment of the working width from the driver’s seat

Application Areas

• Spreading of small seeds
• Spreading of grass
• Spreading of catch crops (e.g.: mustard)
• Spreading of slug pellets
