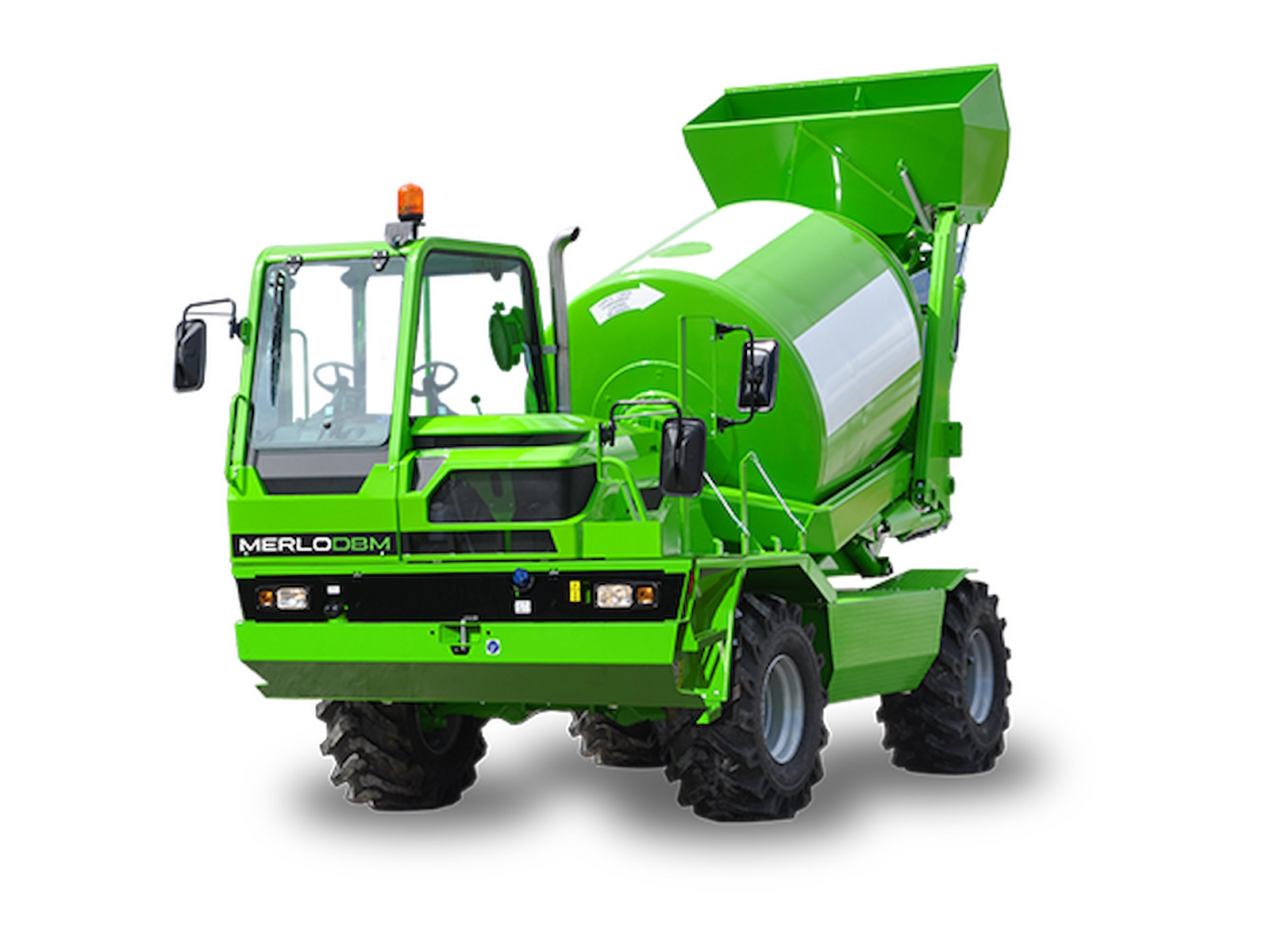

2024 AMS-Merlo DBM DBM2500

To maximise the efficiency of concrete laying, the drum controls are replicated on the outside of the machine, allowing the mix to be unloaded from the ground if the machine does not need to be moved.

The exclusive EPD (Eco Power Drive) is a Merlo patented system for electronically controlling and regulating the engine and transmission, ensuring a reduction in consumption by up to 18%.

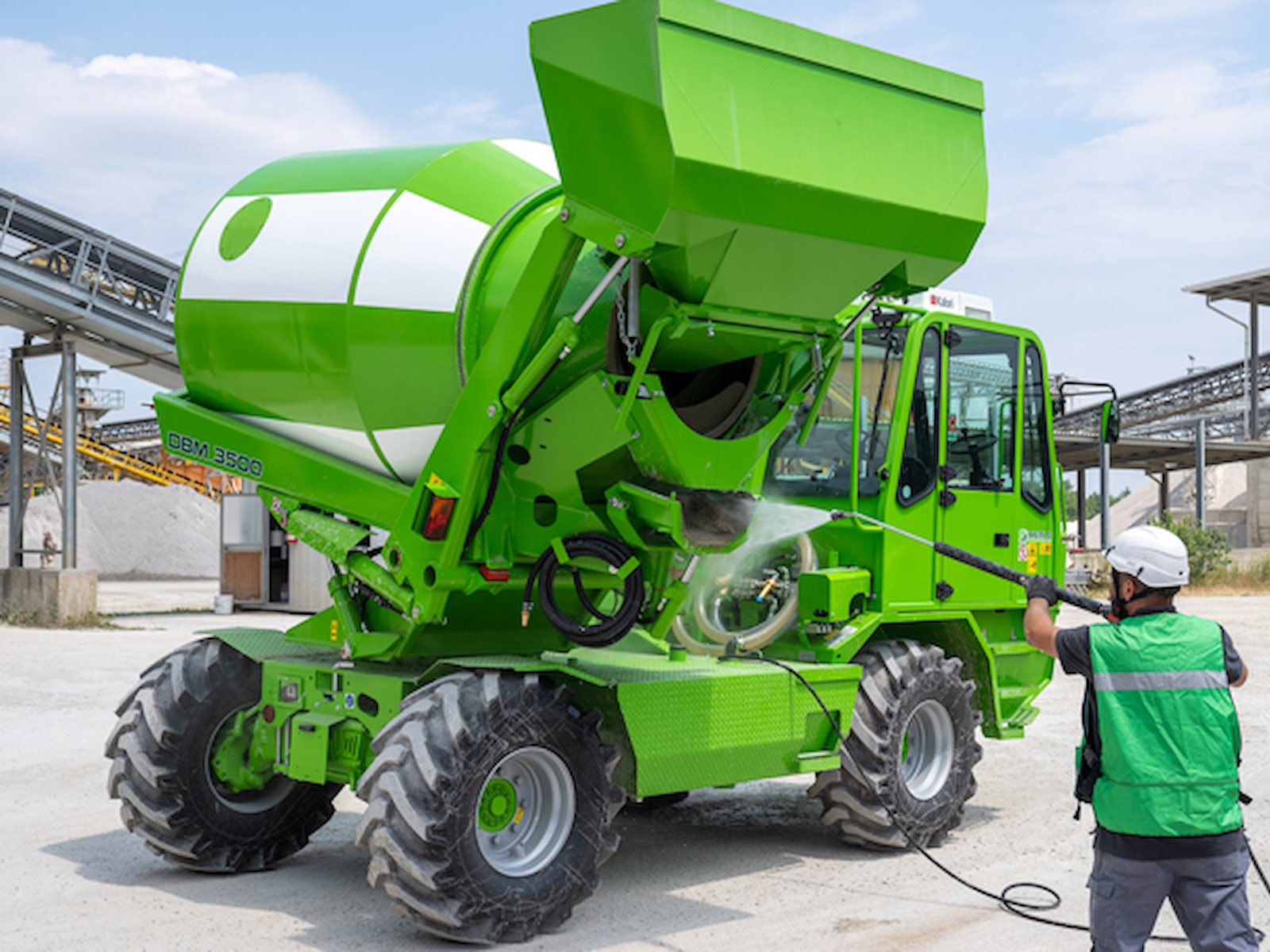

The machine hydraulic system is composed of a self-priming pump with 3-way diverter (drum, tank or washing lance). A hose allows supply from an external source and a lance is set up for washing the machine at the end of the shift.

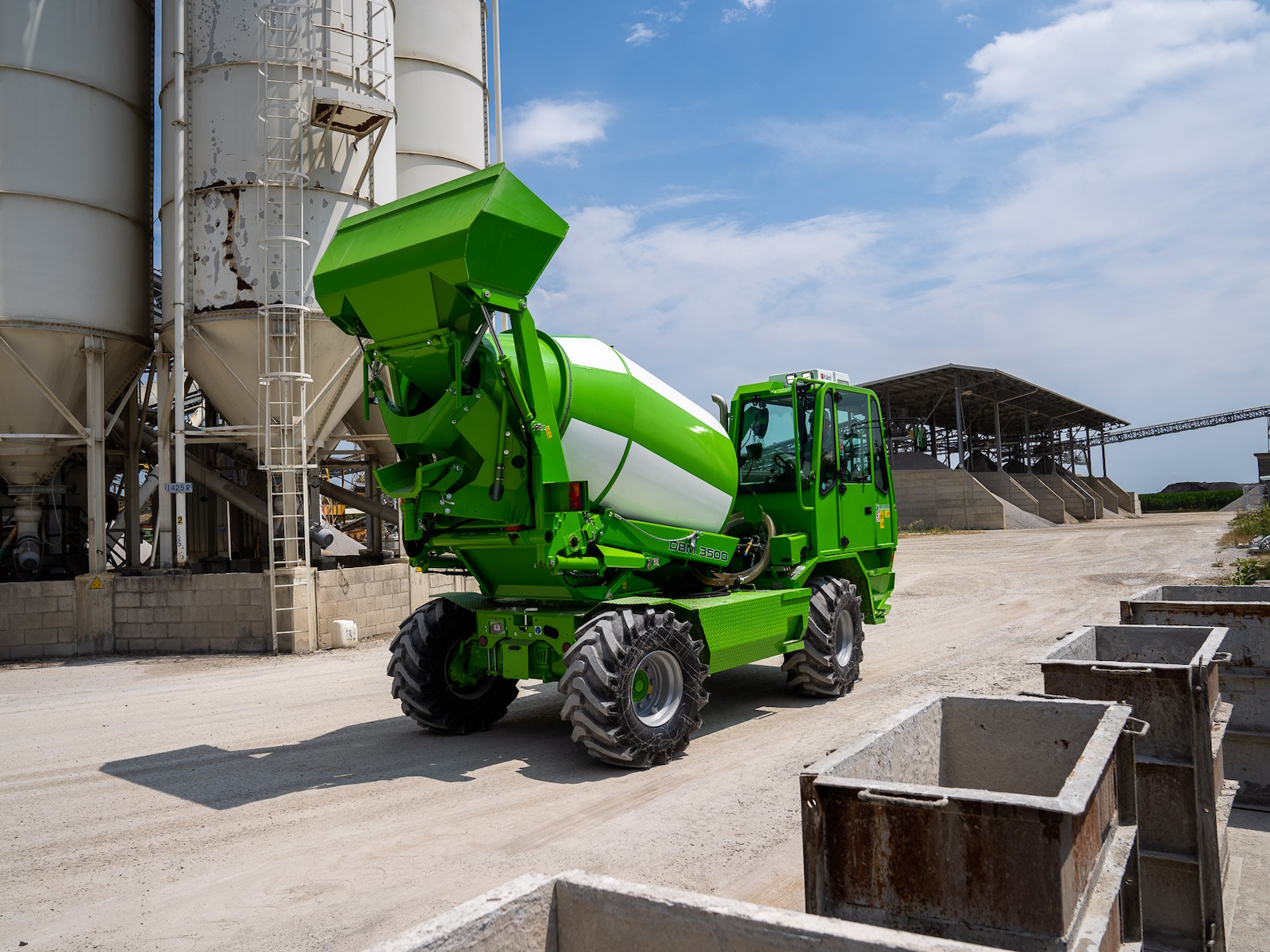

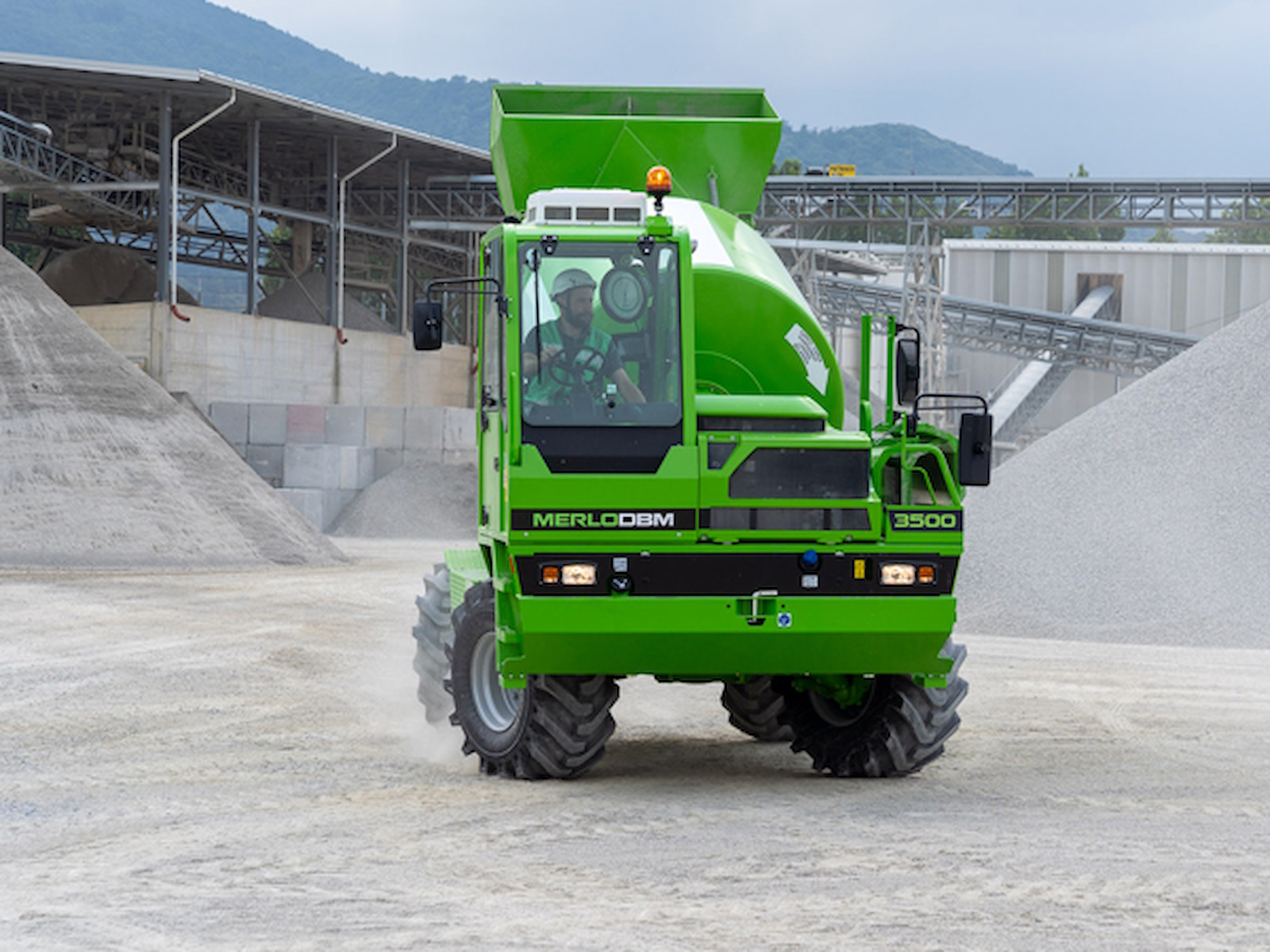

The barrel is designed and fitted offset from the chassis, providing excellent visibility when driving on the construction site. In addition, when fully loaded, it allows the centre of gravity of the machine to remain unchanged, as the concrete mass is aligned with the centre of the machine.
